2008 TOYOTA LAND CRUISER Owners Manual

26
1−2. Opening, closing and locking the doors

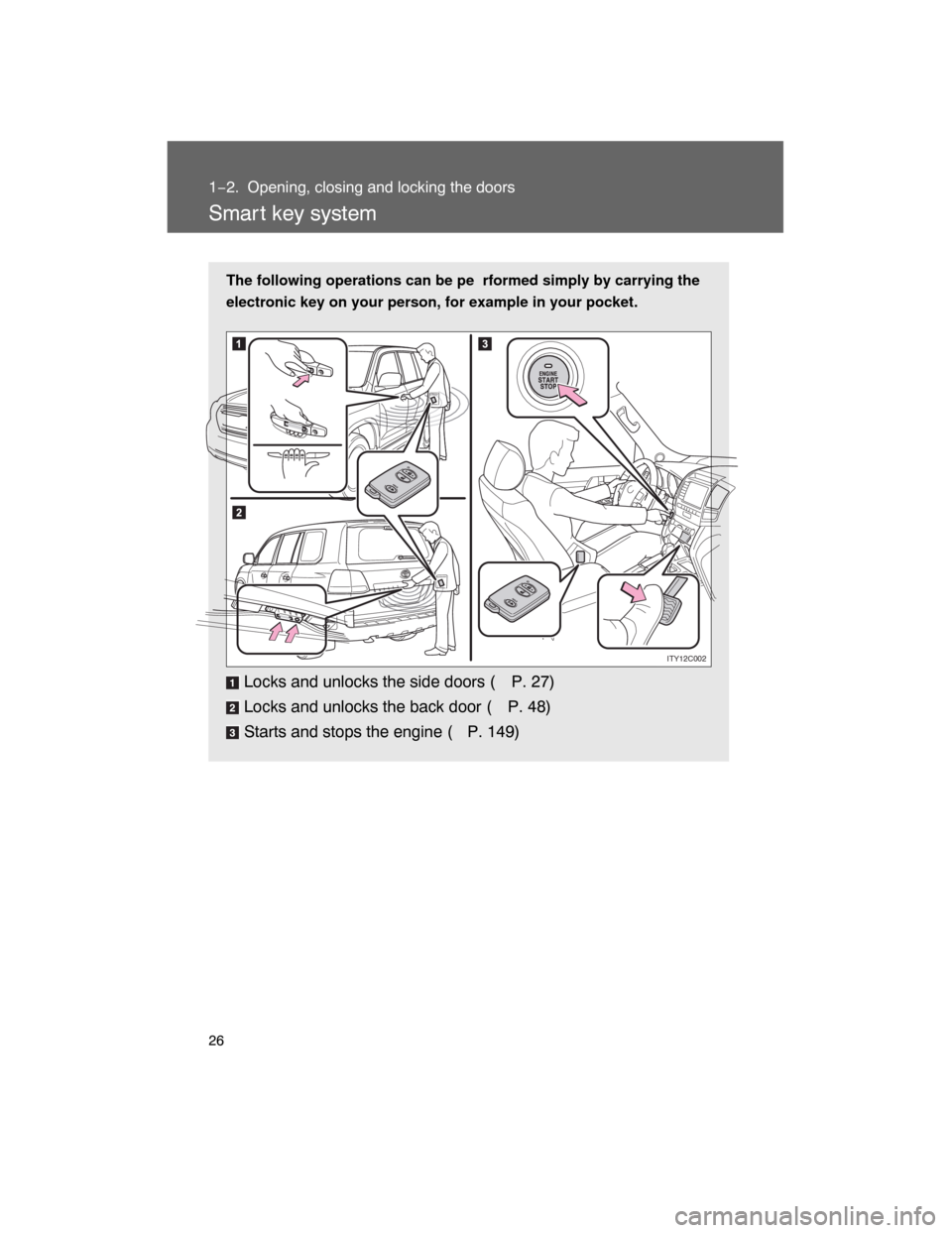

Smar t key system
The following operations can be pe rformed simply by carrying the
electronic key on your person, for example in your pocket.
Locks and unlocks the side doors ( P. 27)
Locks and unlocks the back door ( P. 48)
Starts and stops the engine (
P. 149)
ITY12C002

27
1−2. Opening, closing and locking the doors
1
Before driving
Locking and unlocking the side doors
Press the lock button to lock the
door.
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Locking and unlocking the back door
Press the lock button to lock the
back door.
ITY12C008
ITY12C009

28 1−2. Opening, closing and locking the doors
Press the unlock button to
unlock the back door.
Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna outside luggage com−
partment
321212
ITY12C019

29
1−2. Opening, closing and locking the doors
1
Before driving
nEffective range (areas within which the electronic key is
detected)
When locking or unlock−
ing the doors
The system can be oper−
ated when the electronic
key is within about 2.3 ft.
(0.7 m) of an outside door
handle.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be oper−
ated when the electronic
key is inside the vehicle.

30 1−2. Opening, closing and locking the doors
nOperation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
nDoor lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.
nConditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping
P. 481)
lWhen the electronic key battery is depleted
lNear a TV tower, electric power plant, gas station, radio station, large dis−
play, airport or other facility that
generates strong radio waves or electri−
cal noise
lWhen carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
lWhen the electronic key has come into contact with, or is covered by a
metallic object
lWhen multiple electronic keys are in the vicinity
lWhen carrying or using the electronic key together with the following
devices that emit radio waves
Another vehicle’s electronic key
A wireless key that emits radio waves
Personal computer
lIf window tint with a metallic content or metallic objects are attached to
the rear window

31
1−2. Opening, closing and locking the doors
1
Before driving
nSwitching the door unlock function
If it is possible to set which doors the entry function unlocks.
Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, press and hold
, or for approximately 5 seconds while pressing
on the key.
The setting changes each time an operation is preformed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step 2.)
STEP1
STEP 2
Multi−information
displayUnlocking function Beep
Hold the driver ’s door han−
dle to unlock only the
driver ’s door.Exterior: Beeps three
times
Interior: Pings once
Hold either door handle to
unlock all doors.
Exterior: Beeps twice
Interior: Pings once

32 1−2. Opening, closing and locking the doors
nBatterysaving function
In the following circumstances, the entry function is disabled in order to pre−
vent the vehicle and electronic key batteries from discharging.
lWhen the entry function has not been used for 2 weeks or more
lWhen the electronic key has been left within approximately 3 ft. (1 m) of
the vehicle for 10 minutes or more
The system will resume operation when...
lThe vehicle is locked using the door handle lock switch.
lThe vehicle is locked/unlocked using the wireless remote control function
(
P. 40) or the mechanical key. ( P. 481)
nElectronic key battery depletion
lThe standard battery life is 1 to 2 years. (The battery becomes depleted
even if the electronic key is not used.) If the smart key system or the
wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when
necessary. ( P. 410)
lTo avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field.
TVs
Personal computers
Recharging cellular phones or cordless phones
Table lamps
nTo operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.
Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or
the door lock prevention may not func−
tion.)

33
1−2. Opening, closing and locking the doors
1
Before driving
nNote for the smart key system
lEven when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the back door is locked or unlocked.
The electronic key is on the instrument panel, floor or in the glove box
when the engine is started or “ENGINE START STOP” switch modes
are changed.
lAs long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
lEven if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.
lThe doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 60 seconds if the doors are not opened
and closed.)
lGripping the door handle when wearing a glove may not unlock the door.
lIf the wireless remote control is used to lock the doors when the elec−
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)
lA sudden approach to the effective range or door handle operation may
prevent the doors from being unlocked.
In this case, return the door han−
dle to the original position and check that the doors unlock before pulling
the door handle.
nWhen the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
nSecurity feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
