2008 TOYOTA LAND CRUISER Owners Manual

187
2−4. Using other driving systems
2
When driving
nChanging the warning beep volume
Touch .
Adjust the beep volume, then touch .
nChanging display and alert settings
Touch .
Touch to change the dist
ance for the back sensors
display and tone indication, then touch .
nDisplay off setting
Touch .
When an obstacle is detected while the rear view monitor is in use, the
warning indicator will appear in the top right of the screen even
has been selected.
nThe Toyota park assist system can be operated when
lFront corner sensors:
The “ENGINE START STOP” switch is in IGNITION ON mode.
The shift lever is in a position other than “P”.
The vehicle speed is less than about 6 mph (10 km/h).
lRear corner and back sensors:
The “ENGINE START STOP” switch is in IGNITION ON mode.
The shift lever is in “R”.
STEP1
STEP 2
STEP 1
STEP 2

188 2−4. Using other driving systems
nSensor detection information
lCertain vehicle conditions and the surrounding environment may affect
the ability of the sensor to correctly detect obstacles. Particular instances
where this may occur are listed below.
There is dirt, snow or ice on the sensor. (Wiping the sensor will resolve
this problem.)
The sensor is frozen. (Thawing the sensor will resolve this problem.)
The sensor is covered in any way.
In harsh sunlight or intense cold weather.
When driving on bumpy, sloped or gravel roads, or over grass.
If there is something producing ultrasonic waves nearby, such as
another vehicle’s horn, motorcycle engine noise, air braking sound
from heavy−duty vehicles, or another vehicle using the park assist sys−
tem.
In heavy rain, or if water is splashed on the sensors.
The vehicle is leaning considerably to one side.
If a commercial fender pole or radio antenna is installed.
If moving towards a high curb or a curb corner.
If towing eyelet is installed on your vehicle.
The bumper or sensor receives a strong impact.
A non−genuine Toyota suspension (lowered suspension etc.) is
installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
lThe shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles.
Thin objects such as wire, fencing or rope.
Objects that absorb sound waves, such as cotton or snow.
Objects with sharp corners.
Low objects.
Objects where the upper section projects out over the lower section.

189
2−4. Using other driving systems
2
When driving
n
P. 460
n
Certification
CAUTION
nWhen using the Toyota park assist system
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
lDo not use the sensor at speeds in excess of 6 mph (10 km/h).
lWhen moving forward or reversing, always check your surroundings for
safety and drive carefully.
lDo not install accessories within the sensors’ detection areas.
NOTICE
nWhen washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interfer−
ence that may cause undesired operation.

190
2−4. Using other driving systems

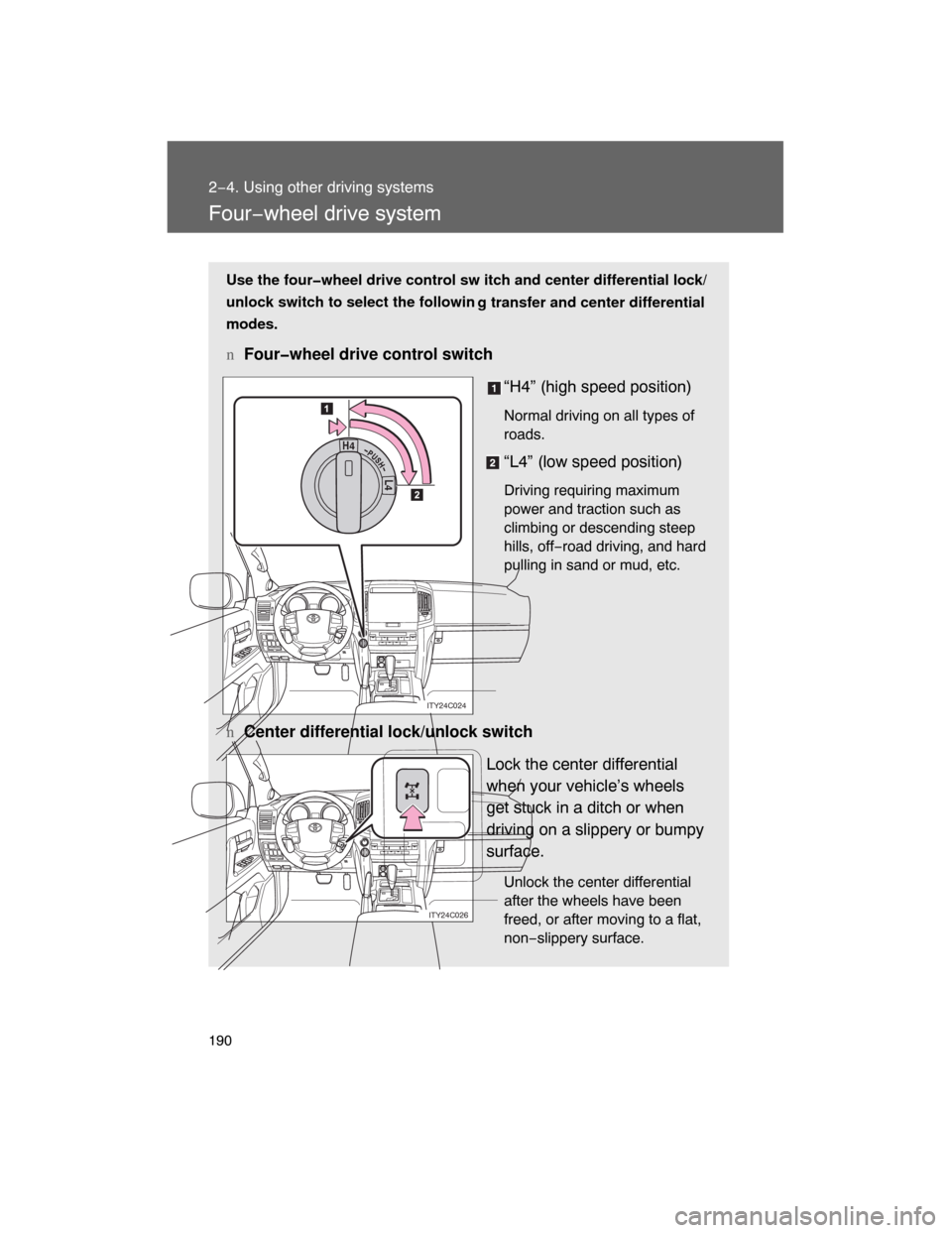

Four−wheel drive system
Use the fourwheel drive control sw itch and center differential lock/
unlock switch to select the followin
g transfer and center differential
modes.
nFourwheel drive control switch
“H4” (high speed position)
Normal driving on all types of
roads.
“L4” (low speed position)
Driving requiring maximum
power and traction such as
climbing or descending steep
hills, off−road driving, and hard
pulling in sand or mud, etc.
nCenter differential lock/unlock switch
Lock the center differential
when your vehicle’s wheels
get stuck in a ditch or when
driving on a slippery or bumpy
surface.
Unlock the center differential
after the wheels have been
freed, or after moving to a flat,
non−slippery surface.
4
4
ITY24C024
ITY24C026

191
2−4. Using other driving systems
2
When driving
Shifting between “H4”and “L4”
nShifting from “H4” to “L4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Push and turn the four−wheel drive control switch fully clock−
wise.
Maintain this condition until the low speed four−wheel drive indica−
tor light turns on.
nShifting from “L4” to “H4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Turn the four−wheel drive control switch fully counterclock−
wise.
Maintain this condition until the low speed four−wheel drive indica−
tor light turns off.
STEP1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

192 2−4. Using other driving systems
Neutral position
Shifting to the neutral position cuts drive power to the wheels.
n
Shifting from “H4” to the neutral position
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Confirm the following:
lThe four wheel−drive control switch is in “H4”. (The low speed four−
wheel drive indicator light is not illuminated.)
If the switch is in “L4”, turn it to “H4”. (
P. 190)
lThe center differential is unlocked. (The center differential lock indi−
cator light is not illuminated.)
If the center differential is locked,
press the center differential lock/
unlock switch to unlock the center differential. ( P. 190)
Set the parking brake firmly and put the shift lever in “N”.
Turn the engine off if the engine is running, then turn the
“ENGINE START STOP” switch to the IGNITION ON mode.
Do not start the engine till the end of the procedure.
Shift the shift lever to “P”.
Depress and release the brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
Shift the shift lever to “N”.
Depress and release the brake pedal 3 times.
Release the brake pedal once and then depress and release the
brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
STEP1
STEP 2
STEP 3
STEP 4
STEP 5
STEP6
STEP 7
STEP 8

193
2−4. Using other driving systems
2
When driving
Shift the four−wheel drive control switch to “L4”, then shift to
“H4” again.
When shifting the four−wheel drive control switch, push the switch
down while turning it.
The low speed four−wheel drive indicator light will flash slowly (turns
on and off every 2 seconds).
Shift the shift lever to “P”.
Shifting to the neutral position is completed with above procedure.
The unengaged “Park” warning light will turn on when the shift lever
is shifted to the “P” position.
To return to “H4” when the vehicle is in this condition, carry out the
following procedure.
nShifting from neutral position to “H4”
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Set the parking brake firmly.
Turn the “ENGINE START STOP” switch to the IGNITION ON
mode.
Do not start the engine at this time.
Depress the brake pedal firmly.
Keep the brake pedal depressed till the end of the procedure.
Shift the shift lever to “N”.
Shift the four−wheel drive control switch to “L4”, and then shift
to “H4” again.
When shifting the four−wheel drive control switch, push the switch
down while turning it.
The low speed four−wheel drive indicator light will turn off.
Shifting to “H4” is completed when the low speed four−wheel drive
indicator light turns off.
STEP9
STEP 10
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP6

194 2−4. Using other driving systems
nThe fourwheel drive control switch can be operated when
lThe “ENGINE START STOP” switch is in IGNITION ON mode.
lThe shift lever is in the “N” position.
lThe vehicle is stopped completely.
nAdvice for driving on slippery roads in “L4” (low speed position)
lIf you shift the four−wheel drive control switch to “L4” and the shift lever to
the “2” range of “S” while driving in steep off−road areas, the output of the
brake can be controlled effectively by the active traction control system,
which assists the driver to control the driving power of 4 wheels.
lUse the “1” range of “S” of the shift lever for maximum power and traction
when your wheels get stuck or when driving down a steep incline. In the
following cases, the output of the brake can be controlled by the active
traction control system if the engine speed is under 3,000 rpm (normally
under 3,000 rpm when the wheels get unstuck).
The four−wheel drive control switch is in the “L4” position and the shift
lever is in the “1” range of “S” or the shift lever is in “D” or “S” with the
transmission downshifted to first gear.
The four−wheel drive control switch is in the “L4” position and the shift
lever is in the “R” position.
nThe center differential lock/unlock button can be operated when
lThe “ENGINE START STOP” switch is in IGNITION ON mode.
lThe vehicle speed is less than 60 mph (100 km/h).
nLocking/unlocking the center differential
lWhen the center differential is locked, VSC (vehicle stability control) is
automatically turned off. (The center di
fferential lock and “VSC OFF” indi−
cator lights come on.)
lIf the operation is not completed, the center differential lock indicator
blinks. If the indicator light does not turn off when unlocking the center
differential, drive straight ahead while accelerating or decelerating, or
drive in reverse.
lIf the center differential lock/unlock is not completed within 5 seconds
while the cruise control system is on, cancel the cruise control system.
