2008 TOYOTA LAND CRUISER Owners Manual

438 4−3. Do−it−yourself maintenance

440
5−1. Essential information
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
lThe engine is running, but the vehicle will not move.
l
The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the following
part. This should only be attempt
ed on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing hook
If towing is necessary, we recommen d having your vehicle towed by
your Toyota dealer or a commerci
al towing service, using a lifttype
truck or a flat bed truck.
Use a safety chain system for all to
wing, and abide by all state/pro
vincial and local laws.
Use a towing dolly or flat bed truck.

5
When trouble arises
441 5−1. Essential information
nEmergency towing procedure
The engine must be in ACCESSORY mode (engine off) or IGNI−
TION ON mode (engine running).
Put the four−wheel drive control switch in “H4”. (The center differen−
tial is unlocked.)
Put the shift lever in “N”.
Release the parking brake.
CAUTION
nWhile towing
lUse extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing hook and the cable or chain.
lIf the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
nTo prevent causing serious damage to the transmission
lNever tow this vehicle wheels on the ground.
l
Use only the front emergency towing hooks or towing eyelets (depending
on vehicles) when towing your vehicle.
STEP1
STEP 2
STEP 3
STEP 4

442 5−1. Essential information
Towing with a slingtype truck
NOTICE
nTo prevent body damage
Do not tow with a sling type truck, either from the front or rear.

5
When trouble arises
443 5−1. Essential information
Towing with a wheel lifttype truck
From front
Use a towing dolly under the rear
wheels.
From rear
Use a towing dolly under the
front wheels.
NOTICE
nTo prevent causing serious damage to the transmission
Never tow this vehicle wheels on the ground.
nTo prevent damaging the vehicle
lDo not tow the vehicle with the “ENGINE START STOP” switch off.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
l
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

444 5−1. Essential information
Using a flat bed truck
If your Toyota is transported by a
flat bed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie
downs or the vehicle may be
damaged.
ITY51C021
ITY51C022
NOTICE
nTo avoid serious damage to your vehicle
Do not use the rear emergency towing
hook.
ITY51C023

5
When trouble arises
445
5−1. Essential information

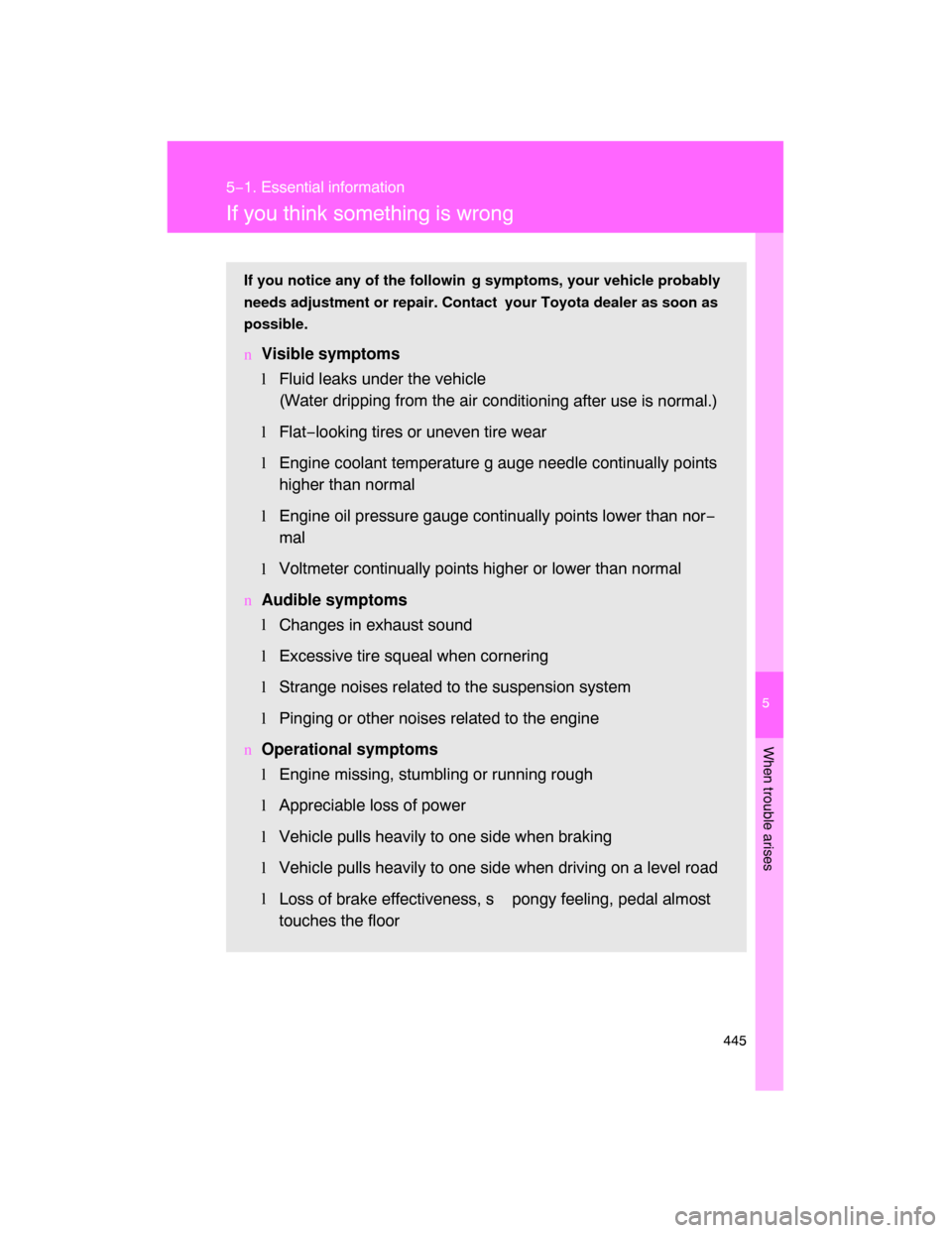

If you think something is wrong
If you notice any of the followin g symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
nVisible symptoms
lFluid leaks under the vehicle
(Water dripping from the air cond
itioning after use is normal.)
lFlat−looking tires or uneven tire wear
lEngine coolant temperature g auge needle continually points
higher than normal
lEngine oil pressure gauge continually points lower than nor−
mal
lVoltmeter continually points higher or lower than normal
n
Audible symptoms
l
Changes in exhaust sound
lExcessive tire squeal when cornering
l
Strange noises related to the suspension system
l
Pinging or other noises related to the engine
nOperational symptoms
l
Engine missing, stumbling or running rough
l
Appreciable loss of power
lVehicle pulls heavily to one side when braking
l
Vehicle pulls heavily to one side when driving on a level road
l
Loss of brake effectiveness, s pongy feeling, pedal almost
touches the floor

446
5−1. Essential information
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Switch to ACCESSORY mode or OFF.
Restart the engine.
NOTICE
nBefore starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air
bag inflates upon collision, the fuel
pump shut off system stops sup
plying fuel to the engine.
STEP1
STEP 2
