2008 TOYOTA LAND CRUISER Owners Manual

34 1−2. Opening, closing and locking the doors
nAlarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed
on the multi−information display are used to prevent theft of the vehicle and
unforeseeable accidents resulting from erroneous operation. Perform the
appropriate correction procedure de
scribed in the following table.
AlarmSituation Correction procedure
Exterior alarm
sounds once for
2 secondsAn attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com−
partmentRetrieve the elec−
tronic key from the
passenger compart−
ment and lock the
doors again
Exterior alarm
sounds once for
60 secondsAn attempt was made to
exit the vehicle and lock
the doors without first turn−
ing the “ENGINE START
STOP” switch OFFTurn the “ENGINE
START STOP” switch
OFF and lock the
doors again
Exterior alarm
sounds once for
10 secondsAn attempt was made to
lock the vehicle while a
door is openClose all of the doors
and lock the doors
again
Interior alarm
pings continu−
ously
*1
The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver ’s door was
open (or the driver ’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES−
SORY mode)Turn the “ENGINE
START STOP” switch
OFF and close the
driver ’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver ’s door
was open
Close the driver ’s
door

35
1−2. Opening, closing and locking the doors
1
Before driving
AlarmSituation Correction procedure
Interior alarm
sounds continu−
ously
*1
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES−
SORY mode, an attempt
was made to open the
door and exit the vehicle,
and the shift lever was not
in “P”Shift the shift lever to
“P” and turn the
“ENGINE START
STOP” switch OFF
Interior and exte−
rior alarms sound
continuously
*1
When the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES−
SORY mode, the driver ’s
door was closed after the
key was carried outside
the vehicle, and the shift
lever not in “P”Shift the shift lever to
“P”, turn the “ENGINE
START STOP” switch
OFF and close the
driver ’s door again
Interior alarm
pings once
*1
The electronic key has a
low batteryReplace the electronic
key battery
An attempt was made to
start the engine without the
electronic key being
present, or the electronic
key was not functioning
normallyStart the engine with
the electronic key
present*
2

36 1−2. Opening, closing and locking the doors
*1: A message will be shown on the multi−information display in the instru−
ment cluster.
*2: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be depleted or there may be difficulties
receiving signal front the key. (
P. 481)
nIf the smart key system does not operate properly
l
Locking and unlocking the doors: Use the mechanical key. ( P. 481)
lStarting the engine: P. 150
n
P. 410
nCustomization that can be configured at Toyota dealer
Settings (e.g. smart key system) can be changed. (Customizable features
P. 519)
AlarmSituation Correction procedure
Interior alarm
pings once and
exterior alarm
sounds 3 times
*1
The driver ’s door was
closed after the key was
carried outside the vehicle,
and the “ENGINE START
STOP” switch was not
turned OFFTurn the “ENGINE
START STOP” switch
OFF and close the
driver ’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “ENGINE
START STOP” switch was
not OFF
Bring the electronic
key back into the vehi−
cle

37
1−2. Opening, closing and locking the doors
1
Before driving

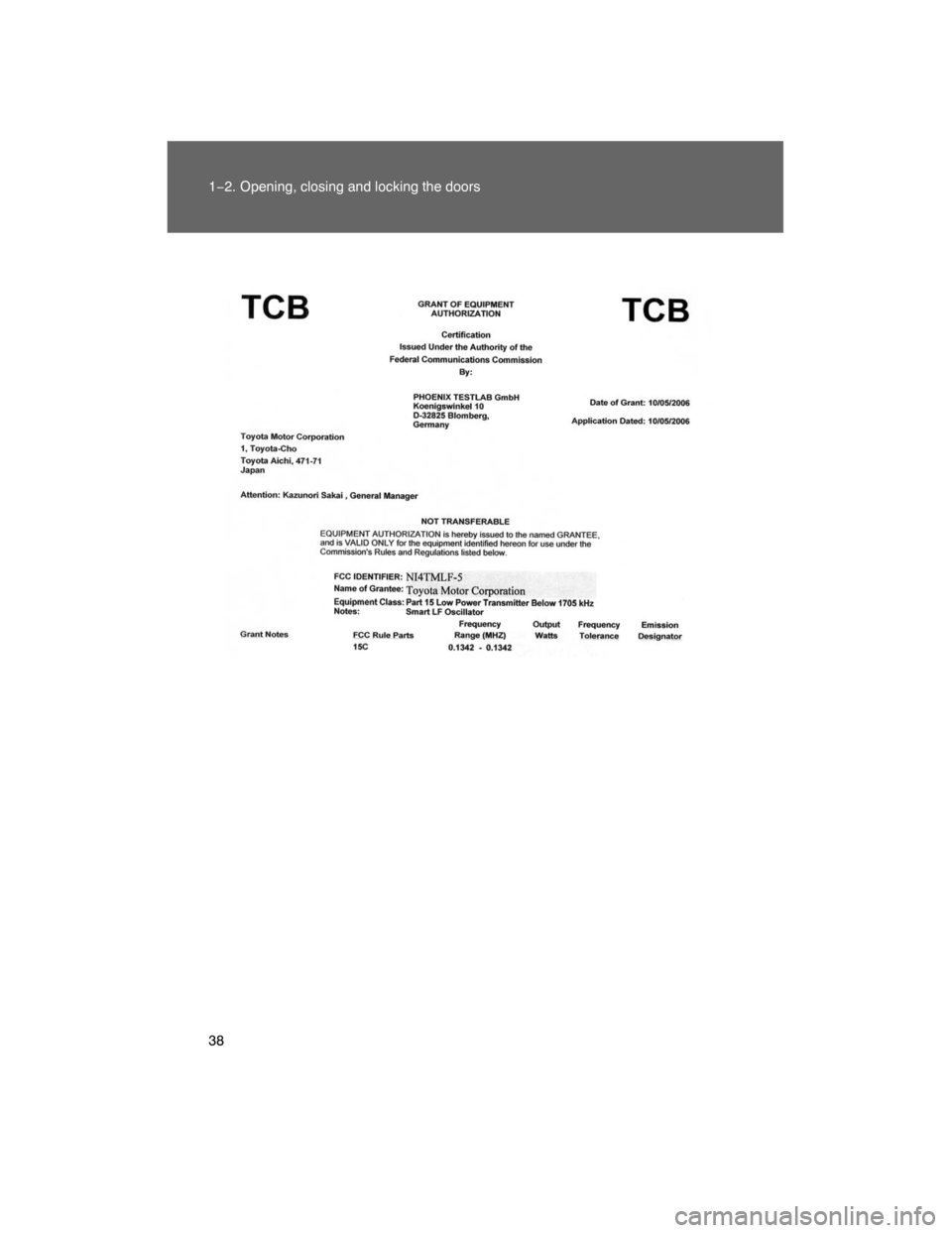

nCertification for the smart key system
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user ’s authority to operate the equipment.
FCC ID:NI4TMLF−5

38 1−2. Opening, closing and locking the doors

39
1−2. Opening, closing and locking the doors
1
Before driving
CAUTION
nCaution regarding interference with electronic devices
lPeople with implanted pacemakers or cardiac defibrillators should keep
away from the smart key system antennas. (
P. 28)
The radio waves may affect the operation of such devices. If necessary,
the smart key system can be disabled. Ask your Toyota dealer for details,
such as the frequency of radio waves and timing of emitting the radio
waves. Then, consult your doctor to see if you should disable the smart
key system.
lUsers of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.
Ask your Toyota dealer for details for disabling the smart key system.

40
1−2. Opening, closing and locking the doors

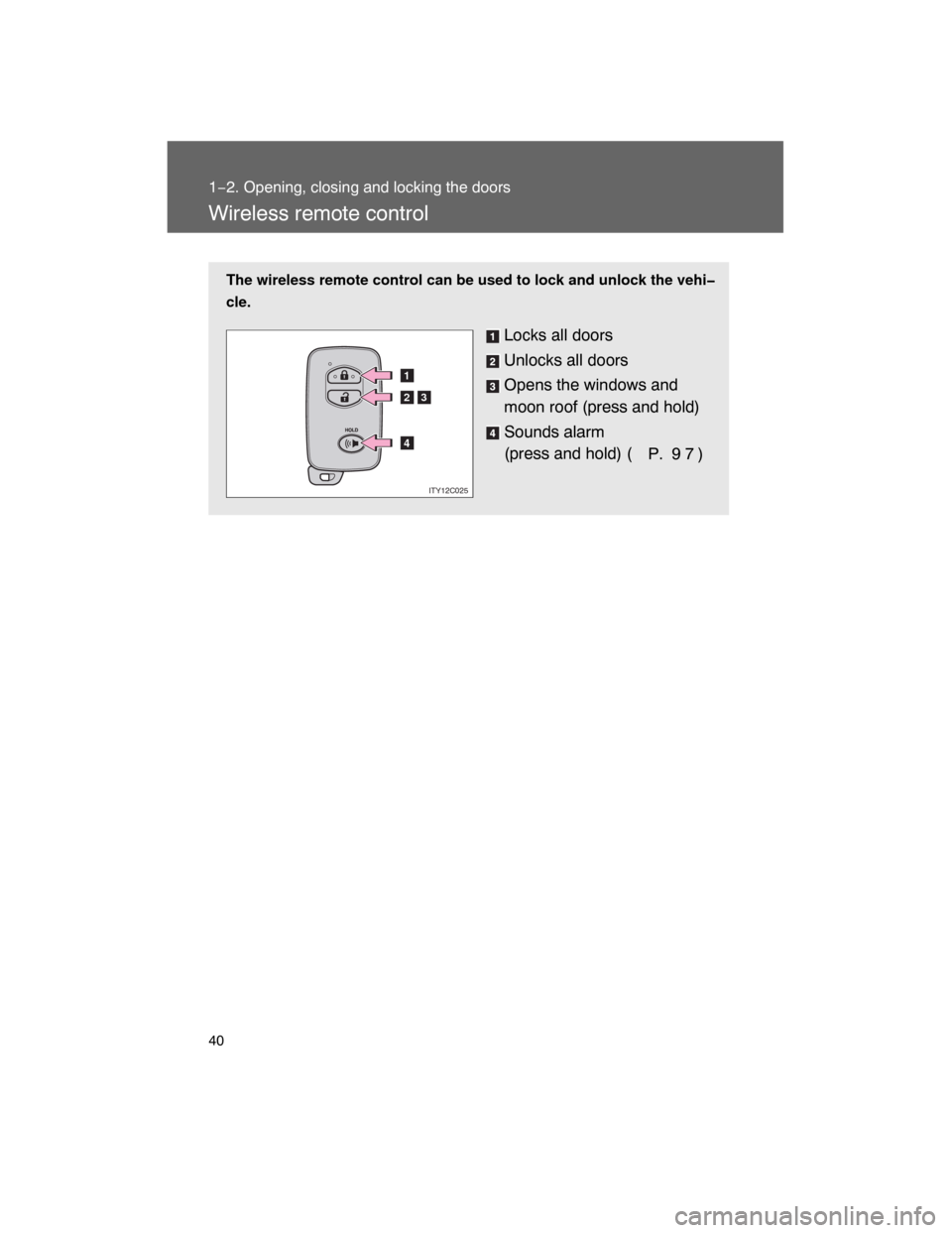

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi
cle.
Locks all doors
Unlocks all doors
Opens the windows and
moon roof (press and hold)
Sounds alarm
(press and hold) (
P. 97)
1
2
4
3
ITY12C025

41
1−2. Opening, closing and locking the doors
1
Before driving
n2step unlocking function
When you press the button, the driver ’s door is unlocked. Pressing
the button again within 3 seconds unlocks the other doors.
nOperation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer s
ounds when the windows and moon roof
begin to open.
n
P. 3 0
n
P. 3 3
nAlarm
Using the wireless remote control to lock the door will set the alarm system.
(P. 97)
n
P. 481
nIf the wireless remote control does not operate properly
l
Locking and unlocking the doors: Use the mechanical key. ( P. 481)
lStarting the engine: ( P. 149)
n
P. 410
n
P. 3 0
nCustomization that can be configured at Toyota dealer
Settings (e.g. 2−step unlocking function) can be changed. (Customizable
features
P. 519)
