2008 TOYOTA LAND CRUISER Owners Manual

147
2−1. Driving procedures
2
When driving
NOTICE
nWhile driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals
together to hold the vehicle on a hill.
nWhen parking the vehicle
Always put the shift lever in “P”. Failure to do so may cause the vehicle to
move or the vehicle may accelerate suddenly if the accelerator pedal is acci−
dentally depressed.
nAvoiding damage to vehicle parts
lDo not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering pump.
lWhen driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
nIf you hear a squealing or scrapin g noise (brake pad wear limit indica
tors)
Have your Toyota dealer check and replace the brake pads as soon as pos−
sible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or that of the brake discs are exceeded.

148 2−1. Driving procedures
NOTICE
nIf you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
lIt may be difficult to control your vehicle.
lThe vehicle will make abnormal sounds.
lThe vehicle will behave abnormally.
Replace a flat tire with a new one. (
P. 463)
nWhen encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
lEngine stalling
lShort in electrical components
lEngine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following.
lBrake function
lChanges in quantity and quality of oil and fluid used for the engine, trans−
mission, transfer, differentials, etc.
l
Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible) and the function of all joints, bearings, etc.

149
2−1. Driving procedures
2
When driving

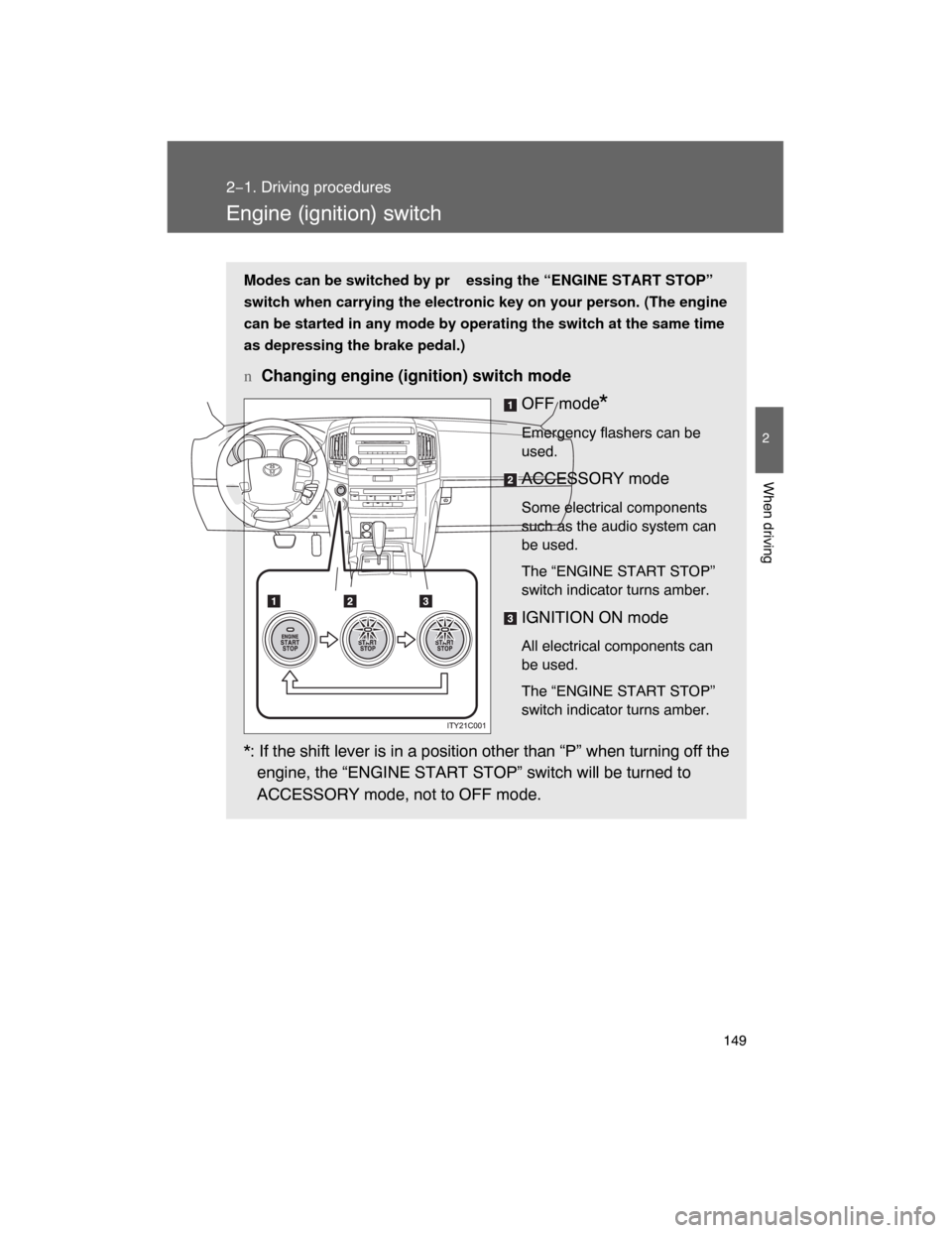

Engine (ignition) switch
Modes can be switched by pr essing the “ENGINE START STOP”
switch when carrying the electronic key on your person. (The engine
can be started in any mode by operating the switch at the same time
as depressing the brake pedal.)
nChanging engine (ignition) switch mode
OFF mode
*
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
*: If the shift lever is in a position other than “P” when turning off the
engine, the “ENGINE START STOP” switch will be turned to
ACCESSORY mode, not to OFF mode.

150 2−1. Driving procedures

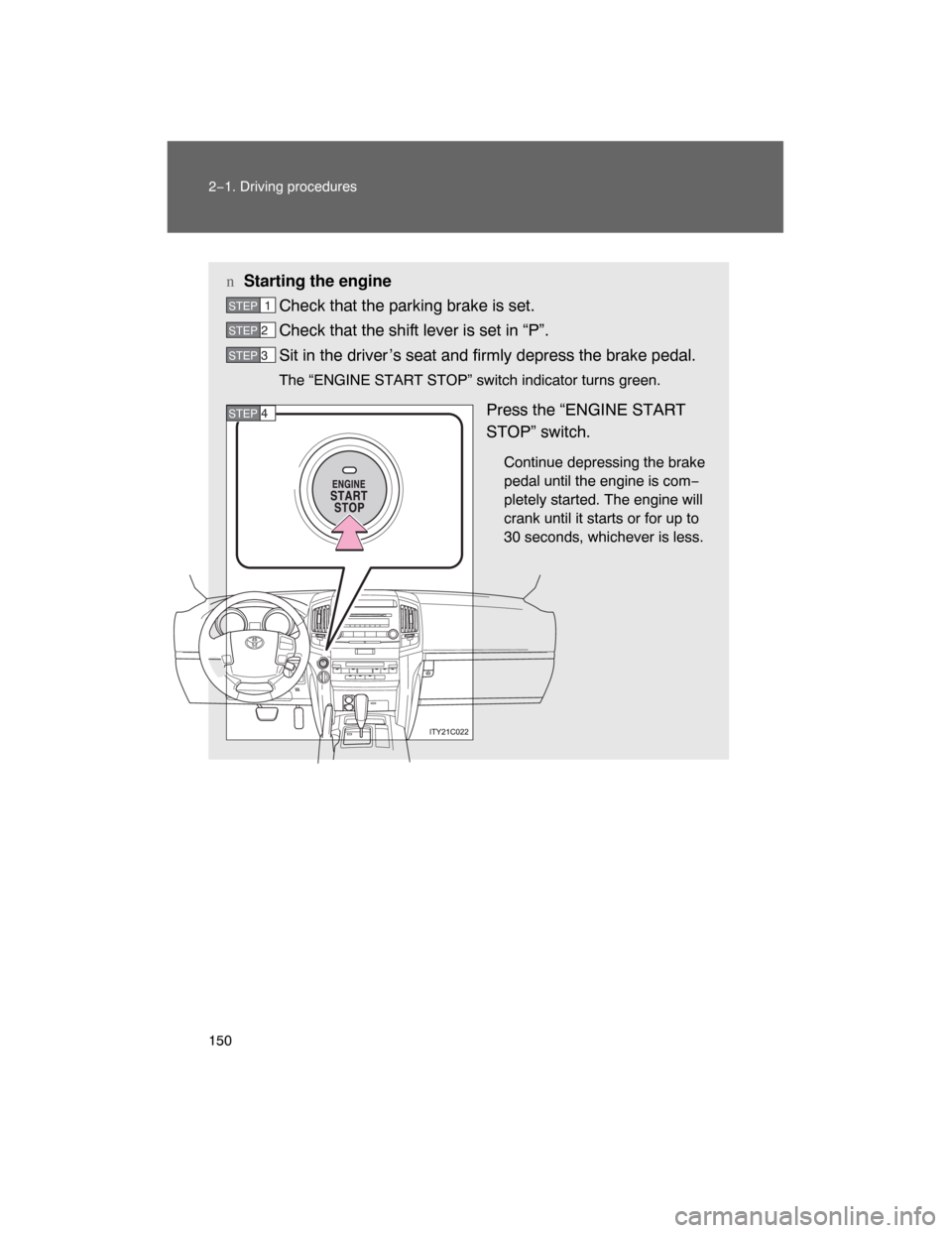

nStarting the engine
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver ’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
Continue depressing the brake
pedal until the engine is com−
pletely started. The engine will
crank until it starts or for up to
30 seconds, whichever is less.
STEP1
STEP 2
STEP 3
STEP 4

151
2−1. Driving procedures
2
When driving
nWhen the steering lock cannot be released
nIf the engine does not start
The engine immobilizer system may not have been deactivated. (
P. 93)
nWhen the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Toy−
ota dealer immediately.
nAuto power off function
If the vehicle is left in ACCESSORY mode for more than an hour with the
shift lever in “P”, the “ENGINE START STOP” switch will automatically turn
off.
n
P. 3 2
n
P. 481
n
P. 3 0
n
P. 3 3The green indicator light on the “ENGINE
START STOP” switch will flash and a
message will be shown on the multi−infor−
mation display. Press the “ENGINE
START STOP” switch again while turning
the steering wheel left and right.

152 2−1. Driving procedures
CAUTION
nWhen starting the engine
Always start the engine while sitting in the driver ’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
nCaution when driving
Do not touch the “ENGINE START STOP” switch while driving.
Pressing and holding the “ENGINE START STOP” switch will stop the
engine, which may lead to an unexpected accident.
NOTICE
nTo prevent battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNI−
TION ON mode for long periods without the engine running.
nWhen starting the engine
lDo not race a cold engine.
l
If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

153
2−1. Driving procedures
2
When driving

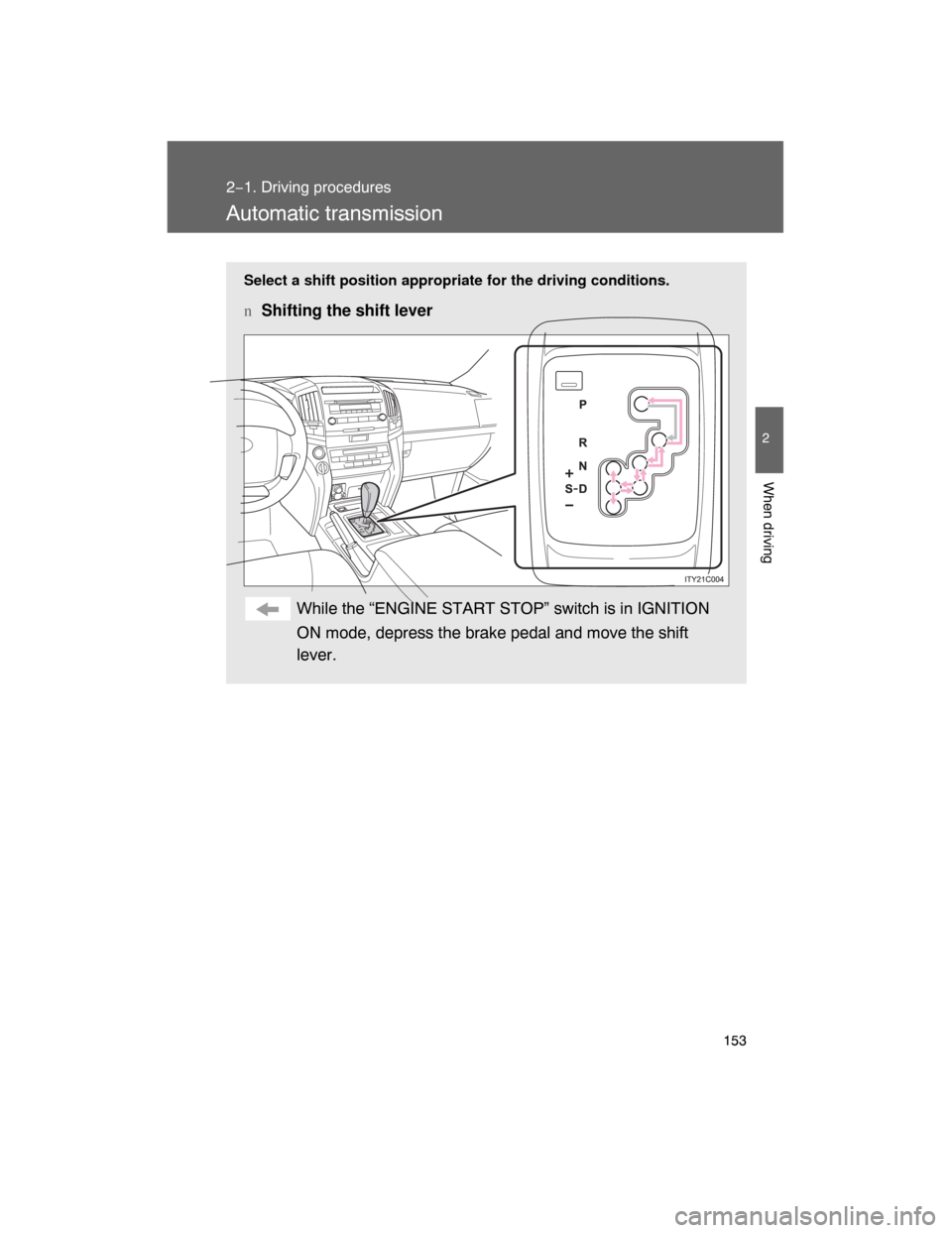

Automatic transmission
Select a shift position appropriate for the driving conditions.
nShifting the shift lever
While the “ENGINE START STOP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift
lever.

154 2−1. Driving procedures

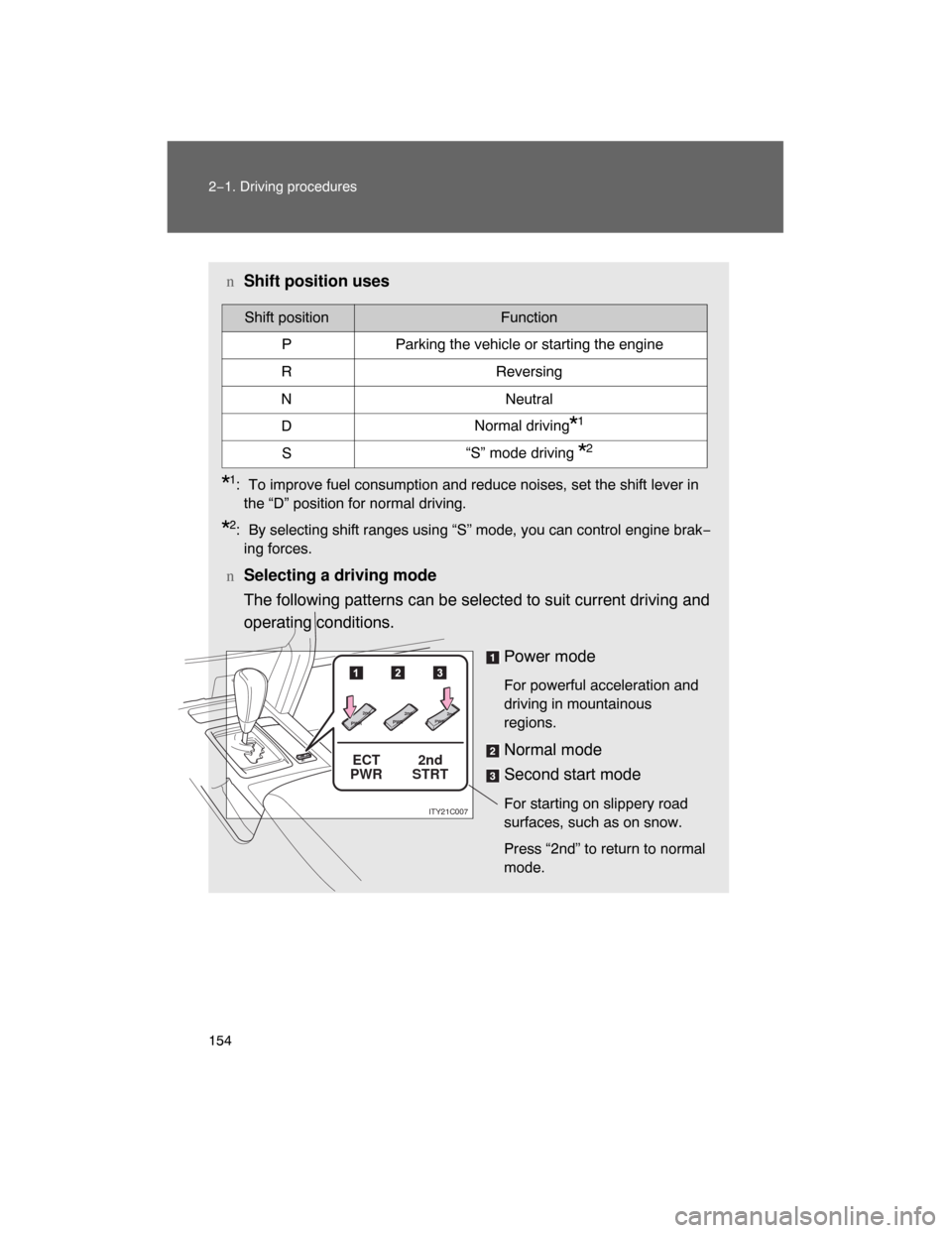

nShift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in
the “D” position for normal driving.
*2: By selecting shift ranges using “S” mode, you can control engine brak−
ing forces.
nSelecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous
regions.
Normal mode
Second start mode
For starting on slippery road
surfaces, such as on snow.
Press “2nd” to return to normal
mode.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving *2
ETC PWR2nd
PWR2ndPWR2ndPWR2nd
ECT
PWR2nd
STRT
ITY21C007
