2008 TOYOTA LAND CRUISER Owners Manual

325
3
Interior features
3−4. Using the interior lights

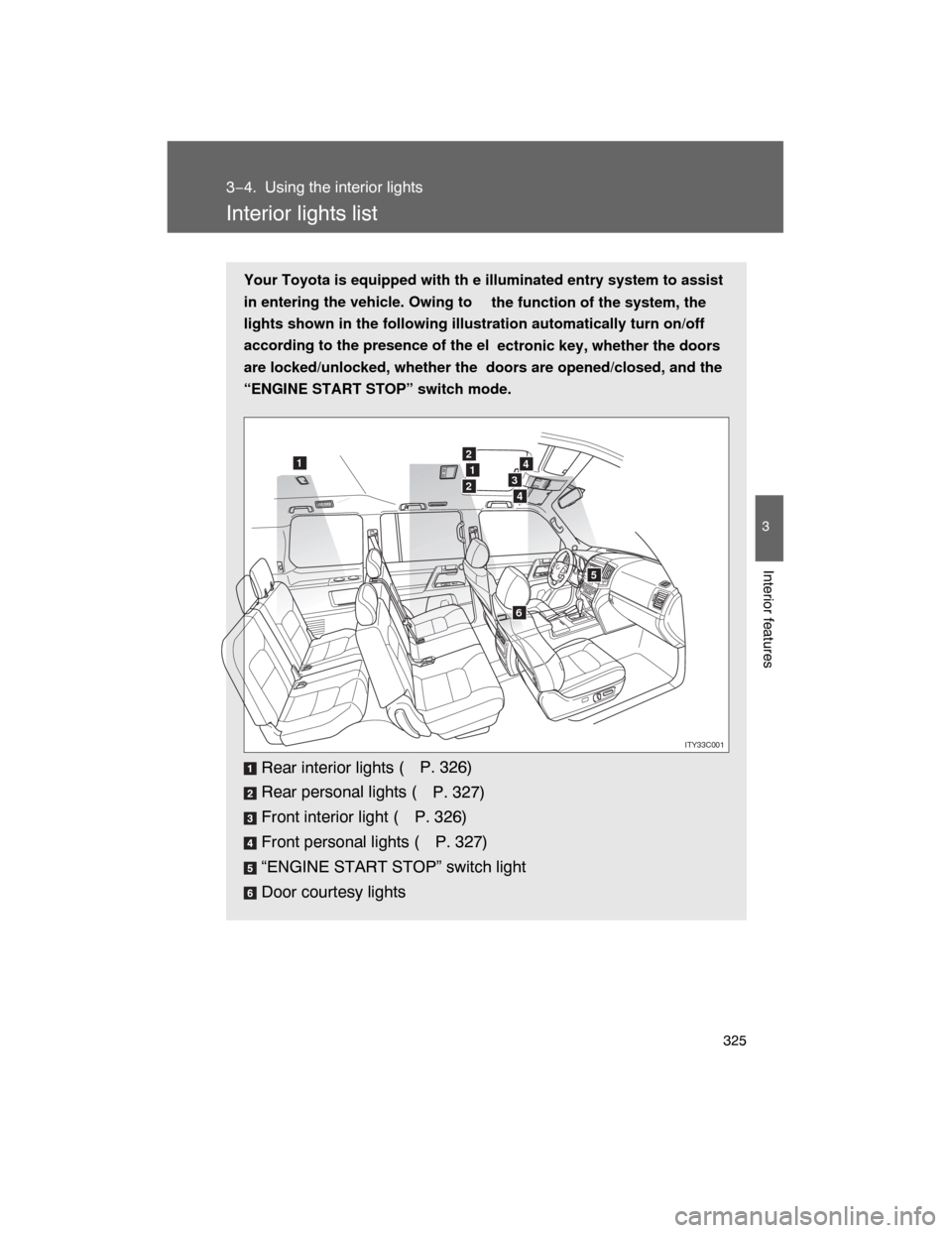

Interior lights list
Your Toyota is equipped with th e illuminated entry system to assist
in entering the vehicle. Owing to
the function of the system, the
lights shown in the following illustration automatically turn on/off
according to the presence of the el
ectronic key, whether the doors
are locked/unlocked, whether the doors are opened/closed, and the
“ENGINE START STOP” switch mode.
Rear interior lights (P. 326)
Rear personal lights (
P. 327)
Front interior light (
P. 326)
Front personal lights (
P. 327)
“ENGINE START STOP” switch light
Door courtesy lights
12
1
2
4
3
4
5
6
ITY33C001

326 3−4. Using the interior lights
Interior lights
Front
Door position on/off
On/off
Rear
Door position
On
nTo prevent the battery from being discharged
If the interior lights and “ENGINE START STOP” switch light remain on when
the door is not fully closed and the interior light switch is in the “DOOR” posi−
tion, the lights will go off automatically after 20 minutes.
nCustomization
Settings (e.g. The time elapsed before lights turn off) can be changed.
( P. 519)
ITY33C008
Interior lights

327
3−4. Using the interior lights
3
Interior features
Personal lights
Front
On/off
Rear (type A)
On/off
Rear (type B)
On/off
ITY33C014
Personal lights

328
3−5. Using the interior lights

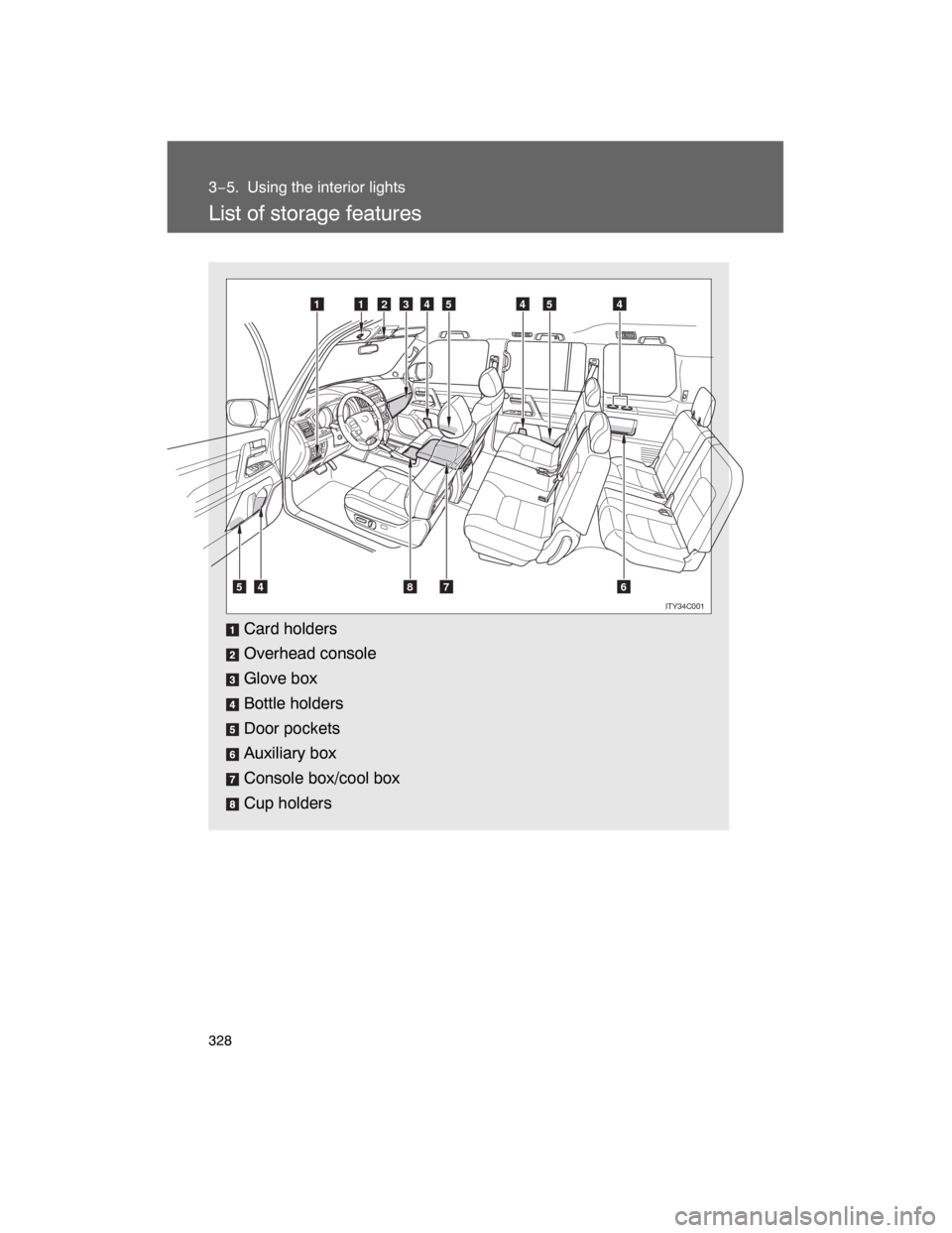

List of storage features
Card holders
Overhead console
Glove box
Bottle holders
Door pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001

329 3−5. Using the interior lights
3
Interior features
Glove box
Open (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
nGlove box light
The glove box light turns on when the tail lights are on.
CAUTION
nWhile driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

330 3−5. Using the interior lights
Console box/cool box
Your vehicle is equipped with either a lower console box or cool box.
Upper console box
Press the tab to open.
Lower console box
Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box/cool box

331 3−5. Using the interior lights
3
Interior features
Cool box
Lift the lever to open.
On/off
When on, the indicator light
comes on.
ITY34C029
STEP1
COOLBOX
PWR
ITY34C027
STEP2
CAUTION
nWhile driving
Keep the box closed.
Injuries may result in the event of an accident or sudden braking.
Console box/cool box

332 3−5. Using the interior lights
Overhead console
Press the button.
The overhead console is useful
for temporarily storing small
items.
ITY34C009
CAUTION
nItems that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
nWhile driving
Do not leave the overhead console open. Items may fall out and cause
injury.
Overhead console
