98 1−6. Theft deterrent system
nItems to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
lNobody is in the vehicle.
lThe windows and moon roof are closed before the alarm is set.
lNo valuables or other personal items are left in the vehicle.
nTriggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
lA person inside the vehicle opens a door or hood.
lThe battery is recharged or replaced when the vehicle is locked.
n
Panic mode
nDeactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
lUnlock the doors using the smar t key system or the wireless
remote control.
lStart the engine. (The alarm will be deactivated or stopped after
a few seconds.)
When is pressed for longer than
about one second, the headlights/tail
lights/emergency flashers will flash, the
front and rear interior lights will come on,
and an alarm will sound for about 60 sec−
onds to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

99
1
1−6. Theft deterrent system
Before driving
Theft prevention labels
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto−
len vehicles. Do not remove
under penalty of law.
ITY16C012
XXXXX

100
1−7. Safety information

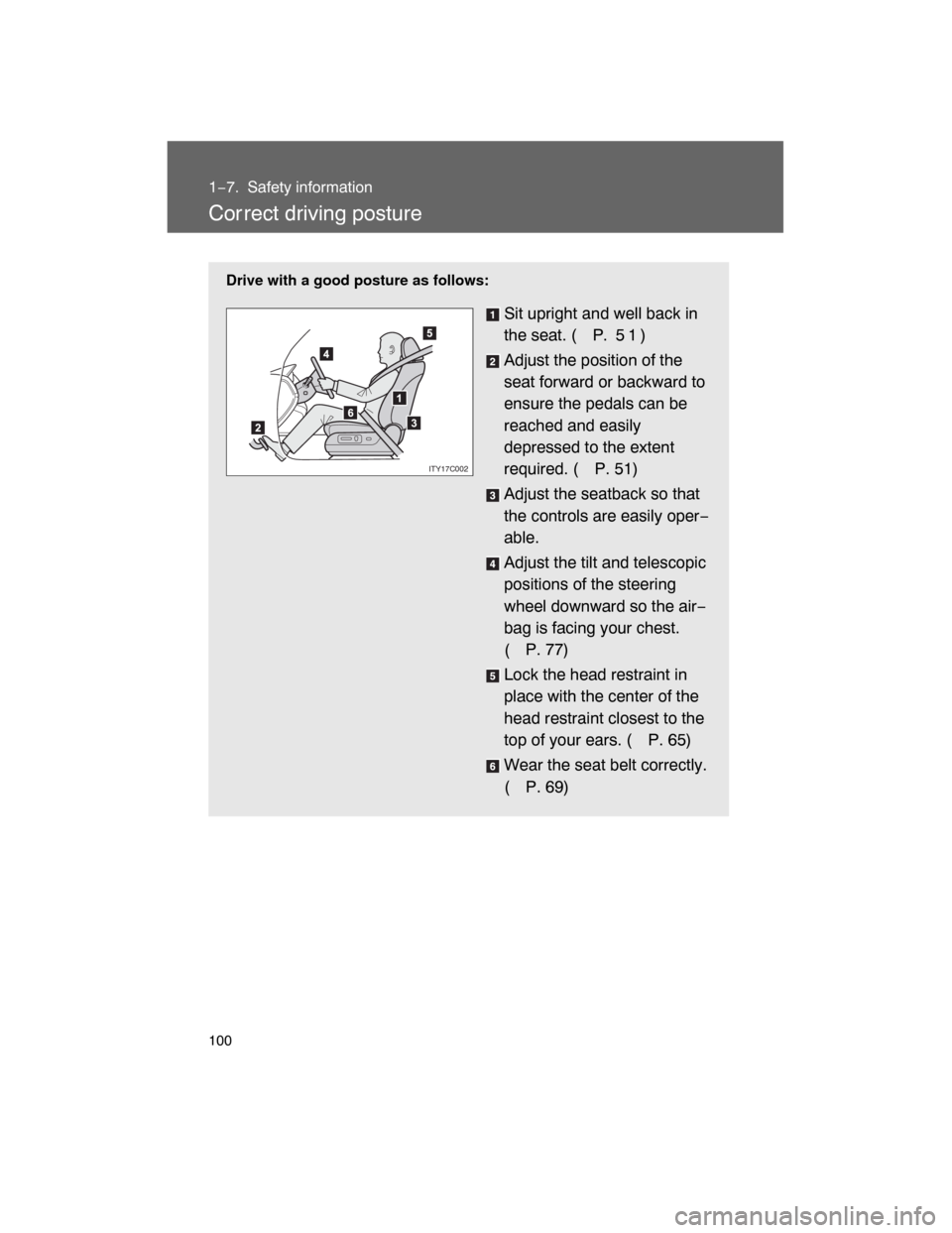

Cor rect driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (
P. 5 1 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 51)
Adjust the seatback so that
the controls are easily oper−
able.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air−
bag is facing your chest.
(P. 77)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P. 65)
Wear the seat belt correctly.
(
P. 69)
ITY17C002

101
1−7. Safety information
1
Before driving
CAUTION
nWhile driving
lDo not adjust the position of the driver ’s seat.
Doing so could cause the driver to lose control of the vehicle.
lDo not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
lDo not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci−
dent. The adjustment mechanism may also be damaged.
nAdjusting the seat position
lDo not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
lTake care when adjusting the seat position to ensure that other passen−
gers are not injured by the moving seat.
l
Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

102
1−7. Safety information

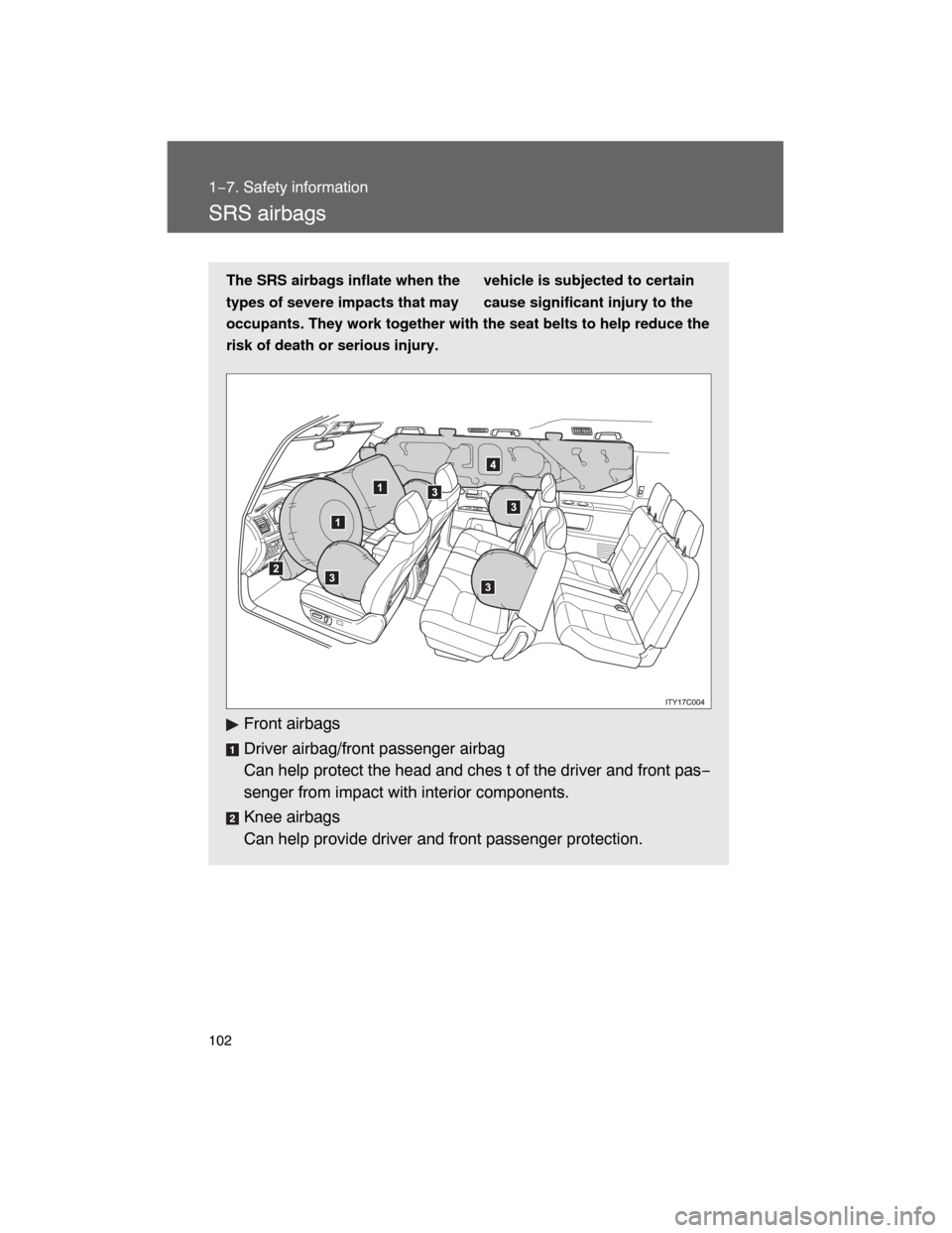

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
Front airbags
Driver airbag/front passenger airbag
Can help protect the head and ches t of the driver and front pas−
senger from impact with interior components.
Knee airbags
Can help provide driver and front passenger protection.

103
1−7. Safety information
1
Before driving

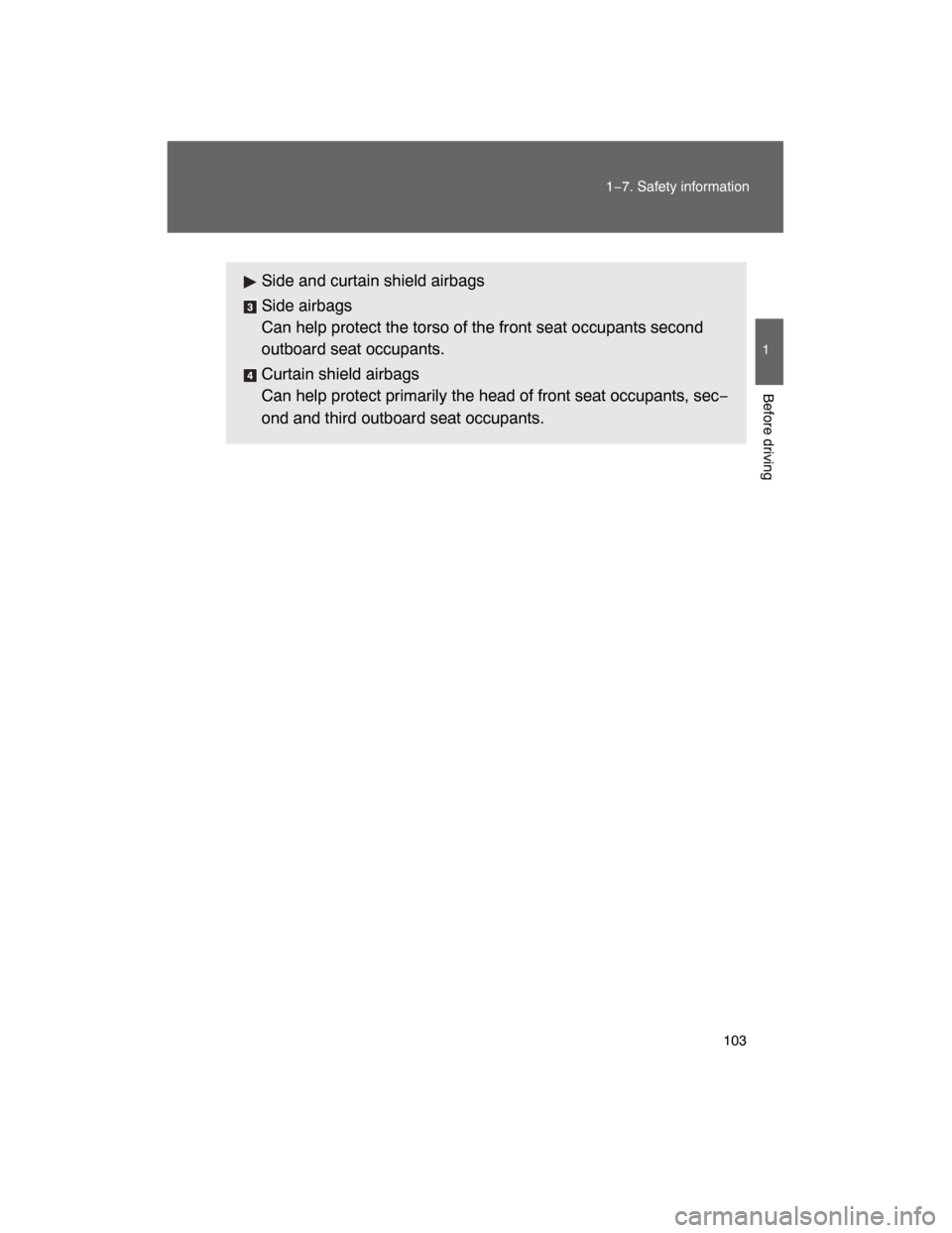

Side and curtain shield airbags
Side airbags
Can help protect the torso of the front seat occupants second
outboard seat occupants.
Curtain shield airbags
Can help protect primarily the head of front seat occupants, sec−
ond and third outboard seat occupants.

104 1−7. Safety information
Airbag system components
Front passenger airbag
Airbag sensor assembly
Front passenger occupant
classification indicator light
Occupant detection sensor
SRS warning light and
“RSCA OFF” indicator light
Driver airbag
Front passenger ’s seat belt
buckle switch
Driver ’s seat belt buckle
switch
Driver ’s seat position sensorFront airbag sensor
Curtain shield airbag
Side airbag (front seat)
Curtain shield airbag sensor
Side and curtain shield airbag
sensor
Knee airbag
Side airbag
(second outboard seat)
Roll sensing of curtain shield
airbags off switch
Floor sensor
1415111173
18151798210 10
61216131651213
14
ITY17C006

105
1−7. Safety information
1
Before driving
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag sys−
tem controls airbag deployment po
wer for the driver and front pas−
senger. The driver airbag system consists of the driver seat’s position
sensor etc. The front passenger ’s airbag system consists of the front
passenger occupant classification sensor etc.
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by
the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and an airbag
sensor.
In certain types of severe frontal or side impacts, the SRS airbag sys−
tem triggers the airbag inflators. A
chemical reaction in the inflators
quickly fills the airbags with non−toxic gas to help rest rain the motion
of the occupants.
nIf the SRS airbags deploy (inflate)
lBruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
lA loud noise and white powder will be emitted.
lParts of the airbag module (steering wheel hub, airbag cover and inflator)
as well as the front seats, second seats may be hot for several minutes.
The airbag itself may also be hot.
lThe windshield may crack.
