Page 481 of 538

Maintenance
8-31
8
●
Some fuses may not be installed on your vehicle, depend- ing on the vehicle mo
del or specifications.
●
The table above shows the ma
in equipment corresponding
to each fuse. The fuse box does not contain spare 7.5 A and 15 A fuses. If a fuse of one of these capacities blows, replace it tem- porarily by borrowing the one that matches from:7.5 A: Outside rear-view mirrors 15 A: Cigarette lighter Replace the borrowed fuse as soon as possible.
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A 2 Gauge 7.5 A 3 Reversing lamp 7.5 A 4— — 7.5 A 5 Relay 7.5 A 6 Heated door mirror 7.5 A 7 — — 30 A 8 Engine control 7.5 A 9 Cigarette lighter 15 A 10 — — —11 Outside rear-view mirrors 7.5 A 12 Engine control 7.5 A 13 — — — 14 Rear window wiper 15 A 15 Central door locks 15 A 16 Rear fog lamp 10 A 17 — — — 18 — — — 19 Heater 30 A 20 Rear window demister 30 A
21 Sunroof 20 A 22 Anti-lock brake system 10 A 23 Heated seat 20 A 24 Approach lamps 10 A 25 — Spare fuse 20 A 26 — Spare fuse 10 A 27 — Spare fuse 30 A 28 — Spare fuse 25 ANo.
Symbol
Electrical system
Capacity
BK-BK2008E1ENUK.en-uk-Section11.fm Page
31 Wednesday, January 9, 2008 4:50 PM
Page 482 of 538
8-32 Maintenance
8
Engine compartment fuse location table
E01008000105
Engine compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Alternator
140 A*
1
2 Fuse (+B)
60 A*
1
3 Ignition switch
40 A*
1
4 Electric window control
30 A*
1
5 Engine control
20 A*
1
6 Fuel pump 20 A 7 Rear heater 25 A8 Accessory socket 25 A 9 Fuel line heater 25 A 10 Condenser fan motor 25 A 11 Rear air conditioning 20 A 12 Wiper deicer 15 A 13 Horn 10 A 14 Automatic transmission 20 A 15 Hazard warning flasher 10 A 16 Stop lamps 15 A 17 Radio 10 A 18 Room lamp 15 A 19 Air conditioning 10 A
BK-BK2008E1ENUK.en-uk-Section11.fm Page
32 Wednesday, January 9, 2008 4:50 PM
Page 483 of 538
Maintenance
8-33
8
●
Some fuses may not be installed on your vehicle, depend- ing on the vehicle model or specifications.
●
The table above shows the main equipment corresponding to each fuse.
Identification of fuse
E01008100092
20 Front fog lamps 15 A 21 — — — 22 Windscreen wiper 20 A 23 Tail lamp (right) 7.5 A 24 Tail lamp (left) 7.5 A 25 Headlamp low beam (right)
10 A*
2
20 A*
3
26 Headlamp low beam (left)
10 A*
2
20 A*
3
27 Headlamp high beam (right) 10 A 28 Headlamp high beam (left) 10 A 29 Audio
30 A*
1
30 Heater
50 A*
1
*1: Fusible link
*2: Vehicles without discharge headlamps
*3: Vehicles with discharge headlamps
No.
Symbol
Electrical system
Capacity
7.5 A Brown 10 A Red 15 A Blue 20 A Yellow (fuse type)/Light blue (fusible link type)25 A Transparent 30 A Green (fuse type)/Pink (fusible link type) 40 A Green 50 A Red 60 A Yellow 140 A Reddish brown
BK-BK2008E1ENUK.en-uk-Section11.fm Page
33 Wednesday, January 9, 2008 4:50 PM
Page 484 of 538
8-34 Maintenance
8
Fuse replacement
E01007800122
1. Before replacing a fuse, alwa
ys turn off the electrical cir-
cuit concerned and place the ignition switch in the “LOCK” position.
2. Pull the fuse block lid (A) to remove it. 3. Remove the fuse puller (B) from the fuse block lid.
4. The replacement of fuses located
in the driver’s seat leg
area should be performed from the hole of the fuse block lid.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
34 Wednesday, January 9, 2008 4:50 PM
Page 485 of 538
Maintenance
8-35
8

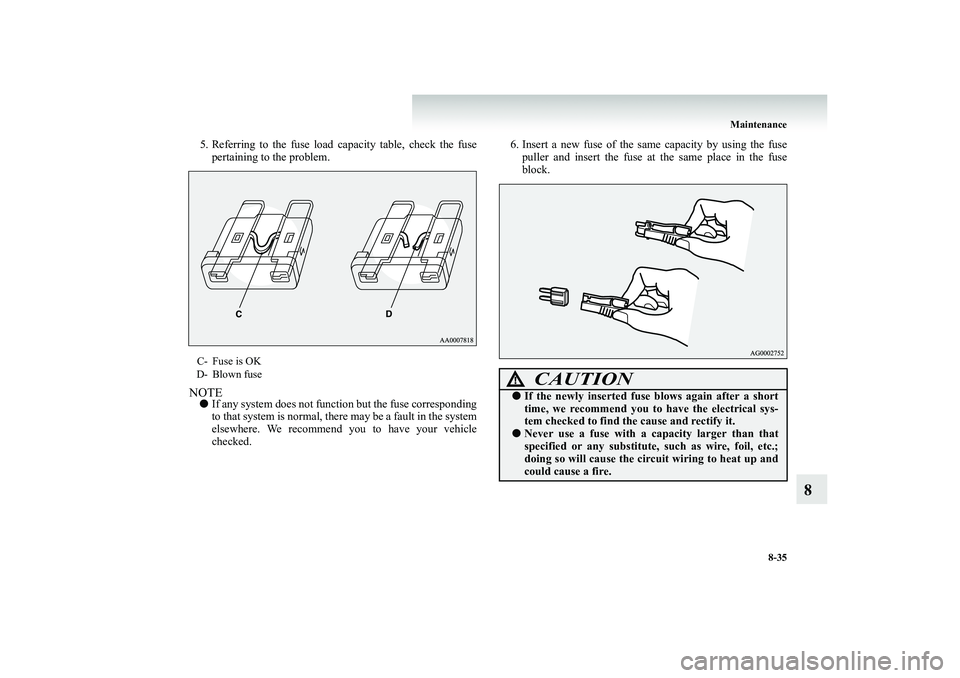

5. Referring to the fuse load
capacity table, check the fuse
pertaining to the problem.
NOTE●
If any system does not function but the fuse corresponding to that system is normal, ther
e may be a fault in the system
elsewhere. We recommend y
ou to have your vehicle
checked.
6. Insert a new fuse of the same capacity by using the fuse
puller and insert the fuse at
the same place in the fuse
block.
C- Fuse is OK D- Blown fuse
CAUTION
!●
If the newly inserted fuse
blows again after a short
time, we recommend you to
have the electrical sys-
tem checked to find the cause and rectify it.
●
Never use a fuse with a
capacity larger than that
specified or any substitute,
such as wire, foil, etc.;
doing so will cause the circuit wiring to heat up and could cause a fire.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
35 Wednesday, January 9, 2008 4:50 PM
Page 486 of 538

8-36 Maintenance
8
Replacement of lamp bulbs
E01003100521
Before replacing a bulb, ensure the lamp is off. Do not touch the glass part of the new bulb with your bare fingers; the skin oil left on the glass will evapor
ate when the bulb gets hot and
the vapor will condense on th
e reflector and dim the surface.
NOTE●
Do not attempt to repair or
replace the lamp bulbs other
than described in this owner’s manual. For repair or replacement, contact a MITS
UBISHI MOTORS Author-
ized Service Point.
●
If you are unsure of how to carry out the work as required, we recommend you to consult a specialist.
●
Be careful not to scratch the vehicle body when removing a lamp or lens.
●
When it rains or when the
vehicle has been washed, the
inside of the lens sometimes becomes foggy. This is the same phenomenon as when window glass mists up on a humid day, and does not indicate a functional problem.When the lamp is switched on, the heat will remove the fog. However, if water gathers inside the lamp, we recom- mend you to have it checked.
Bulb capacity
E01003200014
When replacing a bulb, use a new bulb with the same wattageand colour.Outside
E01003301618
Codes in parentheses indicate bulb types.
CAUTION
!●
Bulbs are extremely hot immediately after being turned off. When replacing a bulb, wait for it to cool sufficiently before touching it. You could otherwise be burnt.
1- Headlamps, high beam: 65 W (H9) 2- Front fog lamps*: 55 W (H11) 3- Headlamps, low beam with discharge lamp: 35 W (D2S)
Headlamps, low beam without discharge lamp: 55 W (H11)
4- Position lamps: 5 W (W5W) 5- Front turn-signal lamps: 21 W (WY21W)
BK-BK2008E1ENUK.en-uk-Section11.fm Page
36 Wednesday, January 9, 2008 4:50 PM
Page 487 of 538
Maintenance
8-37
8
Codes in parentheses indicate bulb types.
CAUTION
!●
On vehicles with discha
rge headlamps, do not
attempt to disassemble or repair discharge head-lamps, and do not attempt to replace their bulbs. A high voltage is present in
the power circuit and in
the bulbs and bulb
terminals. To avoid the risk of an
electric shock, contact a MITSUBISHI MOTORS Authorized Service Point whenever repair or replacement is necessary.3-door models 5-door models
6- High-mounted stop lamp: 16 W (W16W) 7- Licence plate lamps: 5 W (W5W)8- Rear fog lamp: 21 W (W21W) 9- Tail lamps*: 5 W (W5W) 10- Rear turn-signal lamps*: 21 W (WY21W)11- Rear turn-signal lamps*: 21 W (WY21W) 12- Stop and tail lamps*: 21/5 W (W21/5W)
Stop lamps*: 21/5 W (W21/5W)
13- Reversing lamps: 21 W (W21W)
BK-BK2008E1ENUK.en-uk-Section11.fm Page
37 Wednesday, January 9, 2008 4:50 PM
Page 488 of 538
8-38 Maintenance
8
Inside
E01003400814
Headlamps
E01003500961
Replacement of high beam1. Remove the bulb and connector assembly (A) by turning
it anticlockwise.
1- Luggage compartment lamp: 8 W 2- Door courtesy lamps*: 3.4 W 3- Vanity mirror lamps*: 3 W 4- Room & map lamps: 8 W5- Rear personal lamps: 8 W 6- Glove box lamp: 1.4 W
BK-BK2008E1ENUK.en-uk-Section11.fm Page
38 Wednesday, January 9, 2008 4:50 PM
