2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Maintenance
8-47
8
Rear fog lamp
E01004100241
1. Open the spare wheel garnis
h (A). (Refer to “To remove
the spare tyre” on page 6-18.)
2. Remove the socket and bulb assembly (B) by turning it
anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
47 Wednesday, January 9, 2008 4:50 PM

8-48 Maintenance
8
High-mounted stop lamp
E01004500362
1. Insert the tip of a blade (or
minus) screwdriver at the edge
of the cover and pry gently to remove the cover.
2. Remove the socket and bulb assembly together by turning
it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
48 Wednesday, January 9, 2008 4:50 PM

Maintenance
8-49
8
Licence plate lamps
E01004600477
1. Remove the lens mounting screws and remove the socket
and bulb assembly.
2. Remove the socket and bulb assembly (A) together by
turning it anticlockwise and then remove the bulb by pull- ing it out.
3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
49 Wednesday, January 9, 2008 4:50 PM

8-50 Maintenance
8
NOTE●
When installing the lens, make
sure the direction of the
lens is installed as shown in the illustration. *: Right side of the vehicle
Room & map lamps
E01004700306
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the lens and pry gently to remove it.
2. Remove the bulb from the lamp holder. 3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
50 Wednesday, January 9, 2008 4:50 PM

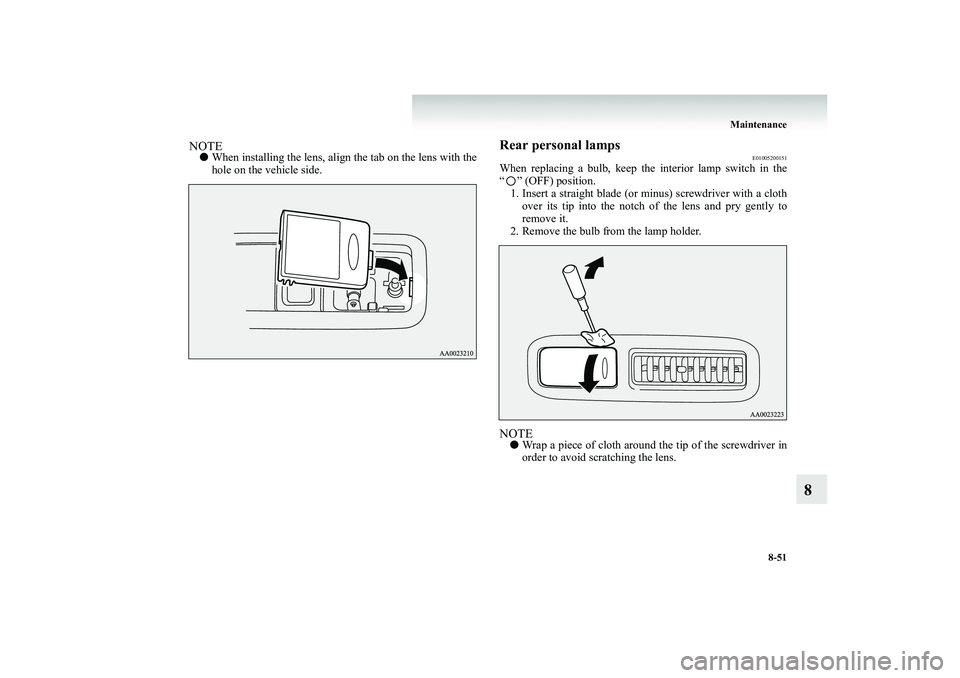

Maintenance
8-51
8
NOTE●
When installing the lens, align the tab on the lens with the hole on the vehicle side.
Rear personal lamps
E01005200151
When replacing a bulb, keep the
interior lamp switch in the
“ ” (OFF) position. 1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the notch of the lens and pry gently toremove it.
2. Remove the bulb from the lamp holder.NOTE●
Wrap a piece of cloth around th
e tip of the screwdriver in
order to avoid scratching the lens.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
51 Wednesday, January 9, 2008 4:50 PM

8-52 Maintenance
8
3. To install the bulb, perform the removal steps in reverse.NOTE●
When installing the lens, align the tab on the lens with the hole on the vehicle side.
Luggage compartment lamp
E01005300211
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the notch of the lens and pry gently to remove the lens.
2. Remove the bulb from the lamp holder. 3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
52 Wednesday, January 9, 2008 4:50 PM

Maintenance
8-53
8
NOTE●
When installing the lens, align the tabs on the lens with the holes on the vehicle side.
Door courtesy lamps
E01005400195
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the edge of the lens, pry gently to remove the lens.
2. Remove the bulb from the lamp holder.Front
BK-BK2008E1ENUK.en-uk-Section11.fm Page
53 Wednesday, January 9, 2008 4:50 PM

8-54 Maintenance
8
3. To install the bulb, perform the removal steps in reverse.
NOTE●
When installing the lens, align the 2 tabs on the lens with the notches on the vehicle side.
RearBK-BK2008E1ENUK.en-uk-Section11.fm Page
54 Wednesday, January 9, 2008 4:50 PM
