2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Instruments and controls
3-45
3
2. Press function button “
←” or “
→” to select your desired
indication pattern.
3. Press the function button “SET”. The display will flash
twice, and the indication pattern will be updated.
NOTE●
You can return to the previous display by pressing the “BACK” function button.
Type 1 Type 2 Type 3
BK-BK2008E1ENUK.en-uk-Section6.fm Page
45 Wednesday, January 9, 2008 4:32 PM

3-46 Instruments and controls
3

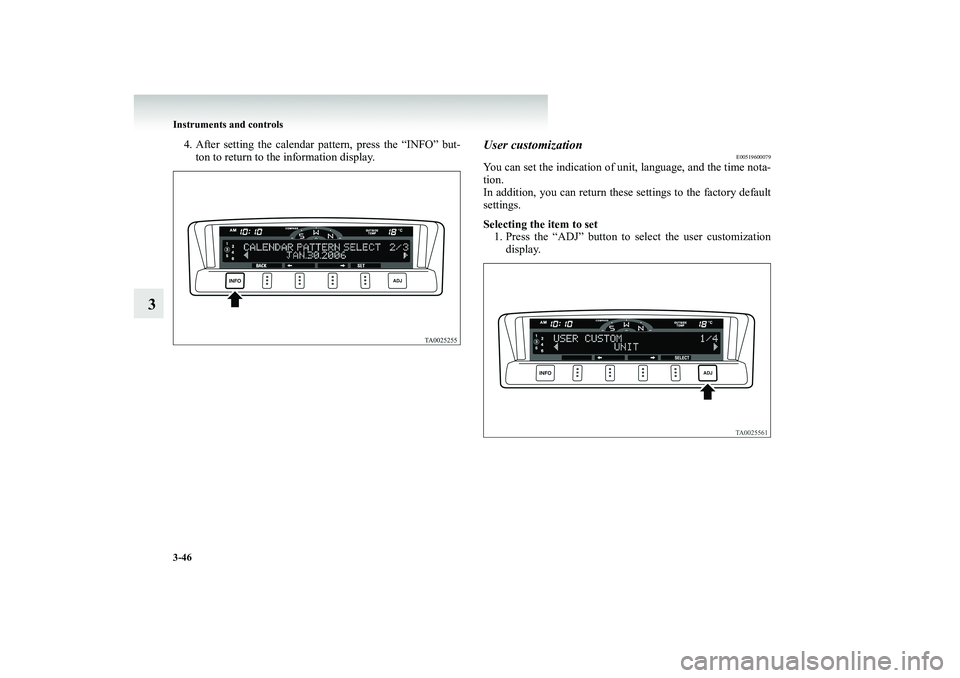

4. After setting the calendar pattern, press the “INFO” but-
ton to return to the information display.
User customization
E00519600079
You can set the indication of unit, language, and the time nota- tion. In addition, you can return these settings to the factory defaultsettings. Selecting the item to set 1. Press the “ADJ” button to se
lect the user customization
display.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
46 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-47
3
2. Press the function button “
←” or “
→ ” to select the item
you wish to set. · “UNIT”: Changing the unit · “LANGUAGE”: Changing the language· “12h
↔
24h”: Changing the time format
· “DEFAULT”: Resetting to factory settings Push the function button “SELECT”. The setting displayfor your selected item will appear.
Changing display units It is possible to change the display units for the fuel consump- tion, driving range, average speed
, outside temperature, eleva-
tion, and atmospheric pressure as shown below.FUEL ECONOMY
km/L
→ L/100km
→ mpg
(UK GALLON)
→ mpg (US GALLON)
RANGE km
→ miles
SPEED km/h
→ mph
OUTSIDE TEMPERATURE
°C
→ °F
ELEVATION m
→ ft
atmospheric pressure
hPa
→ mb
→ kPa
→ inHg
BK-BK2008E1ENUK.en-uk-Section6.fm Page
47 Wednesday, January 9, 2008 4:32 PM

3-48 Instruments and controls
3
• Changing the display unit for fuel consumption 1. Press the “
←” or “
→ ” function button to select “FUEL
ECONOMY”. Then press the
“SELECT” function button.
2. Press the “
←” or “
→ ” function button to select “km/L”.
Then press the “SET” function button. The display will flash twice, and the display unit will be updated to the selected one.
NOTE●
You can return to the previous display by pressing the “BACK” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
48 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-49
3
3. After setting, press the “INF
O” button to return to the
information display.
Changing the language It is possible to set the display language of the centre informa- tion display to English, Spanish, French, German, or Italian (Portuguese).Depending on the regions, this may be set to Italian or Portu- guese. • To change the display language to English1. Press the “
←” or “
→ ” function button to select “ENG-
LISH”. Then press the “SET
” function button. The dis-
play will flash twice, and th
en the setting is completed to
the language selected.
NOTE●
You can return to the previous display by pressing the “BACK” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
49 Wednesday, January 9, 2008 4:32 PM

3-50 Instruments and controls
3
2. After setting the language, press the “INFO” button to
return to the information display.
Changing the time notation It is possible set the time notation to 12-hour or 24-hour. 1. Press the “
←” or “
→ ” function button to select “12h
TIME NOTATION” or “24h TIME NOTATION”. Thenpress the “SET” function button. The display will flash twice, and the display time notation will be updated to the selected one.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
50 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-51
3
NOTE●
You can return to the previous display by pressing the “BACK” function button.
2. After setting the time notati
on, press the “INFO” button to
return to the information display.
12-hour 24-hour
BK-BK2008E1ENUK.en-uk-Section6.fm Page
51 Wednesday, January 9, 2008 4:32 PM

3-52 Instruments and controls
3
Returning display items to
their factory settings
You can return to the setting of each item to the factory default settings.NOTE●
The factory settings are as follows: • Fuel consumption: L/100km • Driving range: km • Average speed: km/h• Outside temperature: °C • Elevation: m • Atmospheric pressure: hPa• Display language: English • Time notation: 12-hour
1. Push the “SELECT” function button.
2. Press the “
←” function button to select “YES”.
3. Press the “SELECT” function button.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
52 Wednesday, January 9, 2008 4:32 PM
