2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Specifications
9-7
9
Vehicle weight
E01100402469
3-door models*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulation
Item
3200 models
3800 models
INTENSE, INVITE
INSTYLE
M/T
A/T
M/T
A/T
Kerb weight
Without optional parts 2,085 kg 2,075 kg
2,120 kg*
1,
2,125 kg*
2
2,110 kg*
1,
2,115 kg*
2
2,030 kg
With full optional parts 2,189 kg 2,179 kg
2,192 kg*
1,
2,191 kg*
2
2,182 kg*
1,
2,181 kg*
2
2,080 kg
Maximum gross vehicle weight
2,665 kg, 2,765 kg*
3
2,530 kg, 2,630 kg*
3
Maximum axle weight
Front 1,250 kgRear 1,600 kg
Maximum towable weight
With brake 2,800 kgWithout brake 750 kg
Maximum trailer-nose weight 115 kgMaximum roof load
With roof rails 100 kgWithout roof rails
100 kg*
4, 80 kg*
5
Seating capacity 5 persons
BK-BK2008E1ENUK.en-uk-Section12.fm Page
7 Thursday, January 10, 2008 7:49 AM

9-8 Specifications
9
*3: In case of trailer towing *4: Vehicles with 265/65R17 size tyre*5: Vehicles with 265/60R18 size tyreNOTE●
Trailer specifications indicate th
e manufacturer’s recommendation.
BK-BK2008E1ENUK.en-uk-Section12.fm Page
8 Thursday, January 10, 2008 7:49 AM

Specifications
9-9
9
5-door models*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulation*3: In case of trailer towing*4: Vehicles with
265/65R17 size tyre
Item
3200 models
3800 models
INTENSE, INVITE
INSTYLE
M/T
A/T
M/T
A/T
Kerb weight
Without optional parts 2,265 kg 2,255 kg
2,300 kg*
1,
2,305 kg*
2
2,290 kg*
1,
2,295 kg*
2
2,210 kg
With full optional parts 2,391 kg 2,381 kg
2,387 kg*
1,
2,386 kg*
2
2,377 kg*
1,
2,376 kg*
2
2,275 kg
Maximum gross vehicle weight
3,030 kg, 3,125 kg*
3
2,910 kg, 3,010 kg*
3
Maximum axle weight
Front 1,330 kg 1,300 kgRear
1,780 kg, 1,925 kg*
3
Maximum towable weight
With brake 3,300 kgWithout brake 750 kg
Maximum trailer-nose weight 135 kgMaximum roof load
With roof rails 100 kgWithout roof rails
100 kg*
4, 80 kg*
5
Seating capacity 7 persons
BK-BK2008E1ENUK.en-uk-Section12.fm Page
9 Thursday, January 10, 2008 7:49 AM

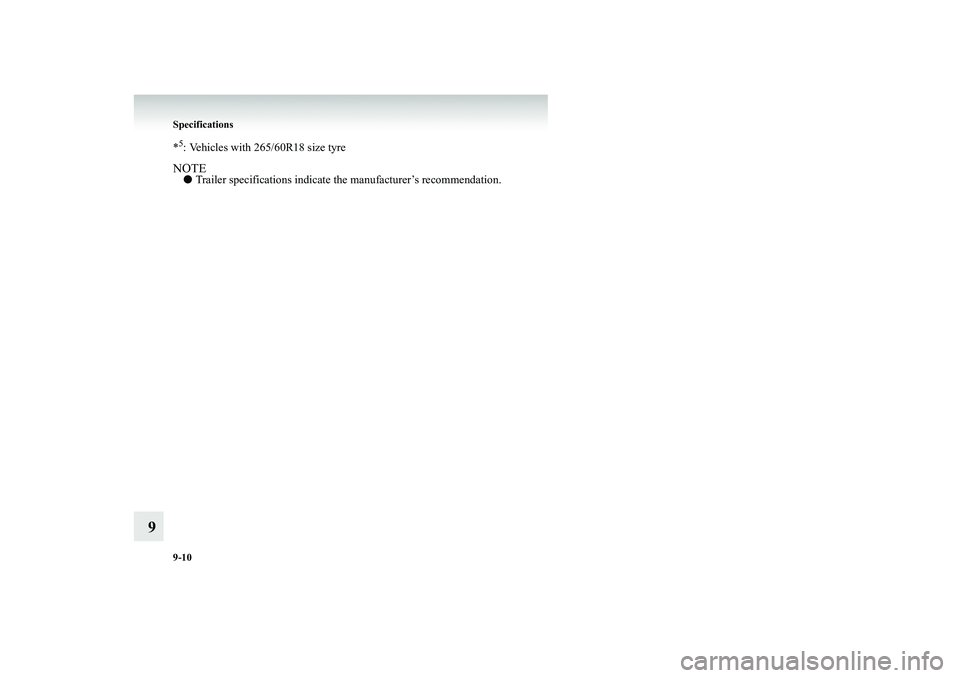

9-10 Specifications
9
*5: Vehicles with 265/60R18 size tyreNOTE●
Trailer specifications indicate th
e manufacturer’s recommendation.
BK-BK2008E1ENUK.en-uk-Section12.fm Page 10 Thursday, January 10, 2008 7:49 AM

Specifications
9-11
9
Engine specifications
E01100601204
*1: Vehicles that comply with the Euro 4 regulation *2: Vehicles that comply with the Euro 3 regulation*3: 3-door models*4: 5-door models
Item
3200 models
3800 models
M/T
A/T
Engine model No. of cylindersTotal displacementBoreStrokeCamshaftMixture preparation
4M41 4 in line3,200 cc98.5 mm105.0 mm
Double overheadElectronic injection
6G75 6-V (60
°)
3,828 cc95.0 mm90.0 mm
Single overheadElectronic injection
Maximum output (EEC net)
118 kW/3,800 r/min*
1
121 kW/3,500 r/min*
2
125 kW/3,800 r/min*
1
121 kW/3,500 r/min*
2
182 kW/6,000 r/min*
3
184 kW/6,000 r/min*
4
Maximum torque (EEC net) 381 Nm/2,000 r/min 373 Nm/2,000 r/min 329 Nm/2,750 r/min
BK-BK2008E1ENUK.en-uk-Section12.fm Page 11 Thursday, January 10, 2008 7:49 AM

9-12 Specifications
9
Electrical system
E01100800964
*: Optional equipment
Item
3200 models
3800 models
Voltage
12 V
Battery
Type (JIS) 95D31L, 80D26L* 75D23L, 80D26L*Capacity (5HR) 64 Ah, 55 Ah* 52 Ah, 55 Ah*
Alternator capacity 120 A, 140 A* 120 ASpark plug type
NGK — IFR6B-K
BK-BK2008E1ENUK.en-uk-Section12.fm Page 12 Thursday, January 10, 2008 7:49 AM

Specifications
9-13
9
Tyres and wheels
E01100901483
*: Optional equipmentTyre 265/65R17 112H 265/60R18 110H*Wheel
Size
17x7
1/2JJ (Aluminium),
17x7
1/2J (Steel)*
18x7
1/2JJ (Aluminium)*
Offset 46 mm
BK-BK2008E1ENUK.en-uk-Section12.fm Page 13 Thursday, January 10, 2008 7:49 AM

9-14 Specifications
9
Fuel consumption
E01101100270
*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulationNOTE●
The values shown above apply to a vehicle on which optional equipment has not been fitted.
●
The results given do not express or imply any guarant
ee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and
there are inevitably differen
ces between individual vehicles of the same model. In
addition, this vehicle may incorporate particular modifications.
Furthermore, the driver’s style and road and traffic condition
s,
as well as the extent to which th
e vehicle has been driven and th
e standard of maintenance, will
all affect its fuel consumptio
n.
Model
Combined
Urban conditions
Extra-urban conditions
CO
2 (g/km)
Fuel
consumption (L/100 km)
CO
2 (g/km)
Fuel
consumption (L/100 km)
CO
2 (g/km)
Fuel
consumption (L/100 km)
3200 models
3-door models
M/T
244*
1, 241*
2
9.2*
1, 9.1*
2
302*
1, 298*
2
11.4*
1, 11.2*
2
211*
1, 209*
2
7.9*
1, 7.8*
2
A/T
278*
1, 274*
2
10.5*
1, 10.3*
2
346*
1, 345*
2
13.1*
1, 13.0*
2
239*
1, 234*
2
9.0*
1, 8.8*
2
5-door models
M/T
246*
1, 242*
2
9.3*
1, 9.1*
2
304*
1, 298*
2
11.5*
1, 11.2*
2
213*
1, 209*
2
8.0*
1, 7.8*
2
A/T
280*
1, 274*
2
10.6*
1, 10.3*
2
346*
1, 345*
2
13.1*
1, 13.0*
2
241*
1, 234*
2
9.1*
1, 8.8*
2
3800 models
3-door models 322 13.4 420 17.6 267 11.25-door models 324 13.5 423 17.7 268 11.2
