2008 MITSUBISHI SHOGUN Owner's Manual (in English)

For pleasant driving
5-97
5
Side box*
E00722700092
The box for storing articles is located inside the luggage com- partment.
Luggage floor box*
E00718700280
The box for storing articles is located inside the luggage com-partment.3-door modelsTo use the box, raise the luggage floor board by pulling up onthe strap (A).
1- To open 2- To close
BK-BK2008E1ENUK.en-uk-Section8.fm Page
97 Wednesday, January 9, 2008 4:41 PM

5-98 For pleasant driving
5
5-door modelsTo use the box, raise the luggage floor board.NOTE●
On 5-door models, the luggage floor board can be removed. This is useful for storing large articles.
Sunglasses holder*
E00718600133
To open, push the lid.NOTE●
The holder may not be able to accomodate every possible size and shape of sunglasses; it is advisable to check com- patibility before use.
CAUTION
!●
The holder should not be
used to store anything
heavier than sunglasses.
These objects could drop
out.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
98 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-99
5
Cup holder
E00714500408
For the front seatThe cup holder is located in front of the centre console box.
For the rear seat/second seat
E00716900321
3-door modelsTo use the cup holder, press the button (A) at the top of the armrest and allow the
armrest to drop down.
CAUTION
!●
Do not drink beverages while driving the vehicle; doing so could distract you
and result in an accident.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
99 Wednesday, January 9, 2008 4:41 PM

5-100 For pleasant driving
5
5-door models1. Lift the head restraint (B) and tilt the armrest.
2. Open the lid (C) while holding the side face of the lid with
your hand.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
100 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-101
5
For the third seat*
E00719000075
The cup holder is located at th
e left side of the third seat.
The cup holder is designed for holding cups or drink-cans securely in its holes.
Rear shelf (3-door models)
*
E00722800035
The rear shelf divides the passe
nger compartment and luggage
area.NOTE●
Do not place luggage or othe
r items on the rear shelf.
Remove the rear shelf when lo
ading large items of luggage.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
101 Wednesday, January 9, 2008 4:41 PM

5-102 For pleasant driving
5
To remove1. Pull the 5 velcro tapes (A) on
the front of th
e rear shelf to
separate them from the attach
ment points on the rear seat-
back.
2. Raise the rear shelf, then pull it upward to remove it from
the groove (B) on each side of the luggage area.
To r e f i t
Refit the rear shelf by performing the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
102 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-103
5
Cargo area cover (5-door models)
*E00715500388
The cargo area cover divides the passenger compartment and cargo area.NOTE●
Do not put luggage on the cover.
To remove1. Unhook the hooks (A) on the cover from the mounting
grooves (B) on the side of the cargo area, and the coverwill be rolled back in
to the retracted position.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
103 Wednesday, January 9, 2008 4:41 PM

5-104 For pleasant driving
5

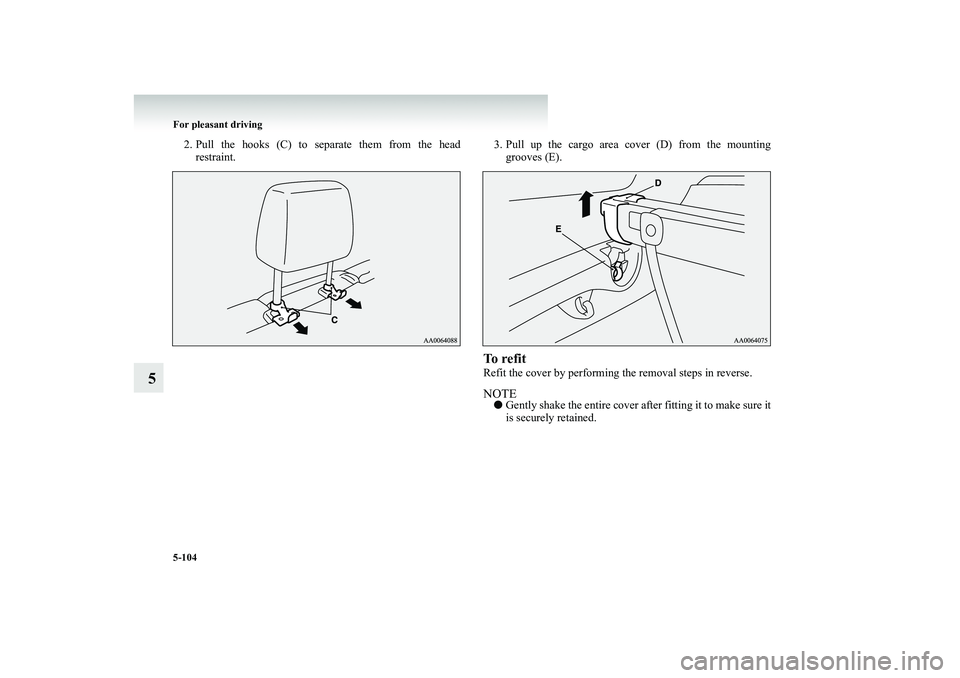

2. Pull the hooks (C) to separate them from the head
restraint.
3. Pull up the cargo area cover (D) from the mounting
grooves (E).
To r e f i tRefit the cover by performing the removal steps in reverse.NOTE●
Gently shake the entire cover after fitting it to make sure it is securely retained.
