2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Locking and unlocking
1-5
1
●
Electronic immobilizer is not compatible with remote starting systems. Use of these
systems may result in vehi-
cle starting problems and a lo
ss of security protection.
●
If you lose your key, orde
r a key from your MITSUBISHI
MOTORS Authorized Service
Point as soon as possible.
To obtain a replacement or extr
a spare key, take your vehi-
cle and all remaining keys to your MITSUBISHIMOTORS Authorized Service Point. All the keys have to be re-registered in the immobilizer computer unit. The immobilizer can register up to 8 different keys.
Keyless entry system
*
E00300301394
Press the remote control switch, and all doors (including the backdoor) will be locked or unlocked as desired. It is also pos- sible to operate the door mirrors.To l o c kPress the LOCK switch (1), and
all doors (including the back-
door) will be locked. When they
are locked with the room lamp
switch at the middle position (
DOOR), the room lamp and the
turn-signal lamps blink once.
CAUTION
!●
Don’t make any alterations or additions to the immobilizer system; alterati
ons or additions could
cause failure of
the immobilizer.
1- LOCK switch 2- UNLOCK switch 3- Indication lamp
BK-BK2008E1ENUK.en-uk-Section4.fm Page 5 Wednesday, January 9, 2008 4:22 PM

1-6 Locking and unlocking
1
To unlockPress the UNLOCK switch (2), and all doors (including the backdoor) will be unlocked. When
they are unlocked with the
room lamp switch at the mi
ddle position (DOOR), the room
lamp will be turned on for appr
oximately 15 seconds and the
turn-signal lamps will blink twice.NOTE●
The indication lamp (3) comes on each time a switch is pressed.
●
If the UNLOCK switch (2) is pressed and no door (includ- ing the backdoor) is opened
within approximately 30 sec-
onds: relocking will automatically occur.
●
It is possible to modify functions as follows: For further information, contact your MITSUBISHI MOTORS Authorized Service Point. • The time for automatic relocking can be changed.• The confirmation function (f
lashing of the turn-signal
lamps) can be set to operate only when the doors and backdoor are locked or only when the doors and back-door are unlocked. • The confirmation function (this indicates locking or unlocking of the doors and backdoor with the flash ofthe turn-signal lamps) can be deactivated. • The number of times the turn-signal lamps are flashed by the confirmation function can be changed.
Operation of the outside rear-view mirrorsTo f o l dWithin 30 seconds of locking the doors and backdoor using theLOCK switch (1), press the LOCK switch twice rapidly to foldthe door mirrors.To e x t e n dWithin 30 seconds of unlocking the doors and backdoor usingthe UNLOCK switch (2), press the UNLOCK switch twicerapidly to return the door mirrors to their extended positions.NOTE●
The keyless entry system does
not operate in the follow-
ing conditions:• The key is left in the key cylinder. • The door (including the backdoor) is open.
●
The remote control switch will operate within about 4 m from the vehicle. However, the operating range of the remote control switch may chan
ge if the vehicle is located
near a power station, or radio/TV broadcasting station.
●
If either of the following problems occurs, the battery may be exhausted. We recommend you to have the battery replaced.• The remote control switch is
operated at the correct dis-
tance from the vehicle, but the doors (including the backdoor) are not locked/unlocked in response.• The indication lamp (3) is dim or does not come on.
●
If your remote control switch
is lost or damaged, please
contact your MITSUBISHI MOTORS Authorized Service Point for a replacement
remote control switch.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 6 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-7
1
●
If you wish to add a remote
control switch, we recom-
mend you to contact your MITSUBISHI MOTORS Authorized Service Point. A maximum of 4 remote contro
l switches are available for
your vehicle.
Doors
E00300401177
To lock or unlock with the key
CAUTION
!●
Make sure the doors are closed: driving with doors not completely closed is dangerous.
●
Never leave children in the vehicle unattended.
●
Be careful not to lock the doors while the key is inside the vehicle.
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page 7 Wednesday, January 9, 2008 4:22 PM

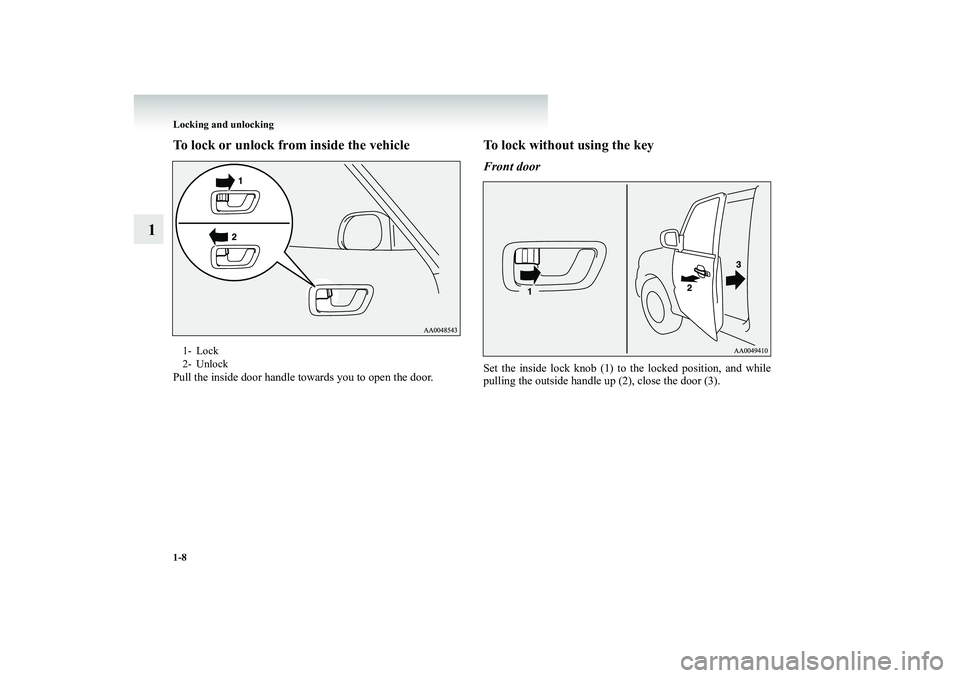

1-8 Locking and unlocking
1
To lock or unlock from
inside the vehicle
Pull the inside door handle towards you to open the door.
To lock without using the keyFront doorSet the inside lock knob (1) to the locked position, and while pulling the outside handle up (2), close the door (3).
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page 8 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-9
1
Rear door (5-door models)Set the inside lock knob (1) to the locked position, and close the door (2).“Forgotten-key-prevention” mechanism
E00300600273
If the key is in the ignition switch when you push the lock knobforward with the driver’s door open, the lock knob will auto-matically return to the unlocked position.
Central door locks
E00300800969
NOTE●
Each of the doors can be locked or unlocked independ- ently by using the inside lock knob.
●
Repeated continuou
s operation between
lock and unlock
could activate the central doo
r locking systems built-in
protection circuit and prevent
the system from operating.
If this occurs, wait about 1 minute before operating the central door lock switch or the key.
BK-BK2008E1ENUK.en-uk-Section4.fm Page 9 Wednesday, January 9, 2008 4:22 PM

1-10 Locking and unlocking
1
Driver’s door with keyUsing the key on the driver’s door locks or unlocks all doors (including the backdoor).
Driver’s door with central door lock switchUsing the central door lock switch locks or unlocks all doors(including the backdoor).
1- Lock 2- Unlock
1- Lock 2- Unlock
BK-BK2008E1ENUK.en-uk-Section4.fm Page
10 Wednesday, January 9, 2008 4:22 PM

Locking and unlocking
1-11
1
“Child-protection” rear doors
(5-door models)
E00300900263
Child protection helps prevent the rear doors from being opened accidentally from the inside.If the lever is set to the locked
position, the rear doors cannot
be opened using the inside handle, but only with the outside handle.If the lever is set to the “Unlock” position, the child protection mechanism does not function.1- Lock 2- Unlock
CAUTION
!●
When driving with a child in the rear seat, please use the child protection to
prevent accidental door
opening which may cause an accident.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
11 Wednesday, January 9, 2008 4:22 PM

1-12 Locking and unlocking
1
Approach lamp
*
E00306100023
The lamps (A) in the bottom of
each mirror illuminate the road
surface while people are ente
ring or exiting the vehicle.
These lamps turn on/off as follows: ●
The lamp illuminates for about 15 seconds when all the doors (including the backdoor) are unlocked by means of the key in the driver’s door, the keyless entry system (if soequipped) or the central door lock switch.
●
When any door or the backdoor is opened, the lamp illu- minates for about 2 minutes.If all the doors (including th
e backdoor) are closed while
the lamps are on, the lamps go off 30 seconds later.
NOTE●
The lamps go off immediately if: • All the doors (including the backdoor) are locked by means of the key in the driv
er’s door, the keyless entry
system (if so equipped) or the central door lock switch.• The ignition switch is turned to the “ON” position.
BK-BK2008E1ENUK.en-uk-Section4.fm Page
12 Wednesday, January 9, 2008 4:22 PM
