2008 MITSUBISHI SHOGUN Owner's Manual (in English)

For pleasant driving
5-33
5
Function setup mode
E00722500205
It is possible to change the following functions: ●
AF
●
CT
●
REG
●
TP-S
●
PI-S*
●
SCV (Refer “Speed Compensated Volume function” on page 5-23).
●
PHONE
1. Press the “MENU” button (4) for 2 seconds longer to
select the function setup mode.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
33 Wednesday, January 9, 2008 4:41 PM

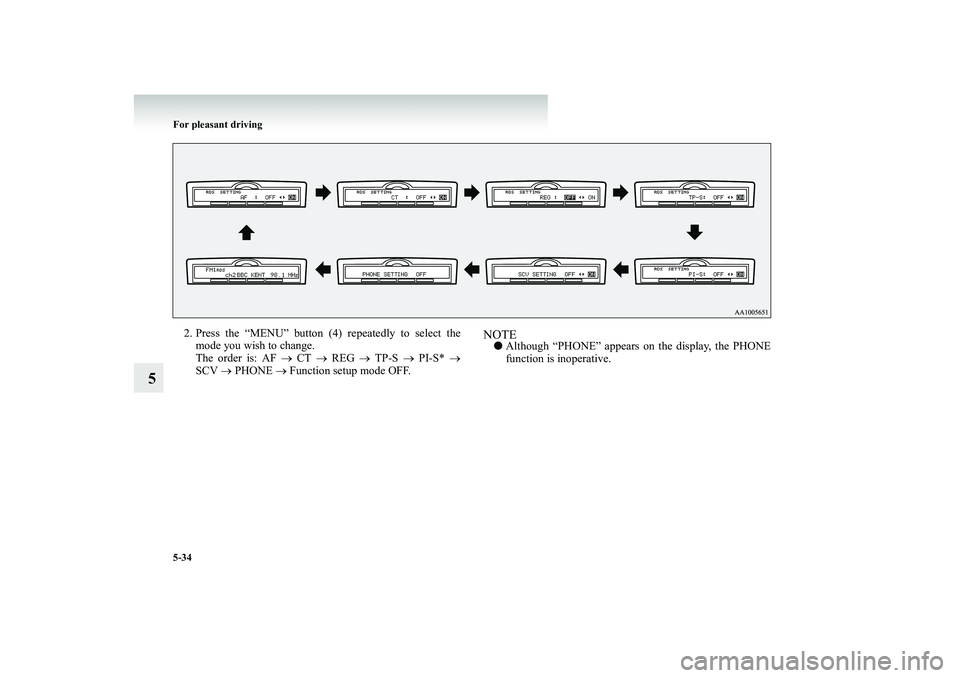

5-34 For pleasant driving
5
2. Press the “MENU” button (4) repeatedly to select the
mode you wish to change.The order is: AF
→ CT
→ REG
→ TP-S
→ PI-S*
→
SCV
→ PHONE
→ Function setup mode OFF.
NOTE●
Although “PHONE” appears on the display, the PHONE function is inoperative.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
34 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-35
5
3. Select the desired setting for each mode to be turned ON
and OFF as shown below. The setting will be shown on the display.
NOTE●
After selecting a mode, you can leave the function setup mode by taking either of the following steps: • Press the “MENU” button for at least 2 seconds. • Make no entry for 10 seconds.
Example
BK-BK2008E1ENUK.en-uk-Section8.fm Page
35 Wednesday, January 9, 2008 4:41 PM

5-36 For pleasant driving
5
CD control panel and display
E00709500309
1- AM/FM button 2- PWR (On-Off) button3- DISP (Title display) button 4- CD (CD mode changeover) button 5- RPT (Repeat) button6- RDM (Random) button 7- CD eject button 8- Disc-loading slot9- Fast-forward/Fast-reverse button 10- PAGE (Title scroll) button 11- TRACK (Track up/down) button12- FOLDER (Folder down) button13- FOLDER (Folder up) button 14- SCAN button 15- DISC (Disc up/down) button
16- CD indicator 17- TRACK indicator 18- Track play time indicator 19- RPT/RDM indicator20- SCAN indicator
BK-BK2008E1ENUK.en-uk-Section8.fm Page
36 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-37
5
To listen to a CD
E00709601062
1. Insert a disc with the label facing up, and the CD player
will begin playing even if the radio is being used. The CD indicator (16), the track number and the playing time will appear on the display. The CD
player will also start play-
back when the CD button (4) is pressed with a disc in the player.
2. To stop the CD, turn off the power by pressing the PWR
button (2) or change over to radio mode by pressing the AM/FM buttons (1), or eject th
e disc by pressing the eject
button (7).
NOTE●
To adjust the volume and tone, refer to “To adjust the vol- ume” on page 5-21 and “To adjust the tone” on page 5-21.
●
For information concerning
the handling of compact
discs, refer to “Handling of compact discs” on page 5-74.
To listen to an MP3 CDThis CD player allows you to play MP3 (MPEG Audio Layer-3) files recorded on CD-ROMs,
CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet, and Romeo formats. Each disc may have a maximum of16 trees, 100 folders, and 255 files per disc. During MP3 play- back, the unit can display ID3 tag information. For information concerning ID3 tag, refer to “CD text and MP3 title display” onpage 5-41. 1. Insert a disc containing MP3 files into the slot. 2. Press the CD button (4) for 2 seconds or longer to switch
to MP3 CD mode from normal music CD mode. The dis- play shows “READING”, then
playback will begin. The
folder number and
the track number will appear on the
display.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
37 Wednesday, January 9, 2008 4:41 PM

5-38 For pleasant driving
5
NOTE●
While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of
the CD-DA, reading of the
MP3 files, and the external audio input mode (AUX) bypressing the CD button for 2 seconds or longer (until you hear a beep). AUX is operativ
e only when the vehicle is
equipped with a rear-seat display.
●
With a disc that contains both CD-DA and MP3 files, the CD-DA files are automa
tically played first.
●
The playback sound quality differs depending on the encoding software and the bit rate. For details, refer to the user manual of your encoding software.
●
Depending on file/folder configurations on a disc, it may take some time before playback starts.
●
MP3 encoding software and writing software are not sup- plied with this unit.
●
You may encounter trouble wh
en playing an MP3 or dis-
playing the information of MP
3 files recorded with certain
writing software or CD reco
rders (CD-R/RW drivers).
●
If you record too many folders or files other than MP3 onto a disc, it may take some time before playback starts.
●
This unit does not record MP3 files.
●
For information concerning CD-Rs/RWs, refer to “Notes on CD-Rs/RWs” on page 5-76.
Folder selection order/MP3 file
playback order (Example)


CAUTION
!●
Attempting to play a file not in MP3 format which has “.mp3” as file name may produce noise from the speakers and speaker dam
age, and can damage your
hearing.
Folder selection In the order File selection In the order
Root folder (root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK-BK2008E1ENUK.en-uk-Section8.fm Page
38 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-39
5
To fast-forward/fast-reverse the discTo fast-forward or fast-reverse
the disc, press the fast-forward/
fast-reverse button (9). Fast-forward You can fast-forward the disc by pressing the side of the fast-forward button. While the bu
tton is kept pressed, the disc
will be fast-forwarded. Fast-reverse You can fast-reverse the disc
by pressing the side of the
fast-reverse button. While the button is kept pressed, the discwill be fast-reversed.NOTE●
When you have fast-forwarded
/fast-reversed the disc, the
playing-time may be shown with deviation.
To select a desired folder (MP3 CDs only)You can select your desired folder by pressing the FOLDERbuttons (12 or 13). Folder up Press the FOLDER button (13) until the desired folder numberappears on the display. Folder down Press the FOLDER button (12) until the desired folder numberappears on the display.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
39 Wednesday, January 9, 2008 4:41 PM

5-40 For pleasant driving
5
To select a desired track You can select your desired track by using the TRACK button (11). Track up Press the side of the TRAC
K button (11) repeatedly until
the desired track number appears on the display. Track down Press the side of the TRAC
K button (11) repeatedly until
the desired track number appears on the display.NOTE●
Pressing the side of the TRACK button (11) once dur- ing the song will cause the CD
player to restart playback
from the beginning of the song.
To repeat a trackPress the RPT button (5) briefly while the track is playing. “RPT” will appear on the displa
y. To exit the repeat mode,
press the RPT button again.To repeat a folder (MP3 CDs only)Press the RPT button (5) for 1 second or longer (until you hear a beep). “D-RPT” will appear on
the display. You can listen to
all the tracks in the currently
selected folder repeatedly.
NOTE●
The track repeat mode will be canceled by pressing the TRACK button (11), the SCAN button (14) or the eject button (7).
●
The disc repeat mode will be
canceled by pressing the
DISC button (15), the SCAN button (14) or the eject but- ton (7).
●
With a disc that contains bo
th CD-DA and MP3 files, the
repeat mode causes only file
s of the same format (CD-DA
only or MP3 files only) to be repeated.
To play tracks in random orderRandom playback for a disc (music CDs only) Press the RDM button (6) briefly. “RDM” will appear on the display. Tracks on the currently se
lected disc will be played in
a random sequence.To exit the random mode, press the RDM button again. Random playback for a folder (MP3 CDs only) Press the RDM button (6) briefly. “RDM” will appear on thedisplay. Tracks in the currently se
lected folder will be played in
a random sequence. To exit th
e random mode, press the RDM
button again. Random playback for all folders
on a disc (MP3 CDs only)
Press the RDM button (6) for 1 second or longer (until you hear a beep). “D-RDM” will appear on the display. Tracksfrom all the folders on the curr
ently selected disc will be
played in a random sequence. To
exit the random mode, briefly
press the RDM button again.NOTE●
With a disc that contains bo
th CD-DA and MP3 files, the
random mode causes only files of the same format (CD- DA only or MP3 files only) to be played in a randomsequence.
