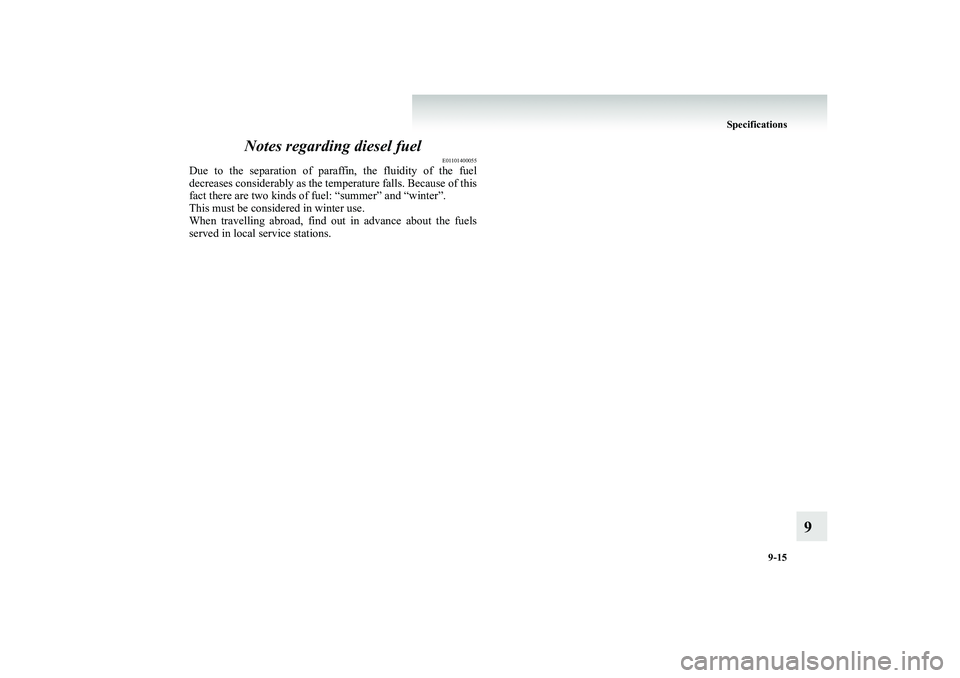

Notes regarding diesel fuel
E01101400055
Due to the separation of paraffin, the fluidity of the fuel decreases considerably as the te
mperature falls. Because of this
fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use. When travelling abro
ad, find out in adva
nce about the fuels
served in local service stations.
BK-BK2008E1ENUK.en-uk-Section12.fm Page 15 Thursday, January 10, 2008 7:49 AM

9-16 Specifications
9

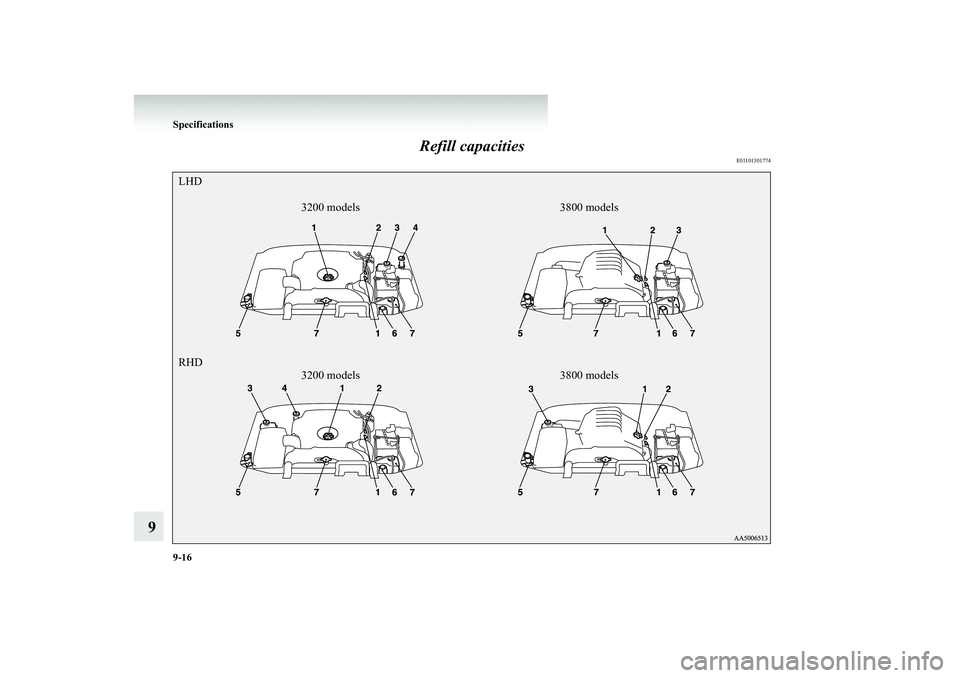

Refill capacities
E01101301774
LHD RHD
3200 models 3800 models 3200 models 3800 models
BK-BK2008E1ENUK.en-uk-Section12.fm Page 16 Thursday, January 10, 2008 7:49 AM

Specifications
9-17
9
*: Rear washer fluid container is lo
cated on the backdoor. (Refer to “Rear window washer fluid” on page 8-12.)
No.
Item
Quantity
Lubricants
1
Engine oil
3200 models
Oil pan 7.5 litres
Refer to page 8-6
Oil filter 1.0 litreOil cooler 1.3 litres
3800 models
Oil pan 4.3 litresOil filter 0.3 litreOil cooler 0.3 litre
2
Automatic transmission fluid 9.7 litres DIA QUEEN ATF SP III
3
Brake fluid As required
Brake fluid DOT 3 or DOT 4
4
Clutch fluid As required
5
Washer fluid
Front 5.1 litres
—
Rear
*
1.4 litres
6
Power steering fluid As required
Genuine MITSUBISHI Power Steering Fluid or ATF
DEXRON III/DEXRON II
7
Engine coolant(Includes 0.65 litre in the reserve tank)
Without rear air conditioning 9.0 litres
DIA QUEEN SUPER LONG LIFE COOLANT or equiva-
lent
With rear air conditioning 10.5 litres
8
Manual transmission oil 3.2 litres
Hypoid gear oil API classification GL-4 SAE 75W-85 or
75W-90
9
Transfer oil 2.8 litres
BK-BK2008E1ENUK.en-uk-Section12.fm Page 17 Thursday, January 10, 2008 7:49 AM

9-18 Specifications
9
NOTE●
Points requiring routine inspection or replenishment such as the engine oil, coolant, brake fluid, clutch fluid and washer flui
d
are marked white fo
r easy identification.
No.
Item
Quantity
Lubricants
10
Differential oil
Front 1.15 litres Hypoid gear oil API classification GL-5 or higher
Above 10 °C SAE 90 Below 10 °C SAE 80W
Rear 1.6 litres
11
Refrigerant (air conditioning)
Without rear air conditioning 530 - 570 g
HFC-134a
With rear air conditioning 850 - 890 g
BK-BK2008E1ENUK.en-uk-Section12.fm Page 18 Thursday, January 10, 2008 7:49 AM
