For emergencies
6-21
6

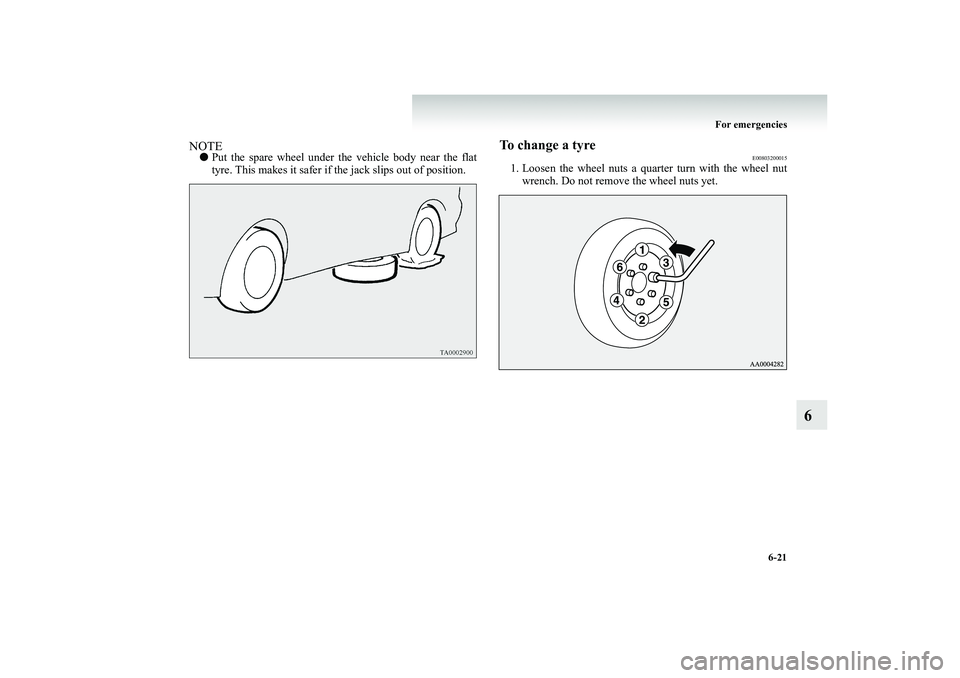

NOTE●
Put the spare wheel under th
e vehicle body near the flat
tyre. This makes it safer if the jack slips out of position.
To change a tyre
E00803200015
1. Loosen the wheel nuts a quar
ter turn with the wheel nut
wrench. Do not remove the wheel nuts yet.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
21 Wednesday, January 9, 2008 4:46 PM

6-22 For emergencies
6
2. Using the jack handle, turn
the release valve (A) clock-
wise until it stops.
3. Insert the jack handle in the bracket of the jack and hook
the notch (B) on the jack handle
end to the claw (C) of the
bracket.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
22 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-23
6
4. Place the jack under one of
the jacking points shown in
the illustration. Use the jack
ing point closest to the tyre
you wish to change.
D- Front jacking point
E- Rear jacking point
WARNING
!●
Set the jack only at the po
sitions shown here. If the
jack is set at a wrong position, it could dent yourvehicle or the jack might
fall over and cause per-
sonal injury.
●
Do not use the jack on a tilt
ed or soft surface. Other-
wise, the jack might slip
and cause personal injury.
Always use the jack on a
flat, hard surface. Before
setting the jack, make sure there are no sand or peb-bles under the jack base.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
23 Wednesday, January 9, 2008 4:46 PM

6-24 For emergencies
6
5. Move the jack handle up a
nd down to raise the ram until
just before the jack contacts
the jacking point of the vehi-
cle. Ensure that the jack will
properly contact the vehicle
jacking point.
NOTE●
This jack is a 3 stage expansion type.
6. Raise the vehicle until the tyre is slightly off the ground.
7. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.
8. Clean out any mud, etc. on
the hub surface
(F), hub bolts
(G) or in the installation holes (H) in the wheel, and thenmount the spare wheel.
WARNING
!●
Stop jacking up the vehicle as soon as the tyre is raised off the ground. It
is dangerous to raise the
vehicle any higher.
●
Do not get under your vehicle while using the jack.
●
Do not bump the raised vehicle or leave it sitting on the jack for a long time.
Both are very dangerous.
●
Do not use a jack except th
e one that came with your
vehicle.
●
The jack should not be us
ed for any purpose other
than to change a tyre.
●
No one should be in your vehicle when using the jack.
●
Do not start or run the en
gine while your vehicle is
on the jack.
●
Do not turn the raised wheel. The tyres still on the ground could turn and make your vehicle fall off thejack.
CAUTION
!●
Handle the wheel carefully
when changing the tyre,
to avoid scratching the wheel surface.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
24 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-25
6
9. Temporarily tighten the wheel nuts (flange nuts) until
their flange section
comes in contact with the wheel and it
is no longer loose.
NOTE●
If all 4 aluminium wheels are
changed to steel wheels, e.g.
when fitting winter tyres, use tapered nuts.
WARNING
!●
Mount the spare wheel with the valve stem (I) facing outboard. If you cannot s
ee the valve stem, you have
installed the wheel backwards. Operating the vehicle with
the spare wheel installed
backwards can cause vehicle damage and result inan accident.
CAUTION
!●
Never apply oil to either the wheel bolts or the nuts, or they will tighten too much.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
25 Wednesday, January 9, 2008 4:46 PM

6-26 For emergencies
6
10. Put the notch (J) provided on the jack handle end on the
valve (K) of the jack. Using the jack handle, turn the release valve anticlock- wise slowly to lower the vehicle until the tyre touches theground.
11. Tighten the nuts crisscross
in 2 or 3 steps until each nut
has been tightened securely. Tightening torque 105 to 125 Nm (Achieved by applying a force of 390 to 460 N at the endof the wheel nut wrench s
upplied with the vehicle.)
WARNING
!●
Be sure to open the release valve slowly. If it is opened quickly, the vehicl
e will drop abruptly and
the jack may come out of
position, causing a serious
accident.
CAUTION
!●
Never use your foot or a pipe extension for extra force in the wheel nut wren
ch. If you do so, you will
tighten the nut too much.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
26 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-27
6
12. Lower the jack all the way and remove it.
NOTE●
Occasionally when the vehicle is jacked up, the grooved portion of the designated point will not come off. When this happens, rock the
vehicle to lower the ram.
●
If the jack is difficult to remove by hand, insert the jack handle (L) into the bracket (M). Then using the handle, remove the jack.
CAUTION
!●
If the release valve is loos
ened too much (2 or more
turns) in the anticlockwise
direction, the jack’s oil
will leak and the jack cannot be used.
●
Close the release valve slowly when lowering the vehicle, or the valve may be damaged.
BK-BK2008E1ENUK.en-uk-Section9.fm Page
27 Wednesday, January 9, 2008 4:46 PM

6-28 For emergencies
6
13. Check your tyre inflation pressure at the next gasstation.
The correct pressures are shown
on the door label. See the
illustration.
To store the flat tyre or spare tyre
E00803400075
1. Attach the wheel to the spare wheel hanger (A) while
aligning the holes in the wheel with the bolts on the spare wheel hanger. Using the wheel nut wrench,
tighten the spare wheel nuts
firmly. Tightening torque 37 to 54 Nm (Achieved by applying a force of 140 to 200 N at the end of the wheel nut wrench s
upplied with the vehicle.)
CAUTION
!●
After changing the tyre
and driving the vehicle
about 1,000 km (620 miles)
, retighten the wheel nuts
to make sure that they have not come loose.
●
If the steering wheel vibr
ates when driving after
changing the tyre, we recommend you to have thetyres checked for balance.
●
Do not mix one type of tyre with another or use a different size from the one listed. This would causeearly wear and poor handling.
