2008 MITSUBISHI SHOGUN Owner's Manual (in English)

For pleasant driving
5-105
5
Convenient hooks
(5-door models)
*E00715600099
There are four hooks (A) on the side of the luggage compart- ment. Light items of luggage can be hung from the hook.NOTE●
Do not hang heavy luggage (more than about 4 kg) on the hook. Doing so could cause damage to the hook.
Luggage hooks
E00715700306
There are hooks on the floor an
d the side of the luggage com-
partment. Use the hooks on the floor for securing the luggage.3-door models
BK-BK2008E1ENUK.en-uk-Section8.fm Page
105 Wednesday, January 9, 2008 4:41 PM

5-106 For pleasant driving
5
Coat hooks
E00725600050
There are two hooks on
the rear / second assist grips for use in
hanging clothes.
CAUTION
!●
Do not pile up the luggage beyond the seatback height. Secure the luggage firmly.Otherwise, serious accident
s could result due to hin-
dered rearward view or flying objects during sud- den braking.
5-door models
WARNING
!●
Do not put a hanger or any heavy or pointed object on the coat hook. If the
curtain air bag was acti-
vated, any such item could be propelled away with great force and could prev
ent the curtain air bag
from inflating correctly. Hang
clothes directly on the
coat hook (without using a hanger). Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
106 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-107
5
Installation position for warning triangle
E00718400085
There are securing bands (A) for the warning triangle on the backdoor. To remove or install the warning triangle, turn the lock knobs(B) counter clockwise, then
remove the backdoor lid (C).
NOTE●
The warning triangle shown in the illustration is not sup- plied with the vehicle. It is recommended one be obtainedand carried for use if required.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
107 Wednesday, January 9, 2008 4:41 PM

BK-BK2008E1ENUK.en-uk-Section8.fm Page
108 Wednesday, January 9, 2008 4:41 PM

6
For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2 Emergency starting . . . . . . . . . . . . . . . . . . . . . . . .6- 2Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 6Bleeding the fuel system (diesel-powered vehicles only) . . . . . . . . . . . . . .6- 9Removal of water from the fuel filter (diesel-powered vehicles only) . . . . . . . . . . . . . .6- 9Tool, jack and jack handle . . . . . . . . . . . . . . . . . . .6- 11How to change a tyre . . . . . . . . . . . . . . . . . . . . . . .6- 16Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 29Operation under adverse driving conditions . . . . .6- 35
BK-BK2008E1ENUK.en-uk-Section9.fm Page 1 Wednesday, January 9, 2008 4:46 PM

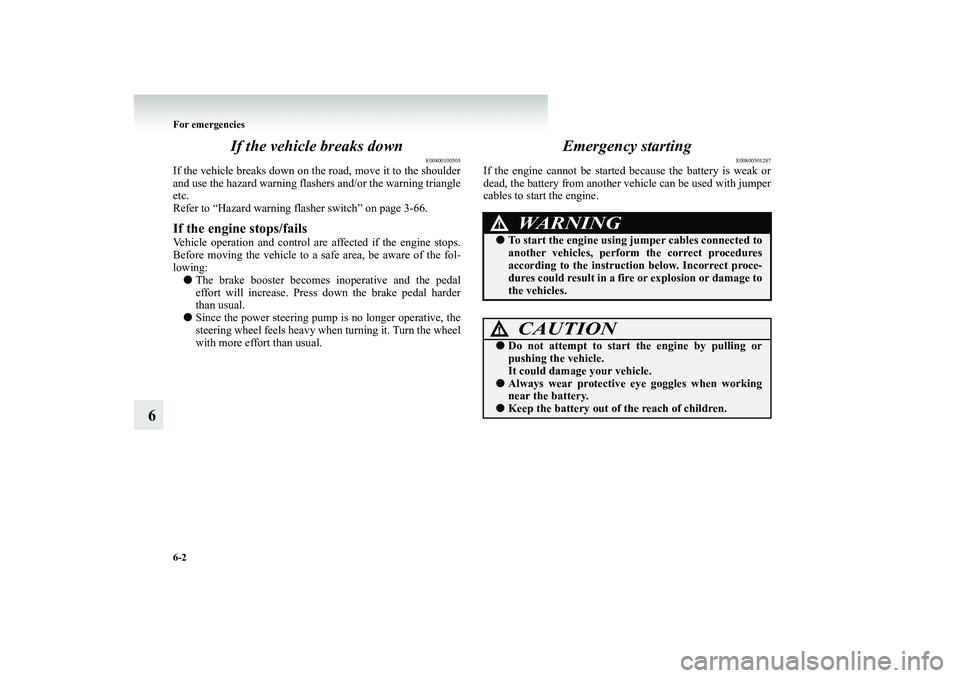

6-2 For emergencies
6
If the vehicle breaks down
E00800100505
If the vehicle breaks down on th
e road, move it to the shoulder
and use the hazard warning flashers and/or the warning triangle etc.Refer to “Hazard warning fl
asher switch” on page 3-66.
If the engine stops/failsVehicle operation and control are
affected if the engine stops.
Before moving the vehicle to a
safe area, be aware of the fol-
lowing:●
The brake booster becomes inoperative and the pedal effort will increase. Press down the brake pedal harder than usual.
●
Since the power steering pump is no longer operative, the steering wheel feels
heavy when turning it. Turn the wheel
with more effort than usual.
Emergency starting
E00800501287
If the engine cannot be started
because the battery is weak or
dead, the battery from another ve
hicle can be used with jumper
cables to start the engine.
WARNING
!●
To start the engine using
jumper cables connected to
another vehicles, perfor
m the correct procedures
according to the instructio
n below. Incorrect proce-
dures could result in a fire or explosion or damage to the vehicles.CAUTION
!●
Do not attempt to start the engine by pulling or pushing the vehicle. It could damage your vehicle.
●
Always wear protective eye goggles when working near the battery.
●
Keep the battery out of the reach of children.
BK-BK2008E1ENUK.en-uk-Section9.fm Page 2 Wednesday, January 9, 2008 4:46 PM

For emergencies
6-3
6
1. Get the vehicles close en
ough so the jumper cables can
reach, but be sure the vehicles
aren’t touching each other.
2. Set the parking brake firmly
on each vehicle. Put an auto-
matic transmission in “P” (PARK) or a manual transmis- sion in “N” (Neutral). Turn
off the ignition switch.
3. Turn off all lamps, heater
and other electrical loads.
4. Make sure battery electrolyte is at the proper level.
Refer to “Battery” on page 8-16.
CAUTION
!●
Check the other vehicle. It
must have a 12-volt bat-
tery. If the other system isn’t 12-volt, shorting can dam- age both vehicles. WARNING
!●
Turn off the ignition on
both vehicles beforehand.
Make sure that the cables or your clothes cannot be caught by the fan or dr
ive belt. Personal injury
could result.
WARNING
!●
If electrolyte fluid is not vi
sible, or appears to be fro-
zen, Do Not Attempt Jump Starting! A battery might rupture or
explode if the tempera-
ture is below the freezing poin
t or if it is not filled to
the proper level.
BK-BK2008E1ENUK.en-uk-Section9.fm Page 3 Wednesday, January 9, 2008 4:46 PM

6-4 For emergencies
6
5. Connect one end of one jumper cable to th
e positive (+) terminal of the discharged battery (A), and the other end to the posi
tive
(+) terminal of the booster battery (B). *: Optional equipment
6. Connect one end of the other jumper cable to the negative (–) terminal of the booster battery (B), and the other end to the
engine block of the vehicle with the discharged battery at the point farthest from the battery.
3800 models 3200 models
LHD* RHD*
BK-BK2008E1ENUK.en-uk-Section9.fm Page 4 Wednesday, January 9, 2008 4:46 PM
