2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Seat and seat belts
2-43
2
Pregnant women restraint
E00405600064
Seat belt pre-tensioner system and force
limiter system
E00405700081
The driver’s seat and front passenger’s seat each have a seat belt equipped with a pre-tensioner system.Pre-tensioner system
E00405800747
The pre-tensioner system will re
tract their respective seat belts
instantaneously, thus maximizing the seat belt’s effectiveness, if there is a frontal impact severe enough to injure the driver and/or front passenger and the ignition switch is in the “ON” or“START” position.
WARNING
!●
Seat belts work for everyone, including pregnant women. Pregnant women should use the available seat belts. This will reduce the likelihood of injury to both the woman and the unborn child. The lap beltshould be worn across the
thighs and as snug against
the hips as possible, but not across the waist. Consult your doctor if you have
any additional questions or
concerns.
WARNING
!●
To obtain the best results from your pre-tensioner seat belt, make sure you
have adjusted your seat
correctly and wear your seat belt properly.CAUTION
!●
Installation of audio equipment or repairs in the vicinity of the pre-tension
er seat belts or floor con-
sole must be performed in line with MITSUBISHI MOTORS guidelines. It is important to do so because the work could aff
ect the pre-tensioner sys-
tems.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
43 Wednesday, January 9, 2008 4:28 PM

2-44 Seat and seat belts
2
NOTE●
The pre-tensioner seat belts will
be activated if the vehicle
suffers a severe frontal impact
, even if the seat belts are
not worn.
●
The pre-tensioner seat belts are designed to work only once. After the pre-tensioner seat belts have been acti- vated, we recommend you have it replaced by a MIT- SUBISHI MOTORS Authorized Service Point.
SRS warning lamp
E00405900083
This warning lamp is shared by the SRS airbags and the pre- tensioner seat belts. Refer to “SRS warning lamp” on page 2-75.Force limiter system
E00406000153
In the event of a collision, each
force limiter syst
em will effec-
tively absorb the load applied to
the seat belt to minimize the
impact to the passenger.
Child restraint
E00406401066
When transporting children in your vehicle, some type of child restraint system should always
be used according to the size of
the child. This is required by law in most countries.The regulations concerning driving with children in the front seat may differ from country to country. You are advised to comply with the relevant regulations.
●
If you need to scrap the
vehicle, please consult a
MITSUBISHI MOTORS Authorized Service Point. It is important to do so
because unexpected activa-
tion of the pre-tensioner seat belts could cause inju- ries.CAUTION
!
WARNING
!●
When possible, put children in the rear seat. Acci- dent statistics indicate that
children of all sizes and
ages are safer when properly restrained in the rear seat rather than in the front seat.
●
Holding a child in your arms
is no substitute for a
restraint system. Failure
to use a proper restraint
system can result in severe
or fatal injury to your
child.
●
Each child restraint device
or fixing is to be used
only by one child.
●
When attaching a child rest
raint to the rear seat,
place the front seatbacks
in the upright position.
Otherwise, the child coul
d be seriously injured in
the event of hard braking or a collision.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
44 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-45
2
Caution for installing the child restraint on vehi- cles with a front passenger airbagThe label shown here is attached
on vehicles with a front pas-
senger airbag.
Use rearward facing child restraints
in the rear seat or turn off
the front passenger’s airbag ON
-OFF switch. (Refer to “To turn
an airbag off” on page 2-64.)
WARNING
!●
Extreme Hazard! Do not use a rearward faci
ng child restraint on a
seat protected by an airbag in front of it!
WARNING
!●
A REARWARD FACING CHILD RESTRAINT must NOT be used in the front passenger seat if thefront passenger’s airbag
has not been deactivated.
The force of an inflating airbag could kill or cause serious injuries to the chil
d. A rearward facing child
restraint must only be used in the rear seat.
Front passenger’s airbag ON
BK-BK2008E1ENUK.en-uk-Section5.fm Page
45 Wednesday, January 9, 2008 4:28 PM

2-46 Seat and seat belts
2
Infants and small children
E00406600641
When transporting infants and small children in your vehicle, follow the instruction given below.Instruction:●
For small infants, an infant carrier should be used. For small children whose height
when seated allows the
shoulder belt to lie in contact
with the face or the throat, a
child seat should be used.
●
The child restraint system sh
ould be appropriate for your
child’s weight and height and
properly fit in the vehicle.
For a higher degree of sa
fety: THE CHILD RESTRAINT
SYSTEM SHOULD BE INSTALLED IN THE REARSEAT.
WARNING
!●
A FORWARD FACING CHILD RESTRAINT should be used in the rear
seat whenever possible; if
used in the front seat, adjust the seat to the most rearward position.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
46 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-47
2
●
Before purchasing a child restraint system, try installing it in the rear seat to make sure there is a good fit. Because of the location of the seat belt
buckles and the shape of the
seat cushion, it may be difficult to securely install somemanufacturer’s child restraint systems. If the child restraint system
can be pulled forward or to
either side easily on the seat cushion after the seat belt hasbeen tightened, choose anot
her manufacturer’s child
restraint system.
NOTE●
Depending on the seating position in the vehicle and the child restraint system that you have, the child restraint can be attached using one of the following two locations: • To the lower anchorage in th
e rear seat (3-door models)/
second seat (5-door models) ONLY if the child restraint has ISOFIX mountings (See page 2-54). • To the seat belt (See page 2-57).
Older children
E00406700147
Children who have outgrown the child restraint system should be seated in the rear seat an
d wear combination lap shoulder
belt.The lap portion of the belt should be snug and positioned low on the abdomen so that it is below the top of the hip-bone. Oth- erwise, the belt could intrude into the child’s abdomen duringan accident and cause injury.
WARNING
!●
When installing a child rest
raint system, refer to the
instructions provided by
the manufacturer of the
restraint system. Failure to do so can result in severeor fatal injury to your child.
●
After installation, push and pull the child restraint system back and fort
h, and side to side, to see that it
is positively secured. If
the child restraint system is
not installed securely, it may cause injury to the child or other occupants in
the case of accident or
sudden stops.
●
When the child restraint system is not in use, keep your child restraint system
secured with the seat belt
or remove it from the vehicle in order to prevent it from being thrown around inside the vehicle during an accident.
BK-BK2008E1ENUK.en-uk-Section5.fm Page
47 Wednesday, January 9, 2008 4:28 PM

2-48 Seat and seat belts
2
Suitability for various ISOFIX positions
E00411400038
Mass Group
Size class
Fixture
Vehicle ISOFIX positions
Front Passenger
Rear / second Outboard
Rear Centre
Left side
Right side
Carrycot F ISO/L1 X X IL X
GISO/L2X IL X X
XXXX
0 - Up to 10 kg E ISO/R1 X IL IL X
XXXX
0+ - Up to 13 kg
EISO/R1X IL
IL, IL*
2
X
D ISO/R2 X IL IL X C ISO/R3 X IL IL X
XXXX
I - 9 to 18 kg D ISO/R2 X IL IL X
C ISO/R3 X IL IL XBISO/F2X IUF IUF X B1 ISO/F2X X
IUF, IL*
1
IUF, IL*
1
X
AISO/F3X IUF IUF X
XXXX
II- 15 to 25 kg XXXXIII- 22 to 36 kg XXXXBK-BK2008E1ENUK.en-uk-Section5.fm Page
48 Wednesday, January 9, 2008 4:28 PM

Seat and seat belts
2-49
2

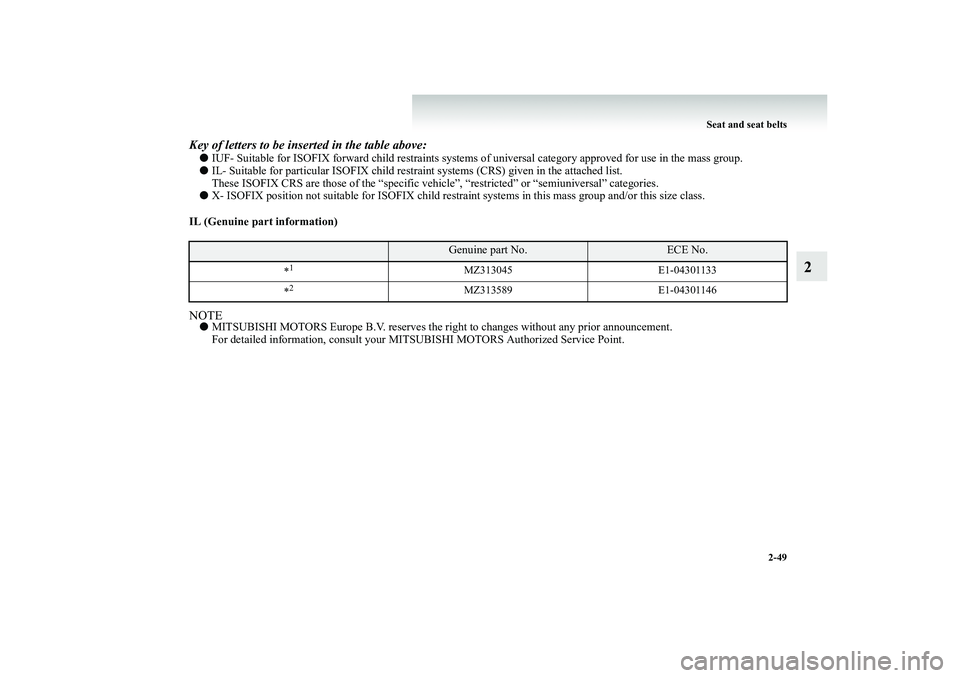

Key of letters to be inserted in the table above:●
IUF- Suitable for ISOFIX forward child
restraints systems of universal categor
y approved for use in the mass group.
●
IL- Suitable for particular ISOFIX child restra
int systems (CRS) given
in the attached list.
These ISOFIX CRS are those of the “specific vehi
cle”, “restricted” or “s
emiuniversal” categories.
●
X- ISOFIX position not suitable for ISOFIX child restra
int systems in this mass group and/or this size class.
IL (Genuine part information)

NOTE●
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Genuine part No.
ECE No.
*1
MZ313045 E1-04301133
*2
MZ313589 E1-04301146
BK-BK2008E1ENUK.en-uk-Section5.fm Page
49 Wednesday, January 9, 2008 4:28 PM

2-50 Seat and seat belts
2
Suitability for various seating positions
E00406800034
3-door models*1: With front passenger’s airbag deactivated by m
eans of front passenger’s airbag ON-OFF switch.
Key of letters to be inserted in the table above:●
U- Suitable for “universal”
category restraints approved for use in this mass group.
●
UF- Suitable for forward-facing “universal” category
restraints approved for use in this mass group.
●
L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts).
●
B- Built-in restraint appr
oved for this mass group.
●
X- Seat position not suitable for children in this mass group.
Mass Group
Seating position
Front Passenger
Rear Outboard
Rear Centre
Activated Air-
bag
Deactivated Air-
bag*
1
Left side
Right side
0 - Up to 10 kg X X X X X 0+ - Up to 13 kg X
L*
2
L*
2, L*
3
L*
2, L*
3
L*
2, L*
3
I - 9 to 18 kg
L*
5
L*
5
L*
4, L*
5
L*
4, L*
5
L*
4, L*
5
II & III - 15 to 36 kg
L*
6
L*
6
L*
6
L*
6
L*
6
BK-BK2008E1ENUK.en-uk-Section5.fm Page
50 Wednesday, January 9, 2008 4:28 PM
