2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Maintenance
8-55
8

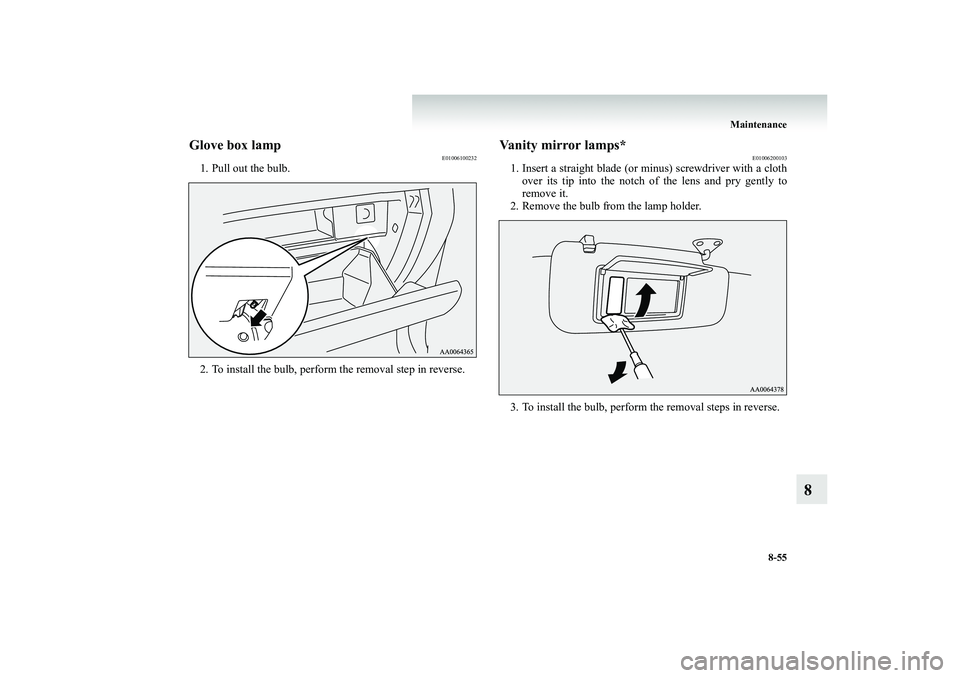

Glove box lamp
E01006100232
1. Pull out the bulb. 2. To install the bulb, perform the removal step in reverse.
Vanity mirror lamps*
E01006200103
1. Insert a straight blade (or minus) screwdriver with a cloth
over its tip into the notch of the lens and pry gently to remove it.
2. Remove the bulb from the lamp holder. 3. To install the bulb, perform the removal steps in reverse.
BK-BK2008E1ENUK.en-uk-Section11.fm Page
55 Wednesday, January 9, 2008 4:50 PM

BK-BK2008E1ENUK.en-uk-Section11.fm Page
56 Wednesday, January 9, 2008 4:50 PM

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2 Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 4Vehicle performance . . . . . . . . . . . . . . . . . . . . . . .9- 6Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 7Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 11Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . .9- 12Tyres and wheels . . . . . . . . . . . . . . . . . . . . . . . . . .9- 13Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . .9- 14Notes regarding diesel fuel . . . . . . . . . . . . . . . . . .9- 15Refill capacities . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 16
BK-BK2008E1ENUK.en-uk-Section12.fm Page
1 Thursday, January 10, 2008 7:49 AM

9-2 Specifications
9
Vehicle labeling
E01100101645
1.Vehicle identification numberThe vehicle identification number
is stamped on the bulkhead
as shown in the illustration.
2.Vehicle information code plateThe vehicle information code plat
e is clipped as shown in the
illustration.The plate shows model code,
engine model, transmission
model and body colour code, etc. Please use this number when
ordering replacement parts.
1- Model code 2- Engine model code 3- Transmission model code4- Body colour code 5- Interior code 6- Option code7- Exterior code
BK-BK2008E1ENUK.en-uk-Section12.fm Page
2 Thursday, January 10, 2008 7:49 AM

Specifications
9-3
9
Vehicle identification number plate (RHD vehicles only)This is stamped on the number plate riveted to the left front corner of the instrument panel pad. It is visible from outside of the vehicle through the windscreen.
Engine numberThe engine number is stamped on the engine cylinder block asshown in the illustration.3200 models3800 models
BK-BK2008E1ENUK.en-uk-Section12.fm Page
3 Thursday, January 10, 2008 7:49 AM

9-4 Specifications
9
Vehicle dimensions
E01100200997
5-door models 3-door modelsBK-BK2008E1ENUK.en-uk-Section12.fm Page
4 Thursday, January 10, 2008 7:49 AM

Specifications
9-5
9
Item
3-door models
5-door models
1
Front track 1,560 mm 1,570 mm
2
Overall width
Without side protector moulding 1,845 mm —With side protector moulding 1,875 mm
3
Front overhang 765 mm
4
Wheel base 2,545 mm 2,780 mm
5
Rear overhang 1,075 mm 1,355 mm
6
Overall length 4,385 mm 4,900 mm
7
Ground clearance (unladen) 225 mm
8
Overall height
Without roof rails 1,850 mm 1,870 mm
9
With roof rails 1,880 mm 1,900 mm
10
Rear track 1,560 mm 1,570 mm
Minimum turning radius
Body 5.7 m 6.1 mWheel 5.3 m 5.7 m
BK-BK2008E1ENUK.en-uk-Section12.fm Page
5 Thursday, January 10, 2008 7:49 AM

9-6 Specifications
9
Vehicle performance
E01100300914
*1: Vehicles to comply with the Euro 4 regulation *2: Vehicles to comply with the Euro 3 regulation
Item
3-door models
5-door models
3200 models
3800 models
3200 models
3800 models
Maximum speed
177 km/h*
1,
174 km/h*
2
(110 mph*
1,
108 mph*
2)
200 km/h (124 mph)
177 km/h*
1,
174 km/h*
2
(110 mph*
1,
108 mph*
2)
200 km/h (124 mph)
Maximum climbing ability (in 1st gear) 35 °BK-BK2008E1ENUK.en-uk-Section12.fm Page
6 Thursday, January 10, 2008 7:49 AM
