2008 MITSUBISHI SHOGUN Owner's Manual (in English)

Instruments and controls
3-21
3
1- Audio information
→ p. 5-20, 5-43
2- Average fuel consumption
→ p. 3-22
3- Driving range
→ p. 3-23
4- Average speed
→ p. 3-25
5- Outside temperature
→ p. 3-26
6- Altimeter
→ p. 3-28
7- Barometer
→ p. 3-29
8- Calendar
→ p. 3-30
9- Clock-only
→ p. 3-31
10- Blank
→ p. 3-31
BK-BK2008E1ENUK.en-uk-Section6.fm Page
21 Wednesday, January 9, 2008 4:32 PM

3-22 Instruments and controls
3
Average fuel consumption
E00518200052
The average fuel consumption
during the period since the last
reset is shown in (A). The aver
age value of the fuel consump-
tion is graphed every 5 minutes and the data for up to 4 hoursare shown in (B). When you press the “MANUAL”
function button in the auto
reset mode, the mode will be changed to the manual resetmode. When you press the “AUTO” function button in the manual reset mode, the mode will be changed to the auto reset mode.
NOTE●
When you turn the ignition sw
itch to the “ON” position
after turning it from the “ON” position to the “ACC” or “LOCK” position in the manual reset mode, the auto reset mode will automatically be selected.
●
When the average fuel cons
umption cannot be calculated,
“--.-” will be shown.
●
The average fuel consumptio
n changes depending on the
driving condition (road condition, driving behavior, etc.). The indication may differ from the actual fuel consump- tion. Therefore, it is reco
mmended to use the indication as
reference.
●
The unit indication can be changed to your desired setting {km/L, L/100 km, mpg (UK GALLON), or mpg (USGALLON)}. Refer to “User customization” on page 3-46.
Auto reset mode Manual reset mode
BK-BK2008E1ENUK.en-uk-Section6.fm Page
22 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-23
3
Resetting the averag
e fuel consumption
Press the “RESET” function button to reset the average fuel consumption indication.NOTE●
The average fuel co
nsumption can be reset separately for
the auto reset mode and for the manual reset mode.
●
When you turn the ignition key to the “ON” position about four hours (or more) after turning it from the “ON” position to the “ACC” or “LOCK” position in the autoreset mode, the average fuel
consumption indication will
automatically be reset.
Driving range
E00518300037
This value (A) shows the distance
(in km or miles) that can be
driven on the fuel remaining in the fuel tank. The driving range is graphed every 5 minutes and the data for up to 4 hours areshown in (B).
BK-BK2008E1ENUK.en-uk-Section6.fm Page
23 Wednesday, January 9, 2008 4:32 PM

3-24 Instruments and controls
3
NOTE●
When the driving range is 50 km (30 miles) or less, the display shows “----”. When it is 3,000 km (2,000 miles) or more, “3,000 km” or “2,000 miles” will be shown.
●
When the driving range canno
t be measured, the display
shows “----”.
●
The driving range is shown based on the accumulated fuel consumption data, however, may be changed depending on the driving condition (road condition, driving behavior, etc.). If the battery termin
als are disconnected, the accu-
mulated fuel consumption data
will be erased. It is recom-
mended to use the indication as reference.
●
When the vehicle is fueled
, the driving range will be
updated. However, if the amount of fueling is small, the indication may not be correct. Therefore, fill up the tank as much as possible in case of fueling.
●
When the vehicle is stopped on
a steep slope, the value of
the driving range may increase.
This is caused by the fuel
movement inside the tank on the slope and is not deemedas a failure.
Resetting the driving range Press the “RESET” function button to reset the driving range plotted in graph.NOTE●
Pressing the “RESET” function button will not reset the indication (C).
●
It is possible to set the display unit to km or miles. Refer to “User customization” on page 3-46.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
24 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-25
3
Average speed
E00518400041
The average speed during the pe
riod since the last reset is
shown in (A). The average va
lue of the vehicle speed is
graphed every 5 minutes and the data for up to 4 hours areshown in (B). When you press the “MANUAL” function button in the auto reset mode, the mode will be changed to the manual resetmode. When you press the “AUTO” function button in the manual reset mode, the mode will be changed to the auto reset mode.
NOTE●
When you turn the ignition switch to the “ON” position after turning it from the “ON” position to the “ACC” or “LOCK” position in the manual reset mode, the auto reset mode will automatically be selected.
●
When the average speed canno
t be calculated, “---” will
be shown.
●
The unit indication can be changed to your desired setting (km/h or mph). Refer to “User customization” on page 3-46.
Auto reset mode Manual reset mode
BK-BK2008E1ENUK.en-uk-Section6.fm Page
25 Wednesday, January 9, 2008 4:32 PM

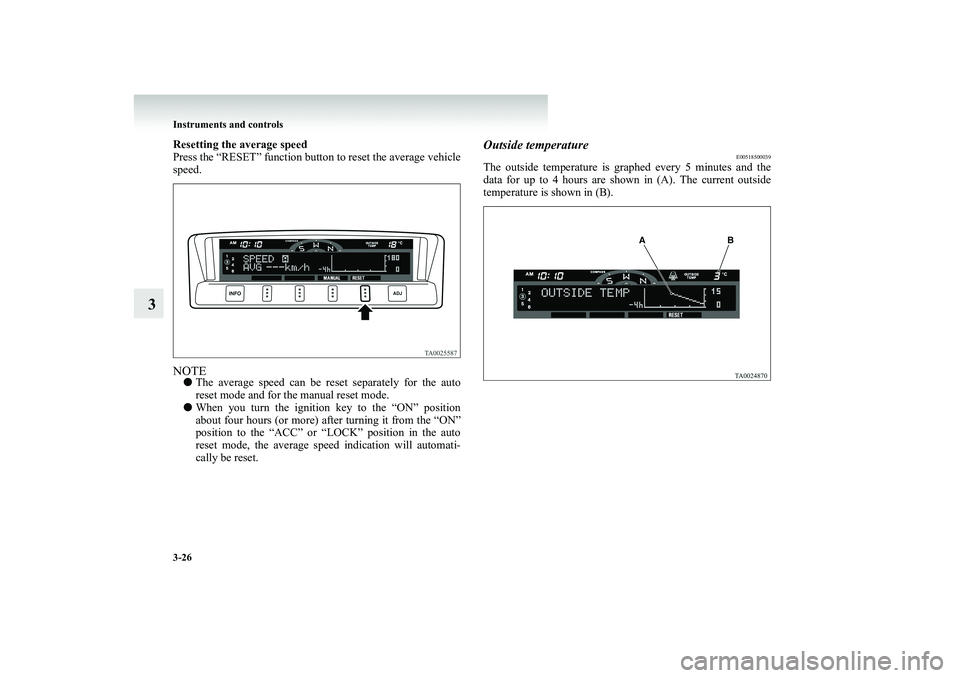

3-26 Instruments and controls
3
Resetting the average speed Press the “RESET” function button
to reset the average vehicle
speed.NOTE●
The average speed can be reset separately for the auto reset mode and for the manual reset mode.
●
When you turn the ignition key to the “ON” position about four hours (or more) after turning it from the “ON” position to the “ACC” or “LOCK” position in the autoreset mode, the average speed
indication will automati-
cally be reset.
Outside temperature
E00518500039
The outside temperature is gr
aphed every 5 minutes and the
data for up to 4 hours are shown in (A). The current outside temperature is shown in (B).
BK-BK2008E1ENUK.en-uk-Section6.fm Page
26 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-27
3
Resetting the outside temperature Press the “RESET” function button to reset the graph of the outside temperature.NOTE●
Depending on factors such as the driving conditions, the displayed temperature may vary from the actual outside temperature.
●
It is possible to set the display unit to °C or °F. Refer to “User customization” on page 3-46.
Frozen road warning This shows the temperat
ure outside the vehicle.
When the outside air temperature drops below about 3 °C (37 °F), the alarm sounds and th
e outside air temperature warn-
ing symbol (A) flashes for about 10 seconds.
CAUTION
!●
There is a danger the road might be icy, even when this symbol is not flashing
, so please take care when
driving.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
27 Wednesday, January 9, 2008 4:32 PM

3-28 Instruments and controls
3
Altimeter
E00518600027
The current elevation in units of 50 m (200 ft) is shown in (A). The elevation is graphed every
5 minutes and the data for up to
4 hours are shown in (B). To adjust the elevation It is possible to adjust the cu
rrently indicated elevation using
the following function buttons:
NOTE●
The elevation is determined
from changes in atmospheric
pressure. Depending on weather conditions, the indicated elevation may differ from th
e actual elevation. Variations
in atmospheric pressure can
cause different elevations to
be shown even in the same location. This behavior does not indicate a fault. Use the
indication as a guide only.
“+”- Adjustment of elevation
The elevation increases by 50 m (200 ft) every time youlightly push the “+” button.If you continue pressing the button for about 2 seconds ormore, the elevation indication is fast-forwarded. Then thesetting is changed to the elevation selected.
“-”- Adjustment of elevation
The elevation decreases by 50 m (200 ft) every time youlightly push the “-” button.If you continue pressing the button for about 2 seconds ormore, the elevation indication is fast-forwarded. Then thesetting is changed to the elevation selected.
