2006 Lexus GS430 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

AUDIO
3241121
Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan)Oromo
1518Oriya
1601Panjabi
1612Polish
1619“Pashto,Pushto”
1721Quechua
1813Rhaeto
−Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo−Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian

AUDIO
325
1918
Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu

AUDIO
326(f) Operating a video CD

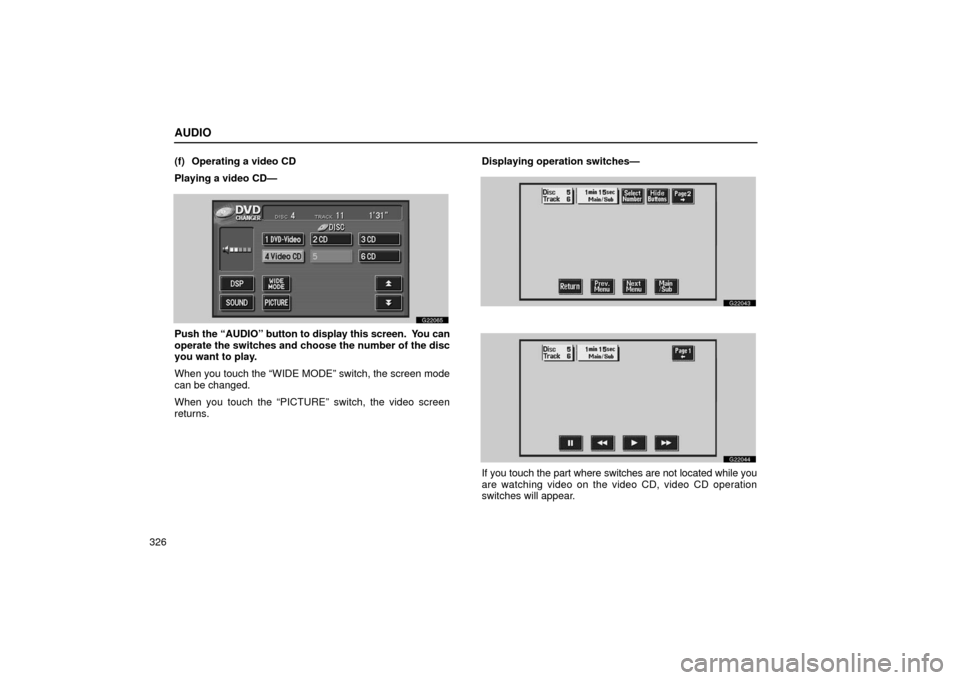

Playing a video CD—
G22065
Push the
“AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play.
When you touch the “WIDE MODE” switch, the screen mode
can be changed.
When you touch the “PICTURE ” switch, the video screen
returns. Displaying operation switches—
G22043
G22044
If you touch the part where switches are not located while you
are watching video on the video CD, video CD operation
switches will appear.

AUDIO
327
“
Page 2” switch: Use this switch to display the operation
switches on the second page.
“Page 1” switch: Use this switch to display the operation
switches on the top page.
“Hide Buttons” switch: Use this switch to turn off the
operation switches from the display.
If “
” appears on the display when you touch the switch, the
operation is not permitted. Description of each switch—
Switches on top page
“Select Number” switch: The track or number search screen
appears. (See “Searching by track” that follows.)
“Prev. Menu” switch: When you touch this switch while the
disc menu is displayed, the previous page appears on the
screen. If you touch this switch while the player is playing
video, the previous track is searched and played.
“Next Menu” switch: When you touch this switch while the
disc menu is displayed, the next page appears on the display.
If you touch this switch while the player is playing video, the
next track is searched and played.
“Main/Sub” switch: A multiplex transmission changing
switch. The mode changes from Main/Sub to Main, to Sub and
back to Main/Sub by touching this switch.

AUDIO
328
Switches on second page
“
” switch: Use this switch to pause the video screen.
When you touch this switch again, the video screen advance
frame by frame.
“ ” switch: Touch this switch to fast reverse during
playback.
“  ” switch: Touch this switch during pause to resume
playing.
“  ” switch: Touch this switch to fast forward during the
playback and start playing slowly during pause. Searching by track—
G22045
Enter the track numbers using “–”, “+” and “+10”
switches and touch “Enter”. The player starts playing
video for that title number.
You can select a track number by pushing “SEEK TRACK
”
or “ ” button.
Touch “Back”, and the previous screen returns.

AUDIO
329
(g) If the player malfunctions
If the player or another unit equipped with the player
malfunction, your audio system
will display one of the six
following messages.
If “DISC CHECK” appears on the display: It indicates that
the disc is dirty, damaged, or it was inserted upside down.
Clean the disc or insert it correctly.
If “NO DISC” appears on the display: It indicates that there
is no disc in the DVD player.
If “REGION CODE ERROR” appears on the display: It
indicates that the DVD region code is not set properly.
If “DVD ERROR” appears on the display: It indicates that the
inside of the player unit may be too hot due to the very high
ambient temperature. Eject a disc from the player and allow the
player to cool down.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer. (h) DVD player and DVD video disc information
DVD video discs—
This
DVD player conforms to NTSC color TV formats. The
DVD video disc conforming to another formats such as
PAL or SECAM cannot be used.
Region codes: Some DVD video discs have a region code
indicating a country where you can use the DVD video disc on
this DVD player . If the DVD video disc is not labeled as “ALL”
or “1”, you cannot use it on this DVD player. If you attempt to
play an inappropriate DVD video disc on this player , “REGION
CODE ERROR” appears on the screen. Even if the DVD video
disc does not have a region code, there is a case that you
cannot use it.
Marks shown on DVD video discs:
Indicates NTSC format of color TV.
Indicates the number of audio tracks.
Indicates the number of language
subtitles.
Indicates the number of angles.

AUDIO
330
Indicates the screen to be selected.
Wide screen: 16 : 9
Standard: 4 : 3
Indicates a region code by which this
video disc can be played.
ALL: in all countries
Number: region code
DVD video disc glossary—
DVD video discs: Digital versatile disc that holds video. DVD
video discs have adopted “MPEG2”, one of the world
standards of digital compression technologies. The picture
data is compressed by 1/40 on average and stored. Variable
rate encoded technology in which the volume of data assigned
to the picture is changed depending on the picture format has
also been adopted. Audio data is stored using PCM and Dolby
digital, which enables higher quality of sound. Furthermore,
multi−angle and multi −language features will also help you
enjoy the more advanced technology of DVD video.
Viewer restrictions: This feature limits what can be viewed
in conformity with a level of restrictions of the country. The level
of restrictions varies depending on the DVD video disc. Some
DVD video discs cannot be played at all, or violent scenes are
skipped or replaced with other scenes.
Level 1: DVD video discs for children can be played.
Level 2 − 7: DVD video discs for children and G−rated movie
can be played.
Level 8: All types of the DVD video discs can be played.
Multiangle feature: You can enjoy the same scene at
different angles.
Multilanguage feature: You can select a language of the
subtitle and audio.
Region codes: The region codes are provided on DVD
players and DVD discs. If the DVD video disc does not have
the same region code as the DVD player, you cannot play the
disc on the DVD player. For region codes, see page 329.

AUDIO
331
Audio:
This DVD player can play liner PCM, Dolby digital and
MPEG audio format DVD. Other decoded type cannot be
played.
Title and chapter: Video and audio programs stored in DVD
video disc are divided in parts by title and chapter.
Title: The largest unit of the video a nd audio programs stored
on DVD video discs. Usually, one piece of movie, one album,
or one audio program is assigned as a title.
Chapter: The unit smaller than that of title. A title comprises
plural chapters.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the doubleD symbol are
trademarks of Dolby Laboratories. Confidential
unpublished works.
19921997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
“DTS” is a trademark of Digital Theater Systems, Inc.
Audio remote control (steering switches)
G22051
The steering switches are installed on the left side of the
steering wheel.
“MODE” switch: Use this switch to change the mode. If a tape
or disc is not inserted, the “TAPE” or “DISC” mode is skipped.
When you push the switch with the audio system turned off, the
audio system turns on.
“VOL” switches: Use these switches to adjust the volume.
Push “ +” to increase the volume and “ – ” to decrease th\
e
volume. The volume continues to increase or decrease while
the switch is being pressed.
