OCCUPANT RESTRAINT SYSTEMS
180Types of child restraint system
Child
restraint systems are classified into the following 3 types
depending on the child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint syst em following the instructions
provided by its manufacturer.
Your vehicle has anchor brackets for securing the top strap of
a child restraint system.
For instructions about how to use the anchor bracket, see
“Using a top strap” on page 193.
Child restraint lower anchorages approved for your vehicle
may also be used. See “Installation with child restraint lower
anchorages” on page 195. (A) Infant seat
G16038
(B) Convertible seat
G16039

OCCUPANT RESTRAINT SYSTEMS
181
(C) Booster seat
G16040
INSTALLATION WITH 3POINT TYPE SEAT BELT
(A) Infant seat installation
G16038
An infant seat must be used in rearfacing position only.

OCCUPANT RESTRAINT SYSTEMS
182
G16042
CAUTION

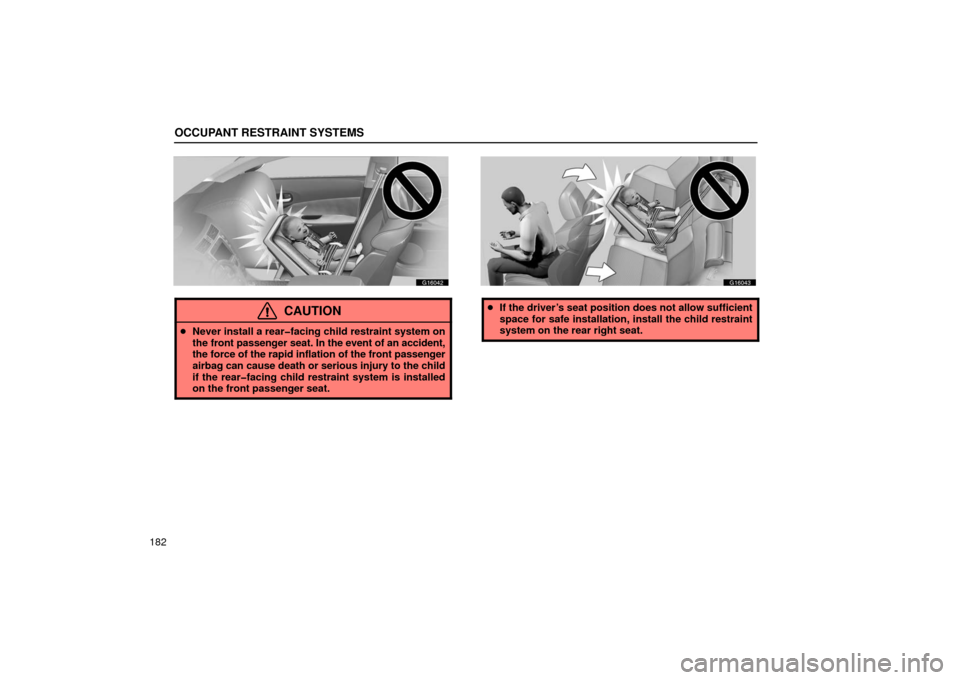

Never install a rearfacing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rearfacing child restraint system is installed
on the front passenger seat.
G16043
 If the driver’s seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.

OCCUPANT RESTRAINT SYSTEMS
183
G16044
1. Run the lap and shoulder belt through or around the infant
seat following the instructions provided by its manufacturer
and insert the tab into the buckle taking care not to twist the
belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
G16045
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retrac ted even slightly, it cannot be
extended.
To hold the infant seat securely, make sure the belt is in the lock
mode before letting the belt retract.

OCCUPANT RESTRAINT SYSTEMS
184
G16046
3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the infant seat securely.
G16047
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

OCCUPANT RESTRAINT SYSTEMS
185
G16048
4. To remove the infant seat, press the buckle release button
and allow the belt to retract completely. The belt will move
freely again and be ready to work for an adult or older child
passenger.(B) Convertible seat installation
G16039
A convertible seat must be used in forwardfacing or
rearfacing
position depending on the age and size of the
child. When installing, follow the manufacturer’s
instructions about the appropriate age and size of the
child as well as directions for installing the child restraint
system.

OCCUPANT RESTRAINT SYSTEMS
186
G16050
CAUTION

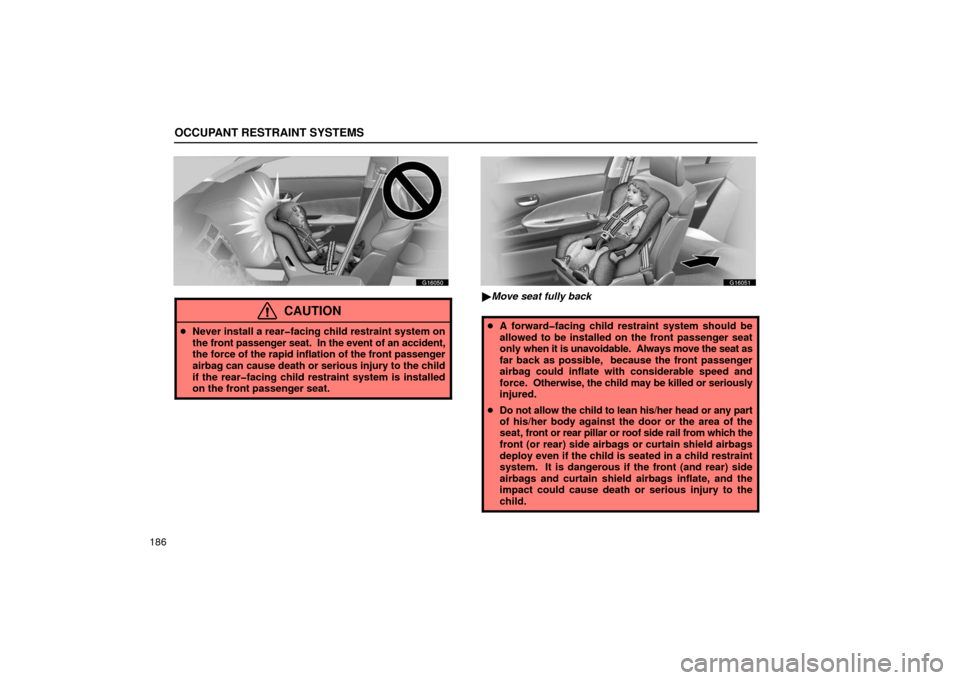

Never install a rearfacing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rearfacing child restraint system is installed
on the front passenger seat.
G16051
Move seat fully back
 A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
 Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or rear pillar or roof side rail from which the
front (or rear) side airbags or curtain shield airbags
deploy even if the child is seated in a child restraint
system. It is dangerous if the front (and rear) side
airbags and curtain shield airbags inflate, and the
impact could cause death or serious injury to the
child.

OCCUPANT RESTRAINT SYSTEMS
187
G16052

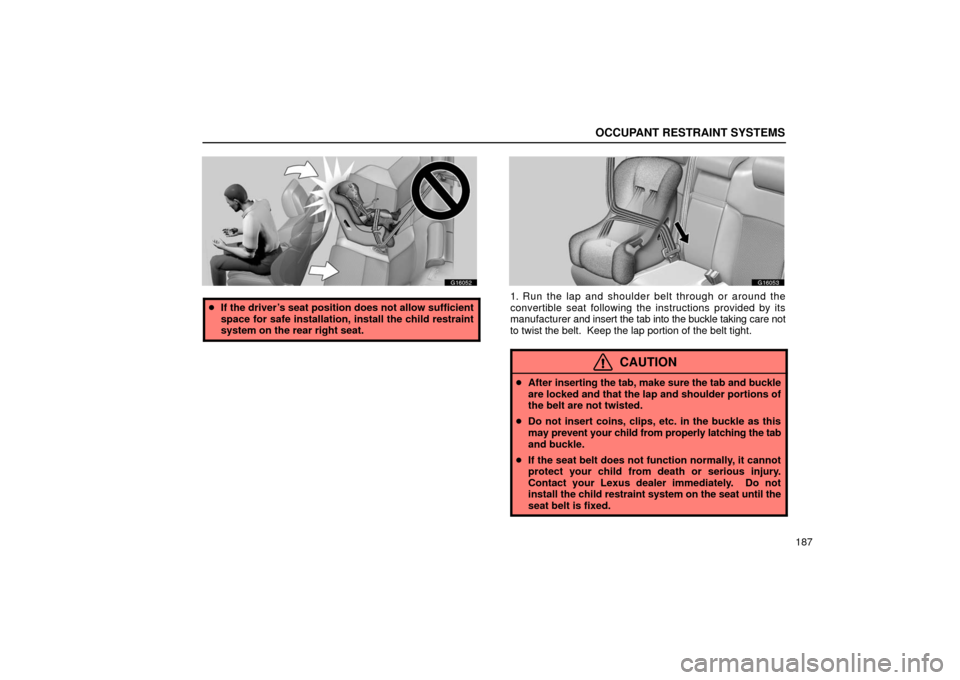

If the driver’s seat position does not allow sufficient
space for safe installation, install the child restraint
system on the rear right seat.
G16053
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
