OCCUPANT RESTRAINT SYSTEMS
172
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver, front
passenger and rear outboard passengers must:
Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.
G16137
Do not allow anyone to lean against the door when
the vehicle is in use, since the side airbag and curtain
shield airbag could inflate with considerable speed
and force. Otherwise, he/she may be killed or
seriously injured. Special care should be taken
especially when you have a small child in the vehicle.
 Sit up straight and well back in the seat, distributing
your weight evenly in the seat. Do not apply
excessive weight to the outer side of the seats with a
side airbag, and to the front pillar, rear pillar and roof
side rail with a curtain shield airbag.

OCCUPANT RESTRAINT SYSTEMS
173

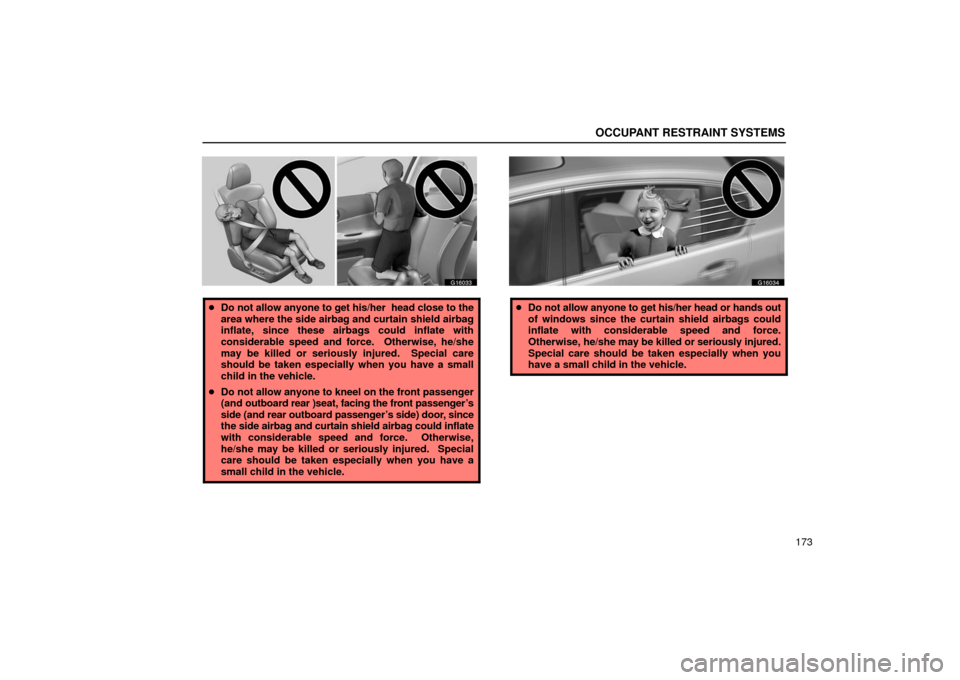

G16033
Do not allow anyone to get his/her head close to the
area where the side airbag and curtain shield airbag
inflate, since these airbags could inflate with
considerable speed and force. Otherwise, he/she
may be killed or seriously injured. Special care
should be taken especially when you have a small
child in the vehicle.
 Do not allow anyone to kneel on the front passenger
(and outboard rear )seat, facing the front passenger’s
side (and rear outboard passenger’s side) door, since
the side airbag and curtain shield airbag could inflate
with considerable speed and force. Otherwise,
he/she may be killed or seriously injured. Special
care should be taken especially when you have a
small child in the vehicle.
G16034
 Do not allow anyone to get his/her head or hands out
of windows since the curtain shield airbags could
inflate with considerable speed and force.
Otherwise, he/she may be killed or seriously injured.
Special care should be taken especially when you
have a small child in the vehicle.

OCCUPANT RESTRAINT SYSTEMS
174
G16035
Do not attach a cupholder or any other device or
object on or around the doors. When the side airbag
inflate, the cupholder or any other device or object
will be thrown with great force, or the side airbag may
not activate correctly, resulting in death or serious
injury. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.
G16036
Do not attach a microphone or any other device or
object around the area where the curtain shield
airbag activates such as on the windshield glass,
side door glass, front and rear pillars, roof side rail
and assist grips. When the curtain shield airbag
inflates, the microphone or other device or object will
be thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
 Do not hook a hanger , heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be thrown away with great force or
the curtain shield airbag may not activate correctly,
resulting in death or serious injury. When you hang
clothes, hang them on the coat hook directly.

OCCUPANT RESTRAINT SYSTEMS
175
Do not use seat accessories which cover the parts
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the front (and outboard rear)
seats or upholstery of the seats with front (and rear)
side airbags. Such changes may prevent the side
airbag system from activating correctly, disable the
system or cause the side airbags to inflate
accidentally, resulting in death or serious injury.
 Do not disassemble or repair the front and rear pillars
and roof side rails containing the curtain shield
airbags. Such changes may disable the system or
cause the curtain shield airbags to inflate
accidentally, resulting in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS side airbag
and curtain shield airbag system in some cases.
 Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player.
 Modification of the suspension system.
 Modification of the structure of the passenger
compartment.
 Repairs made on or near the console, front (or
outboard rear) seats .

OCCUPANT RESTRAINT SYSTEMS
176
16G017
The indicator comes on when the engine switch is
selected in “IGON” mode. It goes off after about 6
seconds. This means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
occupant detection sensor, front passenger’s seat belt buckle
switch, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and warning buzzers” on
page 72.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

When the engine switch is selected in “IG−ON” mode, the
light does not come on or remains on for more than 6
seconds.
 The light comes on while driving.

OCCUPANT RESTRAINT SYSTEMS
177
G16037
In the following cases, contact your Lexus dealer as soon as
possible:
Any of the SRS front (and rear) side airbags and curtain
shield airbags have been inflated.
The portion of the doors (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS side airbags and curtain shield airbags to inflate.
 The surface of the seats with the side airbag (shaded in the
illustration) is scratched, cracked, or otherwise damaged.
 The portion of the front pillars, rear pillars or roof side rail
garnishes (padding) containing the curtain shield airbags
inside (shaded in the illustration) is scratched, cracked, or
otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
178
CHILD RESTRAINT
Child restraint precautions
Lexus strongly urges the use of appropriate child
restraint systems for children.
The laws of all 50 states in the U.S.A. and Canada now require
the use of a child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint system, the child should
sit in the rear seat and must be restrained using the vehicle’s
seat belt. See ”Seat belts” on page 147 for details.

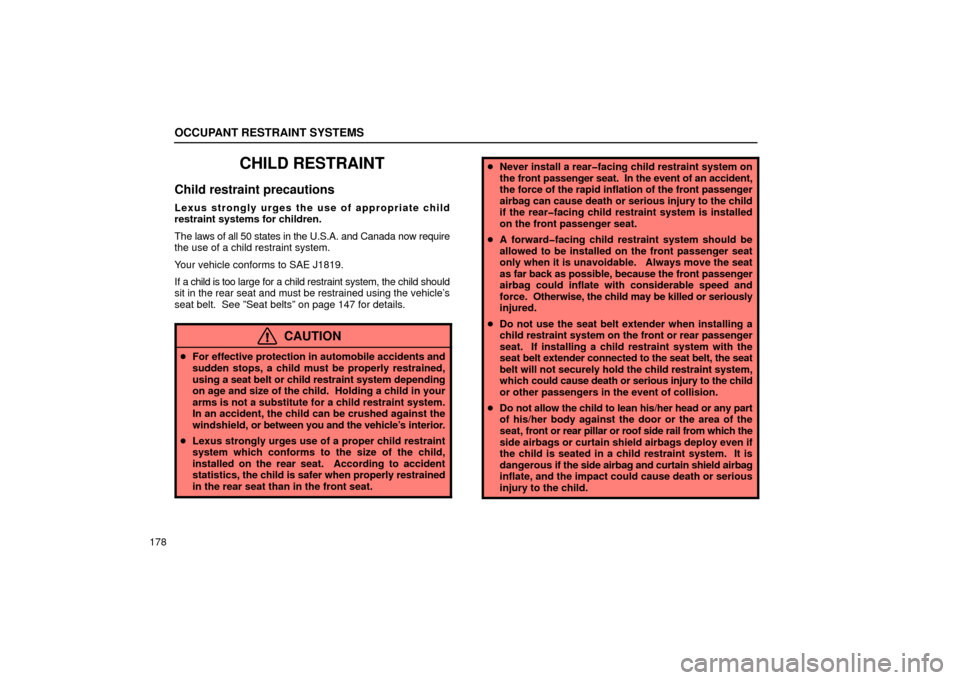

CAUTION
 For effective protection in automobile accidents and
sudden stops, a child must be properly restrained,
using a seat belt or child restraint system depending
on age and size of the child. Holding a child in your
arms is not a substitute for a child restraint system.
In an accident, the child can be crushed against the
windshield, or between you and the vehicle’s interior.
 Lexus strongly urges use of a proper child restraint
system which conforms to the size of the child,
installed on the rear seat. According to accident
statistics, the child is safer when properly restrained
in the rear seat than in the front seat.
 Never install a rearfacing child restraint system on
the front passenger seat. In the event of an accident,
the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child
if the rearfacing child restraint system is installed
on the front passenger seat.
 A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat
as far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.
 Do not use the seat belt extender when installing a
child restraint system on the front or rear passenger
seat. If installing a child restraint system with the
seat belt extender connected to the seat belt, the seat
belt will not securely hold the child restraint system,
which could cause death or serious injury to the child
or other passengers in the event of collision.
 Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or rear pillar or roof side rail from which the
side airbags or curtain shield airbags deploy even if
the child is seated in a child restraint system. It is
dangerous if the side airbag and curtain shield airbag
inflate, and the impact could cause death or serious
injury to the child.

OCCUPANT RESTRAINT SYSTEMS
179

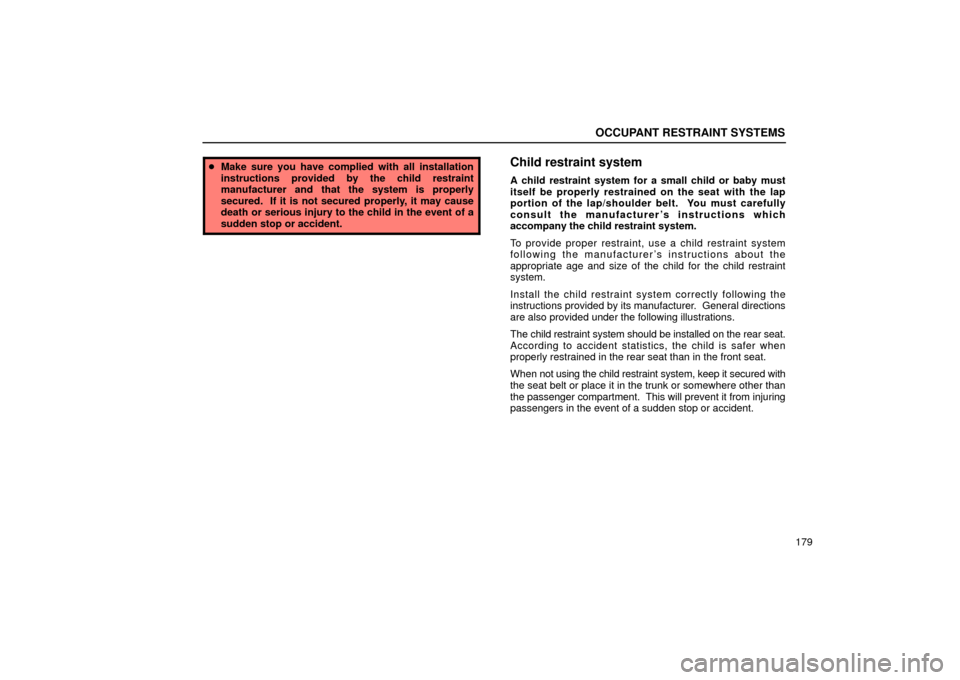

Make sure you have complied with all installation
instructions provided by the child restraint
manufacturer and that the system is properly
secured. If it is not secured properly, it may cause
death or serious injury to the child in the event of a
sudden stop or accident.Child restraint system
A child restraint system for a small child or baby must
itself be properly restrained on the seat with the lap
portion of the lap/shoulder belt. You must carefully
consult the manufacturer’s instructions which
accompany the child restraint system.
To provide proper restraint, use a child restraint system
following the manufacturer’s instructions about the
appropriate age and size of the child for the child restraint
system.
Install the child restraint s ystem correctly following the
instructions provided by its manufacturer. General directions
are also provided under the following illustrations.
The child restraint system should be installed on the rear seat.
According to accident statistics, the child is safer when
properly restrained in the rear seat than in the front seat.
When not using the child restraint system, keep it secured with
the seat belt or place it in the trunk or somewhere other than
the passenger compartment. This will prevent it from injuring
passengers in the event of a sudden stop or accident.
