TOUCH SCREEN

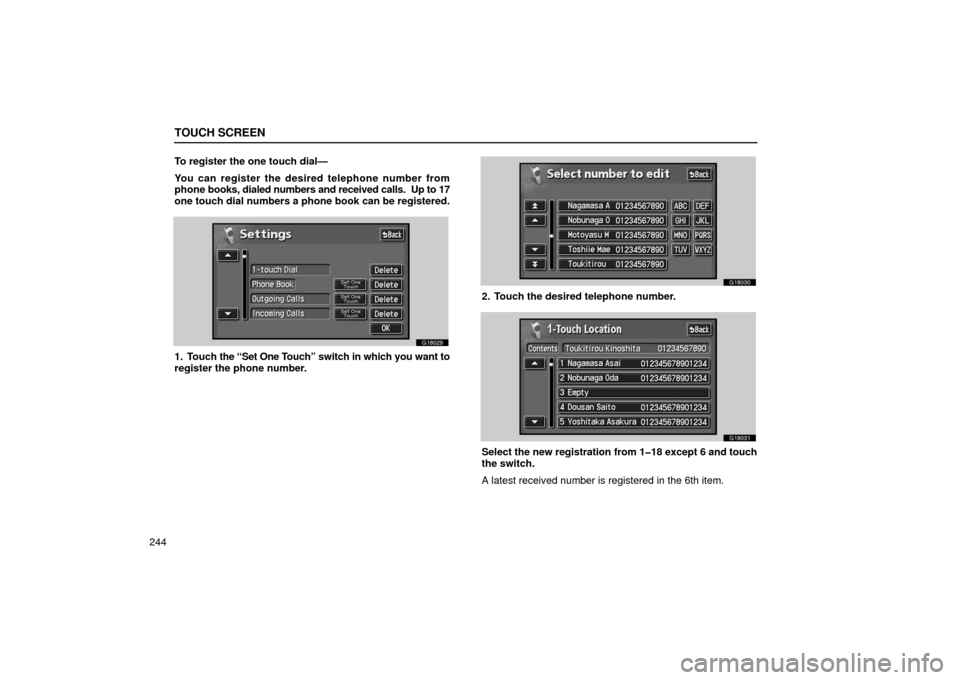

244To register the one touch dial—
You can register the desired telephone number from
phone
books, dialed numbers and received calls. Up to 17
one touch dial numbers a phone book can be registered.
G18029
1. Touch the “Set One T ouch” switch in which you want to
register the phone number.
G18030
2. Touch the desired telephone number.
G18031
Select the new registration from 118 except 6 and touch
the switch.
A latest received number is registered in the 6th item.

TOUCH SCREEN
245

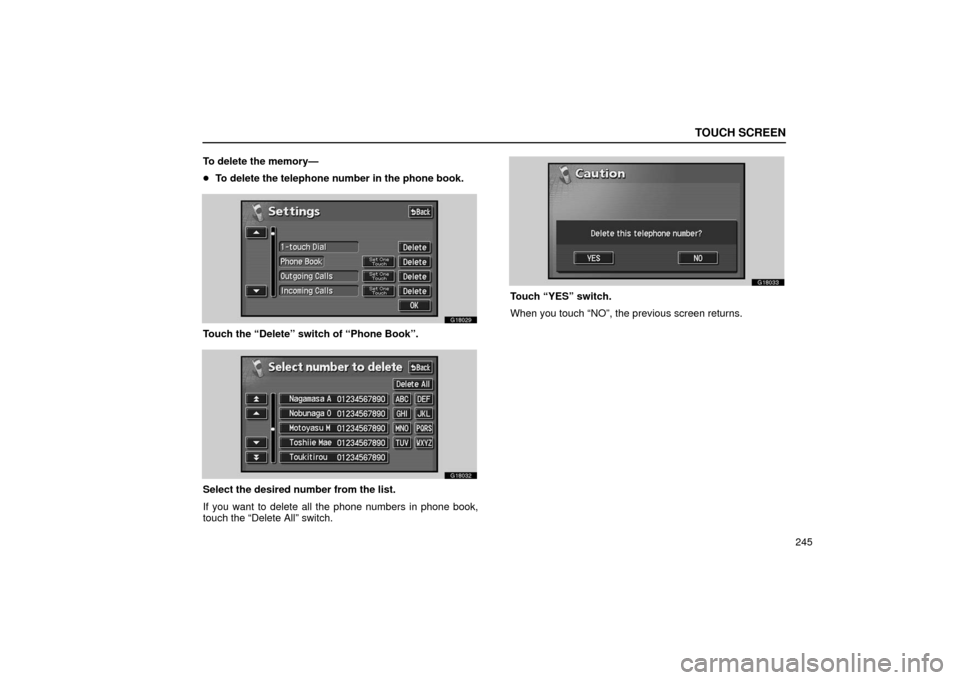

To delete the memory—

To delete the telephone number in the phone book.
G18029
Touch the “Delete” switch of “Phone Book”.
G18032
Select the desired number from the list.
If you want to delete all the phone numbers in phone book,
touch the “Delete All” switch.
G18033
Touch “YES” switch.
When you touch “NO”, the previous screen returns.

TOUCH SCREEN
246
To delete the dialed number
G18029
Touch the “Delete” switch of “Outgoing Calls”.
G18034
Select the desired number from the list.
If you want to delete all the dialed numbers, touch the “Delete
All” switch.
G18033
Touch “YES” switch.
When you touch “NO”, the previous screen returns.

TOUCH SCREEN
247

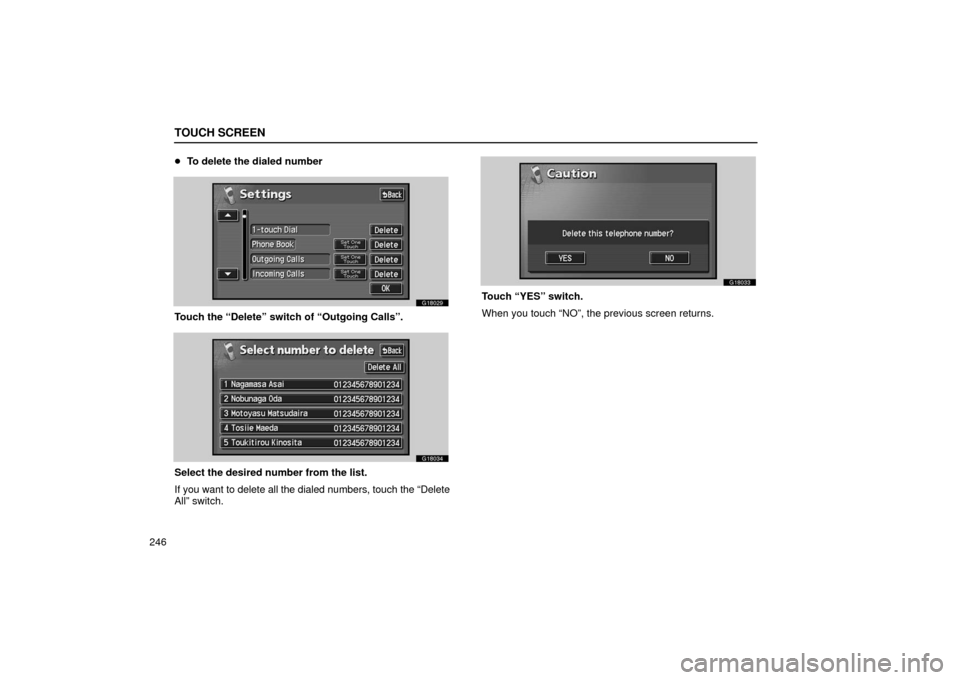

To delete the received calls
G18029
Touch the “Delete” switch of “Incoming Calls”.
G18034
Select the desired number from the list.
If you want to delete all the received calls, touch the “Delete All”\
switch.
G18033
Touch “YES” switch.
When you touch “NO”, the previous screen returns.

TOUCH SCREEN
248
To delete the one touch dial
G18029
Touch the “Delete” switch of “1touch Dial”.
G18034
Select the desired number from the list.
If you want to delete all the one touch dial numbers, touch the
“Delete All” switch.
G18033
Touch “YES” switch.
When you touch “NO”, the previous screen returns.

TOUCH SCREEN
249
Language
You can select the language shown on the screen.
1. Push the “INFO” button on the bezel to display the
“Information Menu” screen.
G18045
2. Touch the “Language” switch.
G18041
3. Touch the desired switch to select the language.
When you select the language, touch “OK”.

TOUCH SCREEN
250
Setting screen
1. Push the “INFO” button on the bezel to display the
“Information Menu” screen.
G18045
2. Touch the “Screen Setting” switch.(a) Automatic transition
You can select a function that enables automatic return to
the navigation screen from the audio screen.
G18035
Select the “ON” or “OFF” and then touch the “OK”.
ON: The navigation screen automatically returns from the
audio or air conditioning screen 20 seconds after the end of
audio or air conditioning screen operation.
OFF: The audio or air conditioning screen remains on.

TOUCH SCREEN
251
(b) Background color
You can select a background color.
G18035
Select the desired background color and then touch the
“OK”.
Screen adjustment
You can adjust the brightness or contrast of the screen
depending on the brightness of your surroundings. You
also can turn the display off.
To display the “Display” screen, push the “DISPLAY”
button.
G18036
Contrast and brightness adjustment
CONTRAST “+”: Strengthens the contrast of the screen.
CONTRAST “–”: Weakens the contrast of the screen.
BRIGHTNESS “+”: Brightens the screen.
BRIGHTNESS “–”: Darkens the screen.
The screen turns off when you push the “SCREEN OFF”. To
turn the display screen back on, push any bezel switch such
as “INFO”, etc. The selected screen appears.
