2006 Lexus GS430 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

OCCUPANT RESTRAINT SYSTEMS

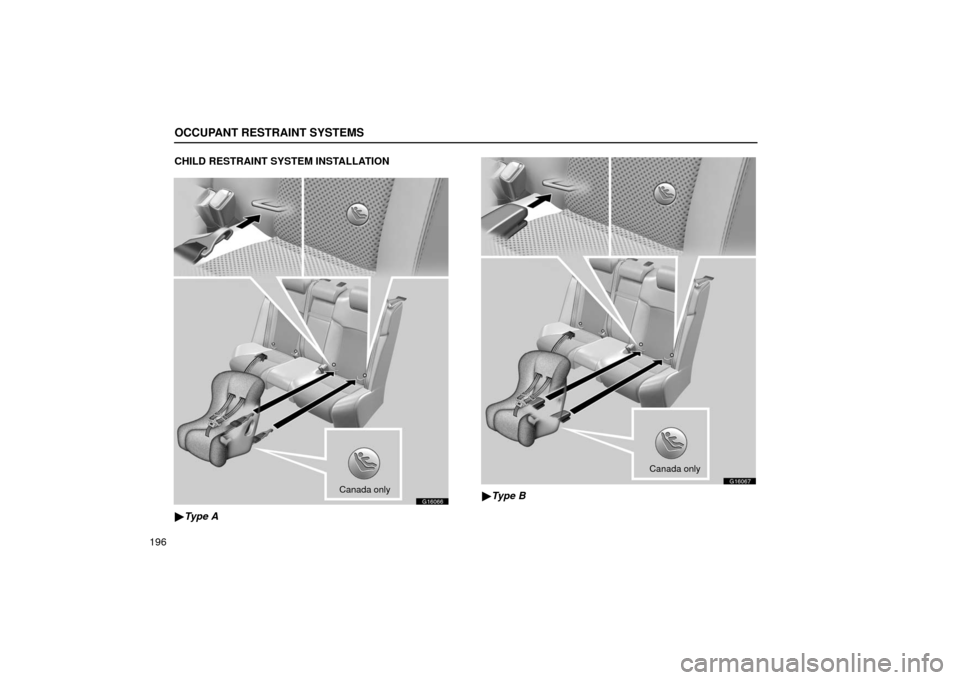

196CHILD RESTRAINT SYSTEM INSTALLATION
G16066
Canada only

Type A
G16067
Canada only
Type B

OCCUPANT RESTRAINT SYSTEMS
197
1. Widen the gap
between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
near the button on the seatback.
Type A—
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B—
2. Latch the buckles onto the anchorages
For owners in Canada—The symbol on a child restraint
system indicates the presence of a lower connector system.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see “Using a top
strap” on page 193.)
For installation details, refer to the instruction manual
equipped with each product.
CAUTION
 When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.

OCCUPANT RESTRAINT SYSTEMS
198
DRIVING POSITION MEMORYSYSTEM
A microcomputer will memorize the position of the driver’s
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Three different driving position
profiles can be entered into the computer’s memory.
Recording a driving position in the computer’s memory can
only be done when the engine switch is selected in “IG −ON”
mode and the selector lever is in the ”P” position.
Setting the driving position
G16068
1. Adjust the driver’s seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the ”SET” button, push button ”1”,”2” or
“3” until the signal beeps. The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
G16069
When you push button ”1”, ”2” or “3”, the driving position
will be automatically adjusted to the position recorded for
that button.

OCCUPANT RESTRAINT SYSTEMS
199
Conditions for memorized position activation

Engine switch in “IG−ON” mode and selector lever in ”P”
position, with the vehicle stopped.
 Engine switch in “OFF” mode and within 30 seconds of
opening driver’s door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1”, “2” or \
“3”)
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.
MEMORY RECALL FUNCTION
You can recall the memorized position using the entry
function or wireless remote control.
If you unlock the door using the entry function or wireless
remote control, the memorized seat position is recalled when
the driver’s door is opened. The memorized steering wheel
position will be recalled when you push the engine switch.
This function can be used after setting by the following
procedure.
Setting the driving position onto the electronic key
The driver’s door must be closed with the engine switch turned
off.
1. Push and hold the previously memorized driving position
button “1”, “2” or “3”.
2. While depressing the button above, push and hold the
“LOCK” or “UNLOCK” button on the electronic key until a beep
sounds.
If you wish to set other driv ing position, repeat the above
procedure. The previous setting will be erased and the new
position will be set.
Resetting the driving position on the electronic key
The driver’s door must be closed with the engine switch turned
off.
1. Push and hold the “SET” button.
2. Push and hold the “LOCK” or “UNLOCK” button on the
electronic key until two beeps sound.

OCCUPANT RESTRAINT SYSTEMS
200
FRONT PASSENGER SEAT
POSITION MEMORY SYSTEM
A microcomputer can memorize the position of the front
passenger seat. Three different seat position profiles can be
entered into the computer’s memory.
Recording a seat position in the computer’s memory can only
be done when the engine switch is selected in “IG −ON” mode
and the selector lever is in the ”P” position.
Setting the front passenger seat position
G16123
1. Adjust the front passenger seat to the desired position.
2. While pushing the ”SET” button, push button ”1”,”2” or
“3” until the signal beeps. The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps
and pressing the remaining
button, the seat position for another passenger can be
recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
G16124
When you push button ”1”, ”2” or “3”, the seat positio\
n
will be automatically adjusted to the position recorded for
that button.

OCCUPANT RESTRAINT SYSTEMS
201
Conditions for memorized position activation

Engine switch in “IG−ON” mode and selector lever in ”P”
position, with the vehicle stopped.
 Engine switch in “OFF” mode and within 30 seconds of
opening front passenger’s door.
If any seat position memory switch is pushed while one of the
memorized seat position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1”, “2” or \
“3”)
again.
The seat position memory control system cannot be operated
while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger . If this happens, you
can stop the movement by pressing another driving
position memory switch.

OCCUPANT RESTRAINT SYSTEMS
202
