OCCUPANT RESTRAINT SYSTEMS
164
G16025
Lexus strongly recommends that all infants and
children be placed in the rear seat of the vehicle and
be properly restrained.
 Do not allow a child to stand up or kneel on the front
passenger seat, since the front passenger airbag
could inflate with considerable speed and force.
Otherwise, the child may be killed or seriously
injured.
 Do not hold a child on your lap or in your arms. Use
a child restraint system in the rear seat. For
instructions concerning the installation of a child
restraint system, see ”Child restraint” on page 178.
G16026
Do not put anything or any part of your body on or in
front of the dashboard, lower portion of instrument
panel, steering wheel pad that houses the front
airbag system or in the areas where the SRS knee
airbags will inflate. They might restrict inflation or
cause death or serious injury as they are projected
rearward by the force of the deploying airbags.
Likewise, the driver and front passenger should not
hold objects in their arms or on their knees.
 If a vinyl cover is put on the area where the SRS knee
airbag will deploy, be sure to remove it.

OCCUPANT RESTRAINT SYSTEMS
165
Do not attach any objects except Lexus genuine
parts in the area where the SRS knee airbag for the
front passenger will inflate. When using an ashtray
or auxiliary box on the front passenger’s console
box, be sure to keep it closed. The attached object, or
opened ashtray or auxiliary box might restrict
inflation of the airbag or be thrown away by the force
of the deploying airbag, causing a danger.
 Do not modify or remove any wiring. Do not modify,
remove, st rike or open any components, such as the
steering wheel pad, steering wheel, column cover,
dashboard near the front passenger airbag, front
passenger airbag cover, knee airbags or airbag
sensor assembly. Doing so may prevent the front
airbag system from activating correctly, cause
sudden activation of the system or disable the
system, which could result in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS front airbag
system in some cases.
 Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player.
 Modification of the suspension system.
 Modification of the front end structure.
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
 Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel,
lower portion of instrument panel or dashboard near
the front passenger airbag.

OCCUPANT RESTRAINT SYSTEMS
166
16G017
This indicator comes on when the engine switch is
selected in “IGON” mode. It goes off after about 6
seconds. This means the SRS front airbags are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
occupant detection sensor, front passenger’s seat belt buckle
switch, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and warning buzzers” on
page 72.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

When the engine switch is selected in “IG−ON” mode, the
light does not come on or remains on for more than 6
seconds.
 The light comes on while driving.

OCCUPANT RESTRAINT SYSTEMS
167
G16027
In the following cases, contact your Lexus dealer as soon as
possible:
The SRS front airbags have been inflated.
 The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel, dashboard or lower
portion of instrument panel (shaded in the illustration) is
scratched, cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
168
SRS SIDE AIRBAGS AND CURTAINSHIELD AIRBAGS
G16028

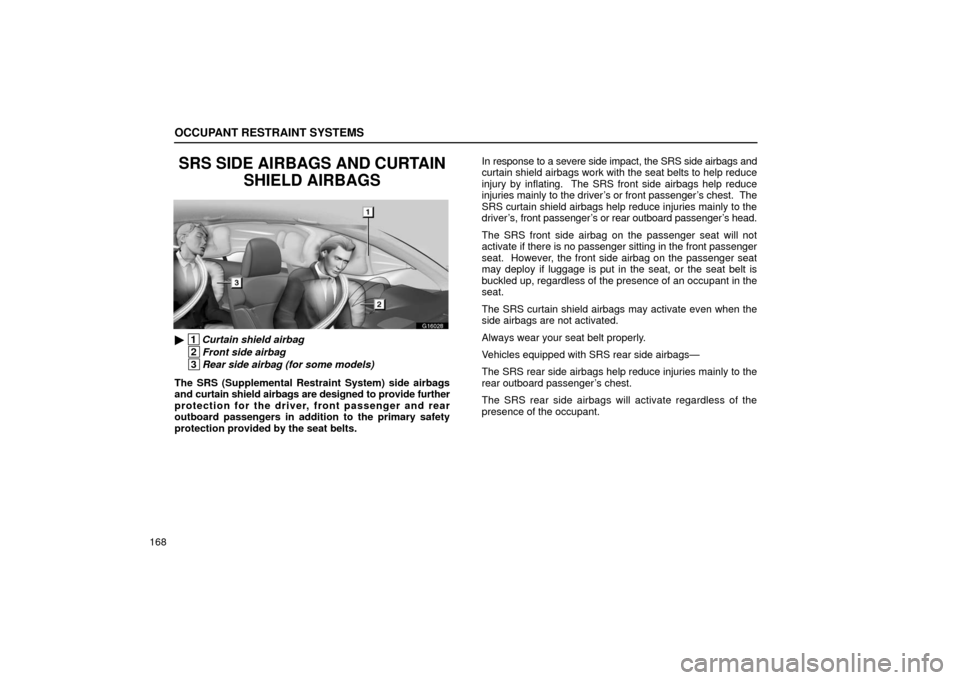

 1Curtain shield airbag
2Front side airbag
3Rear side airbag (for some models)
The SRS (Supplemental Restraint System) side airbags
and curtain shield airbags are designed to provide further
protection for the driver, front passenger and rear
outboard passengers in addition to the primary safety
protection provided by the seat belts. In response to a severe side impact, the SRS side airbags and
curtain shield airbags work with the seat belts to help reduce
injury by inflating. The SRS front side airbags help reduce
injuries mainly
to the driver’s or front passenger’s chest. The
SRS curtain shield airbags help reduce injuries mainly to the
driver’s, front passenger’s or rear outboard passenger’s head.
The SRS front side airbag on the passenger seat will not
activate if there is no passenger sitting in the front passenger
seat. However, the front side airbag on the passenger seat
may deploy if luggage is put in the seat, or the seat belt is
buckled up, regardless of the presence of an occupant in the
seat.
The SRS curtain shield airbags may activate even when the
side airbags are not activated.
Always wear your seat belt properly.
Vehicles equipped with SRS rear side airbags—
The SRS rear side airbags help reduce injuries mainly to the
rear outboard passenger’s chest.
The SRS rear side airbags will activate regardless of the
presence of the occupant.

OCCUPANT RESTRAINT SYSTEMS
169
CAUTION

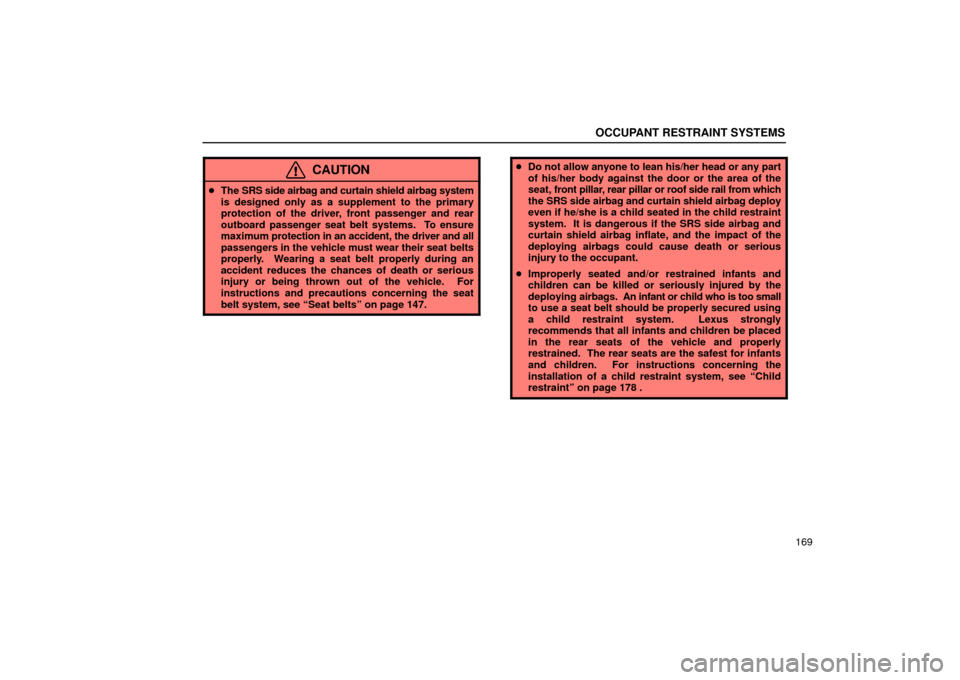

The SRS side airbag and curtain shield airbag system
is designed only as a supplement to the primary
protection of the driver, front passenger and rear
outboard passenger seat belt systems. To ensure
maximum protection in an accident, the driver and all
passengers in the vehicle must wear their seat belts
properly. Wearing a seat belt properly during an
accident reduces the chances of death or serious
injury or being thrown out of the vehicle. For
instructions and precautions concerning the seat
belt system, see “Seat belts” on page 147.
 Do not allow anyone to lean his/her head or any part
of his/her body against the door or the area of the
seat, front pillar, rear pillar or roof side rail from which
the SRS side airbag and curtain shield airbag deploy
even if he/she is a child seated in the child restraint
system. It is dangerous if the SRS side airbag and
curtain shield airbag inflate, and the impact of the
deploying airbags could cause death or serious
injury to the occupant.
 Improperly seated and/or restrained infants and
children can be killed or seriously injured by the
deploying airbags. An infant or child who is too small
to use a seat belt should be properly secured using
a child restraint system. Lexus strongly
recommends that all infants and children be placed
in the rear seats of the vehicle and properly
restrained. The rear seats are the safest for infants
and children. For instructions concerning the
installation of a child restraint system, see “Child
restraint” on page 178 .

OCCUPANT RESTRAINT SYSTEMS
170
G16029

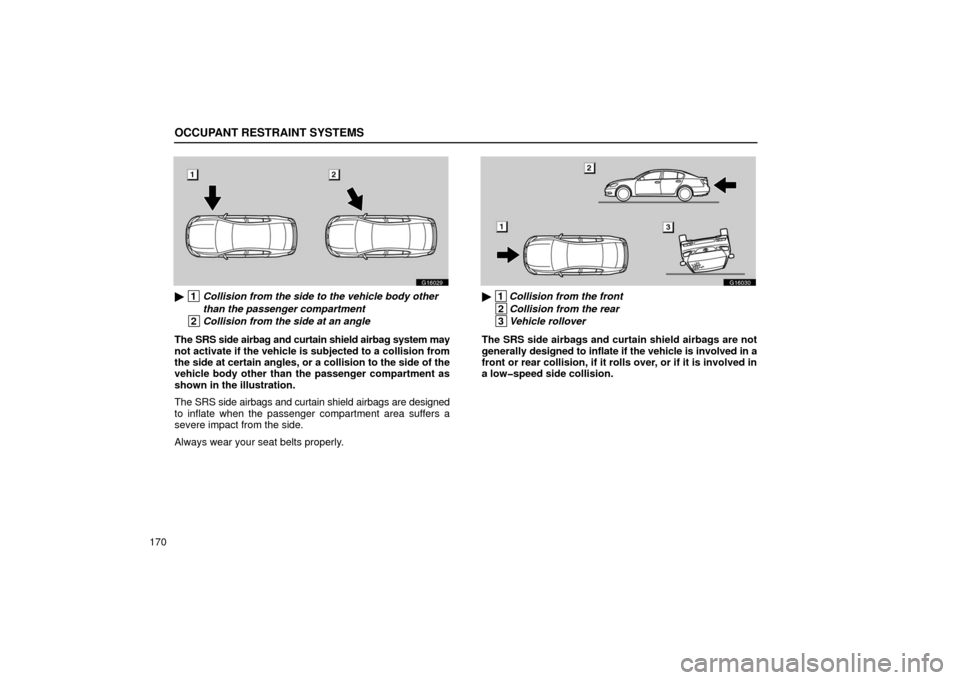

 1Collision from the side to the vehicle body other
than the passenger compartment
2Collision from the side at an angle
The SRS side airbag and curtain shield airbag system may
not activate if the vehicle is subjected to a collision from
the side at certain angles, or a collision to the side of the
vehicle body other than the passenger compartment as
shown in the illustration.
The SRS side airbags and curtain shield airbags are designed
to inflate when the passenger compartment area suffers a
severe impact from the side.
Always wear your seat belts properly.
G16030
 1 Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags and curtain shield airbags are not
generally designed to inflate if the vehicle is involved in a
front or rear collision, if it rolls over, or if it is involved in
a lowspeed side collision.

OCCUPANT RESTRAINT SYSTEMS
171
G16031
 1Curtain shield airbag modules (airbag and inflator)
2Front side airbag modules (airbag and inflator)
3Curtain shield airbag sensor assemblies
4Side and curtain shield airbag sensor assemblies
5Occupant detection sensor
6Front passenger’s seat belt buckle switch
7SRS warning light
8Airbag sensor assembly
9Vehicles with rear side airbag only:
Rear side airbag modules (airbag and inflator)
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are
shown in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor. In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non
−toxic gas to help restrain the lateral motion
of the occupants.
When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non −toxic gas.
This does not indicate a fire. This smoke may remain inside
the vehicle for some time, and may cause some minor irritation
to the eyes, skin or breathing. Be sure to wash off any residue
as soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns or abrasions and swelling.
Front (and outboard rear) seats as well as the parts of the front
and rear pillars, and roof side rail may be hot for several
minutes, but the airbags themselves will be hot. The airbags
are designed to inflate only once.
