2006 Lexus GS430 Scheduled Maintenance Guide / LEXUS 2006 GS430/GS300 FROM JAN. 2005 PROD. OWNER'S MANUAL (OM30649U)

AUDIO
3082. Insert only one disc while the DVD door is open.
You can set a disc at the lowest empty disc number.
After insertion, the set disc is automatically loaded.
If the label faces downward, the disc cannot be played. In this
case, “DISC CHECK” appears on the display.
If you need to insert the next disc, repeat the same procedure
to insert another disc.

Setting all the discs:
1. Push the “LOAD” button until you hear a beep.
The green indicators at both ends of the slot start blinking and
“WAIT” appears on the display. After the blinking indicators
stay on and the “WAIT” changes to the “LOAD”, the DVD door
opens.
2. Insert only one disc while the DVD door is open.
The DVD door closes and “WAIT” appears again.
3. Insert the next disc after the “WAIT” changes to the
“LOAD” and the DVD door opens.
4. Repeat this procedure until you insert all the discs.
To cancel the operation, push the “LOAD” or “DISC” button.
If you do not insert the discs within 15 seconds after pushing
the “LOAD” button and “LOAD” is displayed, the operation will
be canceled automatically.
NOTICE
Do not insert one disc stacked on top of another one or
feed them in continuously, to prevent discs from getting
stuck in the player.

AUDIO
309
G22049

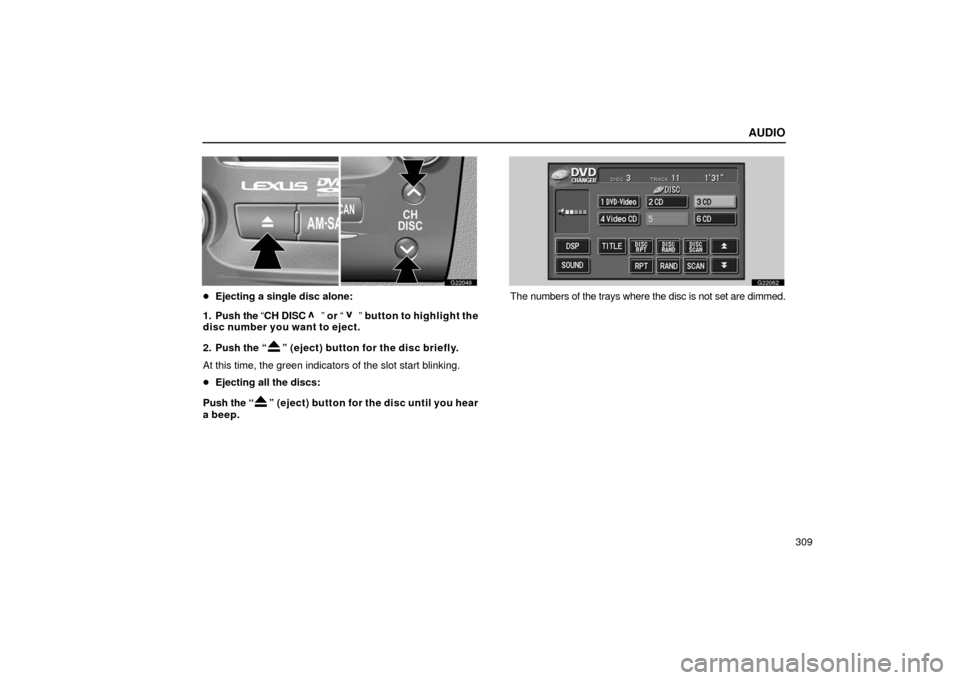

Ejecting a single disc alone:
1. Push the “CH DISC
” or “ ” button to highlight the
disc number you want to eject.
2. Push the “
” (eject) button for the disc briefly.
At this time, the green indicators of the slot start blinking.
 Ejecting all the discs:
Push the “
” (eject) button for the disc until you hear
a beep.
G22062
The numbers of the trays where the disc is not set are dimmed.

AUDIO
310(b) Playing a disc
G22050
Push the “DISC” button if discs are already loaded in the
player.
The “DVD CHANGER” screen appears on the display.
The discs set in the player are played continuously, starting
with the last disc you inserted. The disc number of the disc
currently
being played, the track number and the time from the
beginning of the program are shown on the display.
When play of one disc ends, the first track of the following disc
starts. When play of the final disc ends, play of the first disc
starts again.
The player will skip any empty disc trays. (c) Selecting a desired disc
G22114
On the screen: Touch the desired disc number.
The selected disc number is highlighted in green.
The player will start playing the selected disc from the first
track.
On the audio panel: Push the
“CH DISC
” o r “ ” button.
When you release the button, the player will start playing the
selected disc from the first track.

AUDIO
311
(d) Operating an audio CD
Playing an audio CD—
G22062
Push the
“AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play. The selected disc is automatically
played. Selecting a desired track—
G22112
“SEEK TRACK” button:
Use for direct access to a desired
track.
Push the “SEEK TRACK
” or “ ” button and hold it until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
Fast forward: Touch the “
” switch and hold it to fast forward
the disc. When you release the switch, the player will resume
playing from that position.
Reverse: Touch the “
” switch and hold it to reverse the disc.
When you release the switch, the player will resume playing.

AUDIO
312Searching for a desired track or a disc—
G22061
Touch the “SCAN” switch.
The bar on the upper side will be highlighted in yellow. The
player
will play the next track for 10 seconds, then scan again.
To select a track, touch the “SCAN” switch a second time. If
the player reaches the end of the disc, it will continue scanning
at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
Touch the “DISK SCAN” switch.
The bar on the upper side will be highlighted in yellow. The
program at the beginning of each disc will be played for 10
seconds. To continue listening to the program of your choice,
touch the “DISC SCAN” switch a second time.
After all the audio disc are scanned in one pass, normal play
resumes. Other functions—
G22111
“RPT”
switch: Use it for automatic repeat of the track you are
currently listening to.
Touch the switch while the track is playing. When the track is
finished, the player will automatically go back to the beginning
of the track and play the track again. To cancel it, touch the
switch once again.
“DISC RPT” switch: Use it for automatic repeat of the disc
you are currently listening to.
Touch the switch while the disc is playing. When the disc is
finished, the player will automatically go back to the beginning
of the disc and play the disc again. To cancel it, touch the
switch once again.
“RAND” switch: Use it for automatic and random selection
of the disc which you are currently listening to.

AUDIO
313
When the switch is touched, the system selects a track in the
disc
you are currently listening to. To cancel it, touch the switch
once again.
“DISC RAND” switch: Use it for automatic track selection for
all the audio discs and play by the system.
When the switch is touched, the system selects a track in all
the audio discs which are set and plays it. To cancel it, touch
the switch once again.

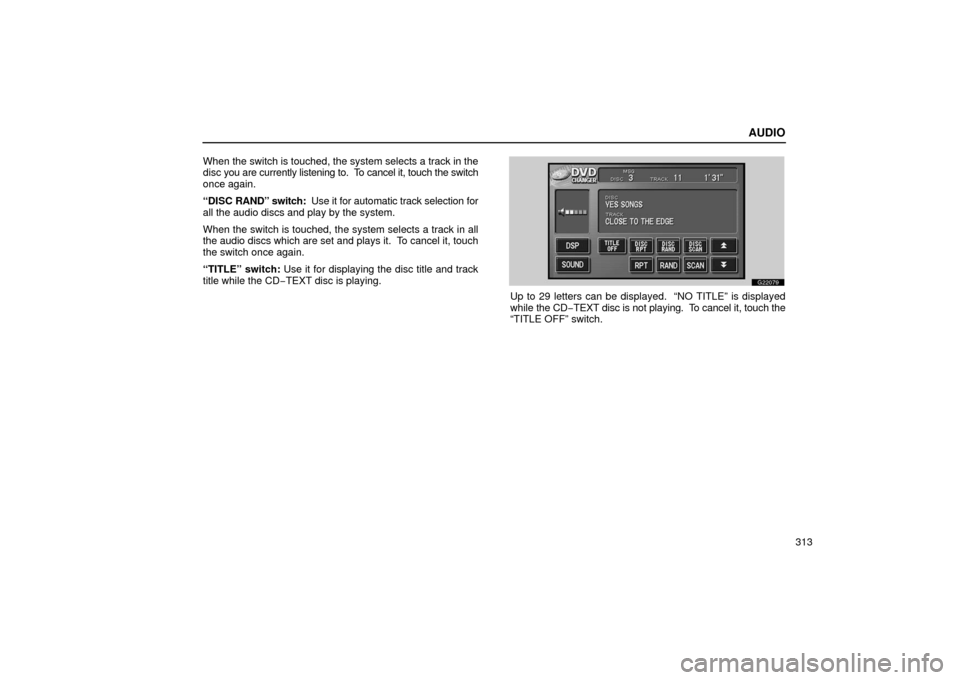

“TITLE” switch: Use it for displaying the disc title and track
title while the CD −TEXT disc is playing.
G22079
Up to 29 letters can be displayed. “NO TITLE” is displayed
while the CD− TEXT disc is not playing. To cancel it, touch the
“TITLE OFF” switch.

AUDIO
314(e) Operating a DVD video disc
NOTE: The playback condition of some DVD video discs
may be determined by a DVD video software producer.
This DVD player plays a disc as the software producer
intended. So some functions may not work properly. Be
sure to
read the instruction manual for the DVD video disc
separately provided. For the detailed information about
DVD video discs, see “(h) DVD player and DVD video disc
information”
Precautions on DVD video disc
When recording with a DVD video or video CD, audio tracks
may not record in some cases while the menu is displayed. As
audio will not play in this case, verify that the video tracks are
playing and then activate playback.
When playback of a disc is completed:
If an audio CD is playing, the next CD will be selected and
playback will begin automatically.
If a DVD video or video CD is playing, playback will stop or
the menu screen will be displayed. The next disc will not
play back automatically. (Audio tracks cannot be heard
while the disc is stopped)
The title/chapter number and playback time display may not
appear while playing back certain DVD video discs.
CAUTION
Conversational speech on some DVDs is recorded at a
low volume to emphasize the impact of sound effects.
If you adjust the volume assuming that the
conversations represent the maximum volume level
that the DVD will play, you may be startled by louder
sound effects or when you change to a different audio
source. The louder sounds may have a significant
impact on the human body or pose a driving hazard.
Keep this in mind when you adjust the volume.

AUDIO
315
G22117
The “DVD Hint !” screen appears when the video screen
is first displayed after you select the engine switch in
“ACC” or “IGON” mode.
Touch the “OK” switch when you read the message.Playing a DVD video disc—
G22064
Push the
“AUDIO” button to display this screen. You can
operate the switches and choose the number of the disc
you want to play. The selected disc is automatically
played.
When you touch the “WIDE MODE” switch, the screen mode
can be changed.
When you touch the “PICTURE ” switch, the video screen
returns.
