INTRODUCTION
500
VEHICLE IDENTIFICATION
G61001

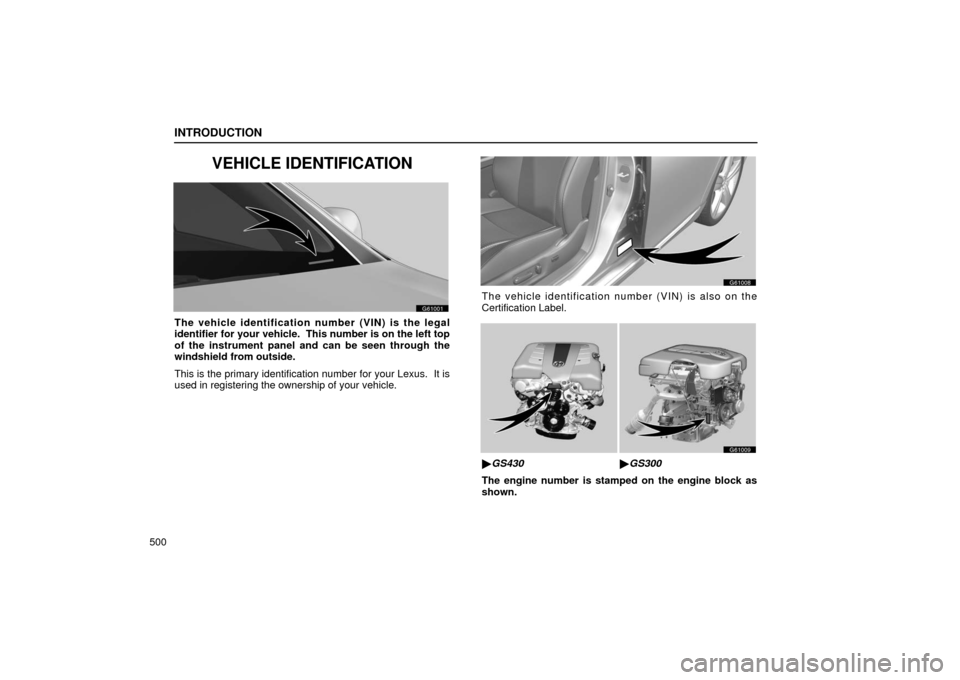

The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left top
of the instrument panel and can be seen through the
windshield from outside.
This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
G61008
The vehicle identification number (VIN) is also on the
Certification Label.
G61009
GS430 GS300
The engine number is stamped on the engine block as
shown.

INTRODUCTION
501
THEFT PREVENTION LABELS(U.S.A.ONLY)
61l067a
Your new vehicle carries theft prevention labels which are
approximately 47 mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.
NOTICE
You should not attempt to remove the theft prevention
labels as it may violate certain state or federal laws.

G61002
INTRODUCTION
502
ENGINE COMPARTMENT OVERVIEW (GS430)
1 Engine oil filler cap
2 Engine oil level
dipstick
3 Brake fluid reservoir
4 Fuse box
5 Washer fluid tank
6 Engine coolant
reservoir
7 Electric cooling fans
8 Condenser
9 Radiator
10 Fuse box
11 Battery

G61003
INTRODUCTION
503
ENGINE COMPARTMENT OVERVIEW (GS300)
1 Engine oil level
dipstick
2 Engine oil filler cap
3 Brake fluid reservoir
4 Fuse box
5 Washer fluid tank
6 Engine coolant
reservoir
7 Electric cooling fans
8 Condenser
9 Radiator
10 Fuse box
11 Battery

INTRODUCTION
504
Removing the engine compartment cover
Before checking and replacing the blade type fuses, etc.
in the engine compartment, remove the engine
compartment cover as follows:
G61004
CAUTION
Be sure to turn off the engine before removing the
engine compartment cover. Failure to do so may result
in burns from heated components or serious injury
through becoming caught in moving parts.
You must remove the front cover before removing the side
covers. The location of the plastic clips is the same for all
engine models.
1 Turn the plastic screw until it turns freely. Although it is
turned freely, it cannot be removed from the engine
compartment cover.
2Push the core of the clips and remove the clips.
Remove the cover. Be careful not to lose the removed plastic
clips.

INTRODUCTION
505
After checking the items, install the engine compartment
covers and insert the plastic clips in their original
positions.
1
When inserting the plastic screw, push it in.
G61005
2When inserting the clips, do as shown above.
NOTICE
After install the engine compartment cover, make sure
the cover is securely in its original position.
DOITYOURSELF SERVICE
PRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do −it−yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do −it −yourself
maintenance, see ”Parts and tools” on page 508.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:

INTRODUCTION
506
CAUTION
When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment the
engine, radiator and exhaust manifold, etc. will be
hot. So be careful not to touch them. Oil and other
fluids may also be hot.
 Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure the engine switch is off if you work near the
electric cooling fan or radiator grille. With the engine
switch on, the electric cooling fan may automatically
start to run if the air conditioning is on and/or if the
coolant temperature is high.
 Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.
 Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.
NOTICE
Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.
 Add only ”T oyota Super Long Life Coolant” or similar
high quality ethylene glycol based nonsilicate,
nonamine, nonnitrite, and nonborate coolant with
longlife hybrid organic acid technology to fill the
radiator. “Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45% deionized water
(for Canada).
 If you spill some of the coolant, be sure to wash it off
with water to prevent it from damaging the parts or
paint.
 Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.
 Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.
 Be careful not to scratch the glass surface with the
wiper frame.

INTRODUCTION
507
POSITIONING THE JACK
G61006
Front
G61007
Rear
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustrations.
CAUTION
When jacking, be sure to observe the following to re-
duce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under the vehicle
supported by the jack. Personal injury may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
 Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in “P” posi-
tion.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is sup-
ported by the jack alone; use vehicle support stands.
 Do not raise the vehicle with someone in the vehicle.
 When raising the vehicle, do not place any objects on
top of or underneath the jack.
NOTICE
Make sure to place the jack correctly, or your vehicle
may be damaged.
