STARTING AND DRIVING
380When the steering sensor is malfunctioning
G31064
If the steering sensor cable is broken and signals cannot
be received, the vehicle symbol comes on and the
steering guide symbol and arrows flash.
If only the steering sensor is malfunctioning, the warning
appears only on the multi
−information display.
If this warning appears, have the sensor checked by your
Lexus dealer as soon as possible. When
the neutral point of the steering sensor is unknown
G31065
If the memorized neutral point of the steering is erased by
replacing the battery, the vehicle symbol, steering guide
symbol and arrows come on.
If only the neutral point of the steering sensor is unknown, the
warning appears only on the multi −information display.
If this warning appears, calibrate the neutral point of the
steering using either of the following:
 Turn the steering wheel either way fully and then in the
opposite direction fully and slowly, with the vehicle stopped.
 Drive on roads (with as few curves as possible and without
backing up) for more than about 5 minutes.
If this warning goes out, the calibration of the steering neutral
point is completed. If the warning still remains on, have the
sensor checked by your Lexus dealer as soon as possible.

STARTING AND DRIVING
381
As the intuitive parking assist might be malfunctioning in
the following cases, have it checked by your Lexus dealer.

The indicator in the instrument cluster does not come on
and a beep does not sound even when the intuitive parking
assist main switch is turned on.
 The warning comes on despite no obstacle around the
vehicle.
When the detection range of the sensors is
shorter
In the following cases, the sensors will detect an obstacle
about 50 cm (1.5 ft.) from either front corner of the vehicle
and the steering guidance will be stopped. Accordingly,
the tire orientation symbol on the screen does not appear.
And only the warning according to the distance up to the
obstacle is given.
a. Any one of the sensors is malfunctioning.
b. Any one of the steering sensors is malfunctioning.
c. The steering sensor signal cannot be received properly.
d. The correct vehicle information cannot be given due to
extremely low battery voltage.
e. Proper steering detection (going straight) cannot be
detected
In case of a., when the intu itive parking assist returns to
normal, the steering guidance also comes back automatically.
In case of b. through e., the steering guidance also comes back
automatically after the neutral point of the steering sensor
calibration is completed.

STARTING AND DRIVING
382
Rear view monitor display (Vehicles with rear
view monitor system)
G31066
On vehicles equipped with rear view monitor system, a
warning appears on the right top of the rear view monitor
in the following conditions.
 When the selector lever is put in “R” and the rear view
monitor is turned on.
 When the intuitive parking assist main switch is turned on
and any sensor detects an obstacle.
Although “Display Off” is selected in the intuitive parking assist
setting screen, the warning appears on the right top of the rear
view monitor.
Dual sensors
G31067
 1 About 50 cm (1.5 ft.) to about 100 cm (3.0 ft.)
2About 37.5 cm (1.1 ft.) to about 50 cm (1.5 ft.)
3About 25 cm (0.8 ft.) to about 37.5 cm (1.1 ft.)
4Less than about 25 cm (0.8 ft.)
When the intuitive parking assist determines that the
collision will be unavoidable:
The indicator will flash yellow depending on the distance to the
obstacle. When the distance between the vehicle and the
obstacle is less than about 25 cm (0.8 ft.), the yellow indicator
will turn red.
When the intuitive parking assist determines that the
collision will be avoided by changing the steering:
The indicator will flash yellow depending on the distance to the
vehicle. The steering guide symbol and arrow do not appear.

STARTING AND DRIVING
383
When the intuitive parking assist determines that the
collision will be avoided with the present steering angle:
The indicator will come on in green.
However, if the sensors detect and determine an obstacle at
an angle to the front of the vehicle, the indicator will not come
on.
Beeps (except for avoidable collisions at the present
steering angle):
As distance to the obstacle gets closer, the interval of the
intermittent
sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).
CAUTION
 When an obstacle is detected within about 25 cm (0.8
ft.) from the vehicle, the dual sensors will change the
determination to an unavoidable collision.
 With long obstacles such as walls, the decision of the
sensor may change as the obstacle gets closer; from
certain avoidance to avoidance if steering is
changed; from certain avoidance to unavoidable
collision; and there are also times when the decision
will be changed from avoidance if steering is
changed, to certain collision.
When you move your vehicle, be sure to confirm a safe
distance around your vehicle with your eyes and drive
slowly, or an accident or injury may result.
Rear corner sensors
G31068
 1 About 35 cm (1.1ft.) to about 50 cm (1.5 ft.)
2About 25 cm (0.8 ft.) to about 35 cm (1.1 ft.)
3Less than about 25 cm (0.8 ft.)
Display:
The indicator will flash yellow depending on the distance to the
obstacle. When the distance between the vehicle and the
obstacle is less than about 25 cm (0.8 ft.), the yellow indicator
will turn red.
Beeps :
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).

STARTING AND DRIVING
384
Back sensors
G31069
 1About 60.0 cm (2.0 ft.) to about 150 cm (5.0 ft.)
2About 45.0 cm (1.4 ft.) to about 60.0 cm (2.0 ft.)
3About 35.0 cm (1.1 ft.) to about 45.0 cm (1.4 ft.)
4Less than about 35 cm (1.1 ft.)
Display:
The indicator will flash in yellow depending on the distance to
the obstacle. When the distance between the vehicle and the
obstacle is less than about 35 cm (1.1 ft.), the yellow indicator
will turn red.
Beeps :
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 35 cm (1.1 ft.).
CAUTION
When backing up, be sure to confirm a safe distance
around your vehicle with your eyes to avoid an accident.

STARTING AND DRIVING
385
Setting the intuitive parking assist
The volume of the beeps and turning on or off of the
display can be set.
G31070
 1With Navigation system
2Without Navigation system
1. Push the “INFO” button to display the menu screen.
G31071
 With Navigation system
G31123
Without Navigation system
2. Touch “LEXUS Park Assist”.

STARTING AND DRIVING
386
G31072

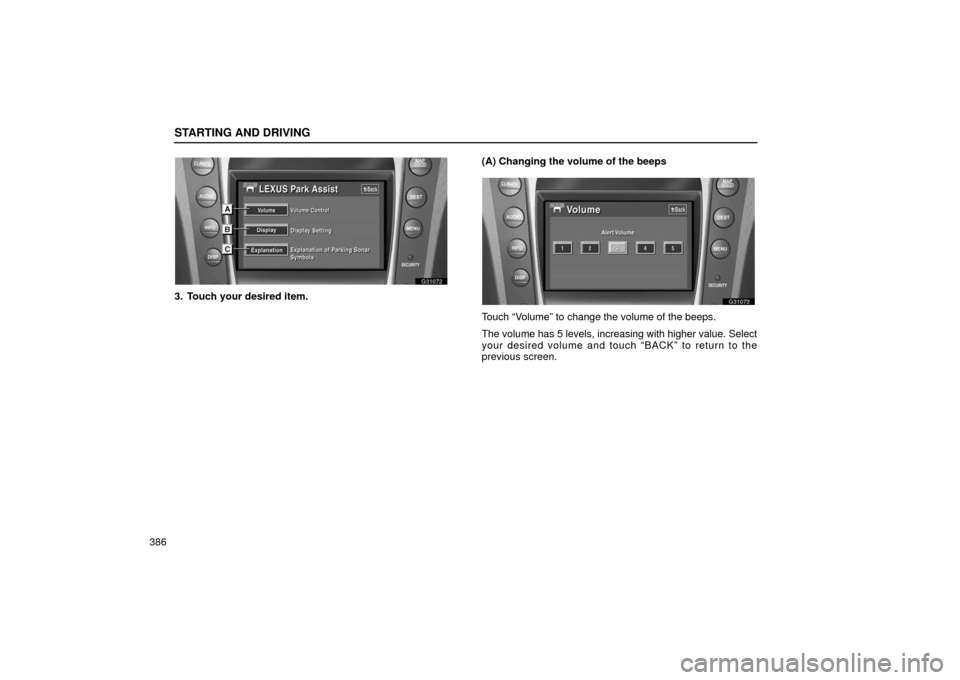

3. Touch your desired item.(A) Changing the volume of the beeps
G31073
Touch “Volume” to change the volume of the beeps.
The volume has 5 levels, increasing with higher value. Select
your desired volume and touc
h “BACK” to return to the
previous screen.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference re-
ceived, including interference that may cause unde-
sired operation.
STARTING AND DRIVING
387

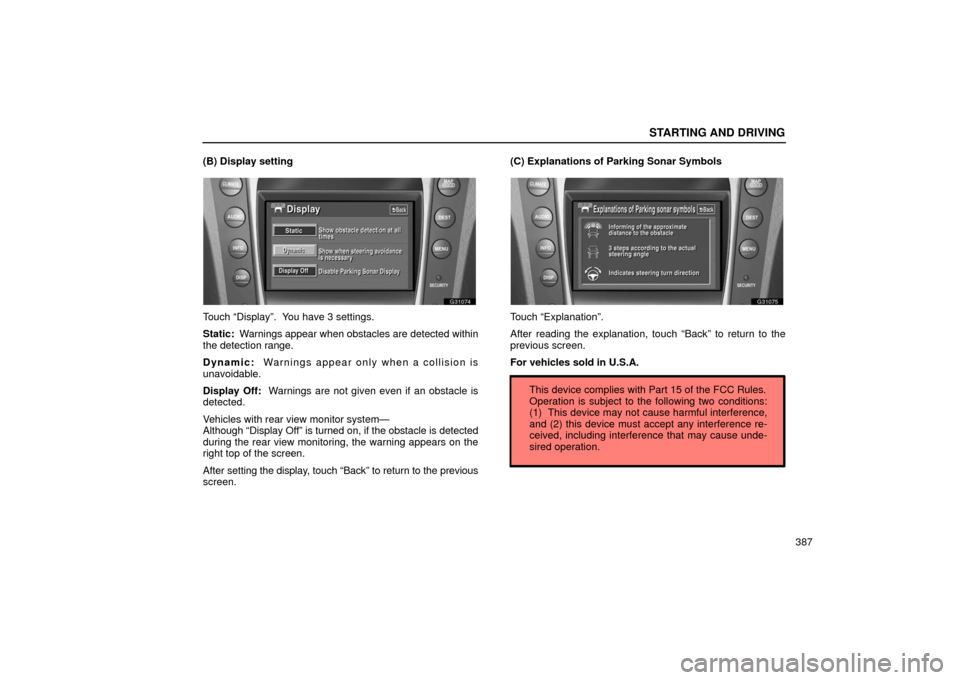

(B) Display setting
G31074
Touch “Display”. You have 3 settings.
Static: Warnings appear when obstacles are detected within
the detection range.
Dynamic: Warnings appear only when a collision is
unavoidable.
Display Off:
Warnings are not given even if an obstacle is
detected.
Vehicles with rear view monitor system—
Although “Display Of f” is turned on, if the obstacle is detected
during the rear view monitoring, the warning appears on the
right top of the screen.
After set ting the display, touch “Back” to return to the previous
screen. (C) Explanations of Parking Sonar Symbols
G31075
Touch “Explanation”.
After reading the explanation, touch “Back” to return to the
previous screen.
For vehicles sold in U.S.A.
