2006 Lexus GS430 phone

G00095
PICTORIAL INDEX
xviii
STEERING WHEEL AND COLUMN
Page
1 Headlight, turn signal and
fog light switches 44, 47, 48 . . . . . . . .
2 Audio remote control
switches 331
. . . . . . . . . . . . . . . . . . . . . .
3 Distance switch 406
. . . . . . . . . . . . . . .
4 Speech command button (See the
separate “Navigation System
Owner’s Manual”.)
5 Telephone button 220
. . . . . . . . . . . . . .
6 Windshield wiper and washer
switches 49
. . . . . . . . . . . . . . . . . . . . . . .
7 Multiinformation
change switch 82
. . . . . . . . . . . . . . . . .
8 Cruise control switch 392, 395 . . . . . .
9 Tilt and telescopic steering
adjustment switch 204
. . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

KEYS AND DOORS
9

Do not put the electronic key in water or wash it in an
ultrasonic washer.
 Do not keep the electronic key together with the
products emitting electromagnetic waves such as a
cellular phone.
 Do not disassemble the electronic key.
 Do not place the electronic key near electrical
appliances (e.g. television, computer or stereo) or
electrical medical equipment such as low frequency
medical appliances.
 If gasoline, polishing agents or oil adheres to the
electronic key, it may deform or crack over time.
The electronic keys are required to deactivate the engine
immobilizer, and are essential for the engine immobilizer to
function correctly, so be careful not to lose these keys. If you
make your own duplicate key, you will not be able to cancel the
system or start the engine.
To protect items when using valet parking, turn the trunk lid
opener main switch to inoperative or lock the glove box if
necessary, and leave the electronic key (with the mechanical
key removed) with the attendant. For details, see “Trunk lid
opener main switch” on page 126.
If you should lose your electronic keys or if you need additional
electronic keys, duplicates can be made by a Lexus dealer
using the key number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
14
INFORMATION
Be sure to take the electronic key with you.
 In the following cases, the entry function, wireless
remote control or pushbutton starting feature may
not operate properly. If this happens, use a
mechanical key to lock or unlock the doors and trunk
lid. If you are unable to use pushbutton starting,
follow the procedure for starting the engine on page
27.
When facilities issuing strong electromagnetic
waves such as TV towers, electric power stations,
broadcasting stations are nearby.
In places where automated payment facilities are
installed (such as gas stations).
When you are carrying an electronic key together
with a mobile communications system such as a
twoway radio or cellular phone.
When the electronic key is in contact with or
covered by a metallic object.
When in proximity to a number of electronic keys
When placed in proximity to electrical appliances
e.g. computer
When another person is operating a wireless
remote control function on another vehicle near
your vehicle.
When the electronic key is in close contact with
one’s body.
 If you do not drive your vehicle, store the electronic
key, keeping it at least 5 m (15 ft.) away from the
vehicle.

KEYS AND DOORS
26BATTERY POWER SAVING
If the electronic key is left within the effective range of the
outside of the vehicle for more than 10 minutes without locking
or unlocking the doors, the entry function is disabled.
If the electronic key does not enter the effective range of the
outside of the vehicle for 4 days, the output interval of the
electromagnetic signal is extended. If this situation continues
for 14 days, the entry function is disabled.
To reactivate the entry function properly, perform any of the
following:
(a) Press the lock button on the outside door handle while
carrying the electronic key.
(b) Perform a wireless remote control function.
(c) Insert and turn the mechanical key in the keyhole of the
door.
INFORMATION

To maintain communication with the vehicle,
electronic keys use builtin battery power. The
battery service life is about 1 to 2 years on average.
If battery power becomes insufficient, replace the
battery with a new one.
 The electronic key continually receives
electromagnetic waves, and if it receives strong
electromagnetic waves over a period of time, the
battery can be drastically run down. Therefore, avoid
storing electronic keys near any electrical
appliances.
Here is a list of electrical appliances which may have
adverse effects on the electronic key performance:
TVs, personal computers, cellular phone or cordless
phone recharger units, electric light stands and
fluorescent desk lights
Note that you should always keep such electrical
appliances at least 1 m (3 ft.) away from the electronic
key.

OCCUPANT RESTRAINT SYSTEMS
174
G16035

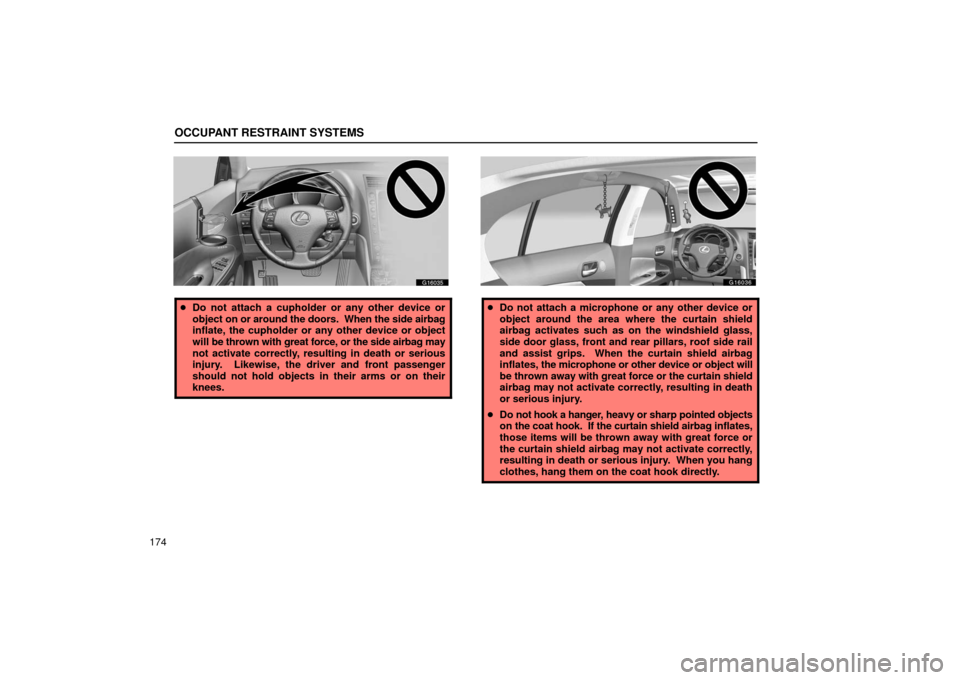

Do not attach a cupholder or any other device or
object on or around the doors. When the side airbag
inflate, the cupholder or any other device or object
will be thrown with great force, or the side airbag may
not activate correctly, resulting in death or serious
injury. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.
G16036
Do not attach a microphone or any other device or
object around the area where the curtain shield
airbag activates such as on the windshield glass,
side door glass, front and rear pillars, roof side rail
and assist grips. When the curtain shield airbag
inflates, the microphone or other device or object will
be thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
 Do not hook a hanger , heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be thrown away with great force or
the curtain shield airbag may not activate correctly,
resulting in death or serious injury. When you hang
clothes, hang them on the coat hook directly.

TOUCH SCREEN
220Average Speed
The Average Speed is displayed. The average vehicle
speed is calculated and displayed based on the total
driving
distance and the total driving time after the engine
is started.
The displayed value is updated every 10 seconds.
To calculate from the beginning, touch the “Reset” switch.
Distance
The distance after engine starting is displayed.
When refueling, be sure to stop your vehicle and turn the
engine switch off.
Handsfree system
Handsfree system allows you to make or receive a call
without taking your hands off the steering wheel by
connecting your cellular phone.
This system supports the Bluetooth. Bluetooth is a wireless
data system by which you can call without your cellular phone
connecting with a cable or placing on a cradle.
If your cellular phone does not support the Bluetooth, this
system can not function.
CAUTION
While you are driving, do not use a cellular phone or
connect the Bluetooth phone.
NOTICE
Do not leave your cellular phone in the vehicle. The
temperature indoor may be high and damage the phone.

TOUCH SCREEN
221
INFORMATION
In the following conditions, the system may not
function.
The cellular phone is turned off.
 The current position is outside the communication
area.
 The cellular phone is not connected.
 The cellular phone has a low battery.
G18047
By pushing the telephone button above, you can receive
a call or hang up without taking your hands off the
steering wheel.

TOUCH SCREEN
222
G18005
You can use the microphone above when talking on the
phone.
The party’s voice outputs from the driver’s speaker. When the
received calls or received voice outputs, the audio from the
audio system or voice guidance from the Navigation system
will be muted.
INFORMATION
 Talk alternately with your party on the phone. If you
talk at the same time, the voice may not reach each
other. (It is not a malfunction.)
 Keep the volume of receiving voice down. Otherwise,
echo is coming up. When you talk on the phone,
speak clearly towards the microphone.
 In the following situations, your voice may not reach
the party.
Driving on unpaved road. (Making a traffic noise.)
Driving at the high speed.
The window is open.
Turning the air conditioning vents towards the
microphone.
The sound of the air conditioning fan is loud.
