1993 DODGE TRUCK Service Repair Manual

19
- 32
STEERING

REMOVER SIDE COVER
AREA
SPECIAL
TOOL

C-4171

J9319-42

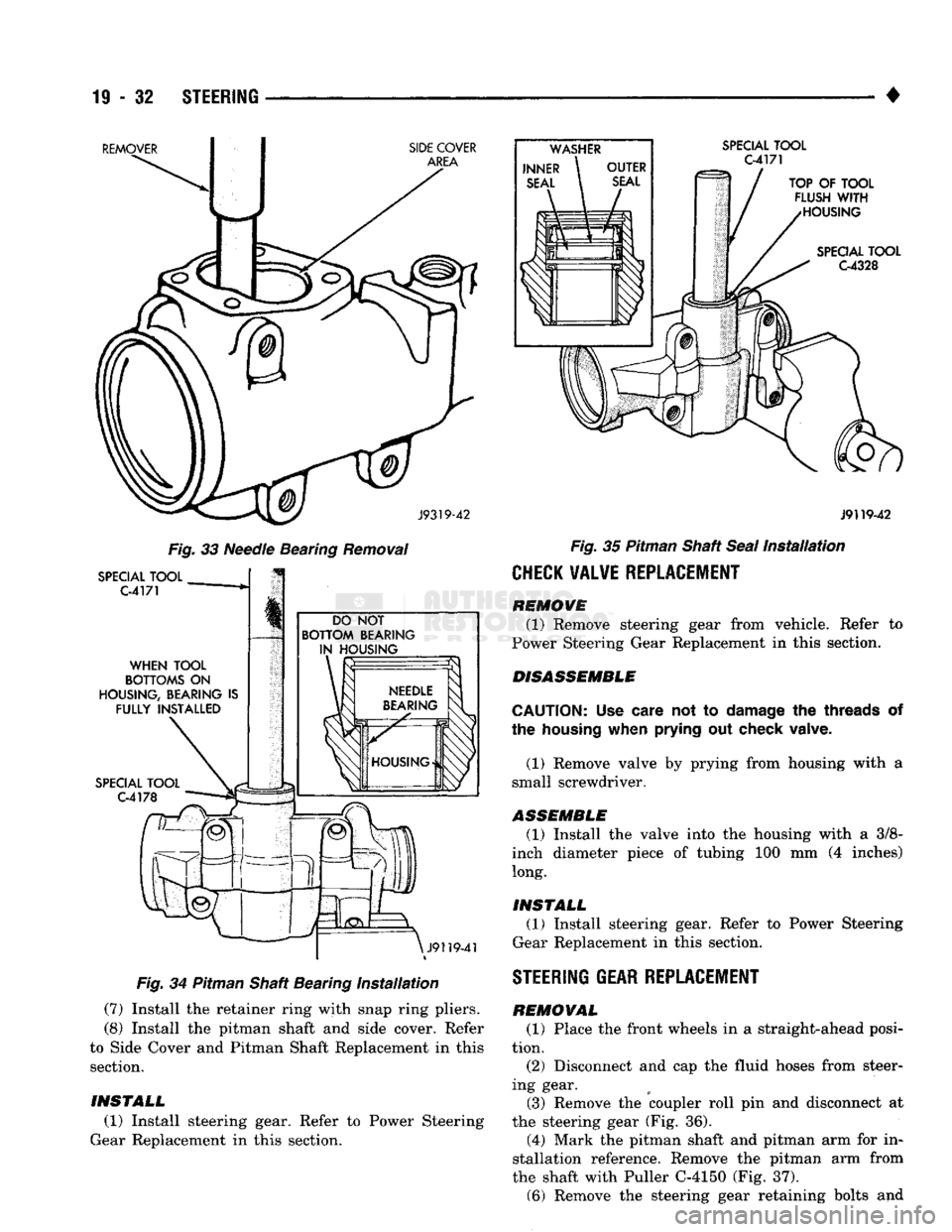

Fig.
33
Needle Bearing Removal
SPECIAL
TOOL

C-4171
WHEN
TOOL

BOTTOMS
ON

HOUSING,
BEARING
IS
FULLY INSTALLED

SPECIAL
TOOL
C-4178
DO
NOT

BOTTOM BEARING IN HOUSING

\
J9119-4

Fig.
34
Pitman Shaft Bearing
Installation
(7) Install
the
retainer ring with snap ring pliers.
(8) Install
the
pitman shaft
and
side cover. Refer
to Side Cover
and
Pitman Shaft Replacement
in
this section.
TOP
OF
TOOL

FLUSH
WITH
HOUSING

SPECIAL
TOOL
C4328

J9119-42

Fig.
35
Pitman Shaft Seal
Installation

CHECK VALVE REPLACEMENT
REMOVE

(1) Remove steering gear from vehicle. Refer
to

Power Steering Gear Replacement
in
this section.

DISASSEMBLE

CAUTION:
Use
care
not to
damage
the
threads
of

the
housing
when
prying
out
check valve.
(1) Remove valve
by
prying from housing with
a

small screwdriver.
ASSEMBLE (1) Install
the
valve into
the
housing with
a 3/8-

inch diameter piece
of
tubing
100 mm (4
inches) long.
INSTALL (1) Install steering gear. Refer
to
Power Steering
Gear Replacement
in
this section.

STEERING GEAR REPLACEMENT
REMOVAL (1) Place
the
front wheels
in a
straight-ahead posi­
tion. (2) Disconnect
and cap the
fluid hoses from steer­
ing gear. (3) Remove
the
coupler roll
pin and
disconnect
at

the steering gear
(Fig. 36).
(4) Mark
the
pitman shaft
and
pitman
arm for in­

stallation reference. Remove
the
pitman
arm
from
the shaft with Puller C-4150
(Fig. 37).

(6) Remove
the
steering gear retaining bolts
and
INSTALL

(1) Install steering gear. Refer
to
Power Steering
Gear Replacement
in
this section.

•

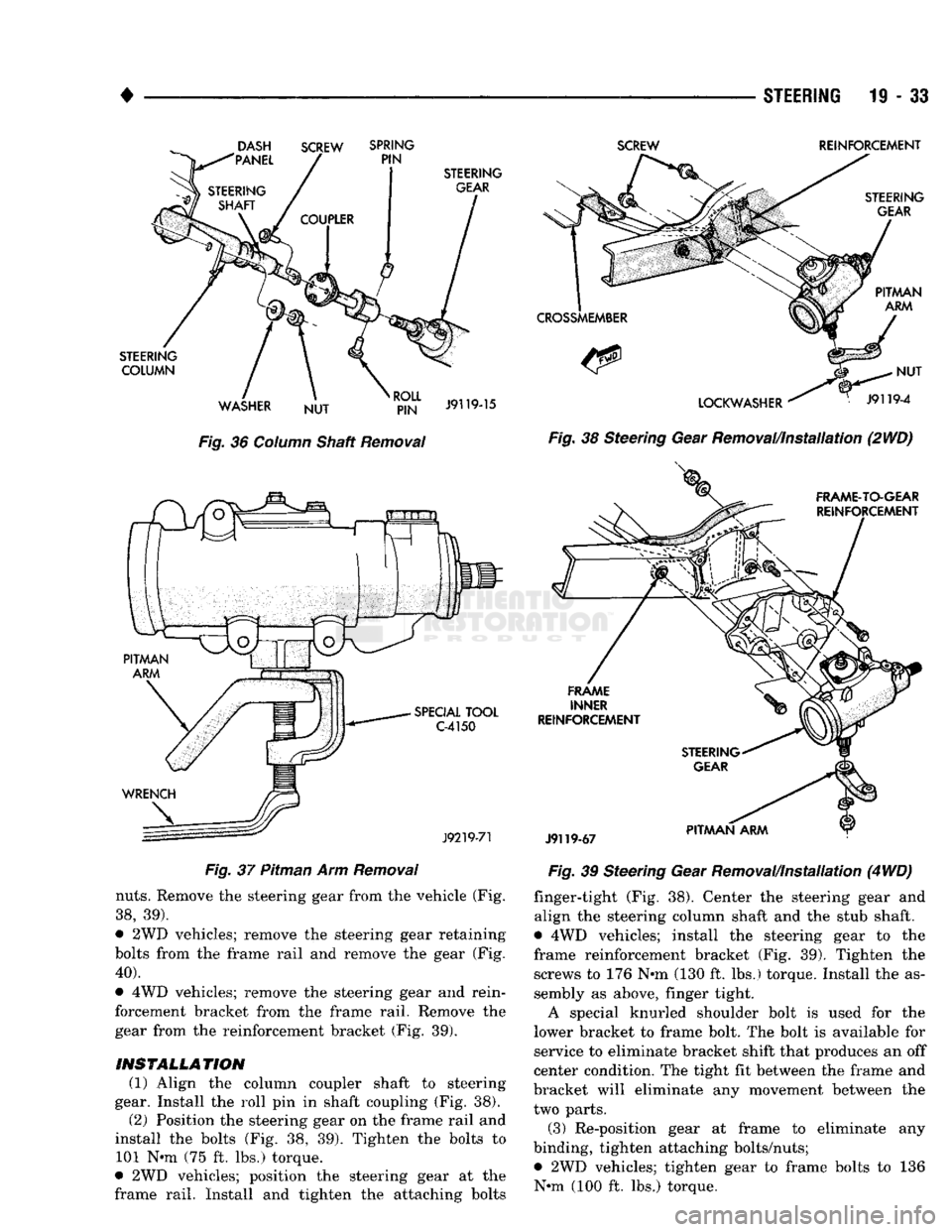

STEERING 11-33

Fig.
36
Column
Shaft
Removal

Fig.
37 Pitman Arm
Removal
nuts.
Remove the steering gear from the vehicle (Fig.

38,
39).

9
2WD vehicles; remove the steering gear retaining
bolts from the frame rail and remove the gear (Fig.
40).

• 4WD vehicles; remove the steering gear and rein­
forcement bracket from the frame rail. Remove the
gear from the reinforcement bracket (Fig. 39).
INSTALLATION (1) Align the column coupler shaft to steering
gear. Install the roll pin in shaft coupling (Fig. 38).
(2) Position the steering gear on the frame rail and
install the bolts (Fig. 38, 39). Tighten the bolts to 101 N-m (75 ft. lbs.) torque.
• 2WD vehicles; position the steering gear at the
frame rail. Install and tighten the attaching bolts
SCREW
REINFORCEMENT

Fig.
38 Steering Gear Removal/Installation (2WD)

Fig.
39 Steering Gear Removal/Installation (4
WD)
finger-tight (Fig. 38). Center the steering gear and
align the steering column shaft and the stub shaft.
• 4WD vehicles; install the steering gear to the
frame reinforcement bracket (Fig. 39). Tighten the screws to 176 N»m (130 ft. lbs.) torque. Install the as­sembly as above, finger tight.
A special knurled shoulder bolt is used for the
lower bracket to frame bolt. The bolt is available for service to eliminate bracket shift that produces an off
center condition. The tight fit between the frame and
bracket will eliminate any movement between the two parts.
(3) Re-position gear at frame to eliminate any
binding, tighten attaching bolts/nuts;
• 2WD vehicles; tighten gear to frame bolts to 136 N-m (100 ft. lbs.) torque.

19
- 34
STEERING

• •
4WD vehicles; tighten gear frame reinforcement
bracket to frame bolts/nuts to 223 N-m (165 ft. lbs.)
torque.
(4) Align and install the pitman arm.
(5) Install the washer and retaining nut on the pit­
man shaft. Tighten the nut to 251 N-m (185 ft. lbs.)
torque.
(6) Connect fluid hoses to steering gear, tighten to
28 N-m (21 ft. lbs.). Add fluid, refer to Power Steer­
ing Pump Initial Operation.

POWER STEERING GEAR SPECIFICATIONS

Steering Gear Type ............. Recirculating ball with hydraulic assist.
Ratio Code (Top
of
Gear) BH,NZ
14:1

BF,
XS 13-16:1
Steering Gear Hydraulic Fluid Use Mopar Power Steering Fluid,
or
equivalent.
Steering Gear Lubricants Lubricate pitman shaft
seals,
bearings races,
and
rack piston recirculating balls with
petroleum
jelly.
Lubricate all other parts with power steering fluid. Steering Gear Adjustments:
Wormshaft Bearing Preload Torque 0.45-1.13
Nm
(4
to
10 in-lbs)
Pitman Shaft Overcenter Drag Torque: New Gear
(less than 400 miles/640 km) ......... 0.45-0.90
Nm
(4
to 8
in-lbs)
in
addition
to
wormshaft bearing preload but not to exceed
combined total
of
2
Nm
(18 in-lbs).
Used Gear
(over 400 miles/640 km) 0.5-0.6
Nm
(4 to
5
in-lbs) in addition
to
wormshaft bearing preload but not to exeed
combined total
of
2 N-m (18 in-lbs).

Caution:
Gears must
be
adjusted exactly
as
outlined
in
Steering Gear Adjustments-On Bench. Failure
to

adhere
to
the recommended procedures may result
in gear damage
or
improper steering response.

J9219-36

•

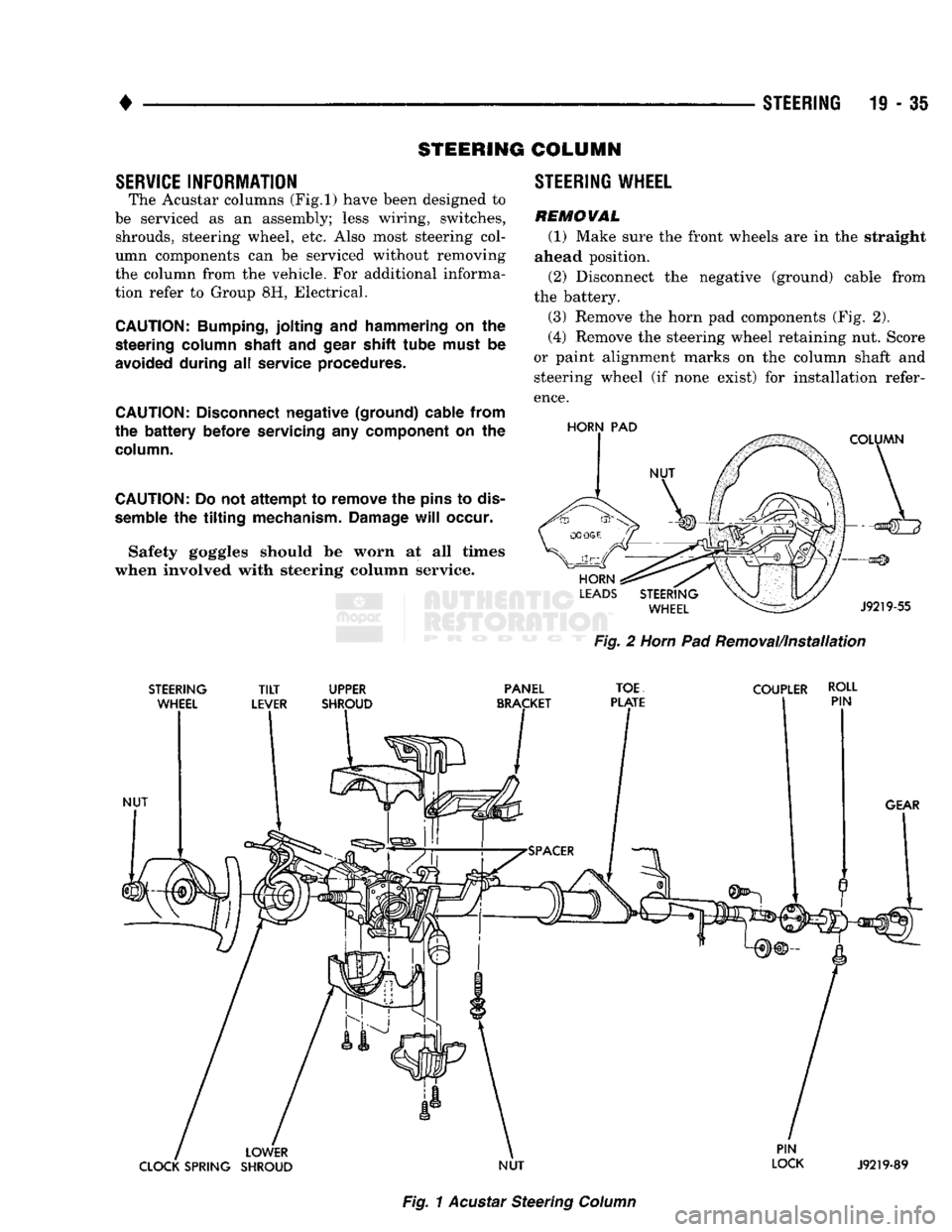

STEERING 19 - 3i STEERING COLUMN
SERVICE INFORMATION The Acustar columns
(Fig.l)
have been designed to
be serviced as an assembly; less wiring, switches, shrouds, steering wheel, etc. Also most steering col­
umn components can be serviced without removing
the column from the vehicle. For additional informa­
tion refer to Group 8H, Electrical.

CAUTION:
Bumping,
jolting
and
hammering
on the

steering
column
shaft
and
gear shift
tube
must
be

avoided during
all
service procedures.

CAUTION:
Disconnect negative (ground) cable from
the
battery
before servicing
any
component
on the
column.

CAUTION:
Do not
attempt
to remove the
pins
to
dis­

semble
the
tilting
mechanism. Damage
will
occur.

Safety goggles should be worn at all times
when involved with steering column service. STEERING WHEEL
REMOWAL
(1) Make sure the front wheels are in the straight
ahead position.
(2) Disconnect the negative (ground) cable from
the battery.
(3) Remove the horn pad components (Fig. 2).
(4) Remove the steering wheel retaining nut. Score
or paint alignment marks on the column shaft and steering wheel (if none exist) for installation refer­

ence.
HORN
PAD
Fig.
2
Horn
Pad Removal/installation

STEERING
TILT
UPPER PANEL
TOE
COUPLER ROLL

Fig.
1
Acustar
Steering
Column

19-36 STEERING

• (5) Remove the steering wheel with Puller
C-3428-B (Fig. 3). Do not hammer or jolt the
steering column or shaft during removal of the
wheel.

SPECIAL TOOL

C-3428-B

STEERING WHEEL J9219-56

Fig.
3 Steering
Wheel
Removal

INSTALLATION
(1) Install the steering wheel with the scored
marks or master splines aligned. (2) Pull the speed control wires through the lower,
larger hole in the steering wheel. Pull the horn wire
through the smaller hole at the top. Ensure the
wires are NOT pinched.
(3) Install the retaining nut and tighten to 61 N«m
(45 ft. lbs.) torque. Force the steering wheel down
on the shaft with the retaining nut only. Do not
hammer or shock the column with sudden im­
pact to install the wheel.
(4) Connect the wire feed to the horn buttons.
(5) Connect the wire feeds to the speed control
switch (Fig. 2).
(6) Connect the battery ground (negative) cable.

CLOCKSPRING

REMOVAL
(1) Place the front wheels in the straight ahead po­
sition before starting the repair.
(2) Disconnect battery negative cable and isolate.
(3) Remove the steering wheel, refer to Steering
Wheel Removal. (4) Remove upper and lower steering column
shrouds to gain access to the clockspring wiring.
(5) Release wire connector at clockspring. (6) Pull clockspring assembly from column by lift­
ing locking fingers as necessary. The clockspring
cannot be repaired, and must be replaced if faulty.

INSTALLATION
(1) Snap clockspring assembly onto column. If
clockspring is not properly positioned, follow the cen­
tering procedures before installing steering wheel.
(2) Connect the wire connector to the clockspring.

WARNING: ENSURE CLOCKSPRING WIRE CON­ NECTION
IS
COMPLETELY SEATED.
THE
LATCH­
ING CLIP ARMS MUST
BE
PROPERLY ENGAGED
ON
THE
MODULE.

(3) Install upper and lower steering column
shrouds. Be sure wiring is inside of shrouds and not
pinched. (4) Install the steering wheel and air bag module,
refer to Steering Wheel Installation.

CENTERING
PROCEDURE
If the rotating tape within the clockspring is not
positioned properly, the clockspring may fail during
use.
The following procedures MUST BE USED to
center the clockspring.
(1) Place the front wheels in the straight ahead po­
sition before starting the procedure. (2) Depress the 2 locking tabs to disengage the
locking mechanism (Fig. 4).

Fig.
4
Clockspring
(Auto-Locking)

(3) Keeping the mechanism disengaged, rotate the
clockspring rotor in the CLOCKWISE DIRECTION
to the end of the travel. Do not apply excessive
torque.

•

STEERING

19 • 37 (4) From the end of travel, rotate the rotor 2 1/2
full turns in the COUNTER CLOCKWISE direction.
The horn wire should end up at the top and the squib
wire at the bottom (Fig. 4).
(5) Install the steering wheel, refer to Steering
Wheel Installation.

COLUMN—
REMOVAL/INSTALLATION

CAUTION:
Bumping,
jolting
and
hammering
on the

steering
column
shaft
and
gear
shift
tube
must
be

avoided
during
all
service
procedures.

REMOVAL (1) Make sure the front wheels are in the straight
ahead position.
(2) Disconnect the negative (ground) cable from
the battery.
(3) Remove steering wheel from column, refer to
Steering Wheel-Removal.
(4) For vehicles equipped with a column shift, dis­
connect the link rod by prying it out of the grommet in the shift lever (Fig. 5).
DASH
"PANEL SCREW
SPRING

PIN

PRYING
TOOL
RN829

Fig.
5
Link
Rod
Removal

(5) Paint installation alignment marks on the col­
umn shaft-to-coupler. This will aid in column shaft to
wheel alignment. Remove the steering column shaft-
to-coupler screws (Fig. 6).
(6) Remove the dash panel column and fuse block
cover (Fig. 7).
(7) For column shift vehicles, make sure shift lever
is in Park position and remove PRNDL driver cable.
(8) Remove tilt lever (if equipped) from column.
(9) Remove the upper and lower lock housing
shroud (Fig. 1). Remove the lower fixed shroud.
(10) Remove the turn signal multi-function switch
with a 7mm socket (Fig. 8). (11) Loosen the upper Support Bracket nuts to al­
low some slack. This will aid in removal of the upper
fixed shroud.

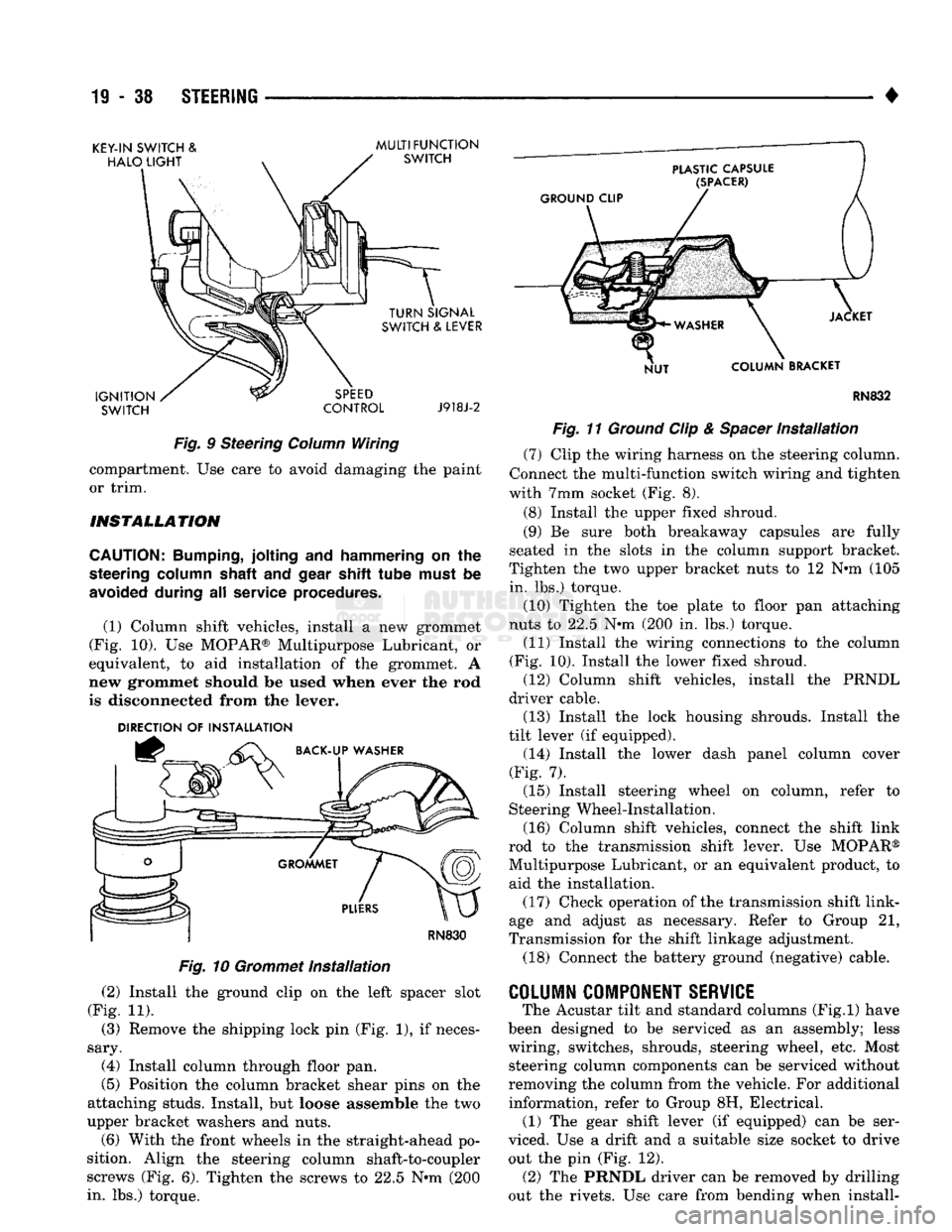

(12) Remove the electrical connections from Key-in
light, Main Ignition Switch, Horn connection or
Clock
Spring (Speed
Control)
(Fig. 9).
STEERING

GEAR

STEERING COLUMN
WASHER NUT
RJ?N"
J9119-15

Fig.
6
Coupler
Screw
Removal

STEERING COLUMN COVERS
J908K-33

Fig.
7 Steering
Column
Cover

STEERING COLUMN
ASSY.
J918J-1
MULTI

^FUNCTION
SWITCH

CONNECTOR
TURN
SIGNAL

SWITCH
AND
LEVER

Fig.
8 Multi-function
Switch
Wiring (13) Remove the wiring harness from the column
by prying out the plastic retainer buttons (Fig. 8).
(14) Remove the lower dash panel and support
bracket standoff fasteners (Fig. 1). (15) Remove the column out through the passenger

19
- 38
STEERING
KEY-IN SWITCH
&
MULTI FUNCTION

SWITCH CONTROL J918J-2
Fig.
9 Steering
Column
Wiring compartment. Use care to avoid damaging the paint
or trim.

INSTALLATION

CAUTION:
Bumping,
jolting and hammering on the

steering
column
shaft
and
gear
shift tube
must
be

avoided
during all service
procedures.

(1) Column shift vehicles, install a new grommet
(Fig. 10). Use MOPAR® Multipurpose Lubricant, or
equivalent, to aid installation of the grommet. A
new grommet should be used when ever the rod
is disconnected from the lever.

DIRECTION
OF
INSTALLATION

RN830

Fig.
10
Grommet
Installation

(2) Install the ground clip on the left spacer slot
(Fig. 11). (3) Remove the shipping lock pin (Fig. 1), if neces­
sary. (4) Install column through floor pan.
(5) Position the column bracket shear pins on the
attaching studs. Install, but loose assemble the two
upper bracket washers and nuts. (6) With the front wheels in the straight-ahead po­
sition. Align the steering column shaft-to-coupler
screws (Fig. 6). Tighten the screws to 22.5 N*m (200
in. lbs.) torque. RN832
Fig.
11
Ground
Clip &
Spacer
Installation

(7) Clip the wiring harness on the steering column.
Connect the multi-function switch wiring and tighten
with 7mm socket (Fig. 8).
(8) Install the upper fixed shroud.
(9) Be sure both breakaway capsules are fully
seated in the slots in the column support bracket.
Tighten the two upper bracket nuts to 12 N-m (105
in. lbs.) torque.
(10) Tighten the toe plate to floor pan attaching
nuts to 22.5 N-m (200 in. lbs.) torque.
(11) Install the wiring connections to the column
(Fig. 10). Install the lower fixed shroud. (12) Column shift vehicles, install the PRNDL
driver cable. (13) Install the lock housing shrouds. Install the
tilt lever (if equipped). (14) Install the lower dash panel column cover
(Fig. 7).
(15) Install steering wheel on column, refer to
Steering Wheel-Installation.
(16) Column shift vehicles, connect the shift link
rod to the transmission shift lever. Use MOPAR®
Multipurpose Lubricant, or an equivalent product, to
aid the installation. (17) Check operation of the transmission shift link­
age and adjust as necessary. Refer to Group 21,
Transmission for the shift linkage adjustment.
(18) Connect the battery ground (negative) cable.

COLUMN
COMPONENT
SERVICE
The Acustar tilt and standard columns (Fig.l) have
been designed to be serviced as an assembly; less
wiring, switches, shrouds, steering wheel, etc. Most steering column components can be serviced without
removing the column from the vehicle. For additional
information, refer to Group 8H, Electrical. (1) The gear shift lever (if equipped) can be ser­
viced. Use a drift and a suitable size socket to drive out the pin (Fig. 12). (2) The PRNDL driver can be removed by drilling
out the rivets. Use care from bending when install-

•

STEERING
19-39
Fig. 14 Do Not
Remove
Retainer
