1993 DODGE TRUCK Service Repair Manual

21 - 352 NP241
TRANSFER
CASE
—
•

Fig.
2
Loosening
Rear Retainer
Fig.
3 Removing/Installing Rear Retainer
(7) Install speedometer driven gear.
(8) Install drain plug. Tighten plug to 54 N-m (40
ft. lbs.). (9) Fill transfer case to edge of fill plug opening
with recommended transmission fluid. (10) Install fill plug. Tighten plug to 54 N-m (40 ft.

lbs.).
(11) Connect propeller shaft. Tighten attaching
bolts to 19 N-m (170 in. lbs.).
(12) Lower vehicle.

SPEEDOMETER
ADAPTER/DISTANCE
SENSOR

SERVICE

ADAPTER/SENSOR
REMOVAL
(1) Raise vehicle.
(2) Remove skid plate and crossmember for access,
if necessary. (3) Remove vehicle speed sensor from pinion gear
adapter (Fig. 4). On models with automatic transmis­
sion, remove sensor adapter as well.
(6) Fill transfer case to bottom edge of fill plug
opening with Mopar ATF Plus, or Dexron II auto­
matic transmission fluid.
(7) Install fill plug. Tighten plug to 54 N«m (40 ft.

lbs.).
(8) Lower vehicle.

SPEEDOMETER
GEAR, SHAFT
SEAL,
BEARING
AND RETAINER SERVICE
The front and rear yokes, output shaft seals, re­
tainers and bearings, and speedometer drive gear can all be serviced with the transfer case in the vehicle.
The following combined procedure outlines removal and installation of these components:

RETAINER
AND
SPEEDOMETER COMPONENT REMOVAL
(1) Raise vehicle.
(2) Remove fill and drain plugs and drain oil from
transfer case. (3) Mark propeller shaft and transfer case yoke for
alignment reference. (4) Disconnect propeller shaft. Secure shaft to un­
derside of vehicle. (5) Remove transfer case yoke retaining nut and
seal washer. Use Special Tool C-3281 to hold yoke
while removing nut. (6) Remove transfer case yoke. (7) Remove retainer seal (if seal or bushing is to be
replaced) using suitable tool.
(8) Install a new seal, if old seal was removed.
(9) Remove speedometer gear from rear retainer.
(10) Mark rear retainer for assembly alignment
reference. (11) Remove retainer attaching bolts and remove
retainer. Pry retainer with screwdrivers to remove it (Fig. 2). (12) Remove rear retainer (Fig. 3). Remove speed­
ometer drive gear, if necessary.
(13) Completely clean off old sealant.
(14) If the retainer or bearing are to be replaced,
remove bearing retainer snap ring from rear retainer
and remove bearing.

RETAINER
AND
SPEEDOMETER COMPONENT INSTALLATION
(1) Install rear output bearing in rear retainer and
install snap ring. (2) Apply a 5 mm (3/16 in.) wide bead of Mopar
Gasket Maker, Loctite 518, or Loctite 573 sealant to
mating surface of rear retainer.
(3) Align retainer case reference marks and install
rear retainer on case. (4) Install and tighten rear retainer attaching
bolts to 24 N«m (18 ft. lbs.). (5) Install output shaft seal (if required).
(6) Install yoke, a new yoke seal washer and yoke
nut. Tighten nut to 149 N-m (110 ft. lbs.) torque.

•

NP241 TRANSFER
CASE
21 - 313
LOCK OIL RING SEAL

ADAPTER

(OVERDRIVE
ONLY)
SPEEDOMETER

PINION
GEAR

ADAPTER
O-RING

SPEEDOMETER
ADAPTER

RETAINER
DISTANCE
SENSOR
J9021-99

Fig.
4 Speedometer
Components

(4) Check vehicle speed sensor mounting area in
pinion adapter. If transmission fluid is found in this area, adapter oil seal is leaking and will have to be
replaced.
(5) Remove bolt and retainer securing pinion gear
adapter to extension housing.

(6)
Carefully work adapter and gear out of hous­
ing. (7) Remove and discard adapter O-ring (Fig. 4).

SPEEDOMETER ADAPTER
OIL
SEAL
REPLACEMENT
Remove adapter oil seal if necessary. Start new
seal in adapter by hand. Then press seal into adapter
with Installer Tool C-4004 until tool bottoms (Fig. 5).
ADAPTER

LOCK
RING

TOOL
(3) Count number of teeth on pinion gear before
installing gear in adapter.
(4) Note range numbers on adapter face (Fig. 6).
These numbers correspond to number of teeth on pin­ ion. (5) Install adapter in housing.

(6)
Rotate adapter until required range numbers
are at six o-clock position (Fig. 6). Be sure adapter
range numbers correspond to number of teeth on pin­ ion. (7) Seat adapter in housing.
(8) Install adapter retainer. Tighten retainer bolt
to 11 N-m (100 in. lbs.) torque.
(9) Install vehicle speed sensor. Tighten sensor
coupling nut to 17 N-m (150 in. lbs.) torque and in­
stall sensor wires.
(10) Check and correct transfer case lubricant level
if necessary.
(11) Install skid plate and crossmember if re­
moved. (12) Lower vehicle.
ADAPTER

O'CLOCK
POSITION

Fig.
6 Indexing Speedometer Adapter
RH75
OIL
SEAL

RH263

Fig.
5
Replacing
Speedometer Adapter
Seal

ADAPTER/SENSOR
INSTALLATION
CAUTION:
Before installing
the
pinion arid adapter

assembly
make sure
the
adapter flange
and its
mounting area
in
transfer case
are
perfectly clean. Dirt
or
sand
will
cause misalignment resulting
in

speedometer pinion gear damage.

(1) Thoroughly clean adapter flange and adapter
mounting surface in extension housing. These sur­
faces must be clean for proper adapter alignment and speedometer operation.
(2) Lubricate adapter oil seal and O-ring with
transmission fluid.

21 - 354 NP241
TRANSFER
CASE

•
SHIFT
LINKAGE
ADJUSTMENT

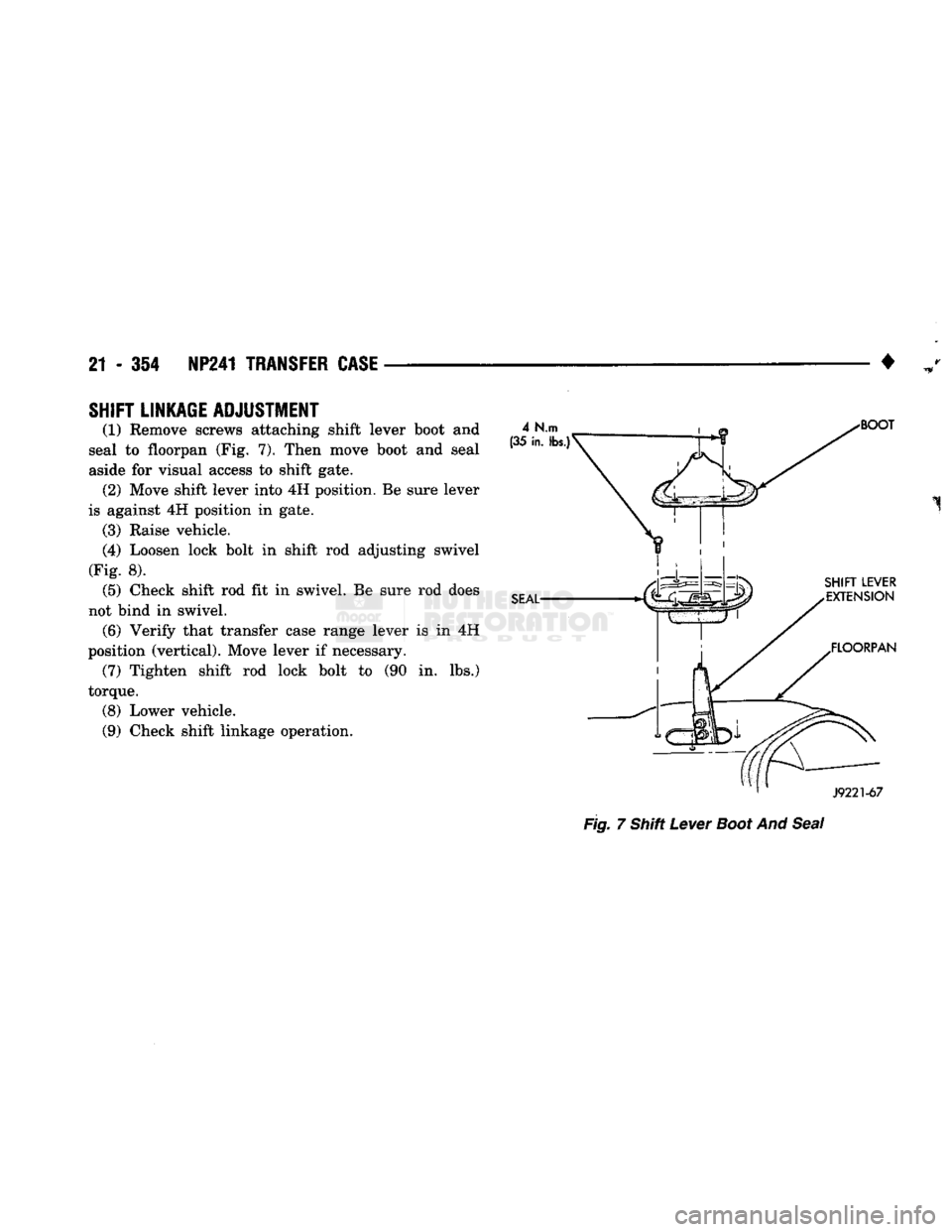

(1) Remove screws attaching shift lever boot and
seal to floorpan (Fig. 7). Then move boot and seal aside for visual access to shift gate. (2) Move shift lever into 4H position. Be sure lever
is against 4H position in gate. (3) Raise vehicle.

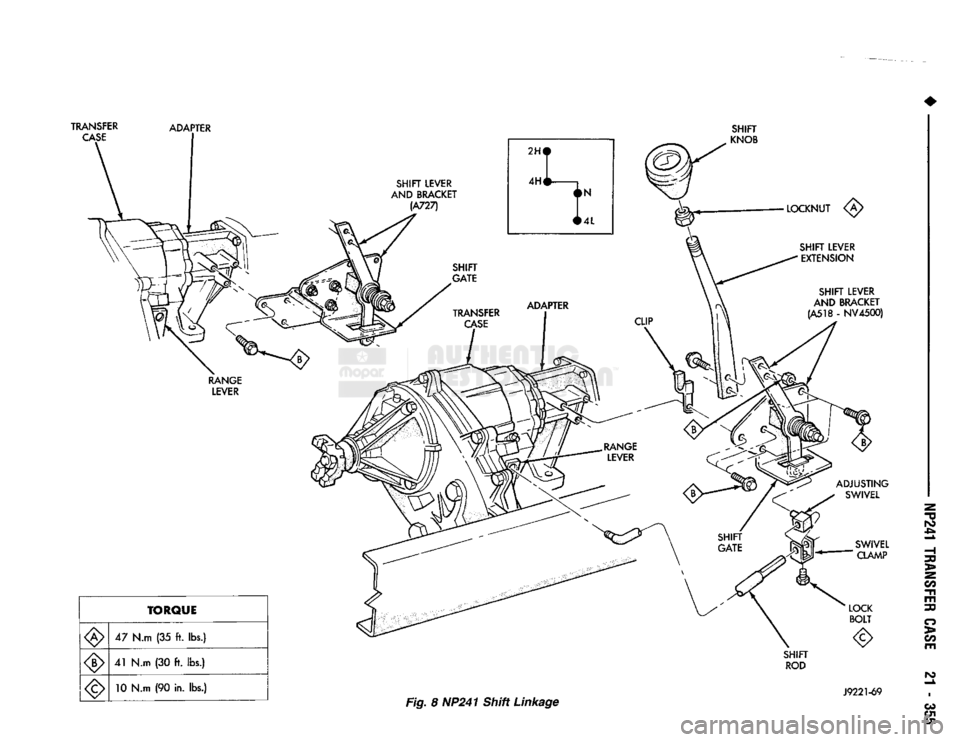

(4) Loosen lock bolt in shift rod adjusting swivel
(Fig. 8). (5) Check shift rod fit in swivel. Be sure rod does
not bind in swivel. (6) Verify that transfer case range lever is in 4H
position (vertical). Move lever if necessary. (7) Tighten shift rod lock bolt to (90 in. lbs.)
torque. (8) Lower vehicle.
(9) Check shift linkage operation.
Fig.
7 Shift
Lever
Boot
And
Seal

21 - 356 NP241
TRANSFER
CASE

•
TRANSFER
CASE
REMOVAL

(1) Raise vehicle.
(2) Position drain oil container under transfer case.
(3) Remove transfer case drain plug and drain lu­
bricant into container. (4) Disconnect wires at vehicle speed sensor.
(5) Disconnect vacuum hoses at vacuum switch.
(6) Disconnect transfer case shift lever from range
lever. (7) Remove skid plate and skid plate crossmember.
(8) Support transmission with jack stand.
(9) Remove rear crossmember.
(10) Mark front and rear propeller shaft yokes for
assembly reference. (11) Remove front and rear propeller shafts.
(12) Support transfer case with suitable jack. Se­
cure transfer case to jack with safety chains. (13) Remove nuts attaching transfer case to trans­
mission. (14) Move transfer case assembly rearward until
free of transmission output shaft. (15) Lower jack and move transfer case from under
vehicle. (16) Remove all gasket material from rear of
transmission adapter housing.

TRANSFER CASE
INSTALLATION
(1) Apply Mopar Perfect Seal, silicone sealer, or
Permatex No. 2 to both sides of transfer case-to-
transmission gasket. Then position gasket on trans­ mission.
(2) Align and seat transfer case on transmission.
Be sure transfer case input gear splines are aligned
with transmission output shaft. Align splines by ro­
tating transfer case rear output shaft yoke if neces­ sary. Do not install any transfer case attaching
nuts until the transfer case is completely seated against the transmission.
(3) Install and tighten transfer case attaching nuts
to 47 N*m (35 ft. lbs.). (4) Install rear crossmember.
(5) Remove jack stand from under transmission.
(6) Align and connect propeller shafts.
(7) Connect speed sensor wires and vacuum switch

hoses.
(8) Connect transfer case shift lever to range lever.
Tighten lever locknut to 10 N*m (90 in. lbs.). (9) Fill transfer case with recommended transmis­
sion fluid. (10) Install transfer case fill plug.
(11) Install skid plate and skid plate crossmember.
(12) Lower vehicle.

TRANSFER CASE DISASSEMBLY
(2) Remove rear retainer (Figs. 2-3). Remove and
discard retainer seal. (3) Remove upper snap ring that retains speedom­
eter gear on shaft. Then remove speedometer gear (Fig. 1).

Fig.
1
Snap Ring
And Speedometer Gear
Removal/
Installation

(4) Remove shaft lower snap ring (Fig. 2)
(5) Remove oil pump. Remove and discard oil
pump seal. (6) Loosen rear case by prying corners loose to
break sealant bead (Fig. 3).

Fig.
2 Removing/Installing Shaft
Lower
Snap Ring
(7) Remove rear case from front case (Fig. 4)
(8) Remove oil pickup screen, tube and magnet
from rear case.

DRIVE CHAIN, SPROCKET, SHIFT FORK
AND

MAINSHAFT SHAFT REMOVAL

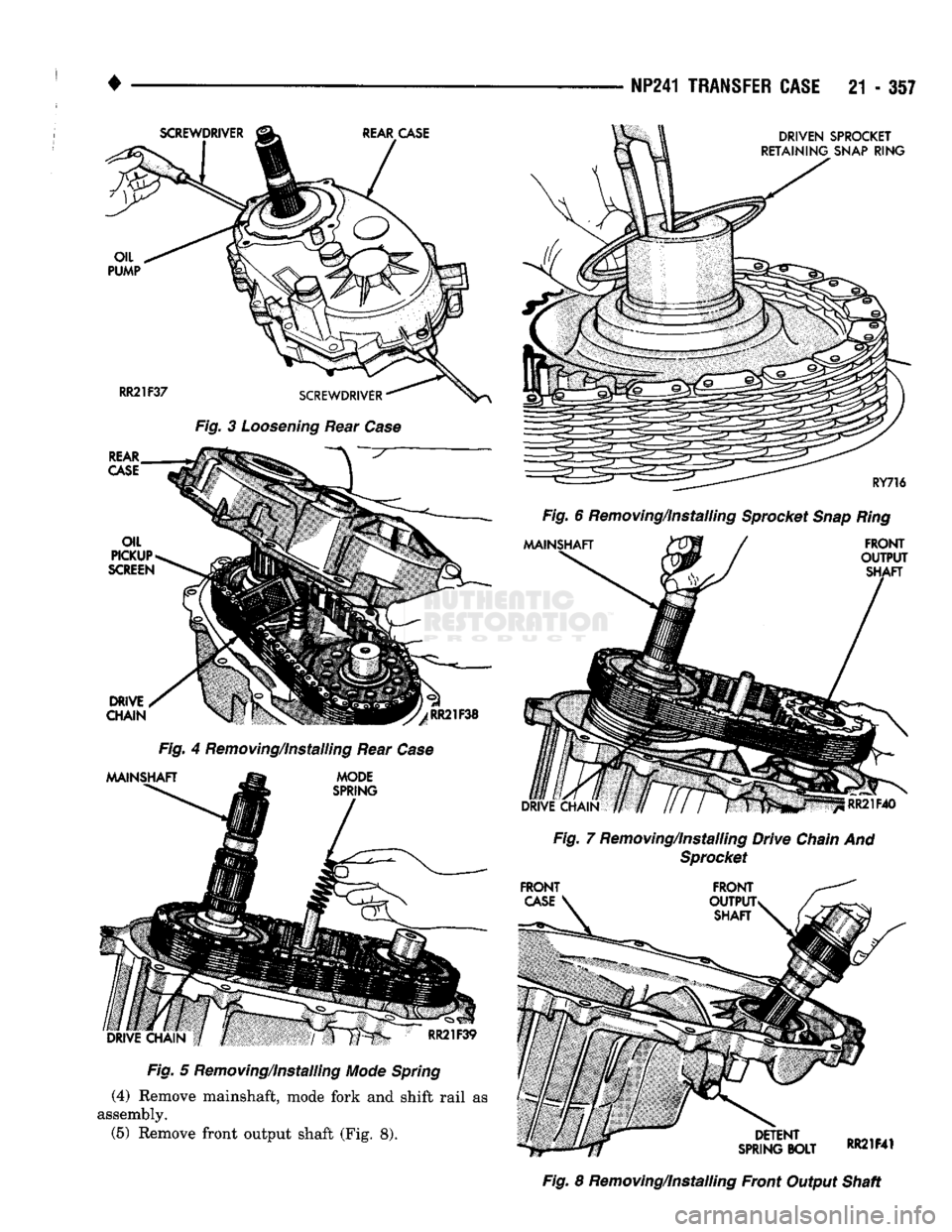

(1) Remove mode spring from shift rail (Fig. 5).
(2) Remove driven sprocket snap ring (Fig. 6).
(3) Remove sprocket and drive chain (Fig. 7). Tilt
mainshaft for clearance if necessary.
RETAINER
AND
REAR CASE
REMOVAL

(1) Remove indicator switch from front case.

•
Fig. 3 Loosening Rear Case Fig. 5 Removing/Installing Mode Spring

(4)
Remove mainshaft, mode fork and shift rail as
assembly.

(5)
Remove front output shaft (Fig. 8).
NP241
TRANSFER CASE
21 - 3i7
Fig. 8 Removing/Installing Front Output Shaft

21
- 358
NP241
TRANSFER
CASE

•

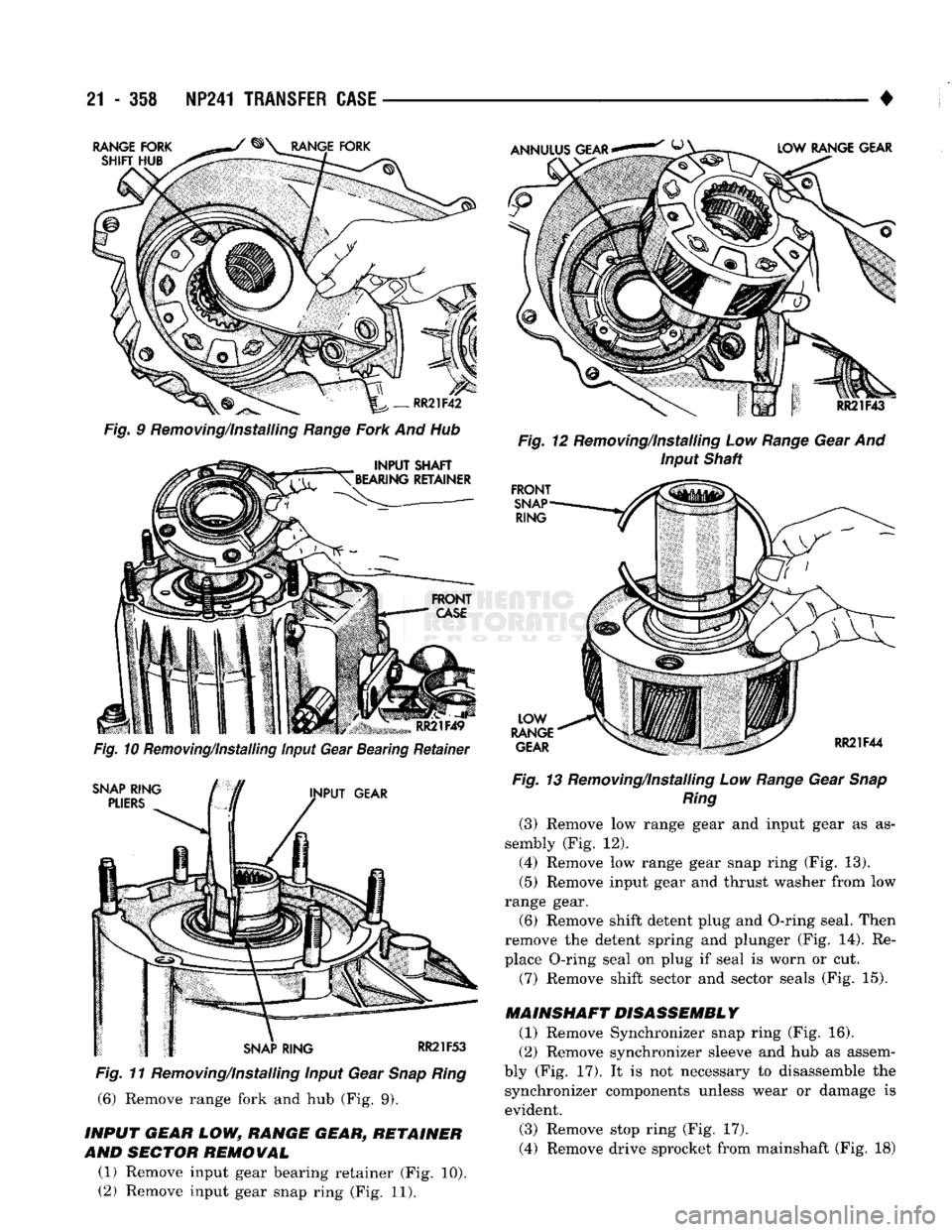

RANGE FORK SHIR HUB RANGE FORK
ANNULUS LOW RANGE GEAR
-RR21F42

Fig.
9 Removing/Installing
Range
Fork And Hub
INPUT
SHAFT

^BEARING RETAINER
,
RR21F49

Fig. 10
Removing/Installing
input
Gear
Bearing
Retainer

SNAP RING
/
PLIERS
L
INPUT
GEAR
SNAP RING
RR21F53

Fig.
11 Removing/instaliing Input Gear
Snap
Ring
(6) Remove range fork and hub (Fig. 9).
INPUT GEAR LOW, RANGE GEAR, RETAINER

AND
SECTOR
REMOVAL

(1) Remove input gear bearing retainer (Fig. 10).
(2) Remove input gear snap ring (Fig. 11).
Fig.
12 Removing/Installing Low
Range
Gear And

Input
Shaft

FRONT
SNAP RING
LOW
RANGE GEAR
RR21F44

Fig.
13 Removing/Installing Low
Range
Gear
Snap
Ring
(3) Remove low range gear and input gear as as­
sembly (Fig. 12).
(4) Remove low range gear snap ring (Fig. 13).
(5) Remove input gear and thrust washer from low
range gear. (6) Remove shift detent plug and O-ring seal. Then
remove the detent spring and plunger (Fig. 14). Re­
place O-ring seal on plug if seal is worn or cut.
(7) Remove shift sector and sector seals (Fig. 15).

MAINSHAFT
DISASSEMBLY
(1) Remove Synchronizer snap ring (Fig. 16).
(2) Remove synchronizer sleeve and hub as assem­
bly (Fig. 17). It is not necessary to disassemble the synchronizer components unless wear or damage is
evident.
(3) Remove stop ring (Fig. 17).
(4) Remove drive sprocket from mainshaft (Fig. 18)

•

NP241
TRANSFER
CASE
21 - 359

JULL

VACUUM
SWITCH
MAINSHAFT

ASSEMBLY
SYNCHRONIZER

ASSEMBLY
DETENT

SPRING

O-RING
SEAL
J9121-536

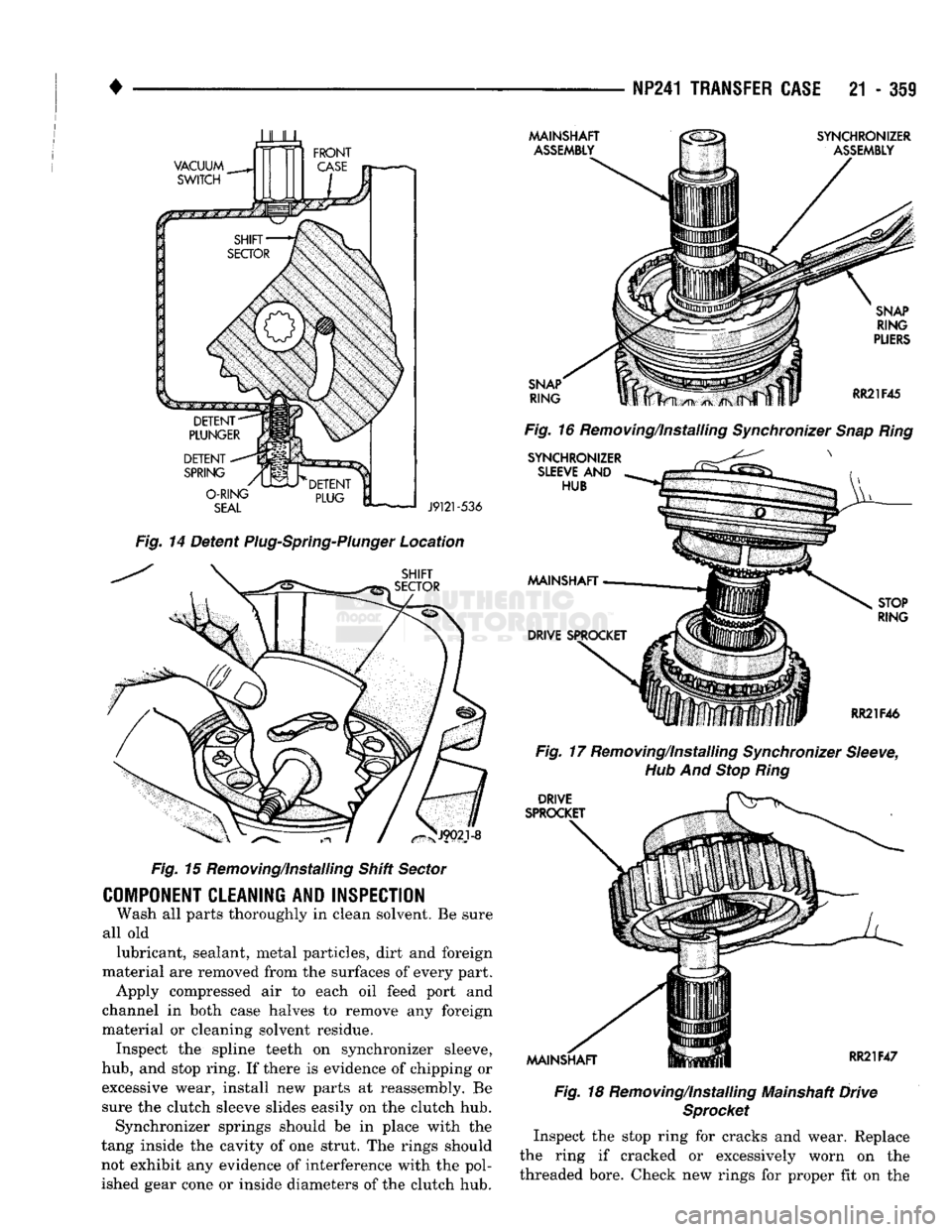

Fig.
14 Detent
Plug-Spring-Plunger
Location
SHIFT

SECTOR

J9021-8
Fig.
15 Removing/Installing Shift
Sector

COMPONENT CLEANING AND INSPECTION
Wash all parts thoroughly in clean solvent. Be sure
all old lubricant, sealant, metal particles, dirt and foreign
material are removed from the surfaces of every part. Apply compressed air to each oil feed port and
channel in both case halves to remove any foreign
material or cleaning solvent residue. Inspect the spline teeth on synchronizer sleeve,

hub,
and stop ring. If there is evidence of chipping or
excessive wear, install new parts at reassembly. Be sure the clutch sleeve slides easily on the clutch hub. Synchronizer springs should be in place with the
tang inside the cavity of one strut. The rings should
not exhibit any evidence of interference with the pol­
ished gear cone or inside diameters of the clutch hub.
SNAP

RING
SNAP

RING

PLIERS

RR21F45 Fig.
16 Removing/Installing
Synchronizer
Snap
Ring

SYNCHRONIZER
SLEEVE
AND
HUB

MAINSHAFT

DRIVE SPROCKET STOP
RING

RR21F46 Fig.
17 Removing/Installing
Synchronizer
Sleeve,

Hub
And
Stop
Ring
DRIVE

SPROCKET

MAINSHAFT
RR21F47
Fig.
18 Removing/Installing Mainshaft Drive
Sprocket

Inspect the stop ring for cracks and wear. Replace
the ring if cracked or excessively worn on the
threaded bore. Check new rings for proper fit on the
