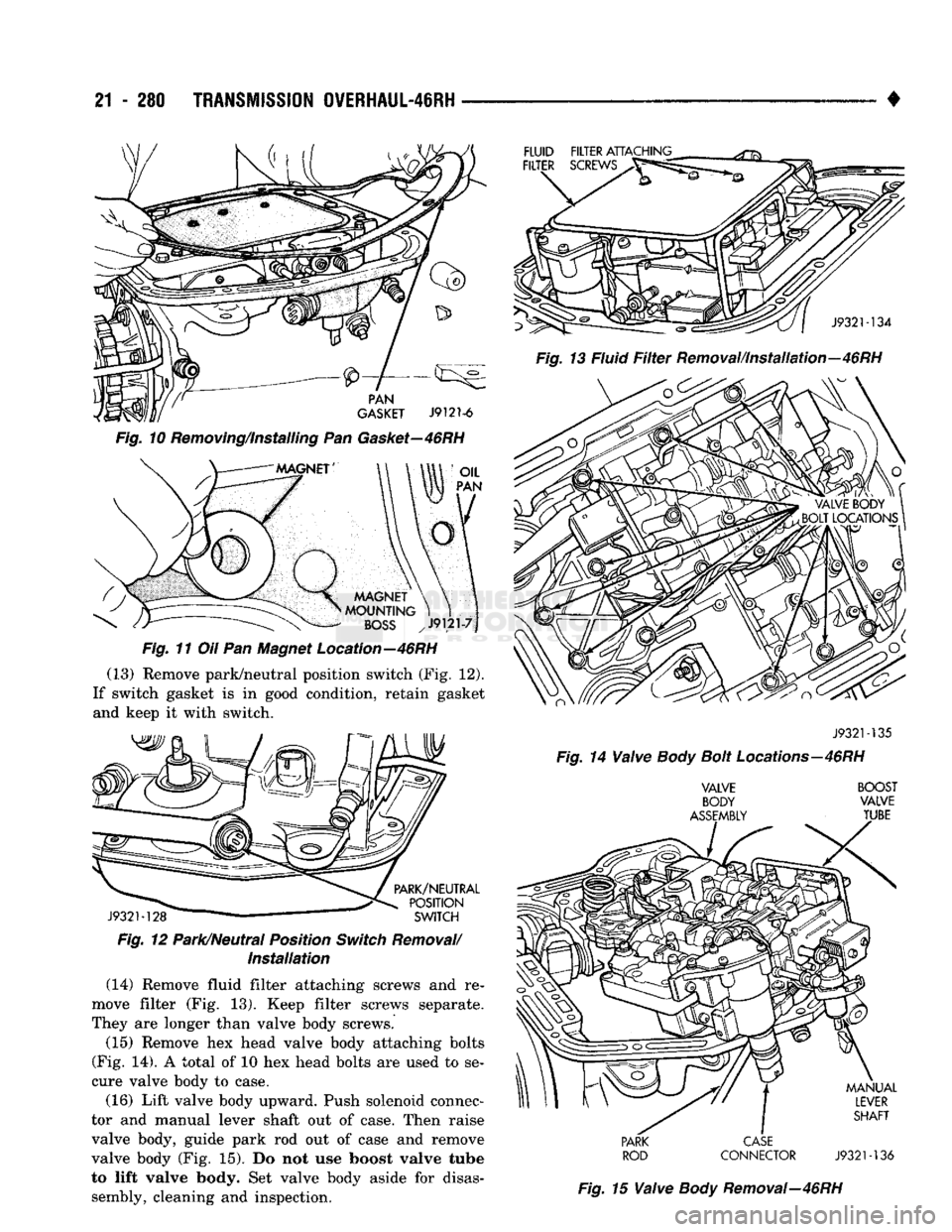

1993 DODGE TRUCK Service Repair Manual

21
- 280
TRANSMISSION
0VERHAUL-46RH
Fig.
11 Oil Pan Magnet Location—46RH (13) Remove park/neutral position switch (Fig. 12).
If switch gasket is in good condition, retain gasket and keep it with switch.
J9321-128
" '
SWITCH
Fig.
12 Park/Neutral Position
Switch
Removal/
Installation
(14) Remove fluid filter attaching screws and re­
move filter (Fig. 13). Keep filter screws separate.
They are longer than valve body screws.
(15) Remove hex head valve body attaching bolts
(Fig. 14). A total of 10 hex head bolts are used to se­
cure valve body to case.
(16) Lift valve body upward. Push solenoid connec­
tor and manual lever shaft out of case. Then raise
valve body, guide park rod out of case and remove valve body (Fig. 15). Do not use boost valve tube
to lift valve body. Set valve body aside for disas­ sembly, cleaning and inspection.
J9321-135

Fig.
14
Valve
Body
Bolt
Locations—46RH
VALVE BOOST

BODY
VALVE

ASSEMBLY
TUBE

PARK
CASE
ROD
CONNECTOR
J9321-136

Fig.
15
Valve
Body
Removal—46RH

•

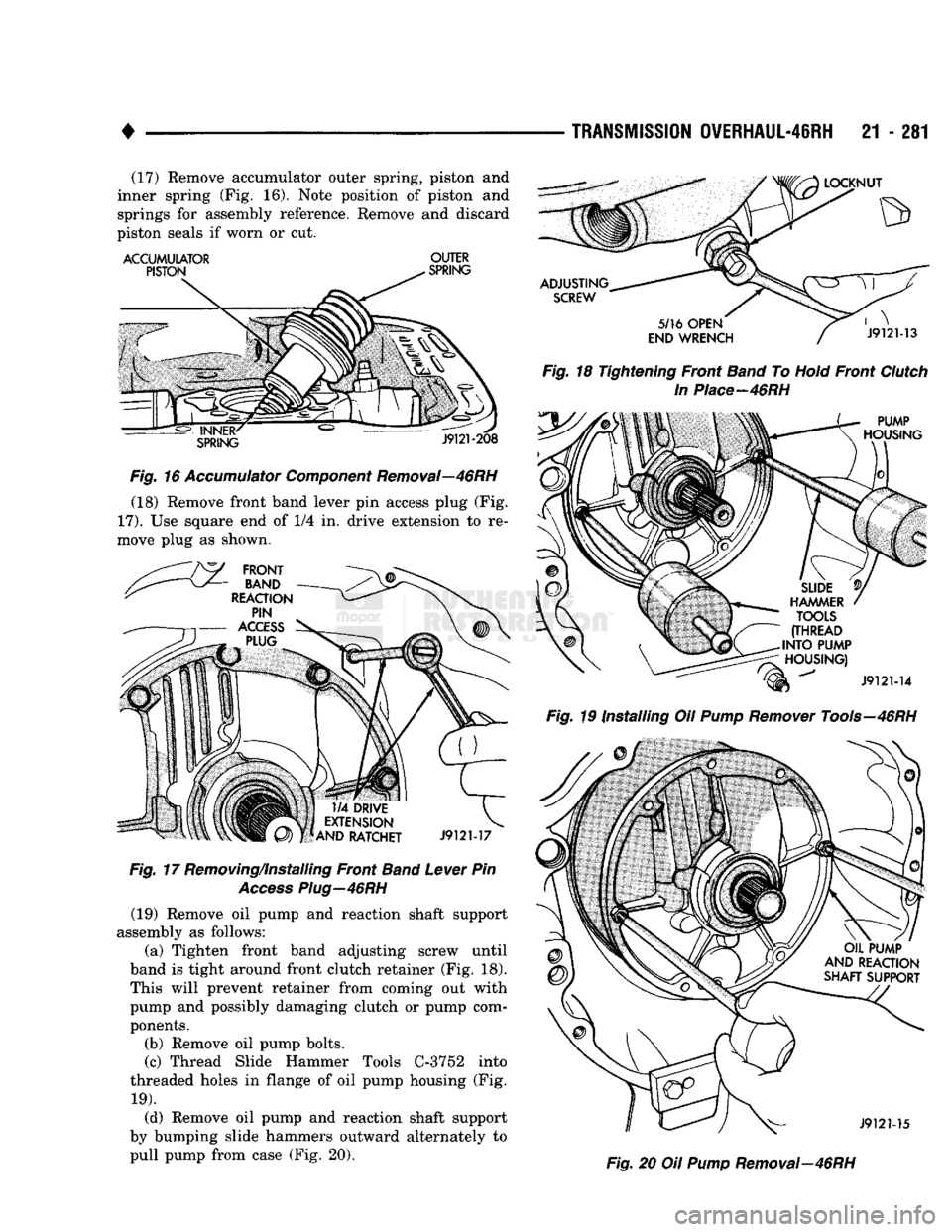

TRANSMISSION
OVERHAUL-46RH
21 - 281 (17) Remove accumulator outer spring, piston and
inner spring (Fig. 16). Note position of piston and
springs for assembly reference. Remove and discard
piston seals if worn or cut.

ACCUMULATOR
OUTER

Fig.
16
Accumulator
Component
Removal--46RH (18) Remove front band lever pin access plug (Fig.

17).
Use square end of 1/4 in. drive extension to re­
move plug as shown.

Fig.
17 Removing/Installing Front
Band
Lever
Pin
Access
Plug—46RH

(19) Remove oil pump and reaction shaft support
assembly as follows:
(a) Tighten front band adjusting screw until
band is tight around front clutch retainer (Fig. 18).
This will prevent retainer from coming out with
pump and possibly damaging clutch or pump com­
ponents.
(b) Remove oil pump bolts.
(c) Thread Slide Hammer Tools C-3752 into
threaded holes in flange of oil pump housing (Fig.

19).
(d) Remove oil pump and reaction shaft support
by bumping slide hammers outward alternately to
pull pump from case (Fig. 20).
Fig.
18 Tightening Front
Band
To
Hold
Front
Clutch

In
Piace-46RH

Fig.
19 Installing Oil
Pump
Remover
Tools—46RH

Fig.
20 Oil
Pump
Removal—46RH

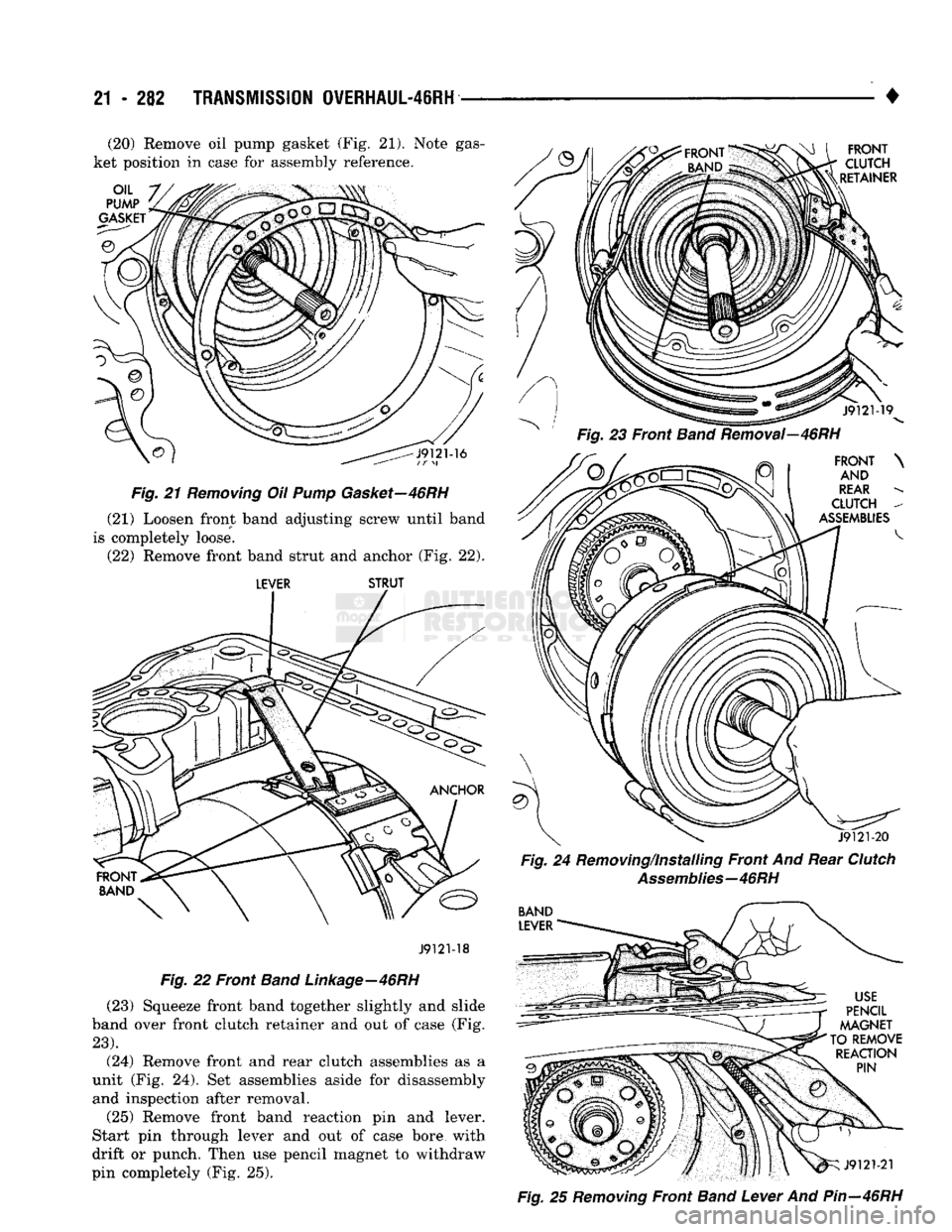

21
- 282
TRANSMISSION OVERHAUL-46RH

• (20) Remove oil pump gasket (Fig. 21). Note gas­
ket position in case for assembly reference.

Fig.
21
Removing
Oil
Pump
Gasket—46RH
(21) Loosen front band adjusting screw until band
is completely loose.
(22) Remove front band strut and anchor (Fig. 22).

LEVER
STRUT

J9121-18

Fig.
22 Front
Band
Linkage—46RH

(23) Squeeze front band together slightly and slide
band over front clutch retainer and out of case (Fig.
23).

(24) Remove front and rear clutch assemblies as a
unit (Fig. 24). Set assemblies aside for disassembly and inspection after removal. (25) Remove front band reaction pin and lever.
Start pin through lever and out of case bore with
drift or punch. Then use pencil magnet to withdraw
pin completely (Fig. 25).
Fig.
24 Removing/Installing Front And Rear
Clutch

Assemblies—46RH

Fig.
25
Removing
Front
Band
Lever
And
Pin—46RH

•

Fig.
26
Removing
intermediate
Shaft Thrust
Washer-46RH

Fig.
27
Removing
intermediate
Shaft Thrust Plate-46RH (26) Remove intermediate shaft thrust washer. Tri­
angular shaped washer will either be on shaft pilot
hub or in rear clutch retainer (Fig. 26).
(27) Remove thrust plate from intermediate shaft
hub (Fig. 27).
(28) Remove intermediate shaft-planetary
geartrain assembly (Fig. 28). Set assembly aside for
disassembly and inspection later in procedure. (29) Loosen rear band adjusting screw 3-4 turns.
(30) Remove snap ring that retains low-reverse
drum on overdrive piston retainer hub (Fig. 29). (31) Slide low-reverse drum off piston retainer hub
and out of rear band (Fig. 30).
(32) Note that overrunning clutch race will remain
on splines of low-reverse drum after removal (Fig.

31).
The race is a permanent press fit on the hub splines. Do not attempt to remove the race.
(33) Remove overrunning clutch assembly (Fig.

32).
Assembly can be removed without displacing

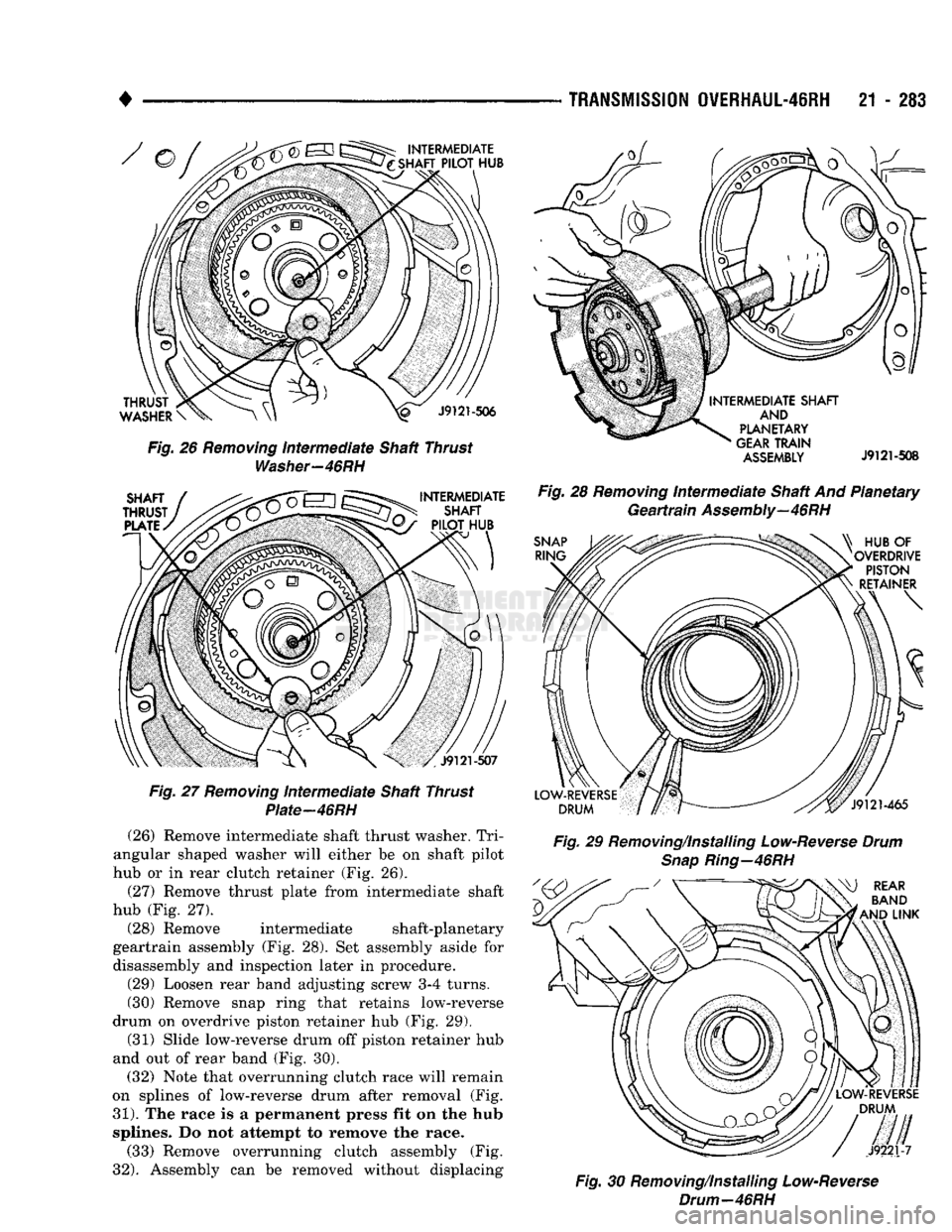

TRANSMISSION
0WERHAUL-46RH
21 - 283
ASSEMBLY J9121-508

Fig.
28
Removing
Intermediate
Shaft And Planetary
Geartrain
Assembly—46RH

Fig.
29 Removing/Installing
Low-Reverse
Drum
Snap
Ring—46RH

Fig.
30 Removing/Installing
Low-Reverse
Drum—46RH

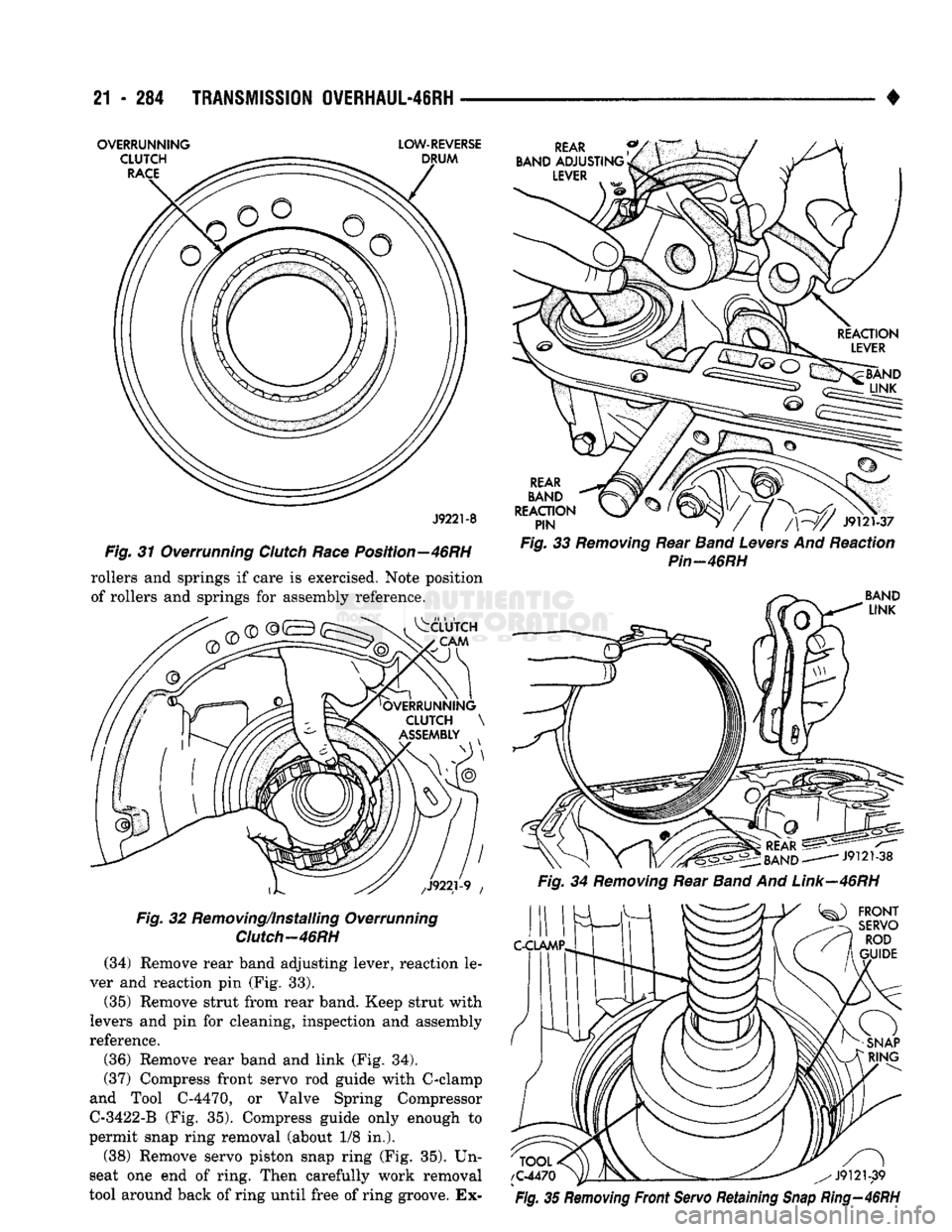

21
- 284
TRANSMISSION
0¥ERHAUL-46RH
OVERRUNNING CLUTCH
RACE
LOW-REVERSE

DRUM
REAR

BAND
ADJUSTING
LEVER

J9221-8

Fig.
31 Overrunning
Clutch
Race
Position—46RH rollers and springs if care is exercised. Note position
of rollers and springs for assembly reference.

^CLUTCH
CAM
Fig.
32 Removing/Installing Overrunning
Clutch-46RH
(34) Remove rear band adjusting lever, reaction le­
ver and reaction pin (Fig. 33).
(35) Remove strut from rear band. Keep strut with
levers and pin for cleaning, inspection and assembly
reference.
(36) Remove rear band and link (Fig. 34).
(37) Compress front servo rod guide with C-clamp
and Tool C-4470, or Valve Spring Compressor
C-3422-B (Fig. 35). Compress guide only enough to
permit snap ring removal (about 1/8 in.).
(38) Remove servo piston snap ring (Fig. 35). Un­
seat one end of ring. Then carefully work removal
tool around back of ring until free of ring groove. Ex-
REAR

BAND

REACTION
_ ^, , ,
PIN ~ y / ( /\~y/ J9121-37
Fig.
33
Removing
Rear
Band
Levers
And Reaction

Pin-46RH

BAND

LINK

-J9121-38

Fig.
34
Removing
Rear
Band
And
Link—46RH

^) FRCNT
SERVO
ROD

GUIDE

TOOL

/C4470 J9121-39

Fig.
35
Removing
Front
Servo
Retaining
Snap
Ring-46RH

•

TRANSMISSION
OVERHAUL-46RH
21 - 285 ercise caution when removing snap ring. Servo
bore can be scratched or nicked if care is not
exercised.
(39)
Remove tools and remove servo piston and
spring.
(40)
Compress rear servo piston with C-clamp and
Tool C-4470, or Valve Spring Compressor C-3422-B (Fig. 36). Compress servo spring retainer only
enough to permit snap ring removal.
(41) Remove servo piston snap ring (Fig. 36). Start
one end of ring out of bore. Then carefully work re­
moval tool around back of snap ring until free of ring
groove. Exercise caution when removing snap
ring. Servo bore can be scratched or nicked if care is not exercised.
(42) Remove tools and remove rear servo retainer,
spring and piston assembly.

Fig.
36
Removing
Rear
Servo
Retaining
Snap
Ring—46RH

(43) Remove overdrive piston retainer bolts and re­
move retainer from case (Fig. 37).
(44) Remove gasket from rear of case after remov­
ing piston retainer.

OVERHAUL SERVICE
INFORMATION
Inspect all the transmission bushings during over­
haul. Bushing condition is important as worn, scored
bushings contribute to low pressures, clutch slip and accelerated wear of other components. Replace worn,
or scored bushings, or if doubt exists about bushing
condition. Use recommended tools to replace bushings. The
tools are sized and designed to remove, install and seat bushings correctly. The bushing replacement
tools are included in Bushing Tool Set C-3887-B. Pre-sized service bushings are available for re­
placement purposes. Only the sun gear bushings are not serviced. Low cost of the sun gear assembly makes it easier to simply replace the gear and bush­ings as an assembly.
Fig.
37
Removing
Overdrive
Piston
Retainer—46RH
Heli-Coil inserts are recommended for repairing
damaged, stripped or worn threads in aluminum

parts.
These inserts are available from most automo­
tive jobbers. Stainless steel inserts are preferred.
The use of crocus cloth is permissible where neces­
sary, providing it is used carefully. When used on
valves, use extreme care to avoid rounding off sharp
edges.
Sharp edges are vital as they prevent foreign
matter from getting between the valve and valve

bore.

Do not reuse oil seals, gaskets, seal rings, or
O-rings during overhaul. Replace these parts as a
matter of course. Also do not reuse snap rings or
E-clips that are bent or distorted. Replace these parts as well.
Lubricate transmission parts with Mopar ATF

Plus,
Type 7176 transmission fluid during assembly.
Use Ru-Glyde, petroleum jelly, or Door-Eze to prelu-
bricate seals, O-rings, and thrust washers. Petroleum
jelly can also be used to hold parts in place during reassembly.

TRANSMISSION
CASE
CLEANING
AND
INSPECTION
Clean the case in a solvent tank. Flush the case
bores and fluid passages thoroughly with solvent. Dry the case and all fluid passages with compressed air. Be sure all solvent is removed from the case and
that all fluid passages are clear. Do not use shop towels or rags to dry the case
(or any other transmission component) unless
they are made from lint-free materials. Lint will readily adhere to case surfaces and transmission components and will circulate throughout the

21 - 286
TRANSMISSION OVERHAUL-46RH

• transmission after assembly. A sufficient quan­
tity of lint can block fluid passages and Interfere
with valve body operation.
Inspect the case for cracks, porous spots, worn
servo bores, or damaged threads. Damaged threads
can be repaired with Helicoil thread inserts. How­
ever, the case will have to be replaced if it exhibits
damage or wear.
Lubricate the front band adjusting screw and lock-
nut with petroleum jelly and thread it part way into
the case. Be sure the screw turns freely and does not
bind. Install the locknut on the screw after checking screw thread operation.

OVERDRIVE PISTON AND RETAINER SERVICE
Remove and discard the piston seals.
Clean the piston and retainer in parts cleaning sol­
vent. Do not use any type of caustic materials for
cleaning. Such materials may etch the surfaces caus­
ing damage. Inspect the piston and retainer carefully. Replace
either part if cracked, porous or damaged in any way. Check condition of the locating lugs on the pis­
ton. Be sure the lugs are in good condition and are not worn, chipped or broken. Inspect the check ball in the piston (Fig. 38). Be
sure the ball is secure and is not partially dislodged,
or loose. Replace the piston if doubt exists about pis­
ton or check ball condition. Check the governor feed tube boss in the retainer.
Be sure the boss is in good condition and is not dam­ aged in any way.
Fig.
38 Overdrive
Piston—46RH
OWERRUNNlNG CLUTCH OVERHAUL

Inspect condition of the clutch cam, cage-type re­
tainer, rollers, springs and clutch race. Replace the clutch cam if worn or damaged. Also
check fit of the cam in the transmission case. If the
cam is loose, the case may be worn, or cracked. The clutch race is permanently pressed onto the
low-reverse drum hub. If either the drum or race are
worn or damaged, replace the drum and race as an assembly. Check fit of the race on the low-reverse
drum hub splines. Replace the drum and race as an assembly if the race is loose on the hub splines. Examine the overrunning clutch assembly care­
fully. Replace assembly if the rollers, springs, or cage-type retainer are worn, or damaged. If the clutch cam requires replacement, install a
new cam as described in the following procedure.

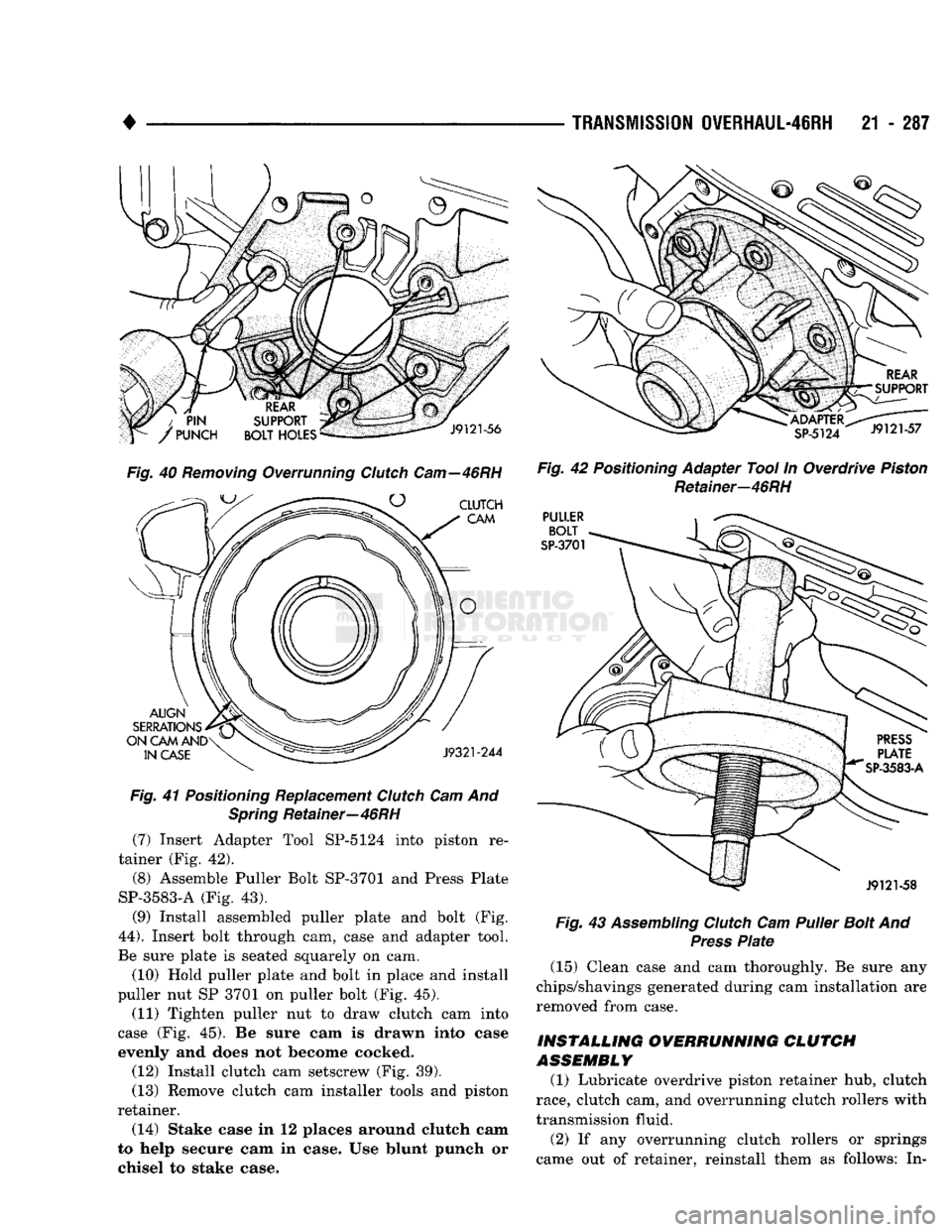

OVERRUNNING CLUTCH CAM REPLACEMENT (1) Remove clutch cam setscrew (Fig. 39).

Fig.
39 Removing/Installing
Clutch
Cam
Setscrew—46RH

(2)
Tap old cam and spring retainer out of case
with pin punch. Insert punch through bolt holes at rear of case (Fig. 40). Alternate position of punch to avoid cocking cam during removal.
(3) Clean clutch cam bore and case. Be sure to re­
move all chips/shavings generated during cam re­ moval.
(4) Install rear support in case. Align support with
reference marks made at disassembly. (5) Align and start new clutch cam and spring re­
tainer in case. Be sure serrations on cam and in case are aligned (Fig. 41). Then tap cam into case just
enough to hold it in place.
(6) Verify that cam is correctly positioned be­
fore proceeding any further. Narrow ends of
cam ramps should be to left when cam is viewed
from front end of case (Fig. 41).

•
Fig. 40 Removing Overrunning Clutch Cam—46RH Fig. 41 Positioning Replacement Clutch Cam And
Spring Retainer—46RH
(7) Insert Adapter Tool SP-5124 into piston re­
tainer (Fig. 42).
(8) Assemble Puller Bolt SP-3701 and Press Plate
SP-3583-A (Fig. 43). (9) Install assembled puller plate and bolt (Fig.

44).
Insert bolt through cam, case and adapter tool.
Be sure plate is seated squarely on cam.
(10) Hold puller plate and bolt in place and install
puller nut SP 3701 on puller bolt (Fig. 45).
(11) Tighten puller nut to draw clutch cam into
case (Fig. 45). Be sure cam is drawn into case
evenly and does not become cocked.
(12) Install clutch cam setscrew (Fig. 39).
(13) Remove clutch cam installer tools and piston
retainer.
(14) Stake case in 12 places around clutch cam
to help secure cam in case. Use blunt punch or chisel to stake case.
TRANSMISSION
0WERHAUL-48RH
21 - 287
Fig. 43 Assembling Clutch Cam Puller Bolt And Press Plate (15) Clean case and cam thoroughly. Be sure any
chips/shavings generated during cam installation are
removed from case.

INSTALLING OVERRUNNING CLUTCH

ASSEMBLY
(1) Lubricate overdrive piston retainer hub, clutch

race,
clutch cam, and overrunning clutch rollers with
transmission fluid.
(2) If any overrunning clutch rollers or springs
came out of retainer, reinstall them as follows: In-
