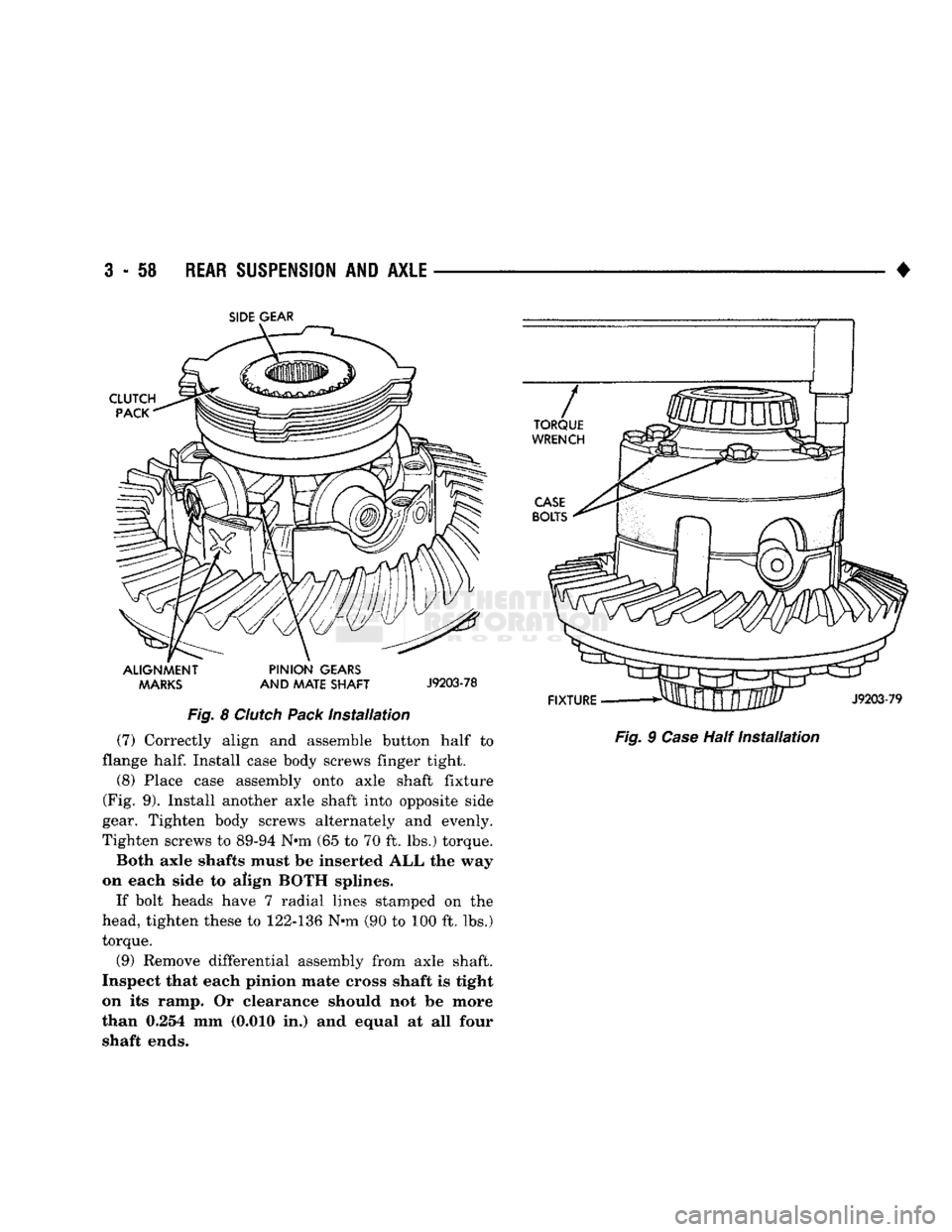

1993 DODGE TRUCK Service Repair Manual

3
- 58
REAR SUSPENSION
AND
AXLE

•

SIDE
GEAR

ALIGNMENT PINION
GEARS MARKS
AND
MATE SHAFT
J9203-78
Fig.
8
Clutch
Pack
Installation

(7) Correctly align and assemble button half to
flange
half.
Install case body screws finger tight.
(8) Place case assembly onto axle shaft fixture
(Fig. 9). Install another axle shaft into opposite side
gear. Tighten body screws alternately and evenly.
Tighten screws to 89-94 N«m (65 to 70 ft. lbs.) torque.
Both axle shafts must be inserted ALL the way
on each side to align BOTH splines.
If bolt heads have 7 radial lines stamped on the
head, tighten these to 122-136 N-m (90 to 100 ft. lbs.)
torque.
(9) Remove differential assembly from axle shaft.
Inspect that each pinion mate cross shaft is tight
on its ramp. Or clearance should not be more
than 0.254 mm (0.010 in.) and equal at all four shaft ends.
Fig.
9
Case
Half
Installation

REAR
SUSPENSION
AND
AXLE
3 - 59

TORQUE
SPECIFICATIONS

REAR
SUSPENSION
COMPONENTS 8 3/8 AND 9 1/4 INCH
AXLE

REAR
SUSPENSION
COMPONENTS
DESCRIPTION
TORQUE
Jounce Bumper to Bracket 20 N-m (180 in. lbs.)
Jounce Bumper/Bracket to Frame (Round) 41 N-m (30 ft. lbs.)
Jounce Bumper/Bracket to Frame (Block)......... 23 N-m (200 ft. lbs.)

Shock
Lower Nut 82 N-m (60 ft. lbs.)

Shock
Upper Nut 82 N-m (60 ft. lbs.)

Spring
Center Bolt 20 N-m (15 ft. lbs.)

Spring
U-Bolt Nut
(1/2-20)
88 N-m (65 ft. lbs.)

Spring
U-Bolt Nut
(9/16-18)
149 N-m (110 ft. lbs.)

Spring
Front and Rear Pivot Bolt/Nut
(1/2-20)
88 N-m (65 ft. lbs.)

Spring
Front and Rear Pivot Bolt/Nut(5/8-18).... 135 N-m
(100ft.
lbs.)

Spring
Front and Rear Pivot Bolt/Nut
(3/4-16)
183 N-m (135 ft. lbs.)

Spring
Pad to Frame (Aux) 41 N-m (30 ft. lbs.)
J9203-82
DESCRIPTION

TORQUE

8-3/8 Axle
Differential
Bearing Cap Bolt
9-1/4 Axle
Differential
Bearing Cap Bolt
Brake
Backing
Plate ,

Differential
Housing
Cover

Bolt

Pinion Yoke Nut (Minimum Torque)

Ring
Gear Bolt...

RWAL
Brake
Sensor
95 N*m (70 ft. lbs.)
136
N*m(100
ft. lbs.)
... 64 N*m (48 ft. lbs.)
47 N*m (35 ft. lbs.;

285Ntti
(210 ft. lbs.)
... 95 N*m (70 ft. lbs.) ... 24 N*m (18 ft. lbs.)

J9203-69
MODEL
60 AND 70
AXLE

REAR
AXLE
MODEL
60 and 70

DESCRIPTION
TORQUE

Axle Flange to Hub Bolts. Bearing Cap Bolts 95 N-m (70 ft. lbs.)
... 95 to 122 N-m (70 to 90 ft. lbs.)

Case
Half
Bolts
(Powr-Lok) ..

Case
Half
Bolts
Heavy Duty (Powr-Lok)

Differential
Cover Bolts
Fill
Hole Plug

Ring
Gear
Bolts
(Grade 8)

Ring
Gear
Bolts
(Grade 9)

RWAL
Brake
Sensor
89 to 94 N-m
(65 to 70 ft. lbs.)
122 to 136 N-m
(90 to 100 ft. lbs.)
47 N-m (35 ft. lbs.) 34 N-m (25 ft. lbs.) 136 to 163 N-m
(100 to 120 ft. lbs.) 169 to 183 N-m
(125 to 135 ft. lbs.)
24 N-m (18 ft. lbs.)
J9203-83

•

BRAKES
BRAKES
5 - 1

CONTENTS

page

BENDIX
DISC
BRAKE
37

BRAKE
ADJUSTMENTS-BRAKE BLEEDING .. 7

BRAKE
DIAGNOSIS
3

CHRYSLER
DISC
BRAKE
27
DRUM
BRAKES-ELEVEN
INCH 46
DRUM
BRAKES-TWELVE
INCH 50

GENERAL
INFORMATION 1
MASTER
CYLINDER-COMBINATION
page

VALVE-BRAKE
LINES 10

PARKING
BRAKES
56

POWER
BRAKE
BOOSTER-BRAKE
PEDAL .. 20

POWER
BRAKE
VACUUM PUMP-DIESEL
ENGINE
...22

REAR
WHEEL ANTILOCK (RWAL)
BRAKES
.. 59

SPECIFICATIONS
65

GENERAL INFORMATION
INDEX

page

Antilock
Rear
Wheel
Brakes
1
Brake
Components 1

BRAKE
COMPONENTS
AD models are equipped with front disc and rear
drum brakes. Power assist brakes and rear wheel an­
tilock brakes are standard equipment on all models. A dual reservoir master cylinder and single or dual
diaphragm, vacuum operated power brake booster is
used for all applications. Models with the Cummins
diesel engine option are also equipped with a vacuum
pump assembly to operate the power brake booster. Front disc brake units consist of single piston, slid-
ing-type calipers with semi metallic brakeshoe lin­ ing. Vented disc brake rotors are used on all models. Bendix calipers are used on 4-wheel drive models
and on diesel engine models. Chrysler disc brake cal­
ipers are used for all other applications. Rear drum brakes are dual shoe units with an au­
tomatic adjustment mechanism. Bendix and Chrysler drum brake assemblies are used. A combination valve is used on all models. The
valve consists of a front brake metering (hold-off)
valve and a front/rear pressure differential switch. A red, brake indicator and warning light is used to
alert the driver if a pressure differential exists be­
tween the front and rear hydraulic systems. The light also alerts the driver when the parking brakes
are applied. The light is located at the left side of the
instrument cluster. An additional indicator light is used for the anti-
lock system. This light is amber and is located in the
page

Brake
Fluid/Lubricants/Cleaning
Solvents
1

Brake
Safety Precautions 2
same side of the instrument cluster as the red indi­
cator light. The antilock light alerts the driver if a system fault occurs.

ANTILOCK
REAR
WHEEL
BRAKES
All AD models are equipped with antilock rear
brakes. The system is designed to retard wheel lockup during periods of high wheel slip when brak­
ing. Retarding wheel lockup is accomplished by modu­
lating fluid pressure to the wheel brake units. Refer
to the Rear Wheel Anti-Lock Brake section for oper­ ation and service information.

BRAKE
FLUID/LUBRICANTS/CLEANING SOLVENTS Recommended fluid for all AD models is Mopar
brake fluid or equivalent meeting SAE J1703 and DOT 3 standards. Use Mopar multi mileage grease to lubricate cali­
per slide surfaces, drum brake pivot pins and shoe contact points on the backing plates. Use GE 661 or
Dow 111 silicone grease (or equivalent) on caliper
bushings and slide pins. Use fresh brake fluid or Mopar brake cleaner to
clean or flush brake system components. These are
the only cleaning materials recommended.

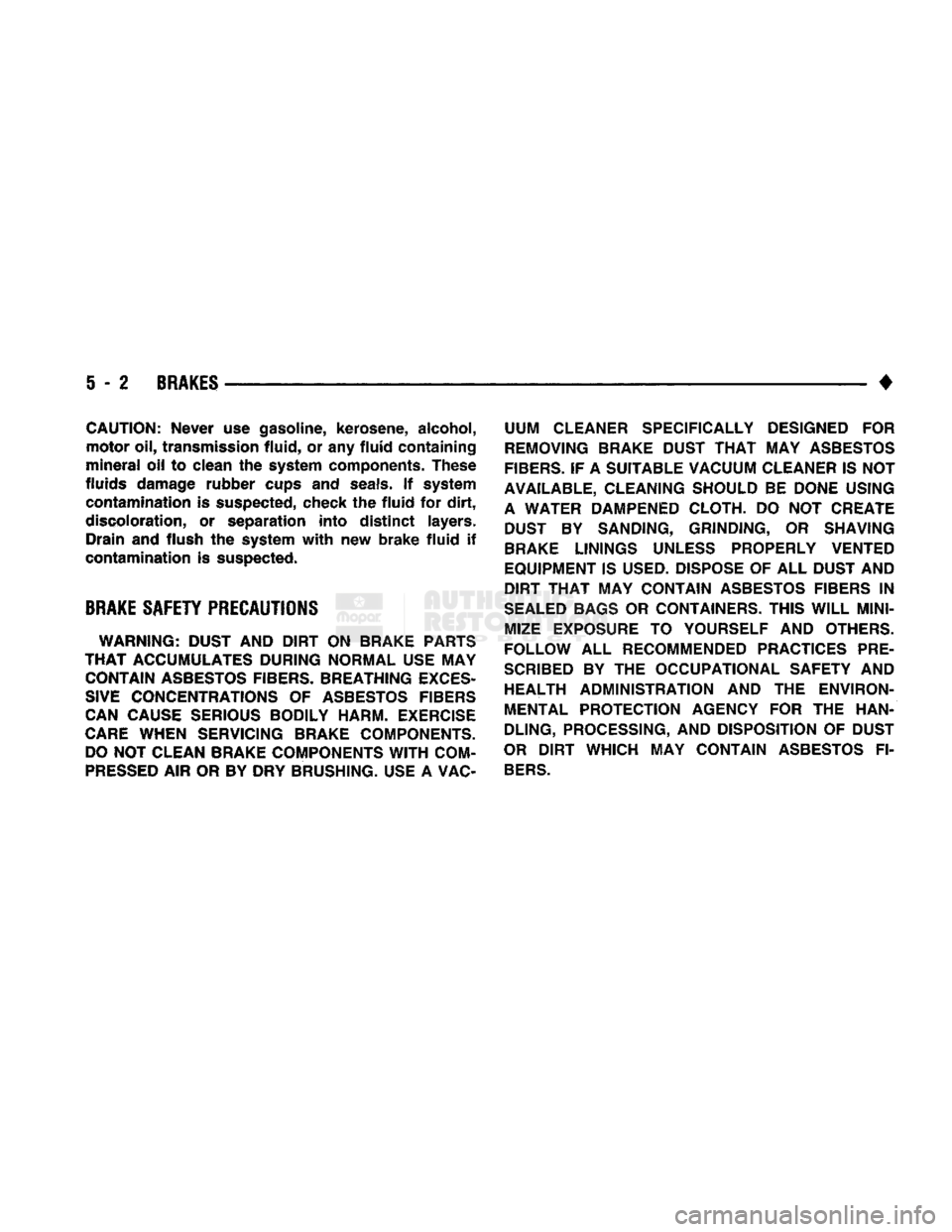

5 - 2 BRAKES
• CAUTION:
Never
use gasoline,
kerosene,
alcohol,

motor
oil, transmission
fluid,
or any
fluid
containing

mineral
oil to
clean
the system
components.
These

fluids
damage
rubber
cups and seals. If system

contamination
is suspected,
check
the
fluid
for
dirt,

discoloration,
or
separation
into
distinct
layers.
Drain
and
flush
the system
with
new
brake
fluid
if

contamination
is suspected.

BRAKE
SAFETY PRECAUTIONS WARNING: DUST AND DIRT ON BRAKE PARTS

THAT
ACCUMULATES DURING NORMAL USE MAY CONTAIN ASBESTOS FIBERS. BREATHING
EXCES­

SIVE
CONCENTRATIONS OF ASBESTOS FIBERS

CAN
CAUSE SERIOUS BODILY HARM. EXERCISE

CARE
WHEN SERVICING BRAKE COMPONENTS.
DO NOT CLEAN BRAKE COMPONENTS
WITH
COM­

PRESSED
AIR OR BY DRY BRUSHING. USE A VAC­ UUM CLEANER SPECIFICALLY DESIGNED FOR
REMOVING BRAKE DUST
THAT
MAY ASBESTOS

FIBERS.
IF A SUITABLE VACUUM CLEANER IS NOT

AVAILABLE,
CLEANING SHOULD BE DONE USING

A
WATER DAMPENED CLOTH. DO NOT CREATE DUST BY SANDING, GRINDING, OR SHAVING

BRAKE
LININGS UNLESS PROPERLY VENTED
EQUIPMENT IS USED. DISPOSE OF ALL DUST AND
DIRT
THAT
MAY CONTAIN ASBESTOS FIBERS IN

SEALED
BAGS OR CONTAINERS. THIS WILL MINI­ MIZE EXPOSURE TO YOURSELF AND OTHERS.
FOLLOW ALL RECOMMENDED PRACTICES PRE­

SCRIBED
BY THE OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION AND THE ENVIRON­
MENTAL PROTECTION AGENCY FOR THE HAN­
DLING, PROCESSING, AND DISPOSITION OF DUST
OR DIRT WHICH MAY CONTAIN ASBESTOS FI­
BERS.

•

BRAKES
i - 3 BRAKE DIAGNOSIS

INDEX

page

Brake
Warning Lights
3

Diagnosing
Brake Problems .................
4

Diagnosis
Procedures
3

Low
Vacuum
Switch—Diesel
Models
3
page

Master
Cylinder/Power Booster Test
5

Power
Booster
Check
Valve Test .............
6

Power
Booster
Vacuum
Test .................
6

Testing Diesel
Engine
Vacuum
Pump
Output
.... 6

DIAGNOSIS
PROCEDURES
Brake diagnosis involves determining
if the
prob­
lem
is
related
to a
mechanical, hydraulic
or
vacuum
operated component.
A
preliminary check, road test­
ing
and
component inspection
can all be
used
to de­

termine
a
problem cause. Road testing will either verify proper brake opera­
tion
or
confirm
the
existence
of a
problem. Compo­ nent inspection will,
in
most cases, identify
the
actual part causing
a
problem. The first diagnosis step
is the
preliminary check. This
involves inspecting fluid level, parking brake action,
wheel
and
tire condition, checking
for
obvious leaks
or

component damage
and
testing brake pedal response. A road test will confirm
the
existence
of a
problem.
Final diagnosis procedure involves road test analysis and
a
visual inspection
of
brake components.

BRAKE
WARNING LIGHTS
The
red
brake warning light
is
connected
to the

parking brake switch
and to the
pressure differential switch
in the
combination valve. The
red
light will illuminate when
the
parking
brakes
are
applied
or
when
a
fluid pressure drop
oc­
curs
in the
front
or
rear brake circuit.
The
light will
also illuminate
for
approximately
2-4
seconds
at en­

gine start
up.
This
is a
self test feature designed
to

check bulb
and
circuit operation each time
the en­

gine
is
started. The amber antilock light
is
connected
to the
anti-
lock rear brake hydraulic valve.
The
light will illu­
minate
if a
fault occurs within
the
antilock system.

LOW VACUUM SWITCH-DIESEL MODELS
On diesel models,
the red
brake warning light
is
also
used
to
alert
the
driver
of a low
brake booster vacuum
condition.
The
warning light
is in
circuit with
a
vacuum
warning switch mounted
on the
driver side fender
panel.
The
vacuum side
of the
switch
is
connected
to the

power brake booster.
The
electrical side
of the
switch
is
connected
to the
brake warning light. The
low
vacuum switch monitors booster vacuum
level whenever
the
engine
is
running.
If
booster vac­
uum falls below
8.5
inches vacuum
for a
minimum
of
10 seconds,
the
switch completes
the
circuit
to the

warning light causing
it to
illuminate.
The
warning light
is
designed
to
differentiate between
a low
vac­
uum condition
and a
hydraulic circuit fault.

PRELIMINARY
BRAKE CHECK
(1) Check condition
of
tires
and
wheels. Damaged
wheels
and
worn, damaged,
or
underinflated tires
can
cause pull, shudder, tramp,
and a
condition similar
to
grab.

(2)
If
complaint
was
based
on
noise when braking,
check suspension components. Jounce front
and
rear
of

vehicle
and
listen
for
noise that might
be
caused
by

loose, worn
or
damaged suspension
or
steering compo­

nents.

(3) Inspect brake fluid level
and
condition. Note
that
the
front disc brake reservoir fluid level will drop
in
proportion
to
normal lining wear. Also note
that brake fluid tends
to
darken over time. This
is normal
and
should
not be
mistaken
for
con­
tamination.
If the
fluid
is
still clear
and
free
of

foreign material,
it is OK.

(a)
If
fluid level
is
abnormally
low,
look
for
evi­
dence
of
leaks
at
calipers, wheel cylinders, brake-
lines
and
master cylinder.
(b)
If
fluid appears contaminated, drain
out a

sample.
If
fluid
is
separated into layers,
or
obvi­
ously contains
oil or a
substance other than brake
fluid,
the
system seals
and
cups will have
to be re­

placed
and the
hydraulic system flushed.
(4) Check parking brake operation. Verify free
movement
and
full release
of
cables
and
pedal. Also
note
if
vehicle
was
being operated with parking
brake partially applied.
(5) Check brake pedal operation. Verify that pedal
does
not
bind
and has
adequate free play.
If
pedal
lacks free play, check pedal
and
power booster
for be­

ing loose
or for
bind condition.
Do not
road test until
condition
is
corrected.
(6)
If
components checked appear
OK,
road test
the

vehicle.

ROAD
TESTING (1)
If
complaint involved
low
brake pedal, pump
the pedal
and
note
if the
pedal comes back
up to
nor­ mal height.
(2) Check brake pedal response with transmission
in Neutral
and
engine running. Pedal should remain
firm under steady foot pressure.

5
- 4
BRAKES

• (3) During road test, make normal and firm brake
stops in 25-40 mph (40-64 Km/h) range. Note faulty
brake operation such as pull, grab, drag, noise, low
pedal, etc.
(4) Inspect suspect brake components and refer to
problem diagnosis information for causes of various
brake conditions.

COMPONENT
INSPECTION
Fluid leak points and dragging brake units can usu­
ally be located without removing any components. The
area around a leak point will be wet with fluid. The
components at a dragging brake unit (wheel, tire, rotor)
will be quite warm or hot to the touch.
Other brake problem conditions will require compo­
nent removal for proper inspection. Raise the vehicle and remove the necessary wheels for better visual ac­

cess.

DIAGNOSING BRAKE
PROBLEMS

PEDAL FALLS
AWAY
A
brake pedal that falls away under steady foot
pressure is the result of a system leak. The leak
point could be at a brakeline, fitting, hose, or caliper. Internal leakage in the master cylinder caused by
worn or damaged piston cups, may also be the prob­ lem cause.
If leakage is severe, fluid will be evident at or around
the leaking component. However, internal leakage in
the master cylinder may not be physically evident. Re­ fer to the cylinder test procedure in this section.

LOW PEDAL
If a low pedal is experienced, pump the pedal sev­
eral times. If the pedal comes back up, worn lining
and worn rotors or drums are the likely causes.
A decrease in fluid level in the master cylinder res­
ervoirs may only be the result of normal lining wear.
Fluid level can be expected to decrease in proportion to wear. It is a result of the outward movement of
caliper and wheel cylinder pistons to compensate for
normal wear. Top off the reservoir fluid level and
check brake operation to verify proper brake action.
SPONGY PEDAL. A spongy pedal is most often caused by air in the sys­
tem. Thin brake drums or substandard brake lines and
hoses can also cause a spongy pedal. The proper course
of action is to bleed the system and replace thin drums and suspect quality brake lines and hoses.

HARD PEDAL
OR
HIGH
PEDAL
EFFORT
A hard pedal or high pedal effort may be due to
lining that is water soaked, contaminated, glazed, or
badly worn. The power booster or check valve could also be faulty. On diesel engine models, high pedal effort may be
the result of a low vacuum condition. If the booster and check valve are OK, the problem may be related
to a vacuum pump hose, hose connection, hose fit­
ting, pump diaphragm, or drive gear. Vacuum pump output can be checked with a standard vacuum
gauge. Vacuum output should range from 8.5 to 25 inches vacuum. If vacuum pump output is within

limits,
check the power booster and check valve as
described in this section.

BRAKE DRAG
Brake drag occurs when the lining is in constant
contact with the rotor or drum. Drag can occur at
one wheel, all wheels, fronts only, or rears only. It is a product of incomplete brakeshoe release. Drag can
be minor or severe enough to overheat the linings,
rotors and drums.
Brake drag can also effect fuel economy. If undetec­
ted, minor brake drag can be misdiagnosed as an en­ gine or transmission/torque converter problem.
Minor drag will usually cause slight surface charring
of the lining. It can also generate hard spots in rotors and drums from the overheat-cool down process. In most

cases,
the rotors, drums, wheels and tires are quite
warm to the touch after the vehicle is stopped.
Severe drag can char the brake lining all the way
through. It can also distort and score rotors and drums to the point of replacement. The wheels, tires and brake components will be extremely hot. In se­
vere cases, the lining may generate smoke as it chars
from overheating.
Some common causes of brake drag are:
• seized or improperly adjusted parking brake cables
• loose/worn wheel bearing
• seized caliper or wheel cylinder piston
• caliper binding on corroded bushings or rusted
slide surfaces
• loose caliper mounting bracket
• drum brakeshoes binding on worn or damaged sup­
port plates
• misassembled components. If brake drag occurs at all wheels, the problem may
be related to a blocked master cylinder return port, or faulty power booster that binds and does not release.

BRAKE FADE
Brake fade is a product of overheating caused by
brake drag. However, brake overheating and subse­ quent fade can also be caused by riding the brake
pedal, making repeated high deceleration stops in a short time span, or constant braking on steep moun­
tain roads. Refer to the Brake Drag information in
this section for additional causes.

PEDAL
PULSA
TION
Pedal pulsation is caused by components that are
loose, out of round, or worn beyond tolerance limits.

•

BRAKES
5 - 5 Disc brake rotors with excessive lateral runout or
thickness variation, or out of round brake drums are
the primary causes of pulsation. Other causes are loose
wheel bearings or calipers and worn, damaged tires.

PULL A
front pull condition could be the result of con­
taminated lining in one caliper, seized caliper piston,
binding caliper, loose caliper, loose or corroded slide

pins,
improper brakeshoes, or a damaged rotor.
A worn, damaged wheel bearing or suspension compo­
nent are further causes of pull. A damaged front tire (bruised, ply separation) can also cause pull.
A common and frequently misdiagnosed pull condi­
tion is where direction of pull changes after a few
stops.
The cause is a combination of brake drag fol­
lowed by fade at one of the brake units.
As the dragging brake overheats, efficiency is so
reduced that fade occurs. Since the opposite brake
unit is still functioning normally, its braking effect is
magnified. This causes pull to switch direction in fa­
vor of the normally functioning brake unit.
When diagnosing a change in pull condition, re­
member that pull will return to the original direction
if the dragging brake unit is allowed to cool down (and is not seriously damaged).

REAR BRAKE GRAB
OR
PULL
Rear grab or pull is usually caused by an improperly
adjusted or seized parking brake cable, contaminated
lining, bent or binding shoes and support plates, or im­
properly assembled components. This is particularly
true when only one rear wheel is involved. However,
when both rear wheels are affected, the master cylinder or proportioning valve could be at fault.

BRAKES
DO NOT
HOLD
AFTER
DRIVING
THROUGH
DEEP
WATER
PUDDLES

This condition is generally caused by water soaked
lining. If the lining is only wet, it can be dried by driv­
ing with the brakes very lightly applied for a few min­

utes.
However, if the lining is thoroughly wet and dirty,
disassembly and cleaning will be necessary.

BRAKE NOISE

Squeak/Squeal
Brake squeak or squeal may be due to linings that
are wet or contaminated with brake fluid, grease, or oil. Glazed linings and rotors with hard spots can also con­
tribute to squeak. Dirt and foreign material embedded in the brake lining can also cause squeak/squeal.
A very loud squeak or squeal is frequently a sign of
severely worn brake lining. If the lining has worn
through to the brakeshoes in spots, metal-to-metal con­
tact occurs. If the condition is allowed to continue, ro­ tors can become so scored that replacement is necessary.
Thump/Clunk

Thumping or clunk noises during braking are fre­
quently not caused by brake components. In many

cases,
such noises are caused by loose or damaged steering, suspension, or engine components. How­
ever, calipers that bind on the slide pins, or slide sur­

faces,
can generate a thump or clunk noise. Worn
out, improperly adjusted, or improperly assembled
rear brakeshoes can also produce a thump noise.

Chatter
Brake chatter is usually caused by loose or worn
components, or glazed/burnt lining. Rotors with hard
spots can also contribute to chatter. Additional
causes of chatter are out of tolerance rotors, brake
lining not securely attached to the shoes, loose wheel
bearings and contaminated brake lining.
Brakelining Contamination Brakelining contamination is usually a product of
leaking calipers or wheel cylinders, driving through
deep water puddles, or lining that has become cov­
ered with grease and grit during repair.
Wheel and
Tire
Problems Some conditions attributed to brake components
may actually be caused by a wheel or tire problem.
A damaged wheel can cause shudder, vibration and
pull. A worn or damaged tire can also cause pull.
Severely worn tires with very little tread left can
produce a grab-like condition as the tire loses and re­ covers traction. Flat-spotted tires can cause vibration and wheel
tramp and generate shudder during brake operation. A tire with internal damage such as a severe
bruise or ply separation can cause pull and vibration.

MASTER
CYLINDER/POWER BOOSTER TEST
(1) Start engine and check booster vacuum hose
connections. Hissing noise indicates a vacuum leak. Correct any leaks before proceeding. (2) Stop engine and shift transmission into Neu­
tral (3) Pump brake pedal until all vacuum reserve in
booster is depleted. (4) Press and hold brake pedal under light foot
pressure. (a) If pedal holds firm, proceed to step (5).
(b) If pedal does not hold firm and falls away,
master cylinder is faulty (internal leakage). (5) Start engine and note pedal action. (a) If pedal falls away slightly under light foot
pressure then holds firm, proceed to step (6). (b) If pedal is effort is high, or no pedal action is
discernible, power booster or vacuum check valve is
faulty. Install known good check valve and repeat steps (2) through (5).
