1993 DODGE TRUCK Service Repair Manual

8S
- 4
POWER WINDOWS

•

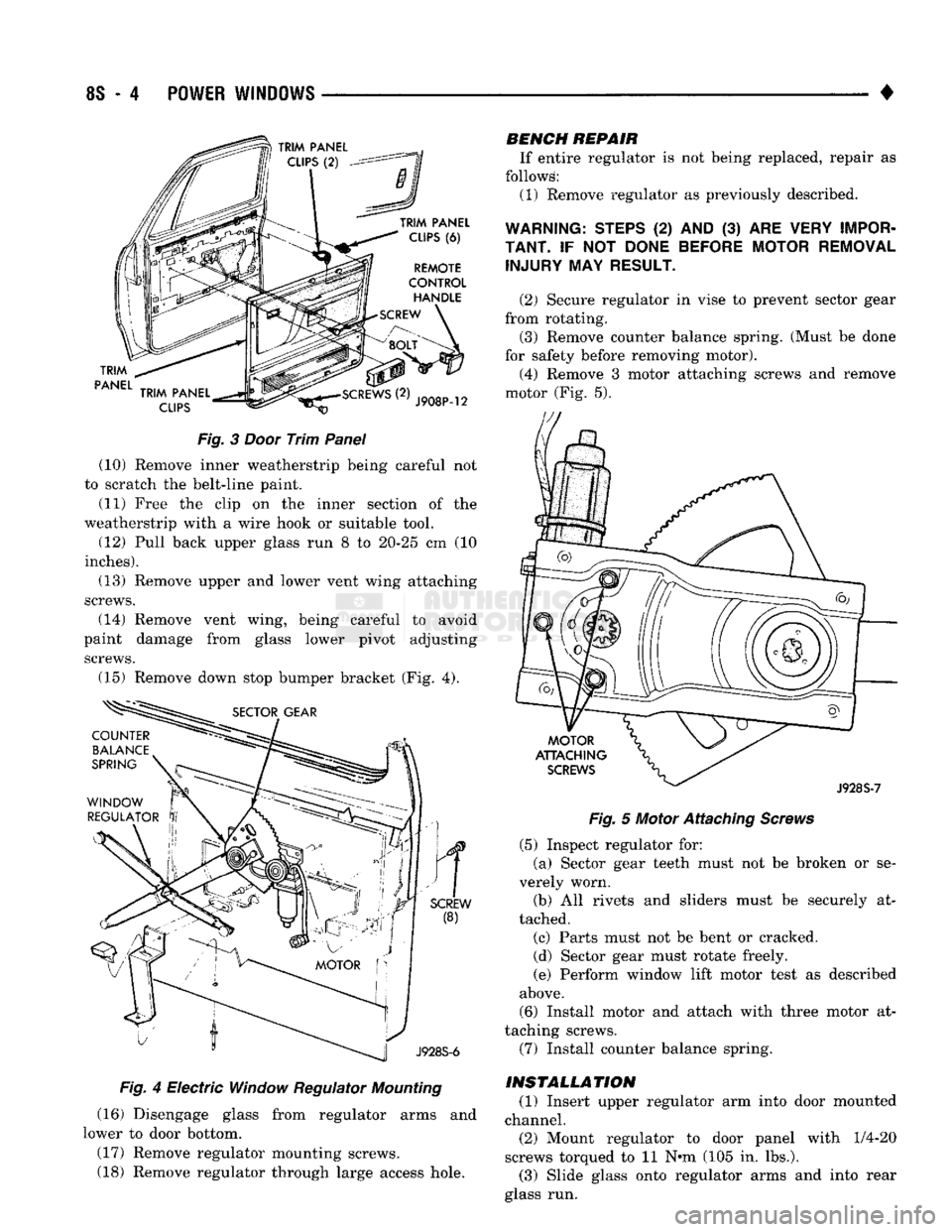

Fig.
3
Door
Trim
Panel
(10) Remove inner weatherstrip being careful not
to scratch the belt-line paint.
(11) Free the clip on the inner section of the
weatherstrip with a wire hook or suitable tool.
(12) Pull back upper glass run 8 to 20-25 cm (10
inches). (13) Remove upper and lower vent wing attaching
screws.
(14) Remove vent wing, being careful to avoid
paint damage from glass lower pivot adjusting screws.
(15) Remove down stop bumper bracket (Fig. 4).

Fig.
4 Electric Window Regulator
Mounting

(16) Disengage glass from regulator arms and
lower to door bottom. (17) Remove regulator mounting screws.
(18) Remove regulator through large access hole.
BENCH REPAIR

If entire regulator is not being replaced, repair as
follows: (1) Remove regulator as previously described.

WARNING:
STEPS
(2) AND (3) ARE
VERY IMPOR-

TANT.
IF NOT
DONE BEFORE MOTOR REMOVAL
INJURY
MAY
RESULT.

(2) Secure regulator in vise to prevent sector gear
from rotating.
(3) Remove counter balance spring. (Must be done
for safety before removing motor). (4) Remove 3 motor attaching screws and remove
motor (Fig. 5).

Fig.
5 Motor Attaching
Screws

(5) Inspect regulator for: (a) Sector gear teeth must not be broken or se­
verely worn. (b) All rivets and sliders must be securely at­
tached.
(c) Parts must not be bent or cracked.
(d) Sector gear must rotate freely.
(e) Perform window lift motor test as described
above.
(6) Install motor and attach with three motor at­
taching screws.
(7) Install counter balance spring.

INSTALLATION
(1) Insert upper regulator arm into door mounted
channel. (2) Mount regulator to door panel with
1/4-20

screws torqued to 11 N*m (105 in. lbs.).
(3) Slide glass onto regulator arms and into rear
glass run.

•

POWER
WINDOWS

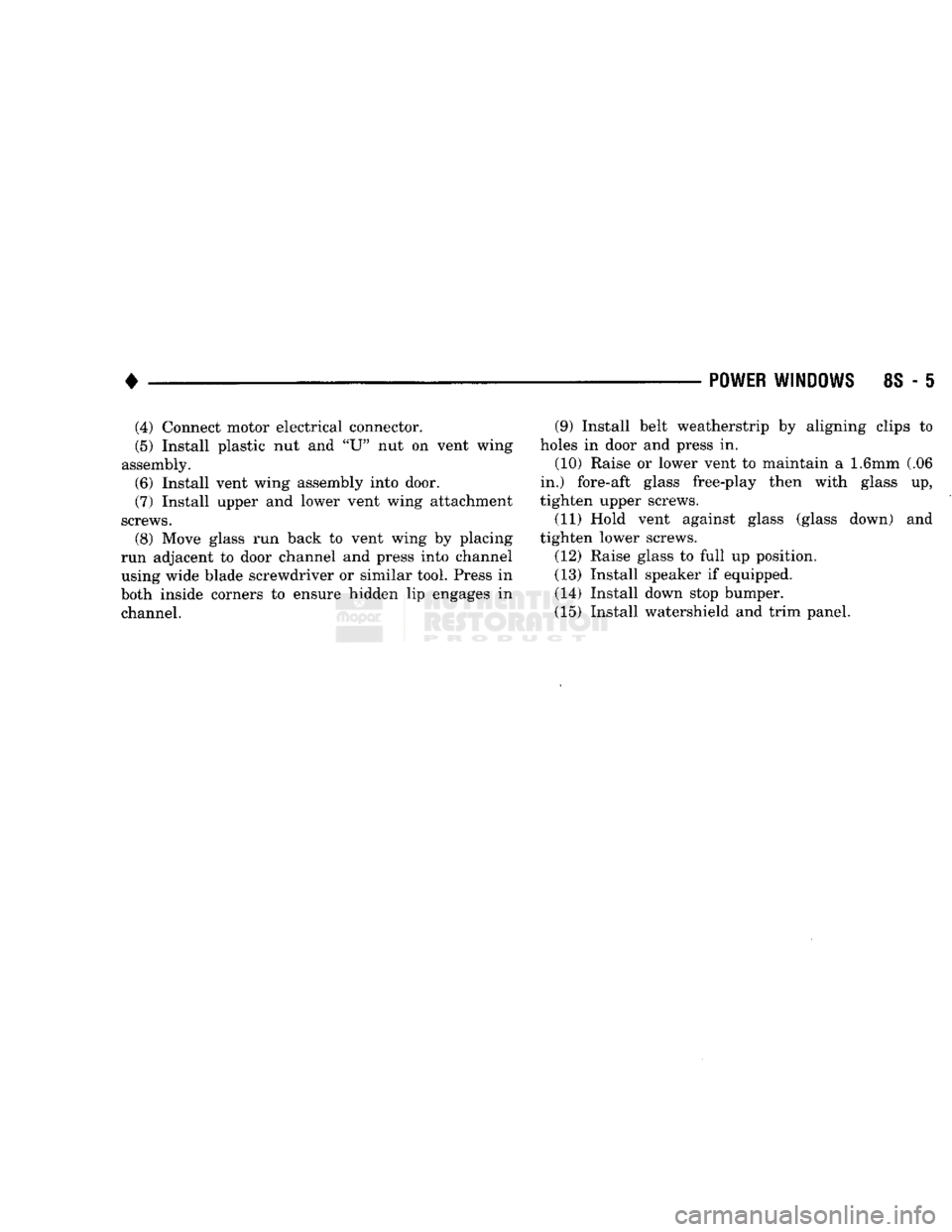

88 - § (4) Connect motor electrical connector.
(5) Install plastic nut and "U" nut on vent wing
assembly.
(6) Install vent wing assembly into door.
(7) Install upper and lower vent wing attachment
screws. (8) Move glass run back to vent wing by placing
run adjacent to door channel and press into channel
using wide blade screwdriver or similar tool. Press in
both inside corners to ensure hidden lip engages in channel. (9) Install belt weatherstrip by aligning clips to
holes in door and press in.
(10) Raise or lower vent to maintain a 1.6mm (.06
in.) fore-aft glass free-play then with glass up,
tighten upper screws.
(11) Hold vent against glass (glass down) and
tighten lower screws.
(12) Raise glass to full up position.
(13) Install speaker if equipped.
(14) Install down stop bumper.
(15) Install watershield and trim panel.

POWER
MIRRORS

CONTENTS
page
SERVICE PROCEDURES
2

GENERAL
INFORMATION
Electrically-operated remote control mirrors are
available as an option on D-body vehicles. The mir­
rors are controlled by a single switch assembly lo­
cated on the instrument panel to the right of the
headlamp switch (Fig. 1). D-body vehicles use a toggle-type switch. The
switch is rotated clockwise (Right mirror) or counter­
clockwise (Left mirror) for mirror selection. The
switch is moved UP, DOWN, RIGHT, or LEFT for
mirror movement direction. The motors which operate the mirrors are part of
the mirror assembly and cannot be serviced sepa­
rately.
page
TEST PROCEDURES
...................... 1 Fig. 1 Power Mirror and Headlamp Switches

TEST
PROCEDURES

MIRROR MOTOR TEST PROCEDURE
(1) Remove power mirror switch from mounting
position (refer to Service Procedures). (2) Disconnect wiring harness at switch connector.
(3) Use 2 jumper wires. Connect one to a
12-volt

source, and the other to a good body ground. Refer to
the MIRROR TEST CHART for wire hookups at the switch connector (harness side, not switch side), (4) If results shown in chart are not obtained,
check for broken or shorted circuit, or replace mirror assembly as necessary. MIRROR
TEST
CHART

12 Volts Ground MIRROR REACTION
12 Volts Ground Right
Left

Yl/BK
1
WT/BK UP
YL WT UP
WT/BK
YL/BK
DOWN
WT YL DOWN
WT/BK DB/WT RIGHT
WT
DB
RIGHT
DB/WT WT/BK LEFT

DB
WT LEFT
J908K-22

8T - 2
POWER MIRRORS

•
MIRROR
SWITCH TEST PROCEDURE

(1) Remove power mirror switch from mounting
position (refer to Service Procedures). (2) Disconnect wiring harness at switch connector.
(3) Test for continuity (no resistance) between the
terminals of the switch as shown in the MIRROR SWITCH CONTINUITY CHART. (4) If results shown in the chart are not obtained,
replace the switch.
MIRROR
SWITCH
CONTINUITY
CHART

MIRROR SELECTOR KNOB
IN
"L"
POSITION Move
Lever Continuity Between

WT
and BK

YL
and
PK
and
YL/BK
and PK

WT
and
PK,
DB/WT
and
BK
and
DB
&
BK

YL/BK
and
BK, YL
and
BK WT and PK
WT
and
BK, DB/WT
and PK
DB
and
PK
MIRROR SELECTOR KNOB
IN "R"
POSITION Move
Lever Continuity Between

WT/BK
and
BK,
YL and PK
YL/BK
and PK

•
WT/BK
and
PK, DB
and
BK
DB/WT
and
BK
WT/BK
and
PK, YL
and
BK
YL/BK
and
BK

«
WT/BK
and
BK, DB
and PK

DB/WT
and PK

J928T-6
SERVICE PROCEDURES

MIRROR
SWITCH REMOVAL AND INSTALLATION
(1) Disconnect negative cable from battery.
(2) Remove 2 screws holding map lamp and re­
move map lamp. (3) Remove 6 screws which attach instrument clus­
ter bezel to instrument panel (Fig. 2). Make sure the screw below the Heater/C control is removed.
INSTRUMENT

CLUSTER
BEZEL
J938E-51
Fig.
2 Instrument
Cluster
Bezel

(4) Place column shift lever in Position 1. (5) Remove bezel by pulling top edge rearward to
clear brow. Disengage attaching clips around bottom
of bezel and complete removal of bezel.
(6) If the bezel has a four wheel drive indicator, re­
move bulb socket as bezel is removed. (7) Disconnect message center wires.
(8) Remove instrument cluster bezel assembly.
(9) Pull headlamp switch to ON position.
(10) Reach under instrument panel and depress
button on side of switch while pulling stem out.
(11) Remove switch bezel retaining screws and pull
bezel out of instrument panel (Fig. 1). (12) Pull harness out through opening in instru­
ment panel and disconnect mirror switch connector.
(13) Remove 2 switch mounting-plate-to-bezel re­
taining screws.
(14) Remove switch-to-mounting-plate nut.
For Installation, reverse removal procedures.

MIRROR
ASSEMBLY
REMOVAL
AND

INSTALLATION
(1) Remove remote control handle (Fig. 3).
(2) Remove power window/lock switch by inserting
a standard blade screwdriver into notch on forward
end of switch housing and push to depress locking

tab.
Pull out and forward to remove switch bezel
from door panel.

•

POWER
MIRRORS
8T - 3

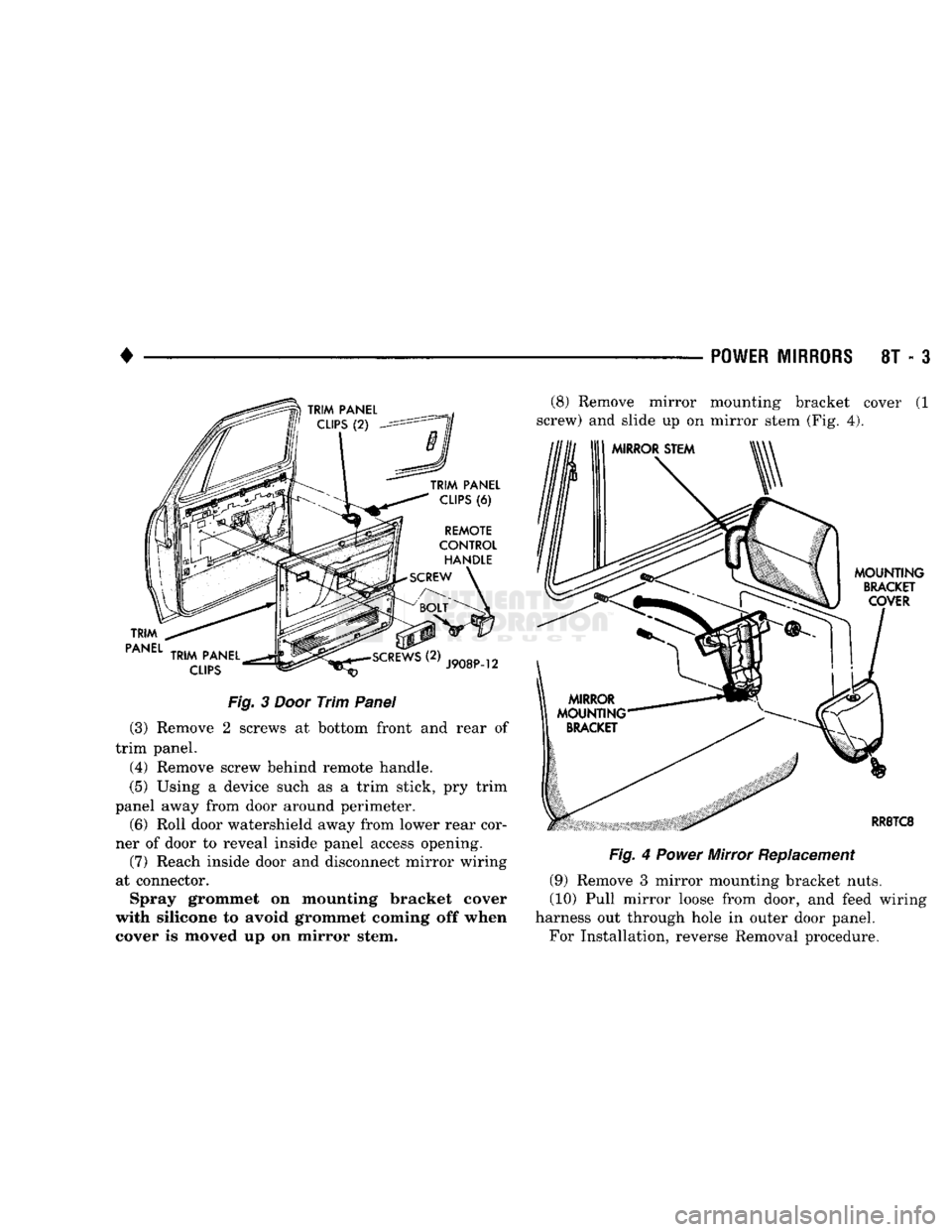

Fig.
3
Door
Trim
Panel
(3) Remove 2 screws at bottom front and rear of
trim panel. (4) Remove screw behind remote handle.
(5) Using a device such as a trim stick, pry trim
panel away from door around perimeter.
(6) Roll door watershield away from lower rear cor­
ner of door to reveal inside panel access opening. (7) Reach inside door and disconnect mirror wiring
at connector. Spray grommet on mounting bracket cover
with silicone to avoid grommet coming off when
cover is moved up on mirror stem. (8) Remove mirror mounting bracket cover (1
screw) and slide up on mirror stem (Fig. 4).

Fig.
4
Power
Mirror Replacement
(9) Remove 3 mirror mounting bracket nuts.
(10) Pull mirror loose from door, and feed wiring
harness out through hole in outer door panel.
For Installation, reverse Removal procedure.

-
CHIME/BUZZER WARNING SYSTEMS
8U - 1

CHIME/BUZZER
WARNING SYSTEMS

CONTENTS
page

DIAGNOSIS

GENERAL
INFORMATION
page

1
KEY-IN SWITCH REPLACEMENT
3

1
OPERATION
1

GENERAL
INFORMATION
The buzzer module is located to the right of the
steering column (Fig. 1). The buzzer sounds an audi­
ble warning tone in any of the following conditions: • Vehicle lights are ON when the driver's door is
opened.
• The key is in the ignition and the driver's door is
open. • The ignition is switched ON and the driver's seat
belt is not buckled. Buzzer will quit after 4 to 8 sec­
onds.
In addition to the buzzer, a seat belt light in­
dicator turns on as a reminder to fasten seat belt.

BUZZER

MODULE

INTERMITTENT

WIPE MODULE

Fig, 1 Buzzer Module Location

OPERATION
Battery voltage for module operation is supplied to
two pins. Battery voltage is present at pin 7 at all
times (Figs. 2 and 3). Pin 1 receives voltage when
the ignition switch is turned ON.
SEA T BELT WARNING To sound the seat belt warning, the module needs:
• battery voltage at the ignition switch input (Pin 1)
• a ground at the seat belt switch.
• a ground at Pin 3 to activate the timer. This occurs when the seat belt switch is closed be­
cause the driver's seat belt is not buckled. The "fas­
ten belt" light will also turn on along with the
warning sound. KEY IN IGNITION
To sound the "key in ignition" alarm, the module

needs:

• the ignition key warning switch must be closed
• the driver's door jamb switch must be closed. These conditions ground pin 6 of the module. These
switches are closed when the driver's door is open
and the key is in the ignition.
LIGHTS ON To sound the "lights on" warning, the module

needs:

• the headlamp switch must be closed
*> the driver's door jamb switch must be closed. These conditions ground pin 6 of the module. These
switches are closed when the driver's door is open
and the headlamp switch is on.

DIAGNOSIS
If the buzzer unit does not operate as described,
check the two fuses for pins 1 and 7 (Figs. 2, 3 and 4) and replace as required. If the fuses are not defec­

tive,
perform the following tests to determine if the
problem is in the module or in the wiring. Using a flat blade screwdriver, release the locking plastic clip
while carefully pulling out the module. Plug in a known good module and check its operation. If the
problem is not corrected by replacing the module, re­ move the module and continue as follows:
VOLTAGE TESTS Ignition in run, measure between the following
pins and vehicle ground.
• Measure voltage at buzzer module connector pin 1.
Meter should read battery voltage. If not, repair open
to ignition switch.
Turn ignition off and remove key from igni­

tion.

• Measure voltage at buzzer module connector pin 7.
Meter should read battery voltage. If not, repair open
to fuse. Battery voltage is present at Pin 7 at all
times regardless of key position.
