1993 DODGE TRUCK Service Repair Manual

14
- 22
FUEL SYSTEM

•

CLAMP (2)

VIEW
IN
DIRECTION OF
ARROW
Z
CLAMP

(20
INCH-POUNDS)
RB1362A

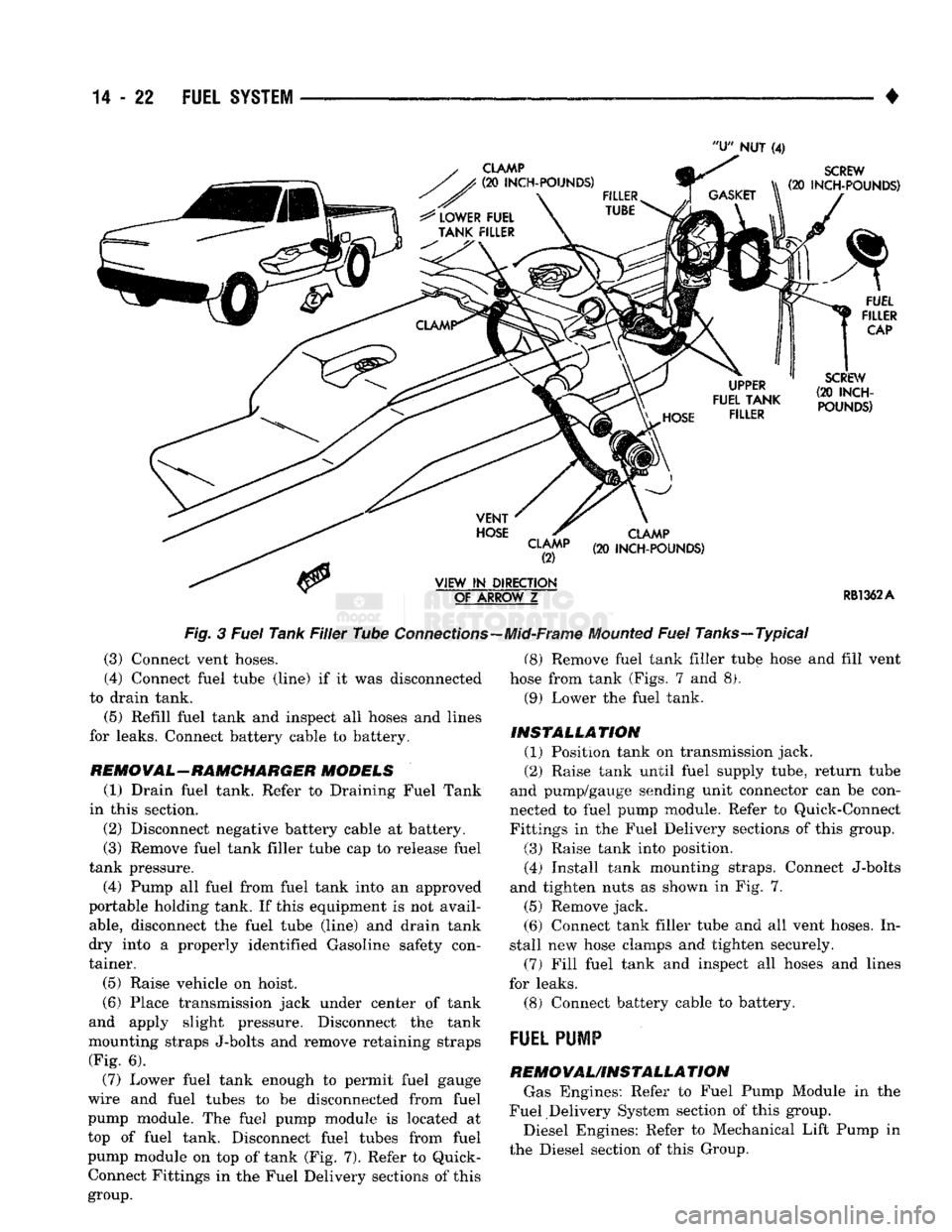

Fig. 3 Fuel Tank Filler Tube
Connections-

(3) Connect vent hoses.
(4) Connect fuel tube (line) if it was disconnected
to drain tank. (5) Refill fuel tank and inspect all hoses and lines
for leaks. Connect battery cable to battery.
RE MO VA L—RAMCHARGER MODELS (1) Drain fuel tank. Refer to Draining Fuel Tank
in this section. (2) Disconnect negative battery cable at battery.
(3) Remove fuel tank filler tube cap to release fuel
tank pressure. (4) Pump all fuel from fuel tank into an approved
portable holding tank. If this equipment is not avail­
able,
disconnect the fuel tube (line) and drain tank
dry into a properly identified Gasoline safety con­
tainer.
(5) Raise vehicle on hoist.
(6) Place transmission jack under center of tank
and apply slight pressure. Disconnect the tank
mounting straps J-bolts and remove retaining straps (Fig. 6).
(7) Lower fuel tank enough to permit fuel gauge
wire and fuel tubes to be disconnected from fuel
pump module. The fuel pump module is located at
top of fuel tank. Disconnect fuel tubes from fuel
pump module on top of tank (Fig. 7). Refer to Quick- Connect Fittings in the Fuel Delivery sections of this
group. -Mid-Frame
Mounted
Fuel
Tanks—Typical
(8) Remove fuel tank filler tube hose and fill vent
hose from tank (Figs. 7 and 8). (9) Lower the fuel tank.
INSTALLATION (1) Position tank on transmission jack.
(2) Raise tank until fuel supply tube, return tube
and pump/gauge sending unit connector can be con­
nected to fuel pump module. Refer to Quick-Connect Fittings in the Fuel Delivery sections of this group.
(3) Raise tank into position. (4) Install tank mounting straps. Connect J-bolts
and tighten nuts as shown in Fig. 7.
(5) Remove jack. (6) Connect tank filler tube and all vent hoses. In­
stall new hose clamps and tighten securely. (7) Fill fuel tank and inspect all hoses and lines
for leaks. (8) Connect battery cable to battery.

FUEL PUMP

REMOVAL/INSTALLA TION Gas Engines: Refer to Fuel Pump Module in the
Fuel Delivery System section of this group. Diesel Engines: Refer to Mechanical Lift Pump in
the Diesel section of this Group.

•

FUEL SYSTEM
14 - 23

USED
WITH

7-INCH
RAIL TIGHTENING TORQUE

A
30 FT
LBS
(41 N-m)

B
TIGHTEN
TO
SECURE TANK

C
100 IN
LBS

(11 N-m)
REAR

STRAP

VIEW
IN
CIRCLE
Z (30 GAL
TANK)

PRESSURE
RELIEF/
ROLLOVER
VALVE
LOCKNUT Fig.
4 Mid-Frame Mounted
Fuel
Tank Removal/Installation—Typical
PUMP/GAUGE

SENDING
UNIT

ELECTRICAL

CONNECTOR FUEL

SUPPLY
TUBE
FUEL
RETURN TUBE

J9114-232
J9014-183

NUT
(2)

ASSEMBLY

(200
INCH-POUNDS)
Fig.
5
Fuel Pump
Module Connections—Typical

FUEL
RESERVOIR
The fuel reservoir (Fig. 9) is part of the lower end
of the fuel pump module. The purpose of the reser­
voir is to provide fuel at the pump intake during all
driving conditions. This is especially those times
TIGHTEN
NUT TO

END
OF
THREAD ON STUD
VIEW
A-

STRAP
ADJUSTMENT
J9014-184

Fig.
6 Ramcharger
Fuel
Tank Removal/Installation
FUEL TANK
^OUNTWG ASSEMBLY
ol
KAP5>

14
- 24
FUEL
SYSTEM

•

FUEL
TUBES

TO FILLER
NECK
J9014-185

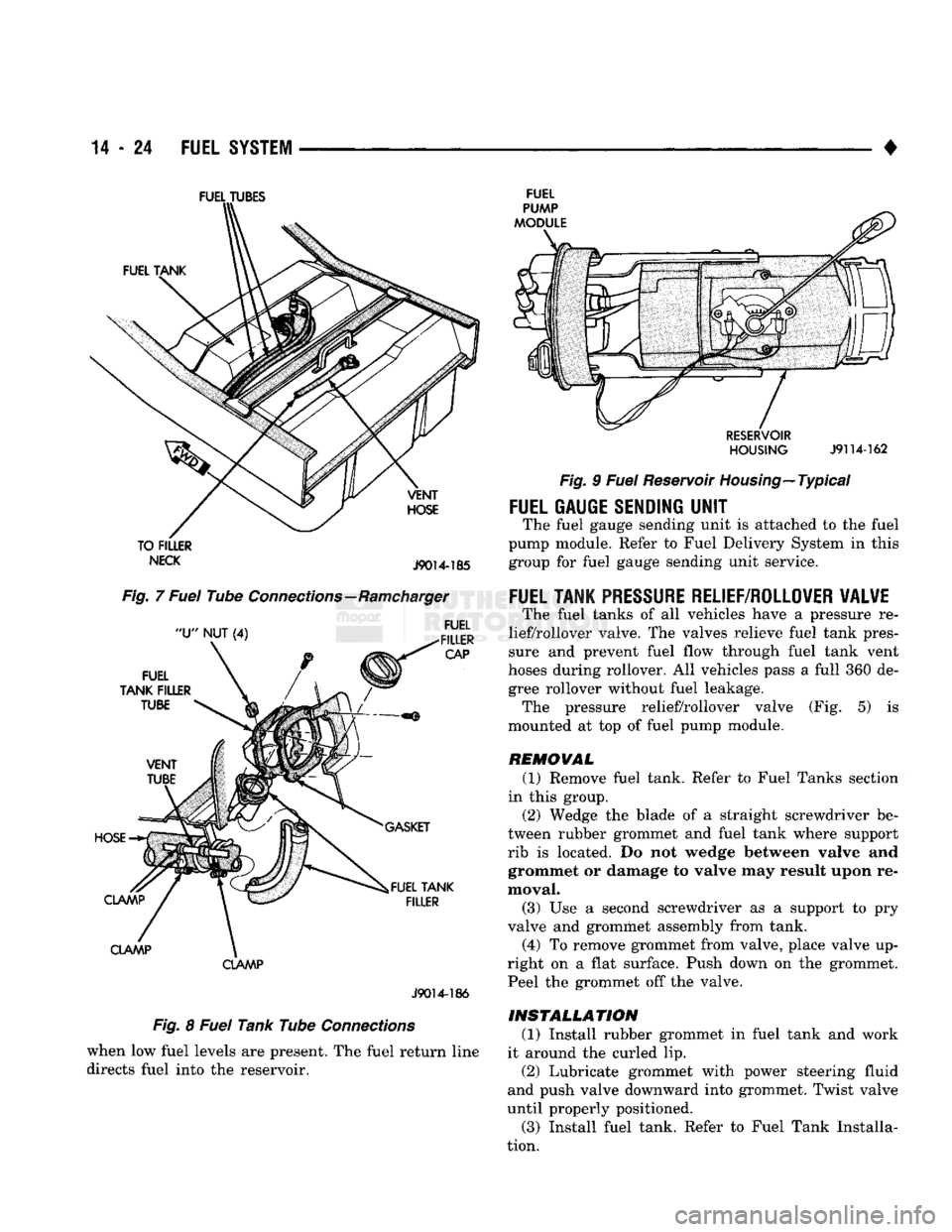

Fig. 7 Fuel Tube Connections—Ramcharger

CLAMP
J9014-186

Fig. 8 Fuel Tank Tube Connections when low fuel levels are present. The fuel return line
directs fuel into the reservoir.
FUEL
HOUSING
J9114-162

Fig. 9 Fuel Reservoir Housing—Typical

FUEL
GAUGE SENDING
UNIT
The fuel gauge sending unit is attached to the fuel
pump module. Refer to Fuel Delivery System in this
group for fuel gauge sending unit service.
FUEL TANK
PRESSURE
RELIEF/ROLLOVER VALVE

The fuel tanks of all vehicles have a pressure re­
lief/rollover valve. The valves relieve fuel tank pres­
sure and prevent fuel flow through fuel tank vent
hoses during rollover. All vehicles pass a full 360 de­ gree rollover without fuel leakage. The pressure relief/rollover valve (Fig. 5) is
mounted at top of fuel pump module.
REMOVAL (1) Remove fuel tank. Refer to Fuel Tanks section
in this group. (2) Wedge the blade of a straight screwdriver be­
tween rubber grommet and fuel tank where support
rib is located. Do not wedge between valve and grommet or damage to valve may result upon re­
moval.
(3) Use a second screwdriver as a support to pry
valve and grommet assembly from tank. (4) To remove grommet from valve, place valve up­
right on a flat surface. Push down on the grommet. Peel the grommet off the valve.

INSTALLATION
(1) Install rubber grommet in fuel tank and work
it around the curled lip. (2) Lubricate grommet with power steering fluid
and push valve downward into grommet. Twist valve
until properly positioned.
(3) Install fuel tank. Refer to Fuel Tank Installa­
tion.

FUEL
SYSTEM 14-25

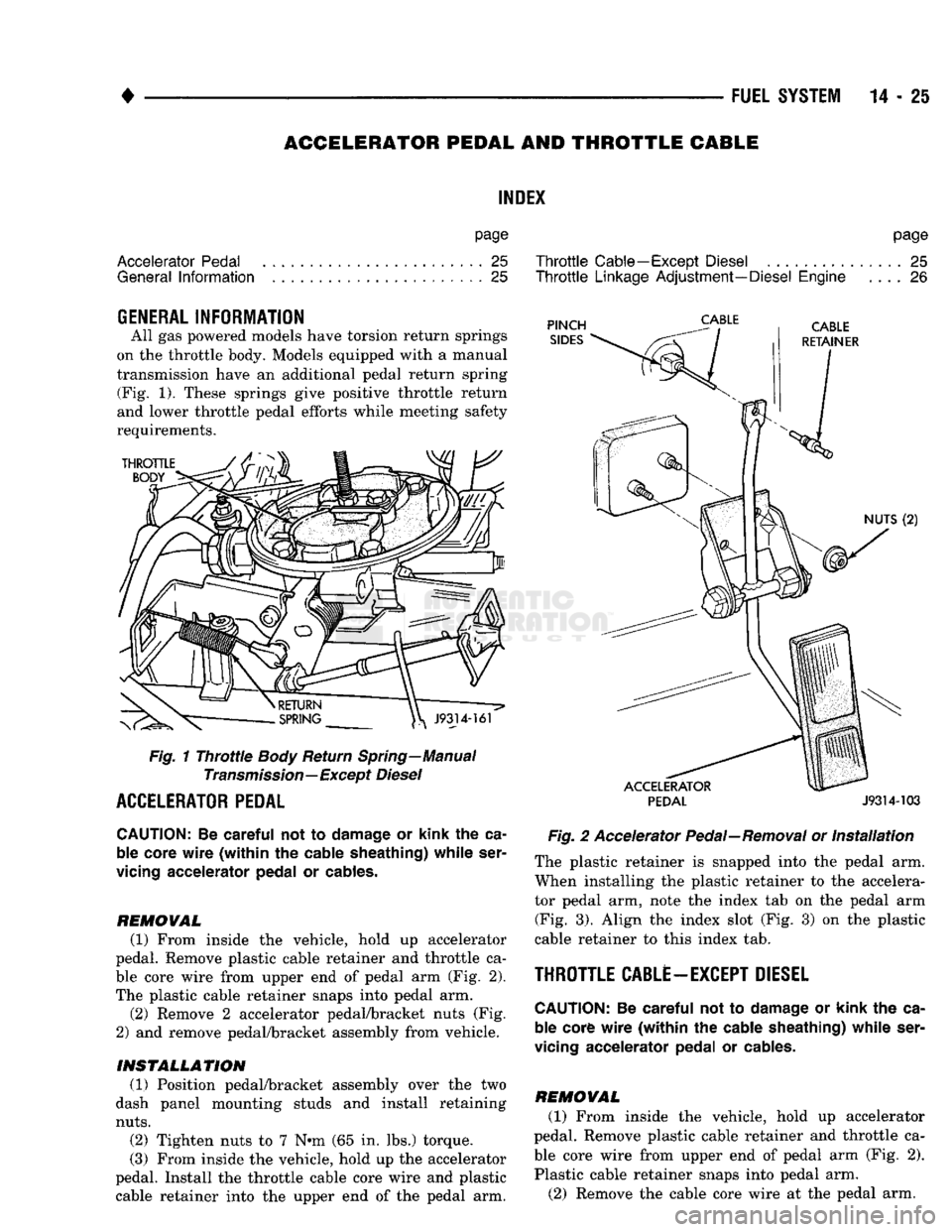

ACCELERATOR PEDAL AND THROTTLE CABLE

INDEX

page
Accelerator Pedal
........................
25
General
Information
25

GENERAL
INFORMATION
All
gas
powered models have torsion return springs
on
the
throttle body. Models equipped with
a
manual
transmission have
an
additional pedal return spring (Fig.
1).
These springs give positive throttle return
and lower throttle pedal efforts while meeting safety
requirements.
Fig.
1
Throttle
Body
Return
Spring—Manual

Transmission—Except
Diesel
ACCELERATOR
PEDAL

CAUTION:
Be
careful
not
to
damage
or
kink
the
ca­

ble core
wire
(within
the
cable sheathing) while ser­

vicing
accelerator
pedal
or
cables.
REMOVAL (1)
From inside
the
vehicle, hold
up
accelerator
pedal. Remove plastic cable retainer
and
throttle
ca­

ble core wire from upper
end of
pedal
arm (Fig. 2).

The plastic cable retainer snaps into pedal
arm.
(2)
Remove
2
accelerator pedal/bracket nuts
(Fig.

2)
and
remove pedal/bracket assembly from vehicle.

INSTALLATION (1)
Position pedal/bracket assembly over
the two

dash panel mounting studs
and
install retaining

nuts.

(2)
Tighten nuts
to 7 N*m
(65
in. lbs.)
torque.
(3) From inside
the
vehicle, hold
up the
accelerator
pedal. Install
the
throttle cable core wire
and
plastic cable retainer into
the
upper
end of the
pedal
arm.
page

Throttle
Cable—Except Diesel
...............
25

Throttle
Linkage Adjustment—Diesel Engine
.... 26
PINCH

SIDES
PEDAL
J9314-103

Fig.
2
Accelerator Pedal—Removal
or
Installation

The plastic retainer
is
snapped into
the
pedal
arm.
When installing
the
plastic retainer
to the
accelera­
tor pedal
arm,
note
the
index
tab on the
pedal
arm
(Fig.
3).
Align
the
index slot
(Fig. 3) on the
plastic
cable retainer
to
this index
tab.

THROTTLE CABLE-EXCEPT DIESEL
CAUTION:
Be
careful
not
to
damage
or
kink
the
ca­
ble core
wire
(within
the
cable sheathing) while ser­

vicing
accelerator
pedal
or
cables.
REMOVAL (1)
From inside
the
vehicle, hold
up
accelerator
pedal. Remove plastic cable retainer
and
throttle
ca­

ble core wire from upper
end of
pedal
arm (Fig. 2).
Plastic cable retainer snaps into pedal
arm.

(2)
Remove
the
cable core wire
at the
pedal
arm.

14
- 26
FUEL
SYSTEM

•

INDEX SLOT

INDEX
TAB PEDAL
ARM CABLE
RETAINER
J9314-104

Fig.
3 Index Tab and
Slot

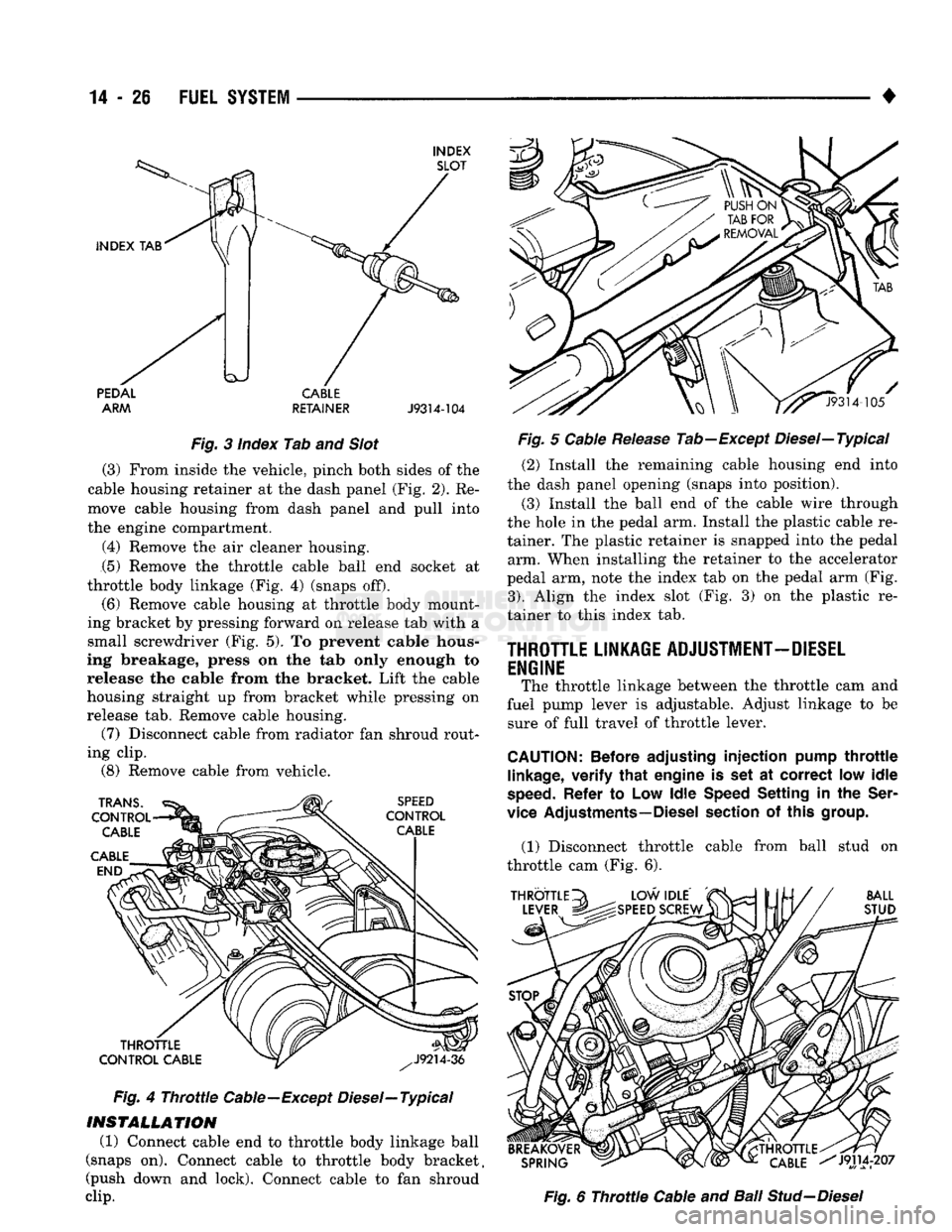

(3) From inside the vehicle, pinch both sides of the
cable housing retainer at the dash panel (Fig. 2). Re­
move cable housing from dash panel and pull into
the engine compartment.
(4) Remove the air cleaner housing. (5) Remove the throttle cable ball end socket at
throttle body linkage (Fig. 4) (snaps off).
(6) Remove cable housing at throttle body mount­
ing bracket by pressing forward on release tab with a
small screwdriver (Fig. 5). To prevent cable hous­
ing breakage, press on the tab only enough to release the cable from the bracket. Lift the cable
housing straight up from bracket while pressing on
release tab. Remove cable housing. (7) Disconnect cable from radiator fan shroud rout­
ing clip. (8) Remove cable from vehicle.
TRANS.
CONTROL CABLE
CABLE END SPEED
CONTROL CABLE

THROTTLE

CONTROL CABLE
Fig.
4
Throttle
Cable—Except Diesel—Typical
INSTALLATION

(1) Connect cable end to throttle body linkage ball
(snaps on). Connect cable to throttle body bracket,
(push down and lock). Connect cable to fan shroud

clip.
^^J9314-105

Fig.
5 Cable
Release
Tab—Except Diesel—Typical (2) Install the remaining cable housing end into
the dash panel opening (snaps into position).
(3) Install the ball end of the cable wire through
the hole in the pedal arm. Install the plastic cable re­
tainer. The plastic retainer is snapped into the pedal arm. When installing the retainer to the accelerator
pedal arm, note the index tab on the pedal arm (Fig.
3).
Align the index slot (Fig. 3) on the plastic re­
tainer to this index tab.
THROTTLE LINKAGE ADJUSTMENT-DIESEL
ENGINE The throttle linkage between the throttle cam and
fuel pump lever is adjustable. Adjust linkage to be sure of full travel of throttle lever.

CAUTION:
Before adjusting
injection
pump
throttle
linkage,
verify
that
engine
is set at
correct
low
idle

speed.
Refer
to Low
Idle
Speed Setting
in the
Ser­
vice Adjustments—Diesel section
of
this group.

(1) Disconnect throttle cable from ball stud on
throttle cam (Fig. 6).
THROTTLE

LEVER BALL
STUD
BREAKOVER SPRING
THROTTLE.

CABLE
^J9114r207

Fig.
6
Throttle
Cable and Bali
Stud-Diesel

•

FUEL
SYSTEM

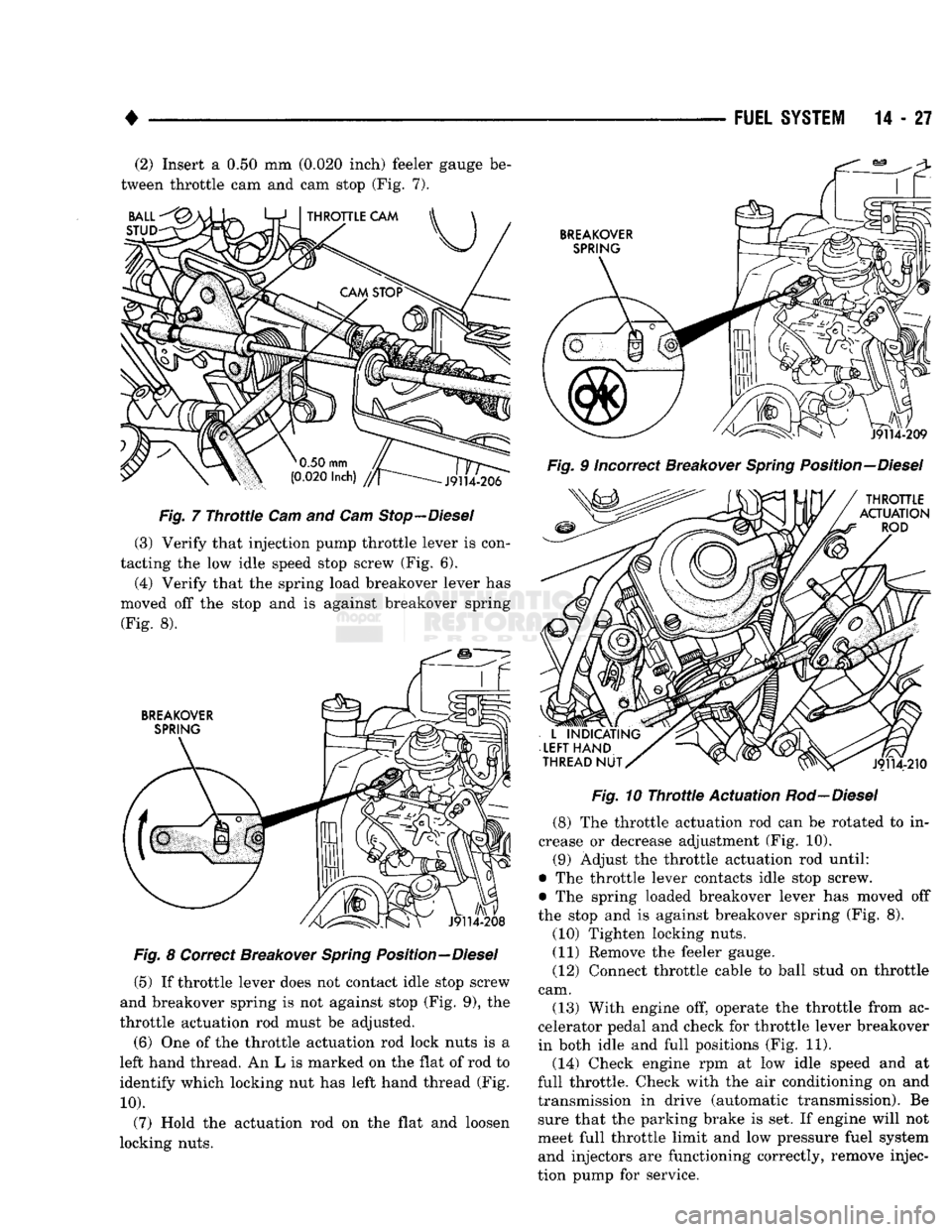

14 - 27 (2) Insert a 0.50 mm (0.020 inch) feeler gauge be­
tween throttle cam and cam stop (Fig. 7). BALL

STUD

J9114-206

Fig.
7
Throttle
Cam and Cam
Stop—Diesel
(3) Verify that injection pump throttle lever is con­
tacting the low idle speed stop screw (Fig. 6). (4) Verify that the spring load breakover lever has
moved off the stop and is against breakover spring (Fig. 8).

BREAKOVER SPRING

J9114-208

Fig.
8 Correct Breakover
Spring
Position—Diesel
(5) If throttle lever does not contact idle stop screw
and breakover spring is not against stop (Fig. 9), the
throttle actuation rod must be adjusted.
(6) One of the throttle actuation rod lock nuts is a
left hand thread. An L is marked on the flat of rod to
identify which locking nut has left hand thread (Fig.
10).

(7) Hold the actuation rod on the flat and loosen
locking nuts. '
BREAKOVER
SPRING

J9114-209

Fig.
9 Incorrect Breakover
Spring
Position—Diesel

THROTTLE

ACTUATION
ROD
L
INDICATING

LEFT
HAND

THREAD
NUT
J9114-210

Fig.
10
Throttle
Actuation
Rod—Diesel
(8) The throttle actuation rod can be rotated to in­
crease or decrease adjustment (Fig. 10). (9) Adjust the throttle actuation rod until:
• The throttle lever contacts idle stop screw.
• The spring loaded breakover lever has moved off
the stop and is against breakover spring (Fig. 8).
(10) Tighten locking nuts. (11) Remove the feeler gauge.
(12) Connect throttle cable to ball stud on throttle
cam.
(13) With engine off, operate the throttle from ac­
celerator pedal and check for throttle lever breakover
in both idle and full positions (Fig. 11).
(14) Check engine rpm at low idle speed and at
full throttle. Check with the air conditioning on and
transmission in drive (automatic transmission). Be sure that the parking brake is set. If engine will not
meet full throttle limit and low pressure fuel system and injectors are functioning correctly, remove injec­
tion pump for service.

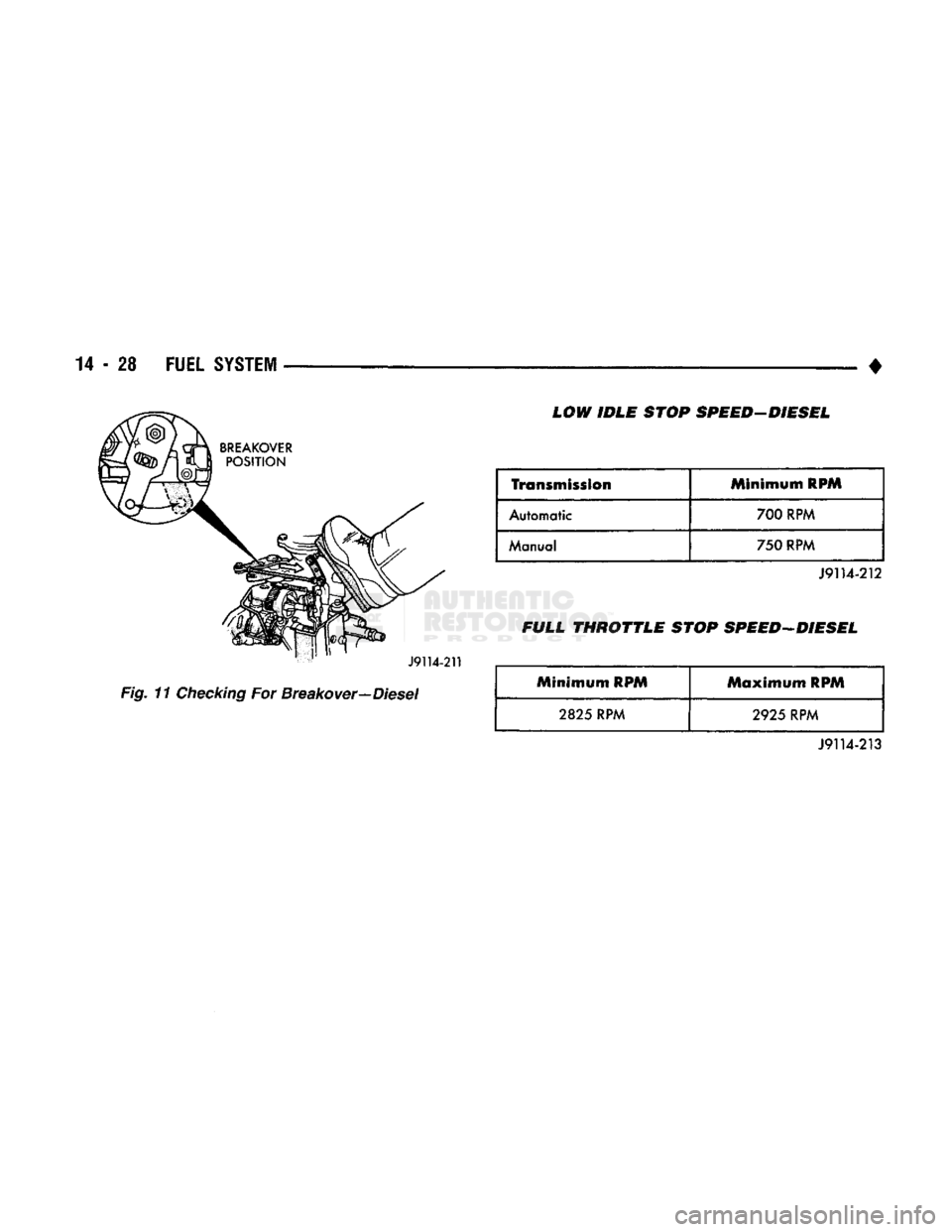

Fig.
11
Checking
For Breakover—Diesel LOW IDLE STOP SPEED-DIESEL
Transmission
Minimum
RPM
Automatic 700 RPM
Manual 750 RPM
J9114-212

FULL
THROTTLE
STOP SPEED-DIESEL
Minimum RPM
Maximum
RPM
2825 RPM 2925 RPM
J9114-213

•

FUEL
SYSTEM
14-29
MULTI-PORT
FUEL
INJECTION
(MPI)-COMPONENT DESCRIPTION/SYSTEM
OPERATION-EXCEPT DIESEL

INDEX

page

Air
Conditioning (A/C) Clutch
Relay-Pern
Output
. 35

Air
Conditioning (A/C)
Controls—PCM
Input
.... 31

Auto
Shut
Down
(ASD)
Relay-PCM
Output
. ... 36

Automatic
Shut
Down
(ASD)
Sense-PCM
Input
. 31
Battery
Voltage-PCM
Input
32

Brake
Switch-PCM
Input
32

Camshaft
Position
Sensor—PCM
Input
32

Charge
Air
Temperature
Sensor—PCM
Input
. . . 32

Crankshaft
Position
Sensor-PCM
Input
.......
32
Electric
Exhaust
Gas Recirculation Transducer
(EET)
Solenoid-PCM
Output
...
.......
36

Engine
Coolant Temperature
Sensor—PCM
Input
. 33

EVAP
Canister
Purge
Solenoid—PCM
Output
. . . 37

Fuel
Injectors-PCM Output
37
Fuel
Pressure
Regulator
41

Fuel
Rail
41

General
Information
.......................
29

Generator
Field-PCM
Output
36

Generator
Lamp-PCM
Output
36
Idle
Air
Control
(IAC)
Motor-PCM
Output
......
36

Ignition
Circuit
Sense—PCM
Input
33

GENERAL
INFORMATION
All
gas
powered engines
are
equipped with sequen­
tial Multi-Port Fuel Injection (MPI).
The MPI
system (Fig.
1)
provides precise air/fuel ratios
for all
driving
conditions. The Powertrain Control Module
(PCM)
operates
the fuel system.
The PCM was
formerly referred
to
as
the
SBEC
or
engine controller.
The PCM is a
pre­
programmed, dual microprocessor digital computer. It regulates ignition timing, air-fuel ratio, emission
control devices, charging system, speed control,
air
conditioning compressor clutch engagement
and
idle speed.
The PCM can
adapt
its
programming
to
meet
changing operating conditions.
Powertrain Control Module (PCM) Inputs rep­
resent
the
instantaneous engine operating conditions.
Air-fuel mixture
and
ignition timing calibrations
for

various driving
and
atmospheric conditions
are
pre­
programmed into
the PCM. The PCM
monitors
and
analyzes various inputs.
It
then computes engine fuel
and ignition timing requirements based
on
these
in­

puts.
Fuel delivery control
and
ignition timing will
then
be
adjusted accordingly. Other inputs
to the
PCM
are
provided
by the
brake
light switch,
air
conditioning select switch
and the

speed control switches.
All
inputs
to the PCM are

converted into signals. Electrically operated fuel injectors spray fuel
in

precise metered amounts into
the
intake port directly above
the
intake valve.
The
injectors
are
fired
in a

specific sequence
by the PCM. The PCM
maintains
page

Ignition
Coil-PCM
Output
37

Malfunction Indicator
Lamp—PCM
Output
37

Manifold
Absolute
Pressure
(MAP)
Sensor-
PCM
Input
33

Open
Loop/Closed
Loop
Modes
of
Operation
. . . 38

Overdrive/Override
Switch
34

Oxygen
(02)
Sensor—PCM
Input
33

Park/Neutral
Switch—PCM
Input
34

Power
Ground
34

Powertrain Control Module
(PCM)
30

SCI
Receive-PCM
Input
. 34

SCI
Transmit-PCM
Output
37

Sensor
Return
—PCM
Input
35

Shift Indicator-PCM Output
38

Speed
Control-PCM
Input
34
Speed
Control-PCM
Output
38

SRI
Lamp-PCM
Output
36

Tachometer—PCM
Output
38

Throttle
Body
40

Throttle
Position
Sensor
(TPS)-PCM
Input
35

Vehicle
Speed
Sensor-PCM
Input
35

an air/fuel ratio
of 14.7 to 1 by
constantly adjusting
injector pulse width. Injector pulse width
is the

length
of
time that
the
injector opens
and
sprays fuel into
the
chamber.
The PCM
adjusts injector pulse
width
by
opening
and
closing
the
ground path
to the
injector.
Manifold absolute pressure
(air
density)
and
engine
rpm (speed)
are the
primary inputs that determine
fuel injector pulse width.
The PCM
also monitors
other inputs when adjusting air-fuel ratio.
Inputs That Effect Fuel Injector Pulse Width:
• Exhaust
gas
oxygen content
• Coolant temperature
• Manifold absolute pressure (MAP)
• Engine speed
• Throttle position
• Battery voltage •
Air
conditioning selection
• Transmission gear selection (auto, trans.)
• Speed control The powertrain control module (PCM) adjusts igni­
tion timing
by
controlling ignition coil operation.
The

ignition coil receives battery voltage when
the
igni­
tion
key is in the run or
starter (crank) position.
The

PCM provides
a
ground
for the
ignition coil.
The
coil
discharges when
the PCM
supplies
a
ground.
By
switching
the
ground path
on and off, the PCM
reg­
ulates ignition timing.
The sensors
and
switches that provide inputs
to the

powertrain control module
(PCM)
comprise
the En-
