2023 HYUNDAI IONIQ 6 Owners Manual

3
3-51

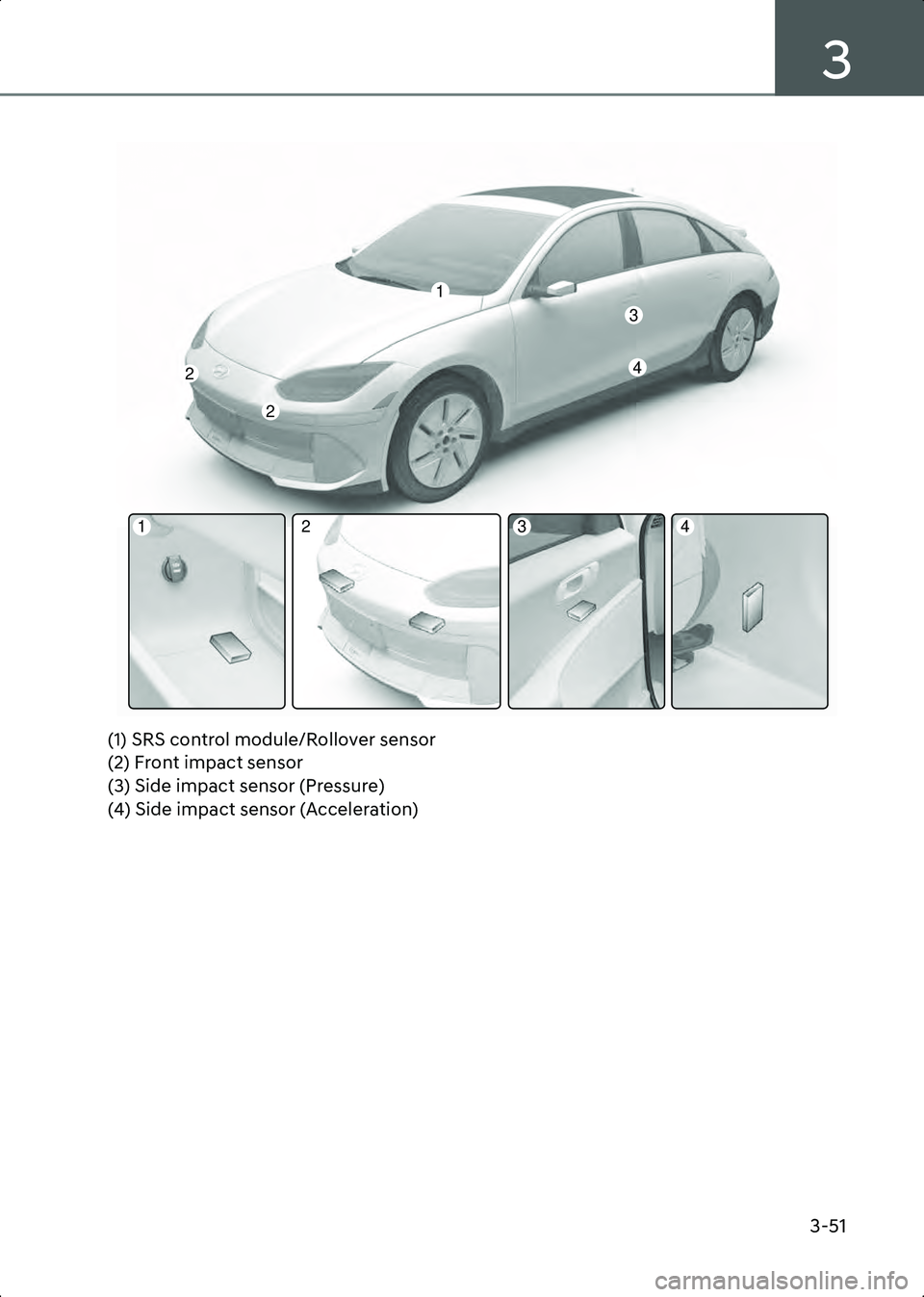

A3003401(1) SRS control module/Rollover sensor
(2) Front impact sensor
(3) Side impact sensor (Pressure)
(4) Side impact sensor (Acceleration)
2
2
3
4
1
2341
Hyundai_CE_en_US.book Page 51

Seats & Safety System
3-52
Airbag inflation conditions
Front airbags
B3003401
Front airbags are designed to inflate in a
frontal collision depending on the
severity of impact of the front collision.
Side and curtain airbags
B3003402
B3003403
Side and curtain airbags are designed to
inflate when an impact is detected by side
collision sensors depending on the
severity of impact resulting from a side
collision.Although the driver’s and front
passenger’s airbags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain airbags are
designed to inflate in side impact
collisions, but they may inflate in other
collisions if the side impact sensors
detect a sufficient impact.
Also, the side and curtain airbags are
designed to inflate when a rollover is
detected by a rollover sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the airbags may deploy. Drive carefully on
unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended airbag deployment.
Airbag non-inflation conditions
B3003404
In certain low-speed collisions the
airbags may not deploy. The airbags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
Hyundai_CE_en_US.book Page 52

3
3-53
B3003405
Front airbags are not designed to inflate
in rear collisions, because occupants are
moved backward by the force of the
impact. In this case, inflated airbags
would not provide any additional benefit.
B3003406
Front airbags may not inflate in side
impact collisions, because occupants
move in the direction of the collision, and
thus in side impacts, front airbag
deployment would not provide additional
occupant protection.
However, side and curtain airbags may
inflate depending on the severity of
impact.
B3003407
In an angled collision, the force of impact
may direct the occupants in a direction
where the airbags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any airbags.
B3003408
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
“ride” under a vehicle with a higher
ground clearance. Airbags may not inflate
in this “underride” situation because
deceleration forces that are detected by
sensors may be significantly reduced by
such “underride” collisions.
Hyundai_CE_en_US.book Page 53

Seats & Safety System
3-54
B3003409
Front airbags may not inflate in rollover
accidents because front airbag
deployment would not provide additional
occupant protection.
The side and curtain airbags may inflate in
a rollover situation, when it is detected by
the rollover sensor.
B3003410
Airbags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
SRS Care
The SRS is virtually maintenance-free and
there are no parts you can safely service
by yourself. If the SRS airbag warning
light does not illuminate when the
Start/Stop button is in the ON position, or
continuously remains on, have the
system be immediately inspected by an
authorized HYUNDAI dealer.Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury.
WARNING To reduce the risk of serious injury or
death take the following precautions:
• Do not attempt to modify or disconnect
the SRS components or wiring,
including the addition of any kind of
badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near the airbag modules on the steering wheel,
instrument panel, and the front
passenger’s panel above the glove box.
• Clean the airbag pad covers with a soft cloth moistened with plain water.
Solvents or cleaners could adversely
affect the airbag covers and proper
deployment of the system.
• Have the inflated airbags replaced by an authorized HYUNDAI dealer.
• If components of the airbag system must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. Consult
an authorized HYUNDAI dealer for the
necessary information. Failure to follow
these precautions could increase the
risk of personal injury.

Hyundai_CE_en_US.book Page 54

3
3-55
Additional Safety Precautions
Passengers should not move out of or
change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat belts.
Devices claiming to improve occupant
comfort or reposition the seat belt can
reduce the protection provided by the
seat belt and increase the chance of
serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side airbags.
Do not place items under the front seats.
Placing items under the front seats could
interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Start/Stop
button is in the ON or START position may
cause the airbags to inflate.
Modifications to accommodate
disabilities. If you require modification to
your vehicle to accommodate a disability,
contact the HYUNDAI Customer Connect
Center at 800-633-5151.
Adding equipment to or modifying
your airbag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s airbag system.
Airbag Warning Labels
B3003601
Airbag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to
alert the driver and passengers of
potential risks of the airbag system. Be
sure to read all of the information about
the airbags that are installed on your
vehicle in this Owners Manual.
Hyundai_CE_en_US.book Page 55

Hyundai_CE_en_US.book Page 56

4
4. Instrument Cluster
Instrument Cluster........................................................................................................... 4-2Instrument Cluster Control ......................................................................................... 4-3
Gauges and Meters ...................................................................................................... 4-3Power/Charge Gauge .................................................................................................. 4-3
State of Charge (SOC) Gauge for High Voltage Battery............................................4-4
Gear Shift Indicator ...................................................................................................... 4-5Warning and Indicator Lights......................................................................................4-6Cluster Display Messages.......................................................................................... 4-16
Cluster Display ............................................................................................................... 4-23 Cluster Display Control.............................................................................................. 4-23
View Modes ................................................................................................................ 4-23
Vehicle Settings (Infotainment System) ...................................................................... 4-26 Setting Your Vehicle .................................................................................................. 4-27
Hyundai_CE_en_US.book Page 1

Instrument Cluster
4-2
Instrument Cluster
A4000101The actual cluster in the vehicle may differ from the illustration. For more information, refer to the “Gauges and Meters” section in this chapter.
(1) Speedometer
(2) Power/Charge gauge
(3) Distance to empty
(4) Warning and indicator lights
(5) Cluster display
(6) Battery SOC (State of Charge) gauge
Information SNOW/NORMAL/ECO/SPORT mode by pressing the drive mode button will change the main
theme of the instrument cluster.

.1)
NJL8I
Š'201NJNJ
324NJ1
4
6
4
4
52
3
Hyundai_CE_en_US.book Page 2
