Page 97 of 582
3
3-3

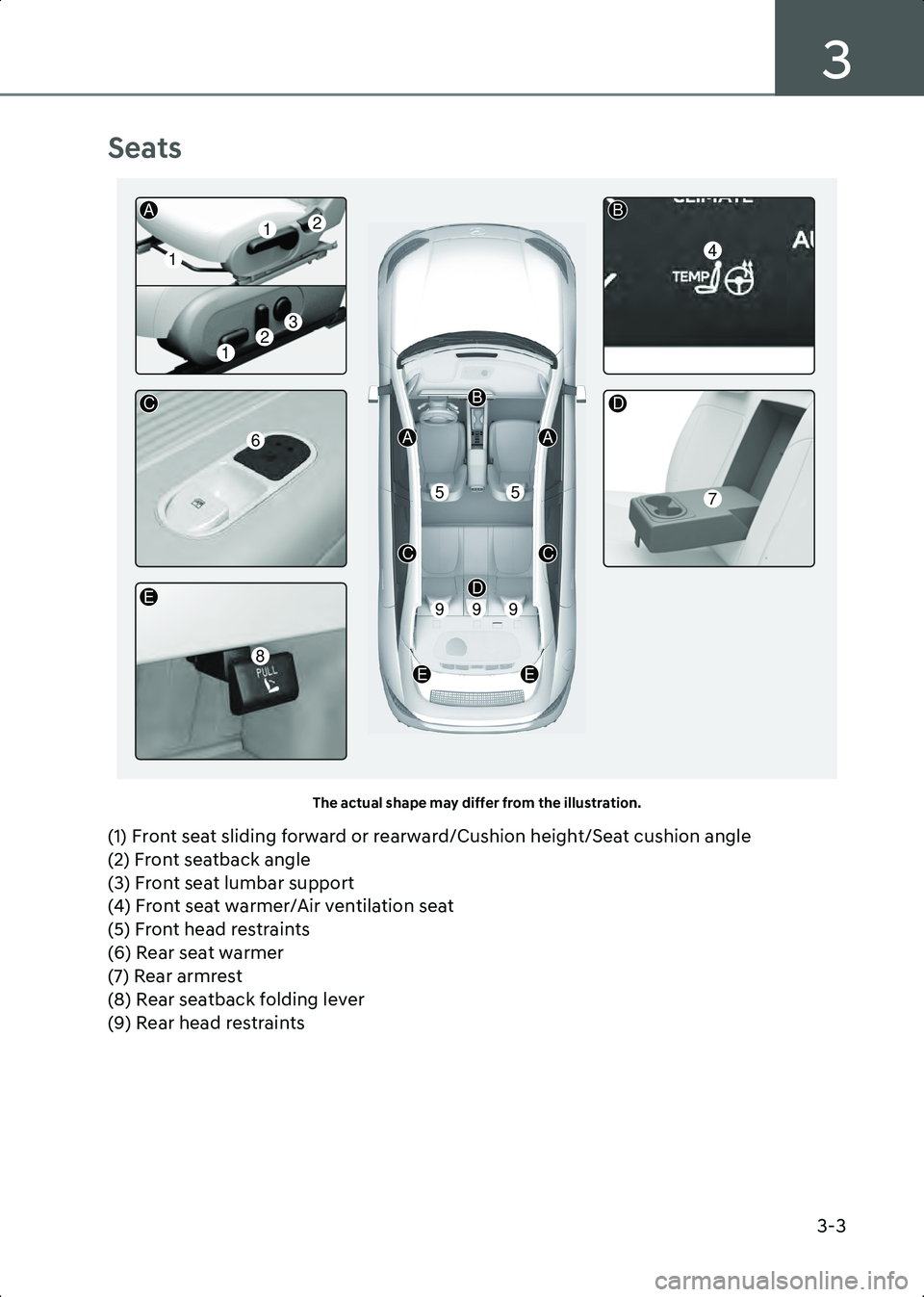

Seats
A3000101The actual shape may differ from the illustration.
(1) Front seat sliding forward or rearward/Cushion height/Seat cushion angle
(2) Front seatback angle
(3) Front seat lumbar support
(4) Front seat warmer/Air ventilation seat
(5) Front head restraints
(6) Rear seat warmer
(7) Rear armrest
(8) Rear seatback folding lever
(9) Rear head restraints
1
1
1
2
23
8
A
AA
CC
C
B
BD
E
EE
D
6
5
999
5
4
7
Hyundai_CE_en_US.book Page 3
Page 103 of 582
3
3-9
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Lumbar support
B3000207
To adjust the lumbar support:
• Press the front portion of the switch (1) to increase support or the rear portion
of the switch (2) to decrease support.
NOTICE ' R Q R W F R Q W L Q X H W R R S H U D W H W K H O X P E D U
V X S S R U W Z K H Q W K H O X P E D U V X S S R U W
S U R Y L G H V L W V P D [ L P X P V X S S R U W ' D P D J H
W R W K H O X P E D U V X S S R U W P R W R U F R X O G R F F X U
Seatback pocket
B3000222
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
WARNING Take the following precautions:
• Folding the seats
- Do not fold the seatback when the seat is occupied (for example,
passenger, pets or luggage). It may
injure the passenger or pet, or
damage the luggage.
- Never allow passengers to sit on top of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.
- Objects carried on the folded down seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
- When returning the rear seatback from a folded to an upright position,
hold the seatback and return it
slowly. Ensure that the seatback is
completely locked into its upright
position by pushing on the top of the
seatback. In an accident or sudden
stop, the unlocked seatback could
allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
- When folding the seatback, slightly push the seatback or head restraint
against the folding direction to
Hyundai_CE_en_US.book Page 9
Page 104 of 582
Seats & Safety System
3-10
control the folding speed. Without
the push, the seatback may abruptly
fold down and cause injuries when
the lever is pulled.
• Loading cargo - Make sure the vehicle is off, the gear shifted to P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the
vehicle to move if the shift button or
shift dial is inadvertently pressed or
rotated to another position.
- When cargo is loaded through the rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.
• Do not place objects in the rear seats since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or
death.
CAUTION Do not allow your hands or fingers to get
caught in the seat mechanisms while
adjusting the seats.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H Y H K L F O H
[ 5 H D U V H D W E H O W V % H I R U H I R O G L Q J W K H V H D W E D F N L Q V H U W W K H
V H D W E H O W E X F N O H L Q W K H K R O G H U E H W Z H H Q
W K H V H D W E D F N D Q G F X V K L R Q $ Q G L Q V H U W
W K H V H D W E H O W Z H E E L Q J L Q W K H J X L G H W R
S U H Y H Q W W K H V H D W E H O W I U R P E H L Q J
G D P D J H G
[ & D U J R % H F D U H I X O Z K H Q O R D G L Q J F D U J R W K U R X J K
W K H U H D U S D V V H Q J H U V H D W V W R S U H Y H Q W
G D P D J H W R W K H Y H K L F O H L Q W H U L R U
Folding the rear seats
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
To fold down the rear seatback:
1. Set the front seatback to the upright position and if necessary, slide the front
seat forward.
2. Lower the rear head restraints to the lowest position.
B3000301
3. Route the seat belt webbing to the outward of the rear seat to prevent the
belts from being trapped behind or
under the seats.
B3000302
Hyundai_CE_en_US.book Page 10
Page 105 of 582
3
3-11
4. Fold the seatback toward the front of the vehicle.
B3000303
5. To use the rear seat, lift and pull the seatback rearward. Pull the seatback
firmly until it clicks in to place. Make
sure the seatback is locked in place.
B3000305
Armrest
B3000311
The armrest is located in the center of the
rear seat. Pull the armrest down from the
seatback to use it.
CAUTION The armrest handle may be pressed when
folding the rear seatback, but it will be
restored after a certain period of time.
Head Restraint
The vehicle’s front and rear seats have
adjustable head restraints. The head
restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in a
rear impact collision.
WARNING To help reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:
• Always properly adjust the head restraints for all passengers BEFORE
starting the vehicle.
• NEVER let anyone ride in a seat with the head restraint removed or reversed.
• Adjust the head restraints so the middle of the head restraint is at the same
height as the height of the top of the
eyes.
OHI039190N
• NEVER adjust the head restraint position of the driver’s seat when the
vehicle is in motion.
