Seats & Safety System
3-6
• Do not allow anything to interfere with the normal position and proper locking
of the seatback.
• Do not place a cigarette lighter on the floor or seat. When you operate the
seat, gas may exit out of the lighter
causing a fire.
• Use extreme caution when picking up small objects trapped under the seats
or between the seat and the center
console. Your hands might be cut or
injured by the sharp edges of the seat
mechanism.
• If there are occupants in the rear seats, be careful while adjusting the front seat
position.
• Make sure that the seat is locked in place after the adjustment. If not, the
seat might move unexpectedly
resulting in an accident.
CAUTION To prevent injury:
• Do not adjust your seat while wearing your seat belt. Moving the seat cushion
forward may cause strong pressure on
your abdomen.
• Do not allow your hands or fingers to get caught in the seat mechanisms
while the seat is moving.
WARNING NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W V
[ $ O Z D \ V V W R S D G M X V W L Q J W K H V H D W V Z K H Q W K H V H D W K D V E H H Q D G M X V W H G D V I D U
I R U Z D U G R U U H D U Z D U G D V S R V V L E O H [ ' R Q R W D G M X V W W K H V H D W V O R Q J H U W K D Q
Q H F H V V D U \ Z K H Q W K H Y H K L F O H L V W X U Q H G
R I I 7 K L V P D \ U H V X O W L Q X Q Q H F H V V D U \
E D W W H U \ G U D L Q
[ ' R Q R W R S H U D W H W Z R R U P R U H V H D W V D W W K H V D P H W L P H 7 K L V P D \ U H V X O W L Q D Q
H O H F W U L F D O P D O I X Q F W L R Q
if equipped
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat to
the proper position so that you can easily
control the steering wheel, foot pedals
and controls on the instrument panel.
Forward and rearward adjustment
B3000201
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever. If
the seat moves, it is not locked
properly.
Hyundai_CE_en_US.book Page 6
Page 101 of 582
3
3-7
Seatback angle
B3000202
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you
desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and/or
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be snug against your chest. Instead, it will be
in front of you. During an accident, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Seat height
To change the height of the seat cushion:
B3000203
• Push down the lever several times, to
lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
if equipped
Power adjustment
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control the
steering wheel, foot pedals and controls
on the instrument panel.
Hyundai_CE_en_US.book Page 7

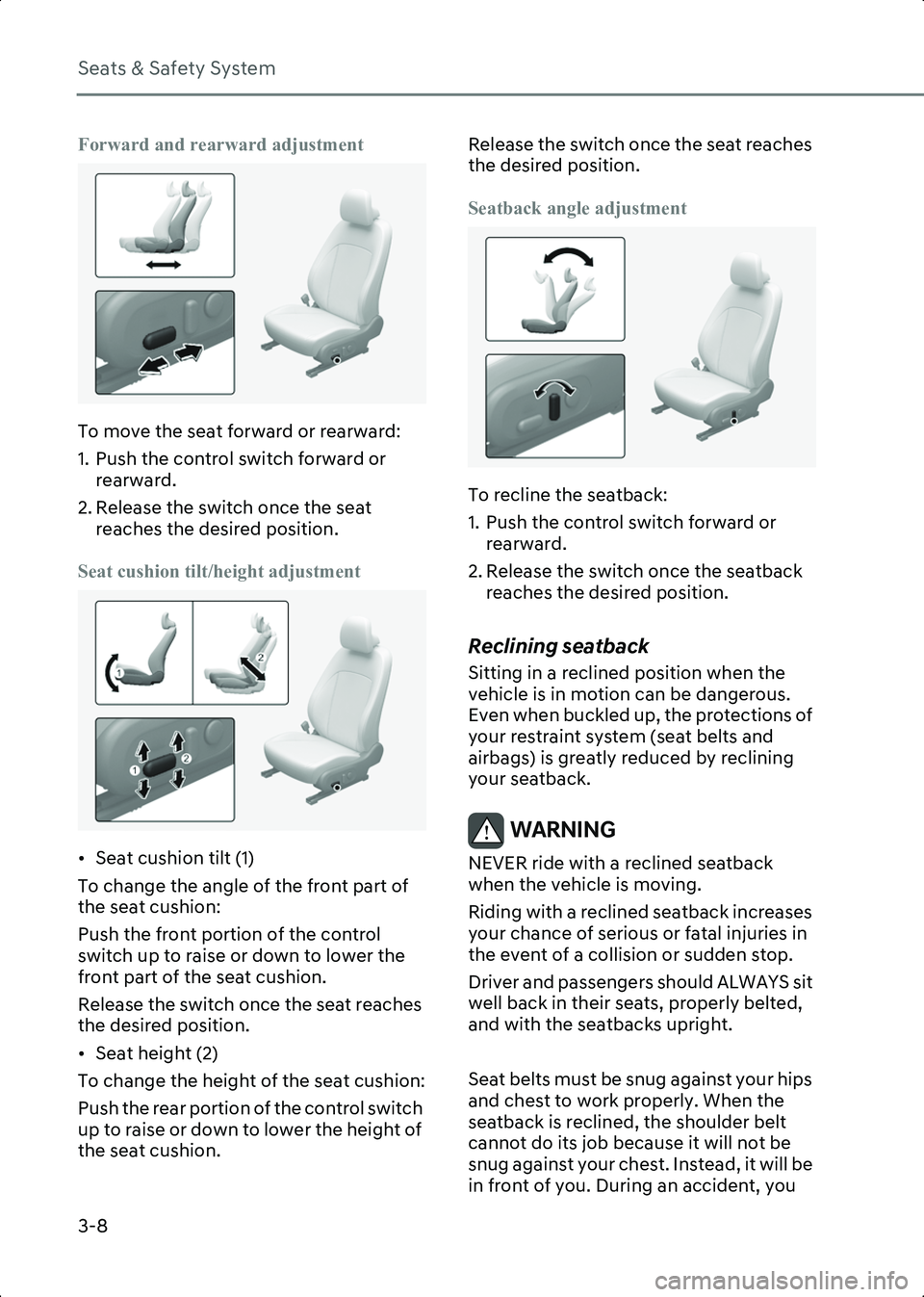

Page 102 of 582
Seats & Safety System
3-8
Forward and rearward adjustment
B3000204
To move the seat forward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat reaches the desired position.
Seat cushion tilt/height adjustment
B3000206
• Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.
• Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control switch
up to raise or down to lower the height of
the seat cushion. Release the switch once the seat reaches
the desired position.
Seatback angle adjustment
B3000205
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Driver and passengers should ALWAYS sit
well back in their seats, properly belted,
and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be
snug against your chest. Instead, it will be
in front of you. During an accident, you
Hyundai_CE_en_US.book Page 8
Page 107 of 582
3
3-13
NOTICE
%
, I \ R X U H F O L Q H W K H V H D W E D F N W R Z D U G V W K H
I U R Q W Z L W K W K H K H D G U H V W U D L Q W D Q G V H D W
F X V K L R Q U D L V H G W K H K H D G U H V W U D L Q W P D \
F R P H L Q F R Q W D F W Z L W K W K H V X Q Y L V R U R U
R W K H U S D U W V R I W K H Y H K L F O H
Removal/Reinstallation
Manual adjustment seat
B3000217Power adjustment seat
B3000218
To remove the head restraint:
1. Recline the seatback (2) with the seatback angle switch (1).
2. Pull up the head restraint to the upmost position and press the release button
(3) to remove the head restraint (4).
WARNING NEVER allow anyone to travel in a seat
with the head restraint removed.
Manual adjustment seat
B3000219Power adjustment seat
B3000218_1
To reinstall the head restraint :
1. Recline the seat back by pressing seatback angle lever or switch (3).
2. Put the head restraint poles (2) into the holes while pressing the release button
(1).
3. Adjust the head restraint to the appropriate height.
4. Adjust the seatback angle (4) with the seatback angle switch (3).
1
23
4
3
1
2
4
Hyundai_CE_en_US.book Page 13

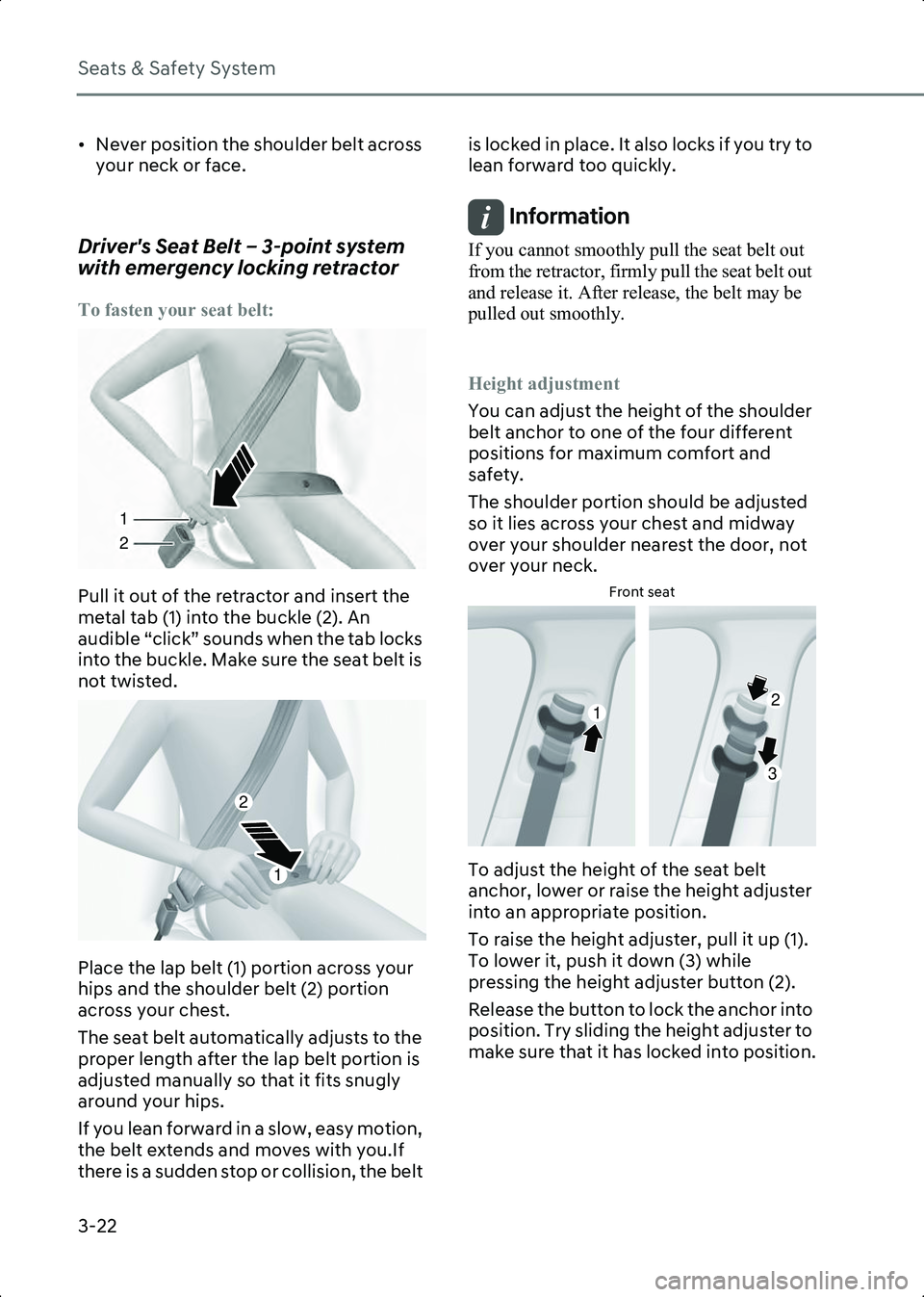

Page 116 of 582
Seats & Safety System
3-22
• Never position the shoulder belt across your neck or face.
Driver's Seat Belt – 3-point system
with emergency locking retractor
To fasten your seat belt:
B3001504
Pull it out of the retractor and insert the
metal tab (1) into the buckle (2). An
audible “click” sounds when the tab locks
into the buckle. Make sure the seat belt is
not twisted.
B3001501
Place the lap belt (1) portion across your
hips and the shoulder belt (2) portion
across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion is
adjusted manually so that it fits snugly
around your hips.
If you lean forward in a slow, easy motion,
the belt extends and moves with you.If
there is a sudden stop or collision, the belt is locked in place. It also locks if you try to
lean forward too quickly.
Information If you cannot smoothly pull the seat belt out
from the retractor, firmly pull the seat belt out
and release it. After release, the belt may be
pulled out smoothly.
Height adjustment
You can adjust the height of the shoulder
belt anchor to one of the four different
positions for maximum comfort and
safety.
The shoulder portion should be adjusted
so it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
Front seat
B3001506
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up (1).
To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the anchor into
position. Try sliding the height adjuster to
make sure that it has locked into position.
2
1
2
1
12
3
Hyundai_CE_en_US.book Page 22
Page 196 of 582
Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18
Page 209 of 582
5
5-31
Storing Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, and head-up
display height to the desired position.
3. Hold the button (1 or 2). The system will beep once and notify you ‘Driver 1 (or 2)
settings saved’ will appear on the
infotainment system.
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then
the driver’s seat position, side view
mirror position, and head-up display
height will automatically adjust to the
stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the infotainment system.
Information • In order to adjust the memory button (2) while adjusting the memory button (1),
press the memory button (1) to pause the
adjustment of (1), then press memory
button (2).
• If you adjust the seat, side view mirror, head-up display while recalling the stored
positions, the manually adjusted settings
will be applied.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s door with the Start/Stop button in the ON position and the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the memory button 1 (or 2) and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3 km/h).
• The driver’s door is closed.
NOTICE [ : K L O H L Q W H J U D W H G P H P R U \ V \ V W H P L V E H L Q J U H V H W L I W K H U H V H W W L Q J D Q G
Q R W L I L F D W L R Q V R X Q G V W R S V L Q F R P S O H W H O \
U H V W D U W W K H U H V H W W L Q J S U R F H G X U H D J D L Q
[ 0 D N H V X U H W K D W W K H U H L V Q R R E M H F W V D U R X Q G W K H G U L Y H UT V V H D W L Q D G Y D Q F H R I
U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \
V \ V W H P
[ $ I W H U U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \ V \ V W H P W K H D G M X V W P H Q W I R U W K H G U L Y H U
V H D W P X V W E H V W R U H G D J D L Q W R U H F D O O W K H
P H P R U \ S R V L W L R Q
Hyundai_CE_en_US.book Page 31
Page 212 of 582
Convenience Features
5-34
steering wheel (see illustration). The horn
will operate only when this area is
pressed.
NOTICE ' R Q R W V W U L N H W K H K R U Q V H Y H U H O \ R U K L W L W
Z L W K \ R X U I L V W ' R Q R W S U H V V R Q W K H K R U Q
Z L W K D V K D U S S R L Q W H G R E M H F W
if equipped
Heated Steering Wheel
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B5006402
Press in the front climate control
panel.
ONE1051216L
While the vehicle is running, touch the
heated steering wheel icon to warm the
steering wheel.
• To warm the steering wheel, touch the heated steering wheel icon in the
Heating/Ventilation seats.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The heated steering wheel
automatically controls the steering
wheel temperature depending on the
ambient temperature when the vehicle
is running.
To use this function, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment
> Steering Wheel Warmer .
Information The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.
• The heated steering wheel defaults to the OFF position whenever the
Start/Stop button is pressed to the ON
position. However, if the Auto. Controls
That Use Climate Control Settings
function is ON, the heated steering
Hyundai_CE_en_US.book Page 34
