2023 HYUNDAI IONIQ 6 center console

2
2. Vehicle Information, Consumer Information, and
Reporting Safety Defects
Exterior Overview (Front View)....................................................................................... 2-2
Exterior Overview (Rear View) ........................................................................................ 2-3
Interior Overview ............................................................................................................. 2-4
Center Console Overview ............................................................................................... 2-5
Steering Wheel Control Overview .................................................................................. 2-7
Motor Compartment Overview ...................................................................................... 2-8
Dimensions ...................................................................................................................... 2-9
Electric Vehicle Specifications ..................................................................................... 2-10
Bulb Wattage .................................................................................................................. 2-11
Tires and Wheels............................................................................................................. 2-12
Air Conditioning System ................................................................................................2-13
Vehicle Weight and Luggage Volume ...........................................................................2-13
Available Front Trunk Weight ........................................................................................2-13
Recommended Lubricants and Capacities ..................................................................2-14
Vehicle Identification Number (VIN) ............................................................................. 2-15
Vehicle Certification Label ............................................................................................. 2-15
Tire Specification and Pressure Label ...........................................................................2-16
Motor Number ................................................................................................................2-16
Air Conditioner Compressor Label ................................................................................ 2-17
Refrigerant Label ............................................................................................................ 2-17
Consumer Information ...................................................................................................2-18
Reporting Safety Defects ...............................................................................................2-19
Open Source Software Notice ...................................................................................... 2-20
Hyundai_CE_en_US.book Page 1

2
2-5
Center Console Overview
A1000601The actual shape may differ from the illustration.
(1) Instrument cluster ...................................................................................................... 4-2
(2) Horn........................................................................................................................... 5-33
(3) Driver’s front airbag ................................................................................................. 3-37
(4) Infotainment system ...............................................................................................5-107
(5) Hazard warning flasher button.................................................................................. 8-2
(6) Start/Stop button ....................................................................................................... 6-4
(7) Automatic climate control system ..........................................................................5-80
(8) Parking/View button ................................................................................................ 7-96
14
5
67
12
13
14
1815
10
11
16
2
3
A
A
B
B
CC
17
89
Hyundai_CE_en_US.book Page 5

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-6
(9) Parking Safety button .............................................................................................. 7-111
(10) Passenger’s front airbag ........................................................................................ 3-37
(11) Glove box ............................................................................................................... 5-100
(12) Wireless charging system pad ............................................................................. 5-104
(13) Wireless charging system .................................................................................... 5-104
(14) USB port .................................................................................................................5-107
(15) Cup holder .............................................................................................................. 5-101 (16) Center console ...................................................................................................... 5-100
(17) USB charger........................................................................................................... 5-103
(18) Rear seat USB charger.......................................................................................... 5-103
Hyundai_CE_en_US.book Page 6

Seats & Safety System
3-6
• Do not allow anything to interfere with the normal position and proper locking
of the seatback.
• Do not place a cigarette lighter on the floor or seat. When you operate the
seat, gas may exit out of the lighter
causing a fire.
• Use extreme caution when picking up small objects trapped under the seats
or between the seat and the center
console. Your hands might be cut or
injured by the sharp edges of the seat
mechanism.
• If there are occupants in the rear seats, be careful while adjusting the front seat
position.
• Make sure that the seat is locked in place after the adjustment. If not, the
seat might move unexpectedly
resulting in an accident.

CAUTION To prevent injury:
• Do not adjust your seat while wearing your seat belt. Moving the seat cushion
forward may cause strong pressure on
your abdomen.
• Do not allow your hands or fingers to get caught in the seat mechanisms
while the seat is moving.

WARNING NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.

NOTICE7RSUHYHQWGDPDJHWRWKHVHDWV

[ $OZD\VVWRSDGMXVWLQJWKHVHDWVZKHQ WKHVHDWKDVEHHQDGMXVWHGDVIDU
IRUZDUGRUUHDUZDUGDVSRVVLEOH
[ 'RQRWDGMXVWWKHVHDWVORQJHUWKDQ
QHFHVVDU\ZKHQWKHYHKLFOHLVWXUQHG
RII7KLVPD\UHVXOWLQXQQHFHVVDU\
EDWWHU\GUDLQ

[ 'RQRWRSHUDWHWZRRUPRUHVHDWVDWWKH VDPHWLPH7KLVPD\UHVXOWLQDQ
HOHFWULFDOPDOIXQFWLRQ

if equipped
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat to
the proper position so that you can easily
control the steering wheel, foot pedals
and controls on the instrument panel.
Forward and rearward adjustment
B3000201
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever. If
the seat moves, it is not locked
properly.
Hyundai_CE_en_US.book Page 6

3
3-37
WARNING AIRBAG SAFETY PRECAUTIONS
ALWAYS use seat belts and Child
Restraint Systems - every trip, every time,
everyone! Even with airbags, you can be
seriously injured or killed in a collision if
you are improperly belted or not wearing
your seat belt when the airbag inflates.
NEVER place a child in any Child Restraint
System or booster seat in the front
passenger seat, unless the airbag is
deactivated.
An inflating airbag could forcefully strike
the infant or child causing serious or fatal
injuries.
ABC - Always Buckle Children under age
13 in the back seat. It is the safest place for
children of any age to ride. If a child age 13
or older must be seated in the front seat,
he or she must be properly belted and the
seat should be moved as far back as
possible.
All occupants should sit upright with the
seatback in an upright position, centered
on the seat cushion with their seat belt on,
legs comfortably extended and their feet
on the floor until the vehicle is parked and
the vehicle is turned off. If an occupant is
out of position during an accident, the
rapidly deploying airbag may forcefully
contact the occupant causing serious or
fatal injuries.
You and your passengers should never sit
or lean unnecessarily close to the airbags
or lean against the door or center console.
Move your seat as far back as possible
from front airbags, while still maintaining
control of the vehicle. The U.S. National
Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow
at least 10 in. (25 cm) between the center
of the steering wheel and the chest.

Where are the Airbags?
Driver’s and passenger’s front
airbags
Driver’s front airbag
B3002801Passenger’s front airbag
B3003001
Your vehicle is equipped with a
Supplemental Restraint System (SRS) and
lap/shoulder belts at both the driver and
passenger seating positions.
The SRS consists of airbags which are
located in the center of the steering
wheel and the passenger’s side front
panel pad above the glove box.
The airbags are labeled with the letters
“AIRBAG” embossed on the pad covers.
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered by
the seat belt system alone in case of a
frontal impact of sufficient severity.
The seat belt buckle sensors determine if
the driver and front passenger's seat belts
are fastened. These sensors provide the
Hyundai_CE_en_US.book Page 37

Seats & Safety System
3-38
ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the airbag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in an
accident.
WARNING To reduce the risk of serious injury or
death from inflating front airbags, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Move your seat as far back as possible from front airbags, while still
maintaining control of the vehicle.
• Never lean against the door or center console.
• Do not allow the front passenger to place their feet or legs on the
dashboard.
• Never place any objects (such as dashboard cover, mobile phone holder,
cup holder, perfume or stickers) over or
near the airbag modules on the steering
wheel, instrument panel, windshield
glass, and the front passenger’s panel
above the glove box. Such objects may
cause harm if the vehicle is in a collision
severe enough to cause the airbags to
deploy.
• Do not attach any objects on the front windshield and inside mirror.

Side airbags
Side airbag
B3003202
B3003203
Your vehicle is equipped with a side
airbag in each front seat. The purpose of
the airbag is to provide the vehicle’s
driver and the front passenger with
additional protection than that offered by
the seat belt alone.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity, angle,
speed and point of impact.
The side airbags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
(if equipped with rollover sensor)
The side airbags are not designed to
deploy in all side impact or rollover
situations.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
Hyundai_CE_en_US.book Page 38

3

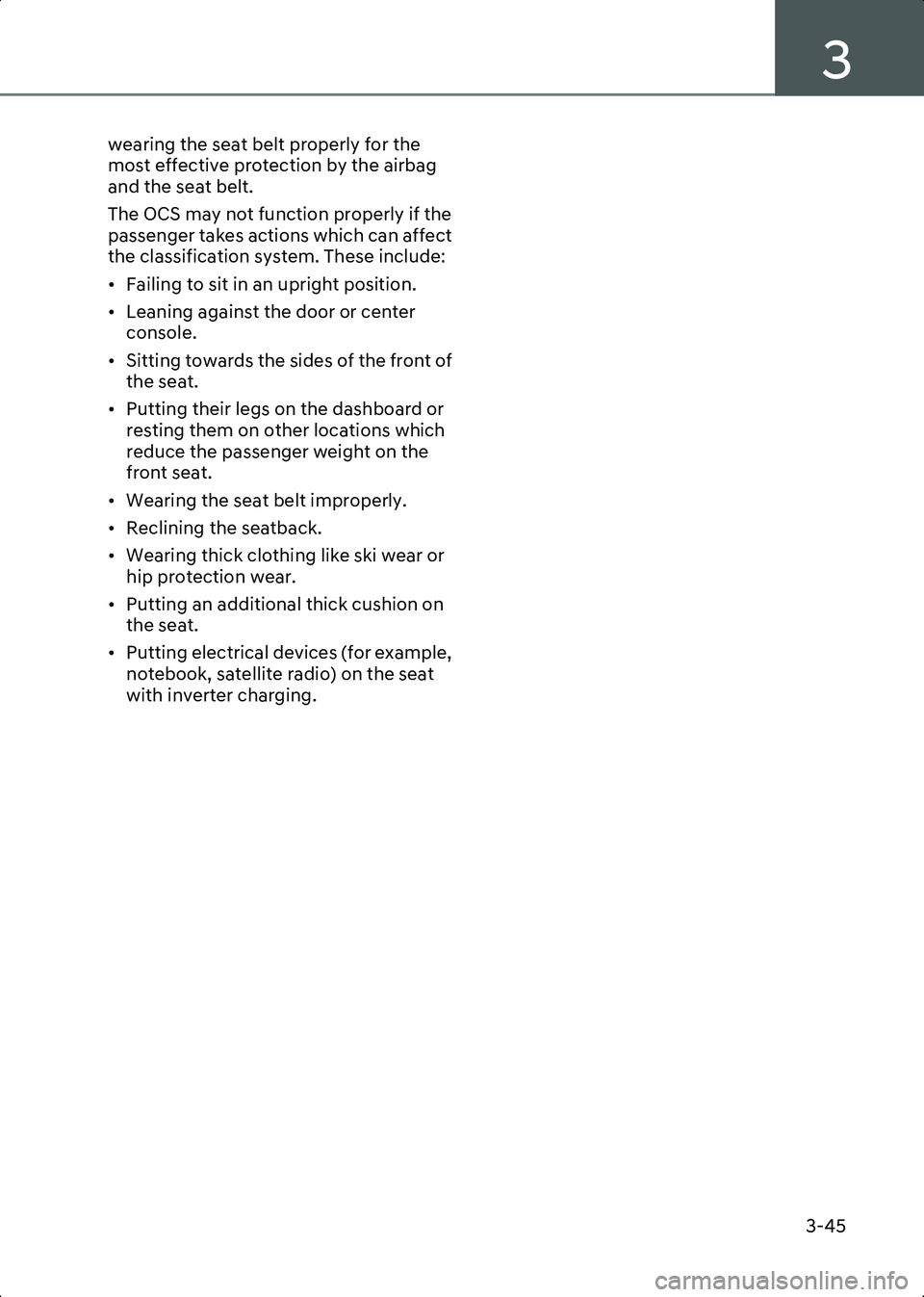

3-45
wearing the seat belt properly for the
most effective protection by the airbag
and the seat belt.
The OCS may not function properly if the
passenger takes actions which can affect
the classification system. These include:
• Failing to sit in an upright position.
• Leaning against the door or center console.
• Sitting towards the sides of the front of the seat.
• Putting their legs on the dashboard or resting them on other locations which
reduce the passenger weight on the
front seat.
• Wearing the seat belt improperly.
• Reclining the seatback.
• Wearing thick clothing like ski wear or hip protection wear.
• Putting an additional thick cushion on the seat.
• Putting electrical devices (for example, notebook, satellite radio) on the seat
with inverter charging.
Hyundai_CE_en_US.book Page 45

Seats & Safety System
3-48
• NEVER lean on the door or center console or sit on one side of the front
passenger seat.
B3003109
• Do not sit on the passenger seat wearing heavily padded clothes such as
ski wear or hip protector.
B3003110
• Do not use car seat accessories such as thick blankets and cushions which
cover up the car seat surface.
B3003112
• Do not place electronic devices such as laptops, DVD player, or conductive
materials such as water bottles on the
passenger seat. Do not use electronic devices such as laptops and satellite
radios which use inverter chargers.
B3003111
• If large quantity of liquid has been spilled on the passenger seat, the
airbag warning light may illuminate or
malfunction. Therefore, make sure the
seat has been completely dried before
driving the vehicle.
B3003113
• Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they
puncture the seat cushion.
• Do not place any items under the front passenger seat.
• When changing or replacing the seat only use Genuine Hyundai Parts. The
OCS has been developed based on
using original HYUNDAI car seats only.
Altering or changing the authentic parts
may result in system malfunction and
Hyundai_CE_en_US.book Page 48
