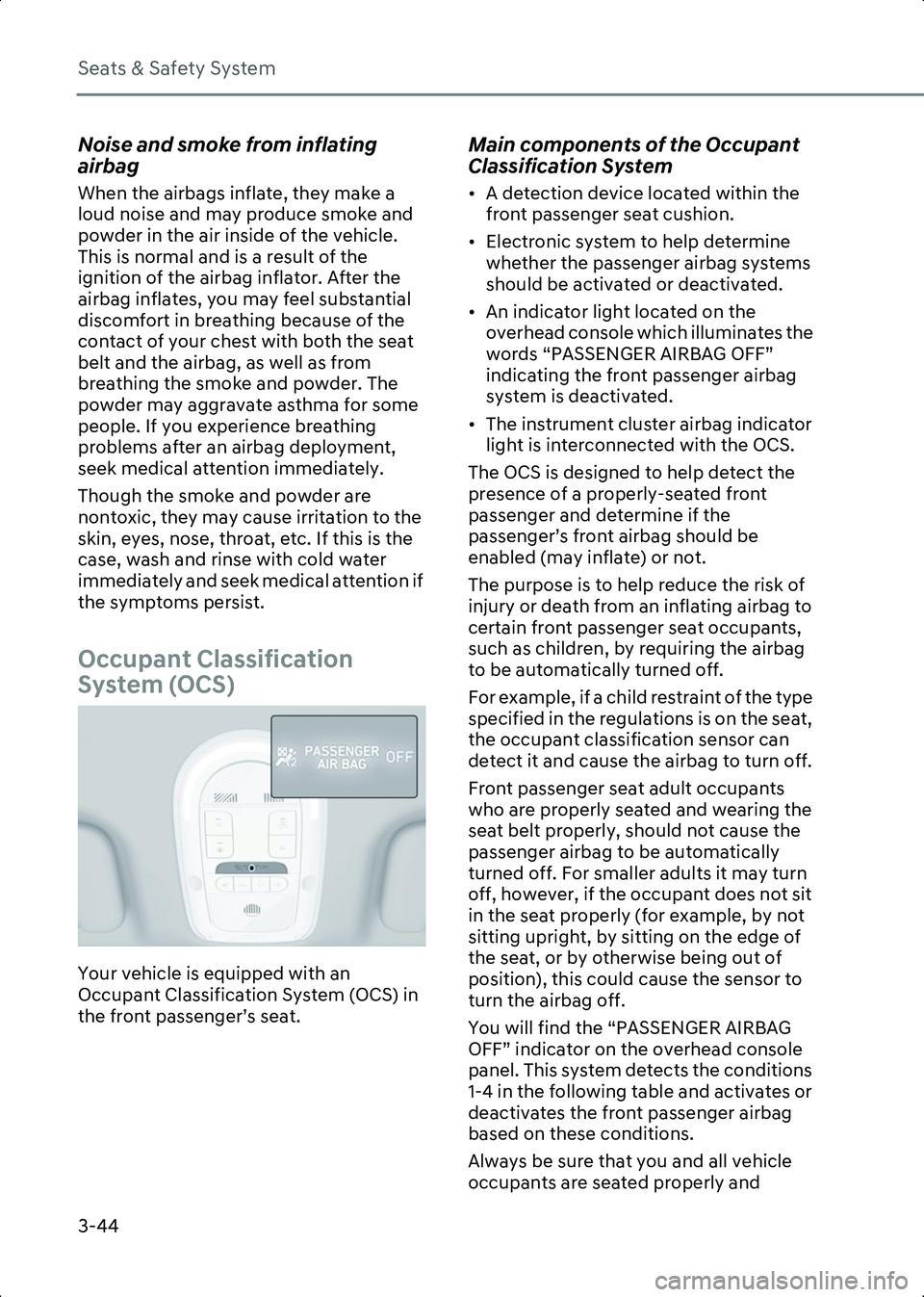

Seats & Safety System
3-44
Noise and smoke from inflating
airbag
When the airbags inflate, they make a
loud noise and may produce smoke and
powder in the air inside of the vehicle.
This is normal and is a result of the
ignition of the airbag inflator. After the
airbag inflates, you may feel substantial
discomfort in breathing because of the
contact of your chest with both the seat
belt and the airbag, as well as from
breathing the smoke and powder. The
powder may aggravate asthma for some
people. If you experience breathing
problems after an airbag deployment,
seek medical attention immediately.
Though the smoke and powder are
nontoxic, they may cause irritation to the
skin, eyes, nose, throat, etc. If this is the
case, wash and rinse with cold water
immediately and seek medical attention if
the symptoms persist.
Occupant Classification
System (OCS)
B3003102
Your vehicle is equipped with an
Occupant Classification System (OCS) in
the front passenger’s seat.
Main components of the Occupant
Classification System
• A detection device located within the front passenger seat cushion.
• Electronic system to help determine whether the passenger airbag systems
should be activated or deactivated.
• An indicator light located on the overhead console which illuminates the
words “PASSENGER AIRBAG OFF”
indicating the front passenger airbag
system is deactivated.
• The instrument cluster airbag indicator light is interconnected with the OCS.
The OCS is designed to help detect the
presence of a properly-seated front
passenger and determine if the
passenger’s front airbag should be
enabled (may inflate) or not.
The purpose is to help reduce the risk of
injury or death from an inflating airbag to
certain front passenger seat occupants,
such as children, by requiring the airbag
to be automatically turned off.
For example, if a child restraint of the type
specified in the regulations is on the seat,
the occupant classification sensor can
detect it and cause the airbag to turn off.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger airbag to be automatically
turned off. For smaller adults it may turn
off, however, if the occupant does not sit
in the seat properly (for example, by not
sitting upright, by sitting on the edge of
the seat, or by otherwise being out of
position), this could cause the sensor to
turn the airbag off.
You will find the “PASSENGER AIRBAG
OFF” indicator on the overhead console
panel. This system detects the conditions
1-4 in the following table and activates or
deactivates the front passenger airbag
based on these conditions.
Always be sure that you and all vehicle
occupants are seated properly and
Hyundai_CE_en_US.book Page 44

4
4-11
Low Tire Pressure Warning Light
WL_TPMSWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The low tire pressure warning
light illuminates for about 3 seconds
and then goes off.
• When one or more tires are significantly underinflated. (The location of the
underinflated tire appears on the
instrument cluster.)
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
This warning light remains ON after
blinking for about 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as soon
as possible.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
WARNING • The TPMS cannot alert you to severe and sudden tire damage caused by
external factors.
• If you notice any vehicle instability, immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

Driver Attention Warning Light
WL_DriverAttentionWarningLamp
This warning light illuminates:
• When you set the ignition switch to the ON position, the yellow indicator light
illuminates for about 3 seconds and
then goes off
• [Continuously Yellow] When the front view camera is blocked or Driver
Attention Warning is
disable/malfunction
• [Blinking Yellow] When the function suggest that the driver take a break
If the yellow warning light is still on even
after removing foreign material from the
front of the sensor, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible
For more information, refer to the “Driver
Attention Warning (DAW)” section in
chapter 7
Forward Safety Warning Light
WL_FrontSafetyWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Forward Safety warning
light illuminates for about 3 seconds
and then goes off.
• [Yellow] When Forward Safety is deselected or Forward
Hyundai_CE_en_US.book Page 11

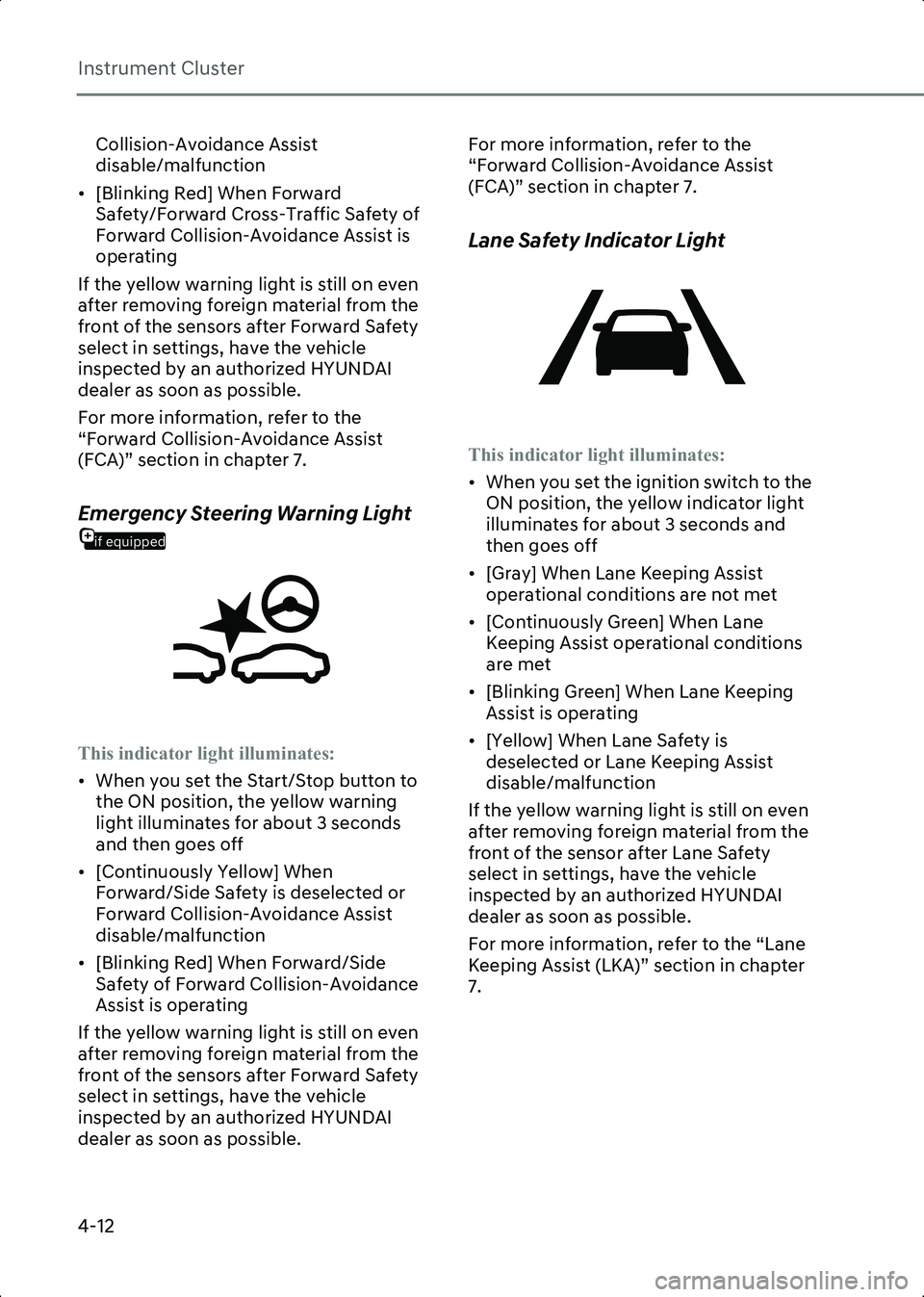

Instrument Cluster
4-12
Collision-Avoidance Assist
disable/malfunction
• [Blinking Red] When Forward Safety/Forward Cross-Traffic Safety of
Forward Collision-Avoidance Assist is
operating
If the yellow warning light is still on even
after removing foreign material from the
front of the sensors after Forward Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more information, refer to the
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
if equipped
Emergency Steering Warning Light
WL_EmergencySteeringWarningLamp
This indicator light illuminates:
• When you set the Start/Stop button to the ON position, the yellow warning
light illuminates for about 3 seconds
and then goes off
• [Continuously Yellow] When Forward/Side Safety is deselected or
Forward Collision-Avoidance Assist
disable/malfunction
• [Blinking Red] When Forward/Side Safety of Forward Collision-Avoidance
Assist is operating
If the yellow warning light is still on even
after removing foreign material from the
front of the sensors after Forward Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible. For more information, refer to the
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Lane Safety Indicator Light
WL_LaneSafetyWarningLamp
This indicator light illuminates:
• When you set the ignition switch to the
ON position, the yellow indicator light
illuminates for about 3 seconds and
then goes off
• [Gray] When Lane Keeping Assist operational conditions are not met
• [Continuously Green] When Lane Keeping Assist operational conditions
are met
• [Blinking Green] When Lane Keeping Assist is operating
• [Yellow] When Lane Safety is deselected or Lane Keeping Assist
disable/malfunction
If the yellow warning light is still on even
after removing foreign material from the
front of the sensor after Lane Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more information, refer to the “Lane
Keeping Assist (LKA)” section in chapter
7.
Hyundai_CE_en_US.book Page 12

4
4-25
After Recharging
ONE1041062L
Trip distance, total driving time and
average energy consumption after the
vehicle has been recharged are displayed.
To reset manually, press the OK button on
the steering wheel for more than 1 second
when ‘After Recharging’ is displayed.
Accumulated info
ONE1041046L
This display shows the accumulated trip
distance (1), the average energy
consumption (2), and the total driving
time (3).
The information is accumulated starting
from the last reset.
To manually reset the information, press
and hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information will
continue to be counted while the vehicle
is on ( indicator is on) (for example, when the vehicle is in traffic or stopped at
a stop light).
Information The vehicle must be driven for a minimum of
0.19 mi. (300 m) since the last ignition key
cycle before the accumulated driving
information is recalculated.

Tire pressure
ONE1041010L
The tire pressure of each tire is displayed.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
if equipped
Energy flow/Driving force distribution
B4000909
• The electric vehicle system informs the
drivers its energy flow in various
operating modes.
• The distribution status of the driving power of the front and rear wheels are
NJ
I
NJL8I
1
2
3
NJ
I
NJL8I
5JSF
1SFTTVSF
Hyundai_CE_en_US.book Page 25

8
8-5
• The electrical ignition system works with high voltage.
NEVER touch these components with
the vehicle running or when the
Start/Stop button is in the ON position.
• The electrical ignition system works with high voltage. NEVER touch these
components Start/Stop button in the
ON or START position.
• Do not allow the (+) and (-) jumper cables to touch. It may cause sparks.
• The battery may rupture or explode when you jump start with a low or
frozen battery.
• Do not directly connect the (-) to the jump cable. Connect the (-) to the one
of the metallic parts located far from
the jump cable in the vehicle. The direct
(-) connection to the jump cable may
cause an explosion.

Jump starting procedure
Information When you jump start your vehicle, use the
jumper terminal in the motor compartment.

1. Position the vehicles close enough that the jumper cables will reach. Do not
allow the vehicle body parts to contact.
2. Avoid fans or any moving parts in the motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put
the vehicles in P (Park) and apply the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located inside of the front trunk.
6. Remove the motor compartment fuse box cover.
CAUTION Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.

B8001501
7. Connect the jumper cables in the exact sequence shown in the illustration. First
connect one jumper cable to the red,
positive (+) jumper terminal of your
vehicle (1).
8. Connect the other end of the jumper cable to the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
9. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10.Connect the other end of the second jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING Do not connect the jumper cable to the
negative (-) jumper terminal of the
discharged battery. A spark could
cause the battery to explode and lead
to a personal injury or vehicle damage.

1
4
2
3














Hyundai_CE_en_US.book Page 5

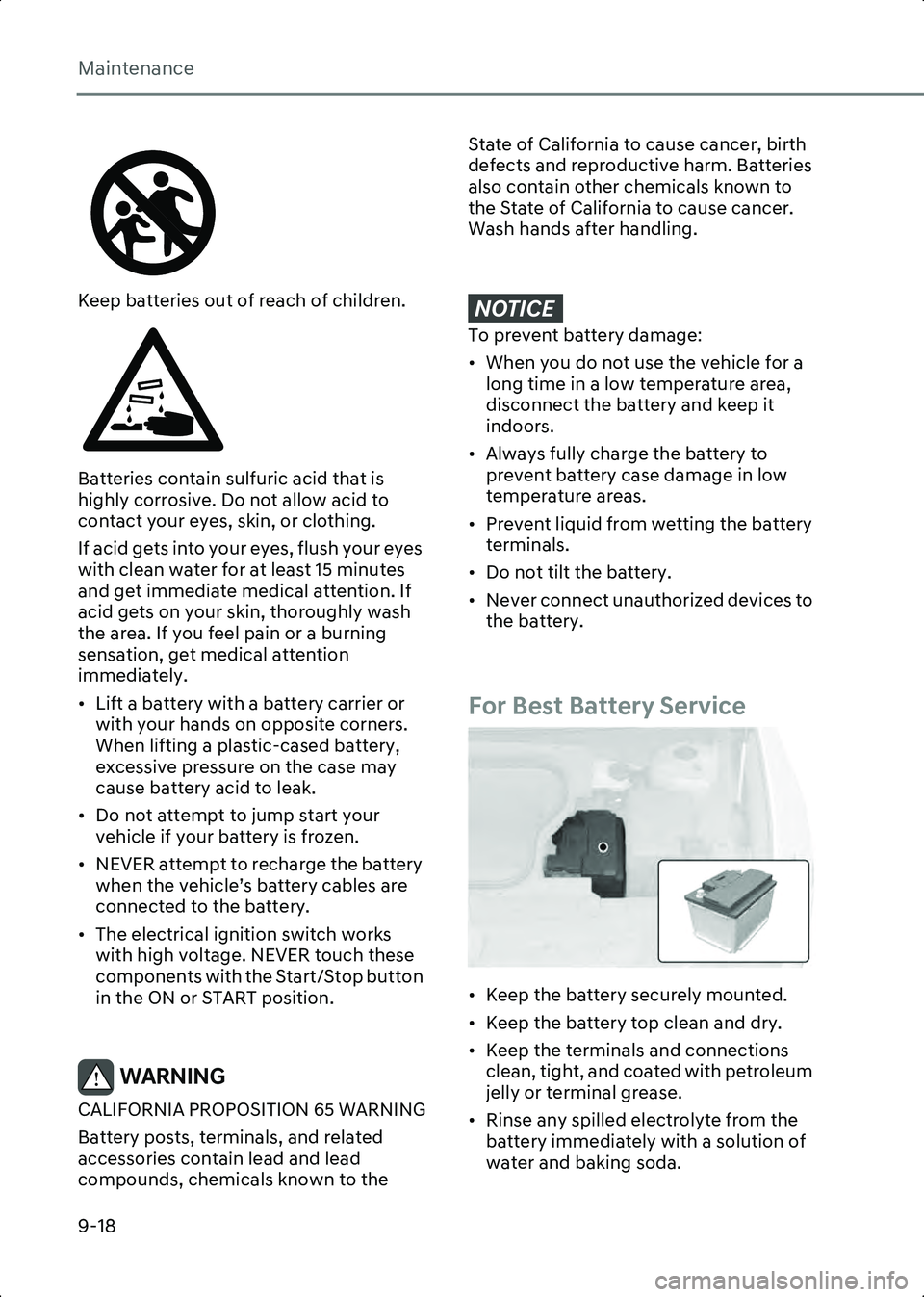

Maintenance
9-18
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing.
If acid gets into your eyes, flush your eyes
with clean water for at least 15 minutes
and get immediate medical attention. If
acid gets on your skin, thoroughly wash
the area. If you feel pain or a burning
sensation, get medical attention
immediately.
• Lift a battery with a battery carrier or with your hands on opposite corners.
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
• The electrical ignition switch works with high voltage. NEVER touch these
components with the Start/Stop button
in the ON or START position.

WARNING CALIFORNIA PROPOSITION 65 WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer, birth
defects and reproductive harm. Batteries
also contain other chemicals known to
the State of California to cause cancer.
Wash hands after handling.

NOTICE7RSUHYHQWEDWWHU\GDPDJH

[ :KHQ\RXGRQRWXVHWKHYHKLFOHIRUD
ORQJWLPHLQDORZWHPSHUDWXUHDUHD
GLVFRQQHFWWKHEDWWHU\DQGNHHSLW
LQGRRUV

[ $OZD\VIXOO\FKDUJHWKHEDWWHU\WR SUHYHQWEDWWHU\FDVHGDPDJHLQORZ
WHPSHUDWXUHDUHDV

[ 3UHYHQWOLTXLGIURPZHWWLQJWKHEDWWHU\ WHUPLQDOV

[ 'RQRWWLOWWKHEDWWHU\

[ 1HYHUFRQQHFWXQDXWKRUL]HGGHYLFHVWR WKHEDWWHU\

For Best Battery Service
B9004101
• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections clean, tight, and coated with petroleum
jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution of
water and baking soda.
Hyundai_CE_en_US.book Page 18
