5
5. Convenience Features
Front lamps.................................................................................................................. 5-71
Rear lamps ................................................................................................................... 5-71
Vanity Mirror Lamp .................................................................................................... 5-72
Glove Box Lamp ......................................................................................................... 5-72
Mood Lamp ................................................................................................................ 5-72
Front Trunk Lamp....................................................................................................... 5-73
High Beam Assist (HBA) ................................................................................................ 5-74 High Beam Assist Settings ........................................................................................ 5-74
High Beam Assist Operation ..................................................................................... 5-74
High Beam Assist Malfunction and Limitations ....................................................... 5-75
Wipers and Washers ...................................................................................................... 5-77 Front Windshield Wipers ........................................................................................... 5-77
Front Windshield Washers ........................................................................................ 5-78
Automatic Climate Control System..............................................................................5-80 Climate........................................................................................................................ 5-82
Automatic Temperature Control Mode .................................................................... 5-82
Manual Temperature Control Mode ......................................................................... 5-83
System Operation ...................................................................................................... 5-91
System Maintenance ................................................................................................. 5-92
Windshield Defrosting and Defogging.........................................................................5-94 To Defog Inside Windshield ......................................................................................5-94To Defrost Outside Windshield .................................................................................5-94
Defogging Logic......................................................................................................... 5-95
Rear Window Defroster ............................................................................................. 5-95
Climate Control Additional Features ............................................................................5-96 A/C Automatic Drying................................................................................................5-96
Auto Defogging System ............................................................................................5-96
Auto Dehumidify ........................................................................................................ 5-97
Sunroof Inside Air recirculation ................................................................................5-98
Recirculating Air When Washer Fluid Is Used..........................................................5-98
Recirculation Mode Plus............................................................................................5-98
Automatic Controls Linked to Climate Control Settings (for driver’s seat) ...........5-99
Smart Ventilation .......................................................................................................5-99
Storage Compartment ................................................................................................ 5-100 Center Console Storage .......................................................................................... 5-100
Glove Box.................................................................................................................. 5-100
Hyundai_CE_en_US.book Page 3
Page 255 of 582
5
5-77
Wipers and Washers
B5019601
A. Wiper speed control
• MIST - Single wipe
• OFF - Off
• INT - Intermittent wipeAUTO* - Auto control wipe
• LO - Low wiper speed
• HI - High wiper speed
B. Intermittent wipe time
adjustment/Auto control wipe time
adjustment*
C. Wash with brief wipes
*: if equipped
Front Windshield Wipers
Operates as follows when the Start/Stop
button is in the ON position.
MIST:
For a single wiping cycle, push the lever
upward (or downward) and release. The
wipers will operate continuously if the
lever is held in this position.
OFF:
Wiper is not in operation.
INT:
Wiper operates intermittently at the same
wiping intervals. To vary the speed
setting, turn the speed control knob (B).
AUTO:
The rain sensor located on the upper end
of the windshield glass senses the amount of rainfall and controls the wiping
cycle for the proper interval. The more it
rains, the faster the wiper operates. When
the rain stops, the wiper stops. To vary the
speed setting, turn the speed control
knob.
LO:
The wiper runs at a lower speed.
HI:
The wiper runs at a higher speed.
Information If there is heavy accumulation of snow or ice
on the windshield, defrost the windshield for
about 10 minutes, or until the snow and/or ice
is removed before using the windshield wipers
to ensure proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO (Automatic) control
B5019603
The rain sensor located on the upper end
of the windshield glass senses the
amount of rainfall and controls the wiping
cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
MIST
OFFOFF
INT/AUTO*INT/AUTO*
LO
HI
Hyundai_CE_en_US.book Page 77
Page 256 of 582
Convenience Features
5-78
If the wiper switch is set in AUTO mode
when the Start/Stop button is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WARNING To avoid personal injury from the
windshield wipers, when the vehicle is
running and the windshield wiper switch
is placed in the AUTO mode:
• Do not touch the upper end of the windshield glass facing the rain sensor.
• Do not wipe the upper end of the windshield glass with a damp or wet
cloth.
• Do not put pressure on the windshield glass.
NOTICE [ : K H Q Z D V K L Q J W K H Y H K L F O H V H W W K H Z L S H U V Z L W F K L Q W K H 2 ) ) S R V L W L R Q W R V W R S
W K H D X W R Z L S H U R S H U D W L R Q 7 K H Z L S H U
P D \ R S H U D W H D Q G E H G D P D J H G L I W K H
V Z L W F K L V V H W L Q W K H $ 8 7 2 P R G H Z K L O H
Z D V K L Q J W K H Y H K L F O H
[ ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G R Q W K H X S S H U H Q G R I W K H
S D V V H Q J H U V L G H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P F R P S R Q H Q W V F R X O G
R F F X U D Q G P D \ Q R W E H F R Y H U H G E \ \ R X U
Y H K L F O H Z D U U D Q W \
[ % H F D X V H R I X V L Q J D S K R W R V H Q V R U W H P S R U D U \ P D O I X Q F W L R Q F R X O G R F F X U
D F F R U G L Q J W R V X G G H Q D P E L H Q W O L J K W
F K D Q J H P D G H E \ V W R Q H D Q G G X V W Z K L O H
G U L Y L Q J
Front Windshield Washers
B5019701
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation will
continue until you release the lever. If the
washer does not work, you may need to
add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending on
the outside temperature. If you select
fresh mode while the function is
operating, the function will resume after a
certain amount of time. It may not work in
some conditions such as cold weather or
vehicle off.
For more information, refer to the
“Climate Control Additional Features”
section in this chapter.
WARNING When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent the
washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
Hyundai_CE_en_US.book Page 78
Page 335 of 582
6
6-47
“Tire Replacement” section in Chapter
9.
• Turn on your headlights to make it easier for others to see you. Using your
headlights when using your windshield
wipers is required in some jurisdictions.
• Driving too fast through large puddles may affect your brakes. If you must go
through puddles, try to drive through
them slowly.
• If you believe your brakes are wet, apply them several times while the
vehicle is moving slowly.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may have
little or no contact with the road surface
and actually ride on the water. The best
advice is SLOW DOWN when the road is
wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, For more
information, refer to the “Tire
Replacement” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is not
deeper than the bottom of the wheel hub.
If you are not sure, turn around and find a
different route. Drive through any water
slowly. Allow adequate stopping distance
because the brake performance can be
reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation pressure, as
specified. Under-inflation may overheat
or damage the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail.
Information Never over-inflate your tires above the
maximum inflation pressure, as specified on
your tires.
Coolant and high voltage battery
Driving at higher speeds on the highway
consumes more electric energy and is
less efficient than driving at a slower,
more moderate speed. Maintain a
moderate speed in order to conserve
electric energy when driving on the
highway.
Be sure to check both the coolant level
and the electric energy level before
driving.
Hyundai_CE_en_US.book Page 47

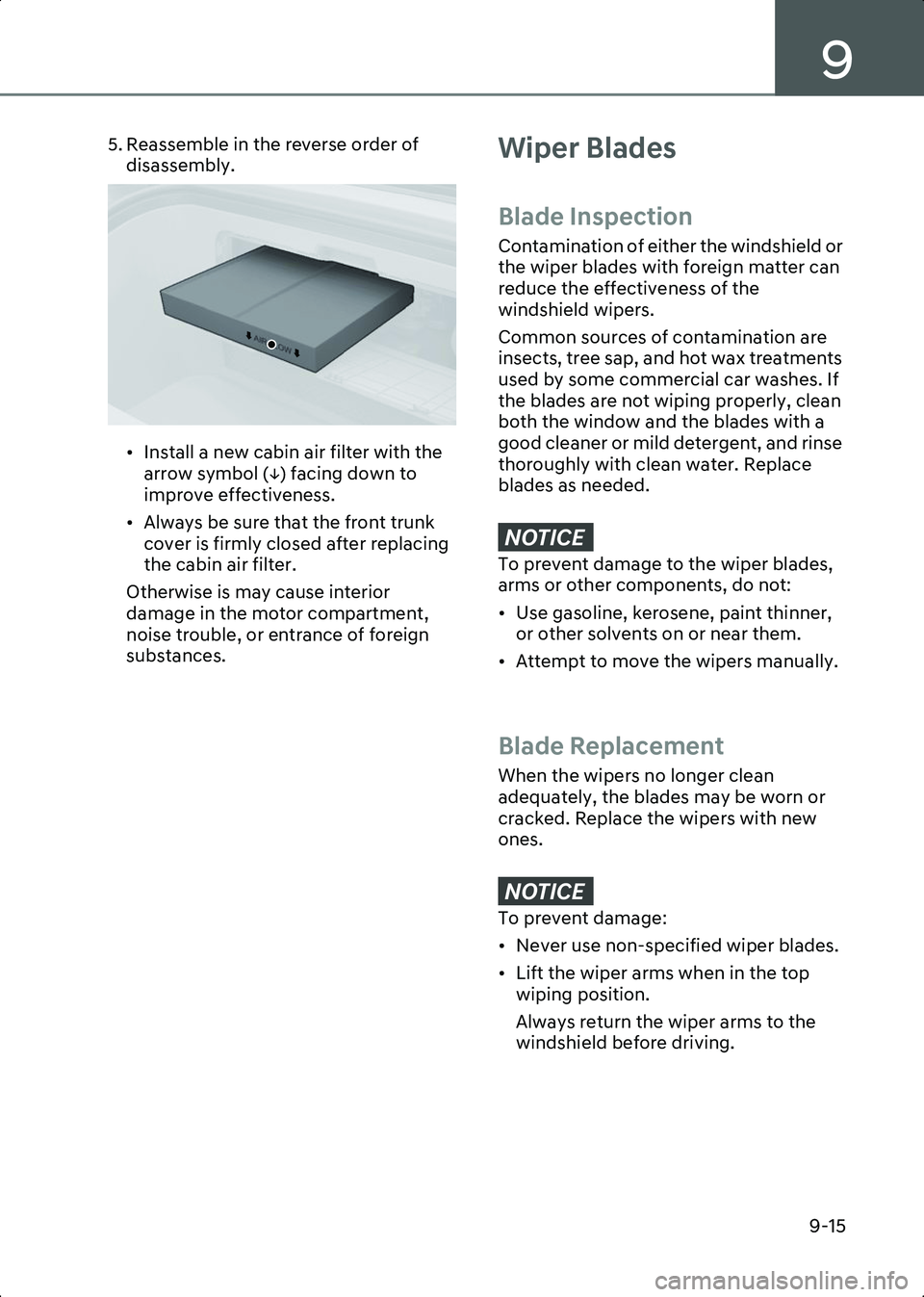

Page 531 of 582
9
9-15
5. Reassemble in the reverse order of disassembly.
B9003604
• Install a new cabin air filter with the arrow symbol (↓) facing down to
improve effectiveness.
• Always be sure that the front trunk cover is firmly closed after replacing
the cabin air filter.
Otherwise is may cause interior
damage in the motor compartment,
noise trouble, or entrance of foreign
substances.
Wiper Blades
Blade Inspection
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the
windshield wipers.
Common sources of contamination are
insects, tree sap, and hot wax treatments
used by some commercial car washes. If
the blades are not wiping properly, clean
both the window and the blades with a
good cleaner or mild detergent, and rinse
thoroughly with clean water. Replace
blades as needed.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H Z L S H U E O D G H V
D U P V R U R W K H U F R P S R Q H Q W V G R Q R W
[ 8 V H J D V R O L Q H N H U R V H Q H S D L Q W W K L Q Q H U R U R W K H U V R O Y H Q W V R Q R U Q H D U W K H P
[ $ W W H P S W W R P R Y H W K H Z L S H U V P D Q X D O O \
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn or
cracked. Replace the wipers with new
ones.
NOTICE 7 R S U H Y H Q W G D P D J H
[ 1 H Y H U X V H Q R Q V S H F L I L H G Z L S H U E O D G H V
[ / L I W W K H Z L S H U D U P V Z K H Q L Q W K H W R S Z L S L Q J S R V L W L R Q
$ O Z D \ V U H W X U Q W K H Z L S H U D U P V W R W K H
Z L Q G V K L H O G E H I R U H G U L Y L Q J
Hyundai_CE_en_US.book Page 15

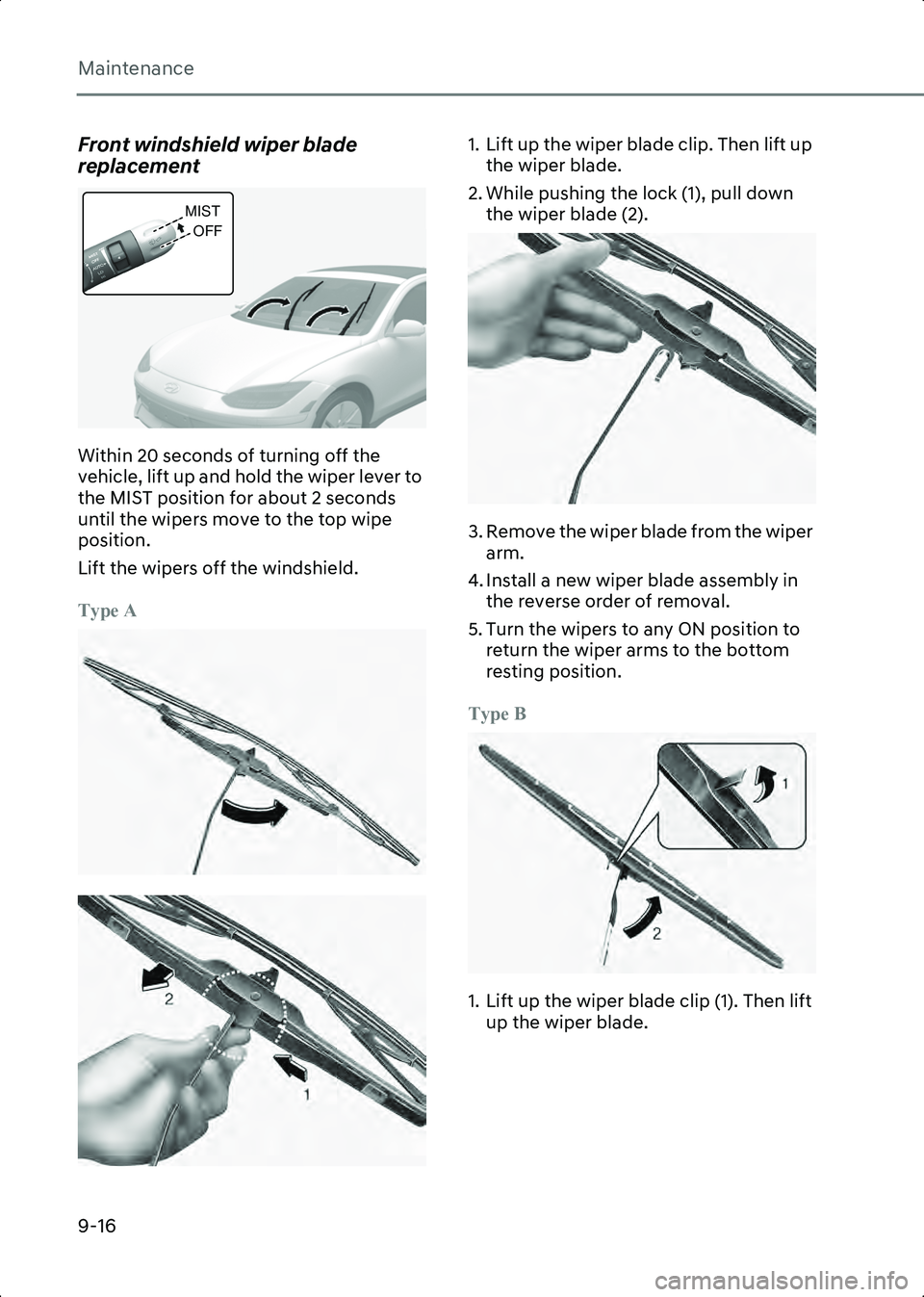

Page 532 of 582
Maintenance
9-16
Front windshield wiper blade
replacement
B9003901
Within 20 seconds of turning off the
vehicle, lift up and hold the wiper lever to
the MIST position for about 2 seconds
until the wipers move to the top wipe
position.
Lift the wipers off the windshield.
Type A
B9003902
B9003903
1. Lift up the wiper blade clip. Then lift up the wiper blade.
2. While pushing the lock (1), pull down the wiper blade (2).
B9003904
3. Remove the wiper blade from the wiper arm.
4. Install a new wiper blade assembly in the reverse order of removal.
5. Turn the wipers to any ON position to return the wiper arms to the bottom
resting position.
Type B
B9003905
1. Lift up the wiper blade clip (1). Then lift up the wiper blade.
MIST
OFF
Hyundai_CE_en_US.book Page 16

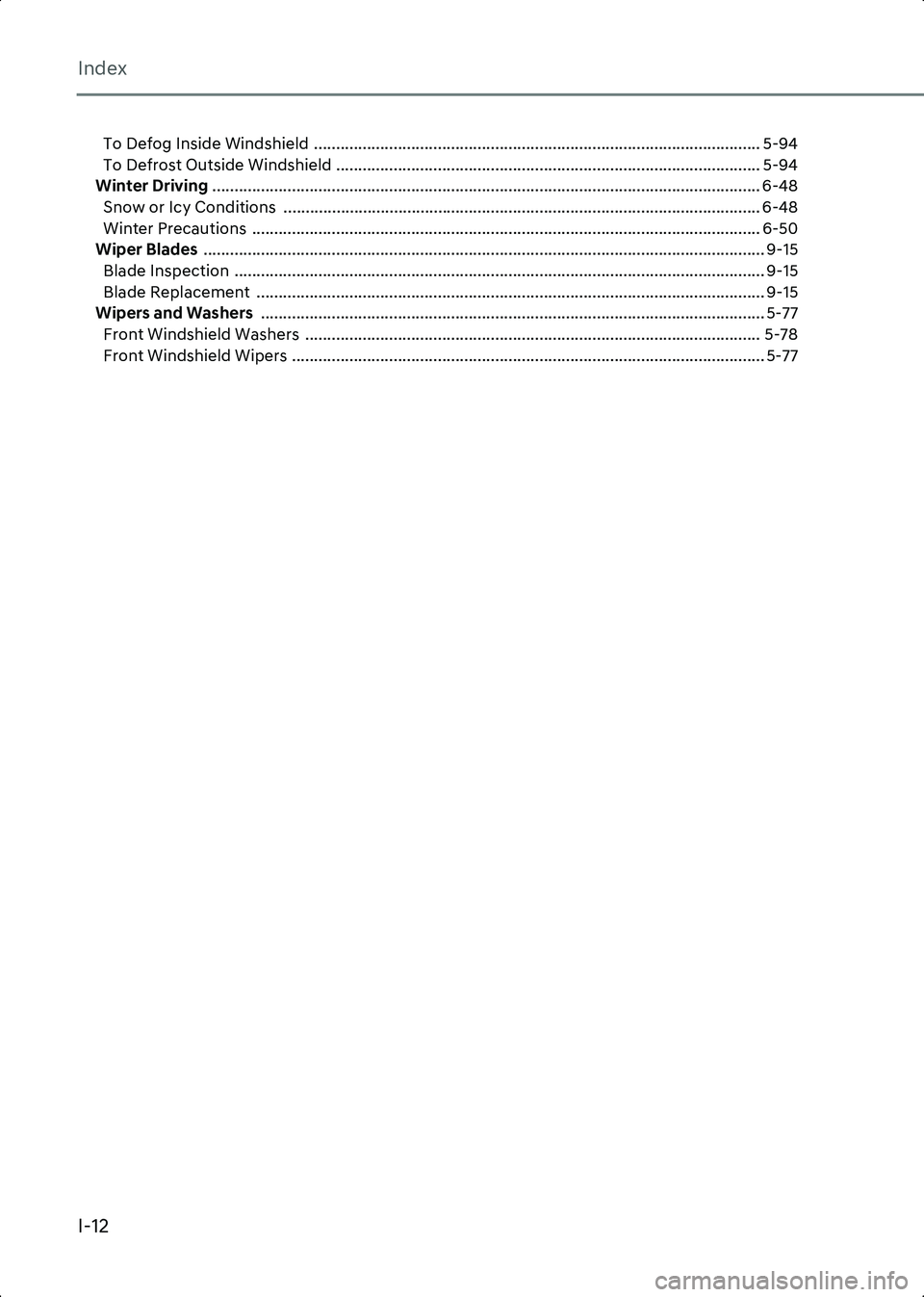

Page 582 of 582
Index
I-12
To Defog Inside Windshield ..................................................................................................... 5-94
To Defrost Outside Windshield ................................................................................................ 5-94
Winter Driving ............................................................................................................................ 6-48
Snow or Icy Conditions ............................................................................................................ 6-48
Winter Precautions ................................................................................................................... 6-50
Wiper Blades ............................................................................................................................... 9-15
Blade Inspection ........................................................................................................................ 9-15
Blade Replacement ................................................................................................................... 9-15
Wipers and Washers .................................................................................................................. 5-77
Front Windshield Washers ....................................................................................................... 5-78
Front Windshield Wipers ........................................................................................................... 5-77
Hyundai_CE_en_US.book Page 12
