2023 HYUNDAI IONIQ 6 brakes
[x] Cancel search: brakesPage 63 of 582
1
1-57
Checking the real time energy status (CHARGE/POWER gauge)
The CHARGE/POWER gauge displays the charging and discharging status of the electric
energy produced by the regenerative braking and the energy consumption of the electric
motor.
B0002902
•CHARGE : Shows the charging status of the electric motor when vehicle is decelerating
or driving on a downhill road (being charged by the regenerative brakes). The more
electric energy is charged, the lower the gauge level.
• POWER : Shows discharging status of the electric motor when vehicle is accelerating or
driving on an uphill road. The more electric energy is discharged (used), the higher the
gauge level.
Checking the State of Charge (SOC)
The SOC indicator is displayed at the bottom of the CHARGE/POWER gauge and shows
the charge level of the high voltage battery as a percentage. The lower the number, the
more the vehicle needs to be charged, and 100 % indicates a full charge.
B0002903
Hyundai_CE_en_US.book Page 57
Page 153 of 582
4
4-3

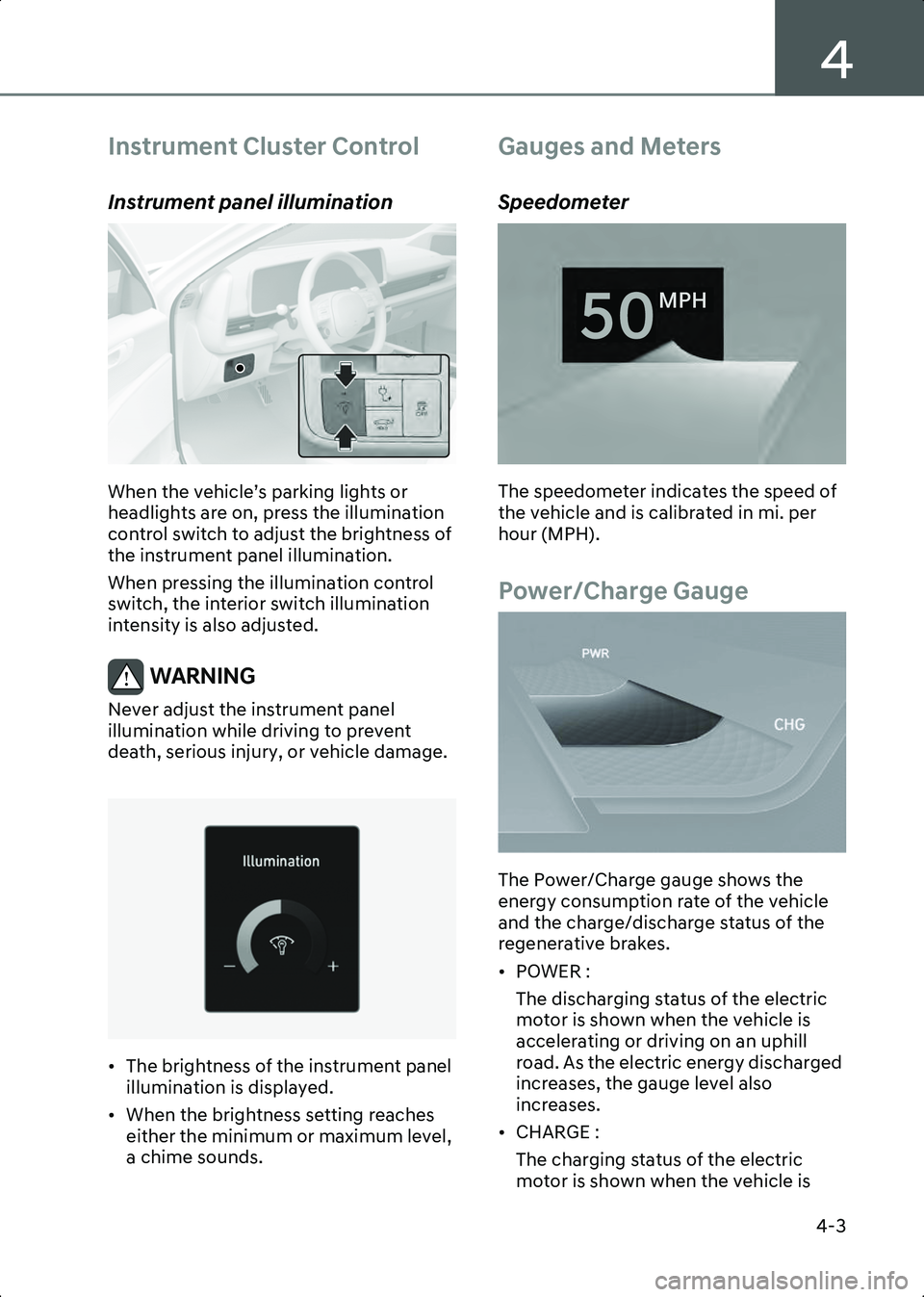

Instrument Cluster Control
Instrument panel illumination
ONE1041044L
When the vehicle’s parking lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING Never adjust the instrument panel
illumination while driving to prevent
death, serious injury, or vehicle damage.
ONE1041056N
• The brightness of the instrument panel illumination is displayed.
• When the brightness setting reaches either the minimum or maximum level,
a chime sounds.
Gauges and Meters
Speedometer
B4000301
The speedometer indicates the speed of
the vehicle and is calibrated in mi. per
hour (MPH).
Power/Charge Gauge
B4000306
The Power/Charge gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.
• POWER :
The discharging status of the electric
motor is shown when the vehicle is
accelerating or driving on an uphill
road. As the electric energy discharged
increases, the gauge level also
increases.
• CHARGE : The charging status of the electric
motor is shown when the vehicle is
. 1 )
Hyundai_CE_en_US.book Page 3
Page 154 of 582

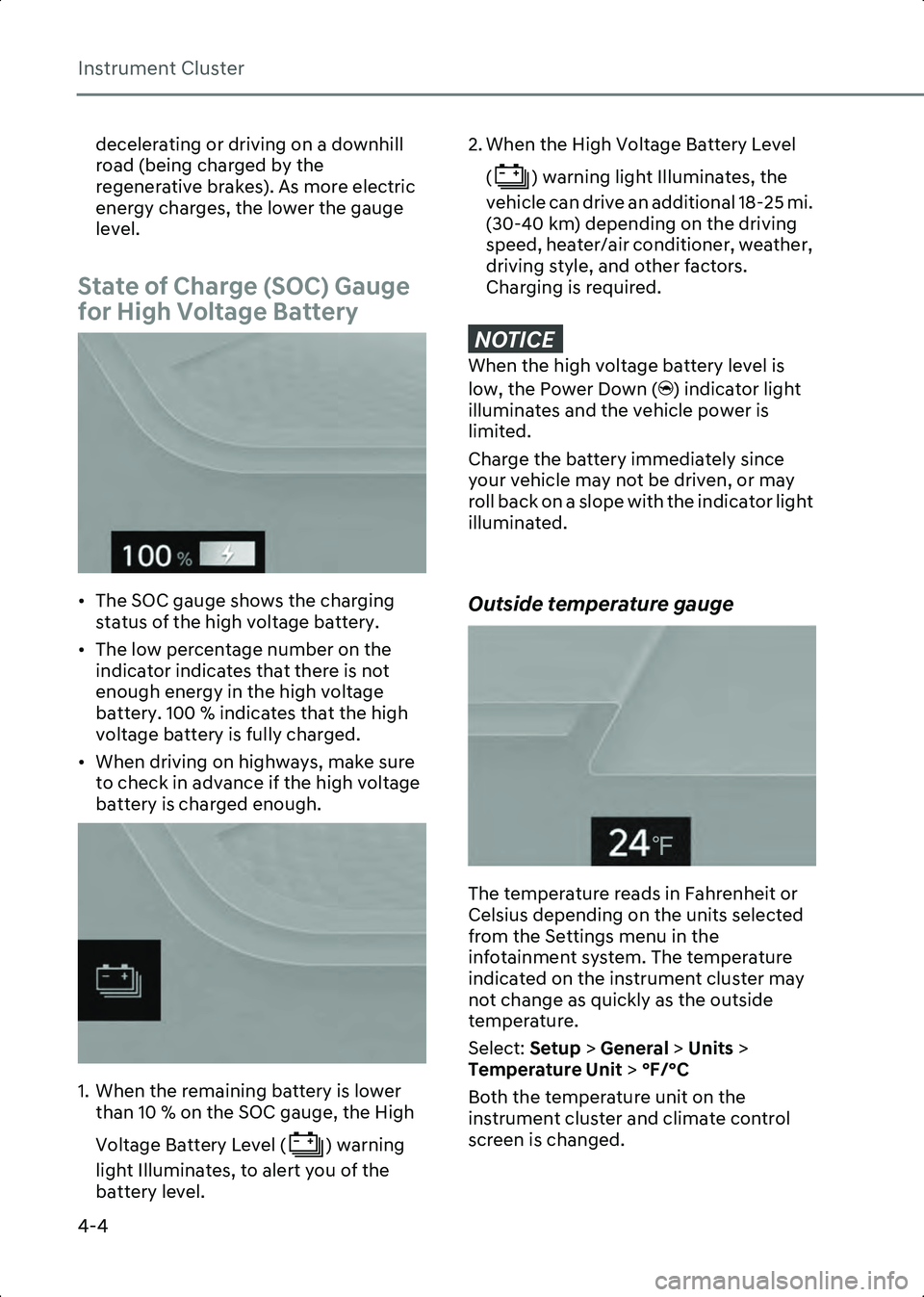

Instrument Cluster
4-4
decelerating or driving on a downhill
road (being charged by the
regenerative brakes). As more electric
energy charges, the lower the gauge
level.
State of Charge (SOC) Gauge
for High Voltage Battery
B4000307
• The SOC gauge shows the charging status of the high voltage battery.
• The low percentage number on the indicator indicates that there is not
enough energy in the high voltage
battery. 100 % indicates that the high
voltage battery is fully charged.
• When driving on highways, make sure to check in advance if the high voltage
battery is charged enough.
B4000308
1. When the remaining battery is lower than 10 % on the SOC gauge, the High
Voltage Battery Level ( ) warning
light Illuminates, to alert you of the
battery level. 2. When the High Voltage Battery Level
( ) warning light Illuminates, the
vehicle can drive an additional 18-25 mi.
(30-40 km) depending on the driving
speed, heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE : K H Q W K H K L J K Y R O W D J H E D W W H U \ O H Y H O L V
O R Z W K H 3 R Z H U ' R Z Q \f L Q G L F D W R U O L J K W
L O O X P L Q D W H V D Q G W K H Y H K L F O H S R Z H U L V
O L P L W H G
& K D U J H W K H E D W W H U \ L P P H G L D W H O \ V L Q F H
\ R X U Y H K L F O H P D \ Q R W E H G U L Y H Q R U P D \
U R O O E D F N R Q D V O R S H Z L W K W K H L Q G L F D W R U O L J K W
L O O X P L Q D W H G
Outside temperature gauge
B4000304
The temperature reads in Fahrenheit or
Celsius depending on the units selected
from the Settings menu in the
infotainment system. The temperature
indicated on the instrument cluster may
not change as quickly as the outside
temperature.
Select: Setup > General > Units >
Temperature Unit > °F/°C
Both the temperature unit on the
instrument cluster and climate control
screen is changed.
'
Hyundai_CE_en_US.book Page 4
Page 158 of 582
Instrument Cluster
4-8
• When there is a malfunction with the SRS.
If the Airbag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Regenerative Brake Warning Light
WL_RegenerativeBreakWarningLamp
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Parking Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may be
more difficult than normal and the
braking distance can increase.
Parking Brake and Brake Fluid
Warning Light
WL_BreakWarningLamp
This warning light illuminates:
When the Start/Stop button is in the ON
position. The Parking Brake warning light
illuminates for about 3 seconds and then goes off once the parking brake is
released.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
• When the regenerative brake does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. With the motor stopped, check the brake fluid level immediately and add
fluid as required (For more information,
refer to the “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or if
the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Dual-diagonal braking system
Your vehicle is equipped with the
dual-diagonal braking system. This
means you still have braking on two
wheels even if one of the dual systems
fails.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal force are required to
stop the vehicle.
Also, the vehicle does not stop in a short
distance if only a portion of the braking
system is working.
Hyundai_CE_en_US.book Page 8
Page 161 of 582
4
4-11
Low Tire Pressure Warning Light
WL_TPMSWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The low tire pressure warning
light illuminates for about 3 seconds
and then goes off.
• When one or more tires are significantly underinflated. (The location of the
underinflated tire appears on the
instrument cluster.)
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
This warning light remains ON after
blinking for about 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as soon
as possible.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
WARNING • The TPMS cannot alert you to severe and sudden tire damage caused by
external factors.
• If you notice any vehicle instability, immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
Driver Attention Warning Light
WL_DriverAttentionWarningLamp
This warning light illuminates:
• When you set the ignition switch to the ON position, the yellow indicator light
illuminates for about 3 seconds and
then goes off
• [Continuously Yellow] When the front view camera is blocked or Driver
Attention Warning is
disable/malfunction
• [Blinking Yellow] When the function suggest that the driver take a break
If the yellow warning light is still on even
after removing foreign material from the
front of the sensor, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible
For more information, refer to the “Driver
Attention Warning (DAW)” section in
chapter 7
Forward Safety Warning Light
WL_FrontSafetyWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Forward Safety warning
light illuminates for about 3 seconds
and then goes off.
• [Yellow] When Forward Safety is deselected or Forward
Hyundai_CE_en_US.book Page 11
Page 170 of 582
Instrument Cluster
4-20
Charging stopped. Check the AC/DC
charger
This warning message is displayed when
charging is stopped for the following
reasons:
• There is a problem with the external AC charger or DC charger charger
• The external AC charger stops charging
• The charging cable is damaged
In this case, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine
HYUNDAI portable charger, have your
vehicle inspected by an authorized
HYUNDAI dealer.
Charging stopped. Check the cable
connection
This warning message is displayed when
charging is stopped because the charging
connector is not correctly connected to
the charging inlet
In this case, separate the charging
connector and reconnect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine HYUNDAI
portable charger, have your vehicle
inspected by an authorized HYUNDAI
dealer.
Check regenerative brakes
OOSEV040503E
These warning messages are displayed
when the regenerative brake system does
not work properly.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
Low EV battery
When the high voltage battery level
reaches below about 20 %, this warning
message is displayed.
The High Voltage Battery Level ( )
warning light illuminates simultaneously.
Charge the high voltage battery
immediately.
Charge immediately. Power limited
When the high voltage battery level
reaches below about 10 %, this warning
message is displayed.
The High Voltage Battery Level ( )
warning light illuminates simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the battery
immediately.
$ I F D L
S F H F O F S B U J W F C S B L F T
Hyundai_CE_en_US.book Page 20
Page 289 of 582
6
6. Driving Your Vehicle
Before Driving .................................................................................................................. 6-3Before Entering the Vehicle ........................................................................................ 6-3Before Starting ............................................................................................................. 6-3
Start/Stop Button ............................................................................................................ 6-4 Start/Stop Button Positions ........................................................................................ 6-5Starting the Vehicle .....................................................................................................6-6
Turning Off the Vehicle................................................................................................ 6-7
Remote Start ................................................................................................................ 6-7
SHIFT BY WIRE.................................................................................................................6-8 Shift By Wire Operation ...............................................................................................6-8
Cluster Display Messages Information......................................................................6-12
Good Driving Practices .............................................................................................. 6-13
Regenerative Braking System (Paddle Shifter) ........................................................... 6-14 Using Regenerative Braking System ........................................................................ 6-14
Regenerative Braking System Limitations ............................................................... 6-15
One Pedal Driving ...................................................................................................... 6-15
Using i-PEDAL ............................................................................................................ 6-16
Smart Regeneration System .......................................................................................... 6-17 Smart Regeneration System On/Off..........................................................................6-17
Smart Regeneration System Operating Condition .................................................. 6-18
Smart Regeneration Level Settings .......................................................................... 6-18
Pausing Smart Regeneration System ....................................................................... 6-19
Front Sensors ............................................................................................................. 6-19
System Check Message............................................................................................. 6-19
Smart Regeneration System Precautions ................................................................ 6-19
Braking System .............................................................................................................. 6-22 Power-Assist Brakes .................................................................................................. 6-22
Disc Brakes Wear Indicator ....................................................................................... 6-23
Electronic Parking Brake (EPB) ................................................................................. 6-24
Auto Hold.................................................................................................................... 6-27
Brake Disc Cleaning ...................................................................................................6-29
Anti-Lock Brake System (ABS) ..................................................................................6-30
Electronic Stability Control (ESC) ............................................................................. 6-31
Vehicle Stability Management (VSM) ....................................................................... 6-33
Hill-Start Assist Control (HAC) ..................................................................................6-34
Brake Assistant System (BAS) ...................................................................................6-34
Hyundai_CE_en_US.book Page 1
Page 301 of 582
6
6-13
Check shifter dial
B6013804
This message is displayed when there is a
malfunction with the rotary shifter.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Check P button
B6013805
This message is displayed when there is a
problem with the P button.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Rotary shifter stuck
B6013806
This message is displayed when the rotary
shifter does not return back to it’s normal
position.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Good Driving Practices
• Never shift the gear from P (Park) or N (Neutral) to any other position with the
accelerator pedal depressed.
• Never shift the gear into P (Park) when the vehicle is in moving. Completely
stop before shifting into R (Reverse) or
D (Drive).
• Do not shift the gear to N (Neutral) when driving. If the gear is shifted to N
(Neutral) while driving. Doing so may
increase the risk of an accident.
Also, shift the gear back to D (Drive)
while the vehicle is moving may
severely damage the gear.
• Never attempt to select a gear that is opposite the direction of the vehicle
motion. Check the gear position before
driving. Stop the vehicle before shifting
to the desired gear. The vehicle may
turn off, causing a collision.
• Do not drive with your foot resting on the brake pedal. Even light, but
consistent pedal pressure can result in
the brakes overheating, brake wear and
possibly even brake failure.
$ I F D L T I J G U F S E J B M
$ I F D L 1 C V U U P O
3 P U B S Z T I J G U F S T U V D L
Hyundai_CE_en_US.book Page 13
