2023 HYUNDAI IONIQ 6 seat memory

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-4

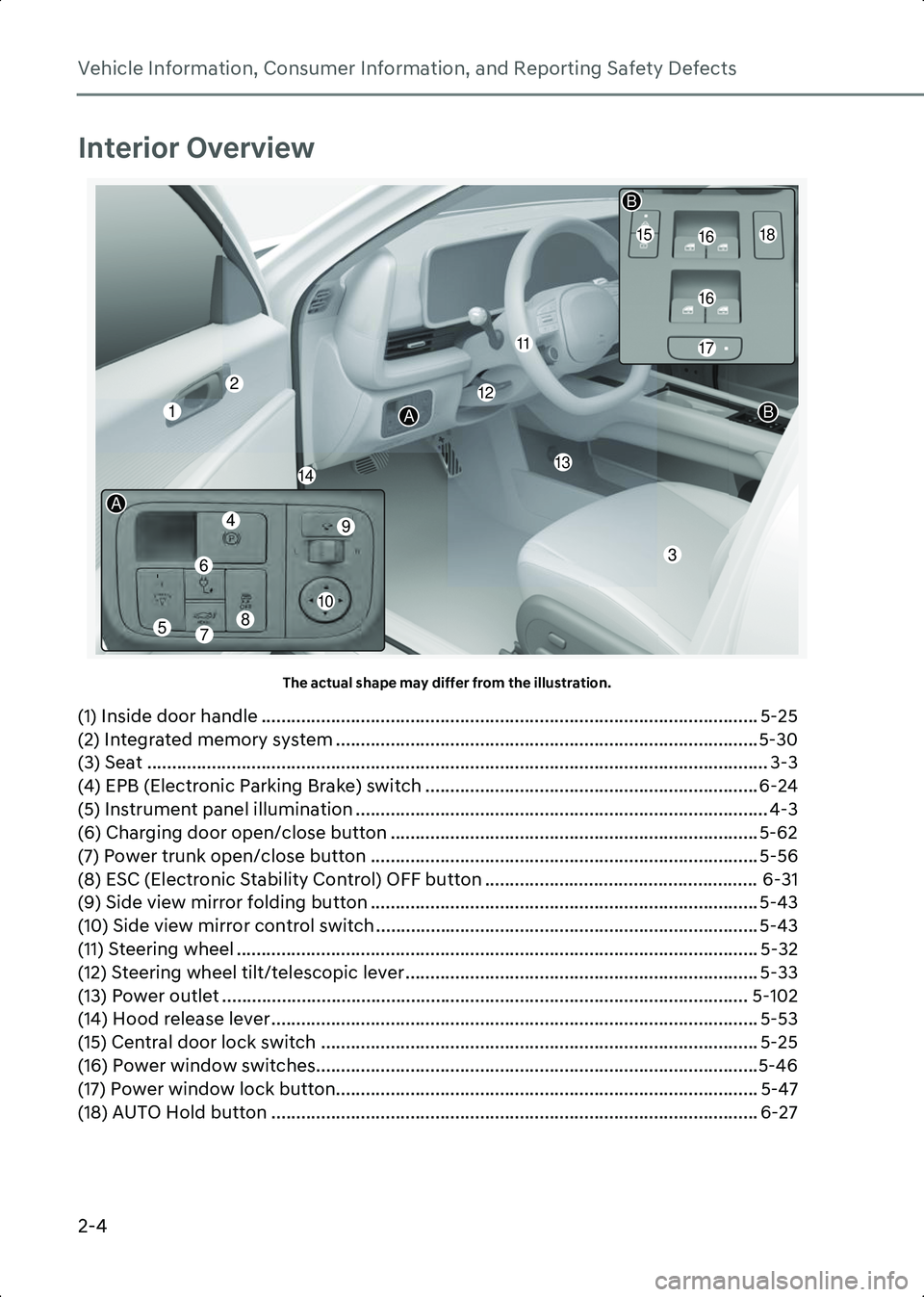

Interior Overview
A1000501The actual shape may differ from the illustration.
(1) Inside door handle .................................................................................................... 5-25
(2) Integrated memory system .....................................................................................5-30
(3) Seat ............................................................................................................................. 3-3
(4) EPB (Electronic Parking Brake) switch ................................................................... 6-24
(5) Instrument panel illumination ................................................................................... 4-3 (6) Charging door open/close button .......................................................................... 5-62
(7) Power trunk open/close button .............................................................................. 5-56
(8) ESC (Electronic Stability Control) OFF button ....................................................... 6-31
(9) Side view mirror folding button .............................................................................. 5-43
(10) Side view mirror control switch ............................................................................. 5-43
(11) Steering wheel ......................................................................................................... 5-32
(12) Steering wheel tilt/telescopic lever ....................................................................... 5-33
(13) Power outlet .......................................................................................................... 5-102 (14) Hood release lever .................................................................................................. 5-53
(15) Central door lock switch ........................................................................................ 5-25 (16) Power window switches.........................................................................................5-46
(17) Power window lock button..................................................................................... 5-47
(18) AUTO Hold button .................................................................................................. 6-27
112
1314
16
16
17
1518
11
2
3
B
B
A
10
7
6
49
8
A
5
Hyundai_CE_en_US.book Page 4

5
5. Convenience Features
Accessing Your Vehicle ................................................................................................... 5-5Smart Key ..................................................................................................................... 5-5
Immobilizer System ................................................................................................... 5-10
Hyundai Digital Key ........................................................................................................ 5-11 Digital Key Application ............................................................................................... 5-11
How To Save/Delete The Digital Key (Smartphone Key) ......................................... 5-11
When user changes smartphone or deletes digital key application .......................5-13
How to save/delete the digital key (Card Key) .........................................................5-13
Disabling digital key................................................................................................... 5-16
Personalized profile and vehicle settings................................................................. 5-16
Used Vehicle/Digital Key Maintenance .................................................................... 5-19
Limitations of the System.......................................................................................... 5-19
Door Locks ..................................................................................................................... 5-20 Operating Door Unlocks from Outside the Vehicle (Manual type) ........................ 5-20
Operating Door Unlocks from Outside the Vehicle (Electric type) ......................... 5-21
Operating Door Locks from Outside the Vehicle (Manual type) ............................ 5-22
Operating Door Locks from Outside the Vehicle (Electric type) ............................ 5-22
Operating Door Lock/Unlock from Inside the Vehicle ............................................ 5-25
Automatic Door Lock and Unlock Features ............................................................. 5-25
Child-Protector Rear Door Locks .............................................................................. 5-26
Theft-Alarm System ...................................................................................................... 5-27
Rear Occupant Alert (ROA) ........................................................................................... 5-28 System Setting ........................................................................................................... 5-28
System Operation ...................................................................................................... 5-28
Declaration of Conformity......................................................................................... 5-30
Integrated Memory System ..........................................................................................5-30 Storing Memory Positions ..........................................................................................5-31
Recalling Memory Positions.......................................................................................5-31
Resetting the System..................................................................................................5-31
Seat Easy Access ........................................................................................................ 5-32
Steering Wheel .............................................................................................................. 5-32 Motor Driven Power Steering (MDPS) ...................................................................... 5-32
Tilt/Telescopic Steering............................................................................................. 5-33
Horn ............................................................................................................................ 5-33
Heated Steering Wheel.............................................................................................. 5-34
Mirrors ............................................................................................................................ 5-35
Hyundai_CE_en_US.book Page 1

Convenience Features
5-30

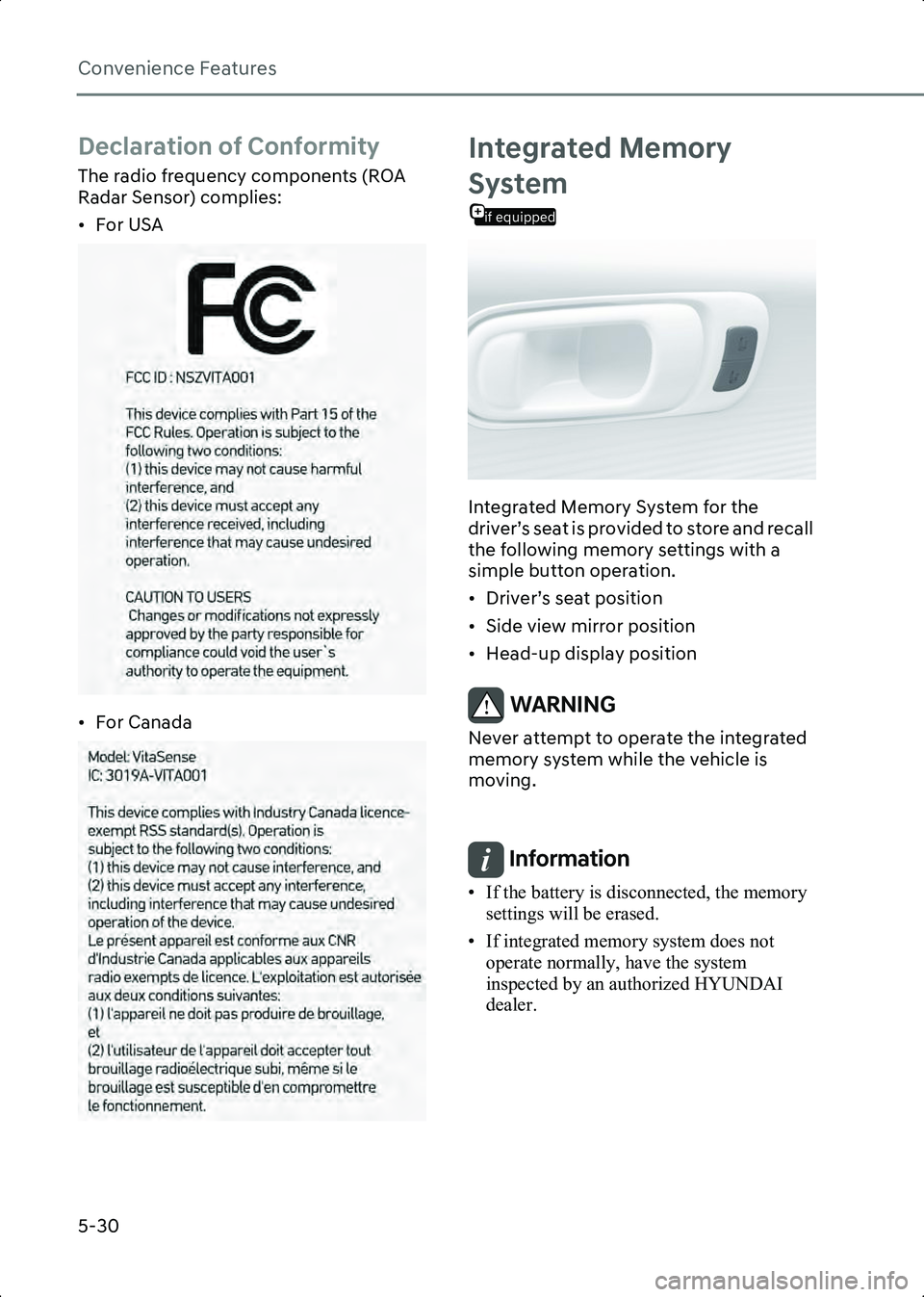

Declaration of Conformity
The radio frequency components (ROA
Radar Sensor) complies:
• For USA
OANATEL323
• For Canada
OANATEL324
Integrated Memory
if equipped
System
B5005201
Integrated Memory System for the
driver’s seat is provided to store and recall
the following memory settings with a
simple button operation.
• Driver’s seat position
• Side view mirror position
• Head-up display position
WARNING Never attempt to operate the integrated
memory system while the vehicle is
moving.

Information • If the battery is disconnected, the memory settings will be erased.
• If integrated memory system does not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.

Hyundai_CE_en_US.book Page 30

5
5-31
Storing Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, and head-up
display height to the desired position.
3. Hold the button (1 or 2). The system will beep once and notify you ‘Driver 1 (or 2)
settings saved’ will appear on the
infotainment system.
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then
the driver’s seat position, side view
mirror position, and head-up display
height will automatically adjust to the
stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the infotainment system.
Information • In order to adjust the memory button (2) while adjusting the memory button (1),
press the memory button (1) to pause the
adjustment of (1), then press memory
button (2).
• If you adjust the seat, side view mirror, head-up display while recalling the stored
positions, the manually adjusted settings
will be applied.

Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s door with the Start/Stop button in the ON position and the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the memory button 1 (or 2) and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3 km/h).
• The driver’s door is closed.
NOTICE
[ :KLOHLQWHJUDWHGPHPRU\V\VWHPLV EHLQJUHVHWLIWKHUHVHWWLQJDQG
QRWLILFDWLRQVRXQGVWRSVLQFRPSOHWHO\
UHVWDUWWKHUHVHWWLQJSURFHGXUHDJDLQ

[ 0DNHVXUHWKDWWKHUHLVQRREMHFWV DURXQGWKHGULYHU
TVVHDWLQDGYDQFHRI
UHVHWWLQJWKHLQWHJUDWHGPHPRU\
V\VWHP

[ $IWHUUHVHWWLQJWKHLQWHJUDWHGPHPRU\ V\VWHPWKHDGMXVWPHQWIRUWKHGULYHU
VHDWPXVWEHVWRUHGDJDLQWRUHFDOOWKH
PHPRU\SRVLWLRQ

Hyundai_CE_en_US.book Page 31

Maintenance
9-36
Instrument panel fuse panel
Fuse NameFuse RatingCircuit Protected
AFCU 10 A Driver/Passenger Door Outside Handle
EPCU3 10 A Rear Inverter
START 7.5 A IBU, VCU
IG3 8 10 AIn-car Temperature Sensor, A/C Control Module, A/C
PTC Heater, Instrument Cluster, CCU, AVNT Head Unit
MEMORY 2 10 A Instrument Cluster, ADAS Unit (Parking)
MULTIMEDIA 15 A AVNT Head Unit
AIRBAG2 10 A SRS Control Module
P/SEAT PASS 30 A Passenger Power Seat Switch, Passenger Seat Unit ADAS DRV 10 A Not Used
CLUSTER 7.5 A Instrument Cluster, Head-Up Display
MODULE5 10 A Data Link Connector, Electro Chromic Mirror, AVNT
Head Unit, IFS Unit, Wireless Charger Unit, Head Light LH/RH, AMP, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Passenger Seat Unit, Rear Seat Warmer
Control Module, ADP Unit (Acoustic Design Processor)
IG3 11 10 A Electronic A/C Compressor
IG3 9 10 A Rear Inverter, BMU
wireless DCU1 10 A Not Used
CCU 10 A CCU
MODULE1 10 A Data Link Connector, Hazard Switch, Multifunction
Switch, Rain Sensor, Driver Power Window Switch,
Dashboard Mood Light, A/C Control Module, Outside
Mirror Switch, UIP Sensor, UIP Siren, Power Trunk Unit, Driver/Passenger Door Mood Light #1/#2, Rear Door Mood Light LH/RH #1/#2
SBCM DRV 20 A Driver Side Body Control Module
S/HEATER FRT 25 A Front Air Ventilation Seat Control Module,Front Seat
Warmer Control Module
Hyundai_CE_en_US.book Page 36

9
9-37
MODULE4 10 AFront/Rear Corner Radar LH/RH, Rear Inverter
(System), Front View Camera, IBU, ADAS Unit
(Parking/Driving), Dashboard Switch, VESS Unit, Front Radar
AIRBAG1 15 A SRS Control Module
MODULE2 10 A ADP Unit (Acoustic Design Processor), AMP, IBU, CCU,
DCU, P/R Junction Block (RLY. 5), AVNT Head Unit, AVNT Keyboard, ADAS Unit (Parking), IAU (Identity Authentication Unit)
WASHER 15 A Multifunction Switch
MODULE6 7.5 A IBU
IG3 10 10 A SCU, Rear Electronic Oil Pump, VCMS, V2L Unit, ICCU
MEMORY1 10 A DCU, A/C Control Module, Head-Up Display, ADP Unit
(Acoustic Design Processor), Mood Lamp Unit
IAU 10 A IAU (Identity Authentication Unit)
IBU1 15 A IBU
AMP 30 A AMP
S/HEATER RR 20 A Rear Seat Warmer Control Module
A/BAG IND 7.5 A Overhead Console Assembly
E-SHIFTER3 10 A Electronic Shift Switch
RR USB
CHARGER 25 A
Console/Rear USB Charger Connector
MODULE7 7.5 A Rear Seat Warmer Control Module
A/CON 7.5 A A/C Control Module
MODULE8 15 A Driver IMS Module, Passenger Seat Unit
DOOR LOCK 20 A Door Lock/Unlock Relay, Dead Lock Relay
SBCM PASS 20 A Passenger Side Body Control Module
P/WINDOW LH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
Fuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 37

Index
I-6
Disabling digital key .................................................................................................................. 5-16
How to save/delete the digital key (Card Key) ........................................................................ 5-13
How To Save/Delete The Digital Key (Smartphone Key) ......................................................... 5-11
Limitations of the System ......................................................................................................... 5-19
Personalized profile and vehicle settings ................................................................................ 5-16
Used Vehicle/Digital Key Maintenance ................................................................................... 5-19
When user changes smartphone or deletes digital key application ...................................... 5-13
I
If the Vehicle Will Not Start ........................................................................................................ 8-3
Confirm the EV Battery is not Low on the Charge Gauge ....................................................... 8-3
If You Have a Flat Tire (with Tire Mobility Kit) ......................................................................... 8-12
Components of the Tire Mobility Kit ........................................................................................ 8-14
How to Adjust Tire Pressure ..................................................................................................... 8-17
Introduction ............................................................................................................................... 8-12
Notes on the Safe Use of the Tire Mobility Kit ........................................................................ 8-13
Using the Tire Mobility Kit When a Tire is Flat ......................................................................... 8-15
Important Safety Precautions ....................................................................................................3-2
Airbag Hazards ............................................................................................................................3-2
Always Wear Your Seat Belt ........................................................................................................3-2
Control Your Speed .....................................................................................................................3-2
Driver Distraction ........................................................................................................................3-2
Keep Your Vehicle In Safe Condition .........................................................................................3-2
Restrain All Children ....................................................................................................................3-2
In Case of an Emergency While Driving .................................................................................... 8-2
If the Vehicle Stalls at A Crossroad or Crossing ....................................................................... 8-2
If the Vehicle Stalls While Driving ............................................................................................. 8-2 If You Have a Flat Tire While Driving ......................................................................................... 8-2
Infotainment System ............................................................................................................... 5-107 Antenna ....................................................................................................................................5-108
Bluetooth® Wireless Technology ............................................................................................ 5-110
Infotainment System ...............................................................................................................5-109
Steering Wheel Remote Controls ...........................................................................................5-108
USB Port ................................................................................................................................... 5-107
Voice Recognition ...................................................................................................................5-109
Instrument Cluster ............................................................................................................... 4-1, 4-2
Cluster Display Messages ......................................................................................................... 4-16
Gauges and Meters .................................................................................................................... 4-3
Gear Shift Indicator .................................................................................................................... 4-5
Instrument Cluster Control ........................................................................................................ 4-3
Power/Charge Gauge ................................................................................................................. 4-3 State of Charge (SOC) Gauge for High Voltage Battery .......................................................... 4-4Warning and Indicator Lights .................................................................................................... 4-6
Integrated Memory System ..................................................................................................... 5-30
Recalling Memory Positions ..................................................................................................... 5-31
Resetting the System ................................................................................................................ 5-31
Seat Easy Access .......................................................................................................................5-32
Storing Memory Positions ......................................................................................................... 5-31
Intelligent Speed Limit Assist (ISLA) ....................................................................................... 7-49
Intelligent Speed Limit Assist Malfunction and Limitations ................................................... 7-52
Hyundai_CE_en_US.book Page 6
