2023 HYUNDAI IONIQ 6 torque

Introduction/Getting Started with Your Electric Vehicle
1-10
•Vehicle Control Unit (VCU) : Controls the various controllers and sensors on the
vehicle.
• Motor : Uses electricity accumulated on the high voltage battery to drive the vehicle
(same role as an engine in gasoline vehicles).
• Gear: Delivers the rotational force of the motor to the tires at appropriate speeds and
torque.
• High voltage battery (Lithium-ion battery) : Stores and supplies power necessary for
the electric vehicle to operate. (The separately installed 12 V battery provides power to
the vehicle when the vehicle is in ACC or OFF.)
WARNING • Do not remove or disassemble any high voltage battery’s connectors and wires. Doing so may lead to accidents, such as electric shock, and result in serious injury and
significantly degrade the vehicle’s performance and durability.
• When the high voltage battery or its related components require inspection and maintenance, contact an authorized HYUNDAI dealer.

Precautions When Using the High Voltage Battery
Precautions for high voltage battery when driving and storing the vehicle are as follows:
CAUTION • Keep the gauge of the high voltage battery from going below 10 %. Storing the vehicle while the battery level is too low for a long time may damage the battery or reduce the
battery’s capacity.
• If a collision occurs and the vehicle is impacted, have the vehicle inspected by an authorized HYUNDAI dealer and check the battery connection status.
• Using the V2L function may reduce the driving distance due to the use of high voltage battery energy, and repeated use of the V2L function may impact battery life.
• Frequent use of DC charging may impact battery life.

• The high voltage battery level may reduce naturally even if the vehicle is not driven.
• Storing the vehicle in temperatures that are too hot or cold may degrade the battery performance.
• The distance to empty or power output may vary depending on the driving conditions, such as the outside temperature. Driving on highway at high speeds or uphill will
increase battery consumption, resulting in a shorter distance to empty.
• If you use the air conditioner or heater, which is powered by the high voltage battery, the distance to empty will be reduced. Maintain reasonable temperature when using
the air conditioner or heater to maximize distance to empty.
• Depending on the vehicle’s period of use, natural degradation of the battery may occur that reduces distance to empty over long period of vehicle life. When the charge
Hyundai_CE_en_US.book Page 10

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-10

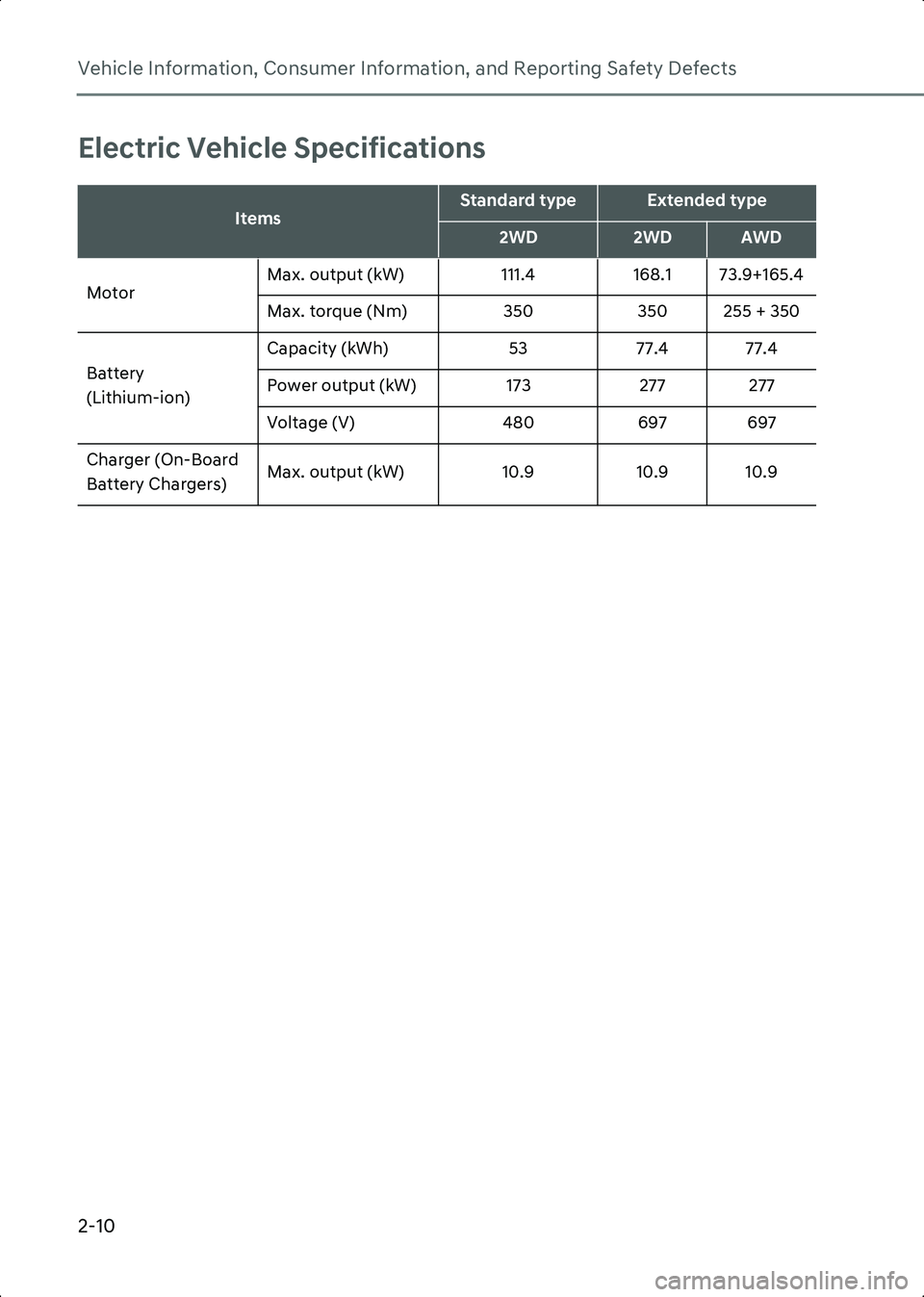

Electric Vehicle Specifications
ItemsStandard typeExtended type
2WD2WDAWD
Motor Max. output (kW)
111.4168.1 73.9+165.4
Max. torque (Nm) 350350 255 + 350
Battery
(Lithium-ion) Capacity (kWh)
5377.4 77.4
Power output (kW) 173 277 277
Voltage (V) 480697 697
Charger (On-Board
Battery Chargers) Max. output (kW)
10.910.9 10.9
Hyundai_CE_en_US.book Page 10

Vehicle Information, Consumer Information, and Reporting Safety Defects
2-12
Tires and Wheels
NOTICE • It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every 12 °F (7 °C)
temperature drop. If extreme temperature variations are expected, recheck your tire
pressure as necessary to keep them properly inflated.
• Tire inflation pressures may vary depending on changes in elevation. If driving in areas of higher or lower elevation, be sure to check and adjust for proper tire inflation.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).

CAUTION When replacing tires, ALWAYS use the same size, type, brand, construction and tread
pattern supplied with the vehicle. If not, it can damage the related parts or make it work
irregularly.

ItemsTire SizeWheel SizeBattery Type
Inflation Pressure psi (kPa)Wheel Lug
Nut Torque
lbf-ft (kgf-m, N-m)
Normal LoadMaximum Load
FrontRearFrontRear
Full Size Tire 225/55R18 7.5J X 18
2WD
Standard 38
(260) 38
(260) 38
(260) 38
(260)
79-94 (11-13, 108-127)
225/55R18 7.5J X 18
2WD
Extended 38
(260) 38
(260) 38
(260) 38
(260)
225/55R18 7.5J X 18 AWD
Extended 36
(250) 36
(250) 36
(250) 36
(250)
245/40R20 8.5J X 20 2WD
Extended 36
(250) 37
(255) 36
(250) 37
(255)
245/40R20 8.5J X 20 AWD
Extended 36
(250) 37
(255) 36
(250) 37
(255)
Hyundai_CE_en_US.book Page 12

6
6-33
NOTICE'ULYLQJZLWKZKHHOVDQGWLUHVZLWK
GLIIHUHQWVL]HVPD\FDXVHWKH(6&V\VWHP
WRPDOIXQFWLRQ%HIRUHUHSODFLQJWLUHV
PDNHVXUHDOOIRXUWLUHVDQGZKHHOVDUHWKH
VDPHVL]H1HYHUGULYHWKHYHKLFOHZLWK
GLIIHUHQWVL]HGZKHHOVDQGWLUHVLQVWDOOHG

ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow or mud, by temporarily stopping
operation of ESC, to maintain wheel
torque.
To turn ESC off while driving, press the
ESC OFF button while driving on a flat
road surface.
NOTICE7RSUHYHQWGDPDJHWRWKHJHDU

[ 'RQRWDOORZZKHHOV\fRIRQHD[OHWRVSLQH[FHVVLYHO\ZKLOHWKH(6&$%6
DQG3DUNLQJ%UDNHZDUQLQJOLJKWVDUH
GLVSOD\HG7KHUHSDLUVZRXOGQRWEH
FRYHUHGE\WKHYHKLFOHZDUUDQW\
5HGXFHPRWRUSRZHUDQGGRQRWVSLQ
WKHZKHHOV\fH[FHVVLYHO\ZKLOHWKHVH
OLJKWVDUHGLVSOD\HG

[ :KHQRSHUDWLQJWKHYHKLFOHRQD G\QDPRPHWHUPDNHVXUH(6&LVWXUQHG
RII(6&2))OLJKWLOOXPLQDWHG\f

Information • Turning ESC off does not affect ABS or standard brake system operation.
• Select 0 step of the regenerative braking system and depress the brake pedal around
10 times to efficiently apply brake disc
cleaning.
Brake disc cleaning may decrease the
driving distance by restraining the regenerative braking system. After brake
disc cleaning, the regenerative braking
system may be restored.
If the regenerative braking system is not
restored after the brake disc cleaning, have
the vehicle inspected by an authorized
HYUNDAI dealer.

Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when accelerating or braking
suddenly on wet, slippery and rough
roads where traction over the four tires
can suddenly become uneven.
WARNING Take the following precautions when
using Vehicle Stability Management:
• ALWAYS check the speed and the distance to the vehicle ahead. VSM is
not a substitute for safe driving
practices.
• Never drive too fast for the road conditions. VSM will not prevent
accidents. Excessive speed in bad
weather, on slippery and uneven roads
can result in severe accidents.

VSM operation
When operating
When you apply your brakes under
conditions which may activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Hyundai_CE_en_US.book Page 33

Driving Your Vehicle
6-40
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by controlling
motors and gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/
Minimized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Hyundai_CE_en_US.book Page 40

6
6-41
Drive mode Integrated
if equipped
Control System (AWD)
Drive Mode
B6009701
Drive mode may be selected according to
the driver's preference or road condition.
B6009702
The mode changes whenever the driver
pushes the DRIVE mode button.
NORMAL mode
Normal mode is a driving that provides
comfortable driving with normal motor
response. The vehicle is driven mainly
with the rear wheels (2WD), and
automatically converts to AWD according
to the road and driving conditions.
ECO mode
ECO mode is a driving mode vehicles
could change the engagement status of the motor according to the situation
required. Auto changing the driving
mode(2WD/AWD)helps improve energy
efficiency.
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO
indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
- The shift pattern of the gear may change.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by fixing AWD
system and controlling gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
)PME
Hyundai_CE_en_US.book Page 41

9
9-11
Explanation of Scheduled
Maintenance Items
Cooling System
Check cooling system components, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Gear Fluid
The gear fluid should be inspected and
replaced according to the intervals
specified in the maintenance schedule.
Brake Hoses and Lines
Visually check for proper installation,
chafing, cracks, deterioration and any
leakage. Replace any deteriorated or
damaged parts immediately.
Brake Fluid
Check the brake fluid level in the brake
fluid reservoir. The level should be
between the MIN and the MAX marks on
the side of the reservoir. Use only
hydraulic brake fluid conforming to DOT 4
specification.
Brake Discs, Pads, Calipers
and Rotors
Check the pads, the discs, and the rotors
for any excessive wear-out. Inspect
calipers for any fluid leakage.
Suspension Mounting Bolts
Check the suspension connections for
looseness or damage. Retighten to the
specified torque.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
With the vehicle stopped and the vehicle
off, check for excessive free-play in the
steering wheel. Check the linkage for
bends or damage. Check the dust boots
and ball joints for deterioration, cracks, or
damage.
Replace any damaged parts.
Drive Shafts and Boots
Check the drive shafts, boots and clamps
for cracks, deterioration, or damage.
Replace any damaged parts and, if
necessary, repack the grease.
Air Conditioning Refrigerant
Check the air conditioning lines and
connections for leakage and damage.
Hyundai_CE_en_US.book Page 11

Maintenance
9-22

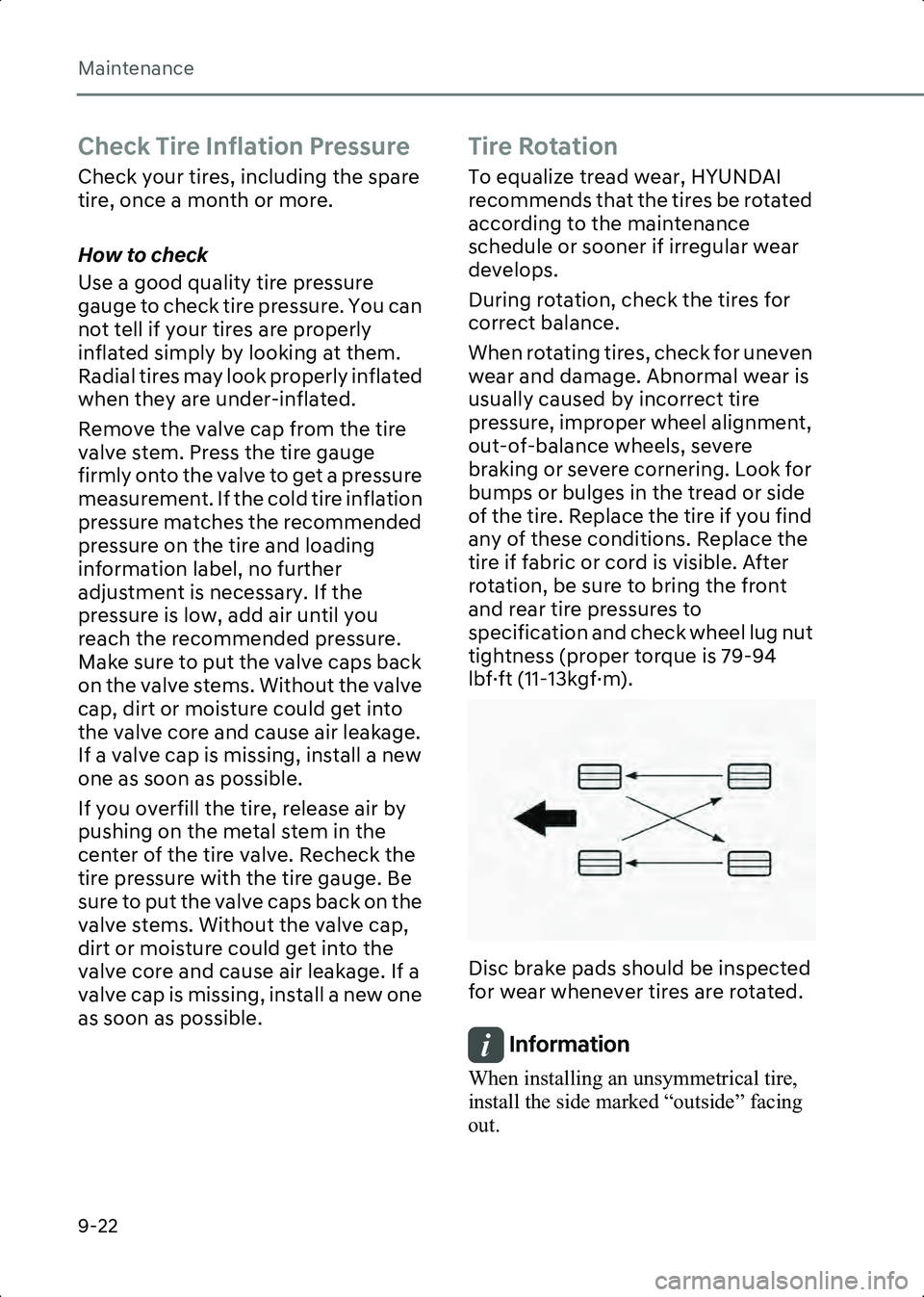

Check Tire Inflation Pressure
Check your tires, including the spare
tire, once a month or more.
How to check
Use a good quality tire pressure
gauge to check tire pressure. You can
not tell if your tires are properly
inflated simply by looking at them.
Radial tires may look properly inflated
when they are under-inflated.
Remove the valve cap from the tire
valve stem. Press the tire gauge
firmly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
pressure on the tire and loading
information label, no further
adjustment is necessary. If the
pressure is low, add air until you
reach the recommended pressure.
Make sure to put the valve caps back
on the valve stems. Without the valve
cap, dirt or moisture could get into
the valve core and cause air leakage.
If a valve cap is missing, install a new
one as soon as possible.
If you overfill the tire, release air by
pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
sure to put the valve caps back on the
valve stems. Without the valve cap,
dirt or moisture could get into the
valve core and cause air leakage. If a
valve cap is missing, install a new one
as soon as possible.
Tire Rotation
To equalize tread wear, HYUNDAI
recommends that the tires be rotated
according to the maintenance
schedule or sooner if irregular wear
develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire
pressure, improper wheel alignment,
out-of-balance wheels, severe
braking or severe cornering. Look for
bumps or bulges in the tread or side
of the tire. Replace the tire if you find
any of these conditions. Replace the
tire if fabric or cord is visible. After
rotation, be sure to bring the front
and rear tire pressures to
specification and check wheel lug nut
tightness (proper torque is 79-94
lbf·ft (11-13kgf·m).
B9005001
Disc brake pads should be inspected
for wear whenever tires are rotated.
Information When installing an unsymmetrical tire,
install the side marked “outside” facing
out.

Hyundai_CE_en_US.book Page 22
