2023 HYUNDAI IONIQ 6 battery location

1
1-7

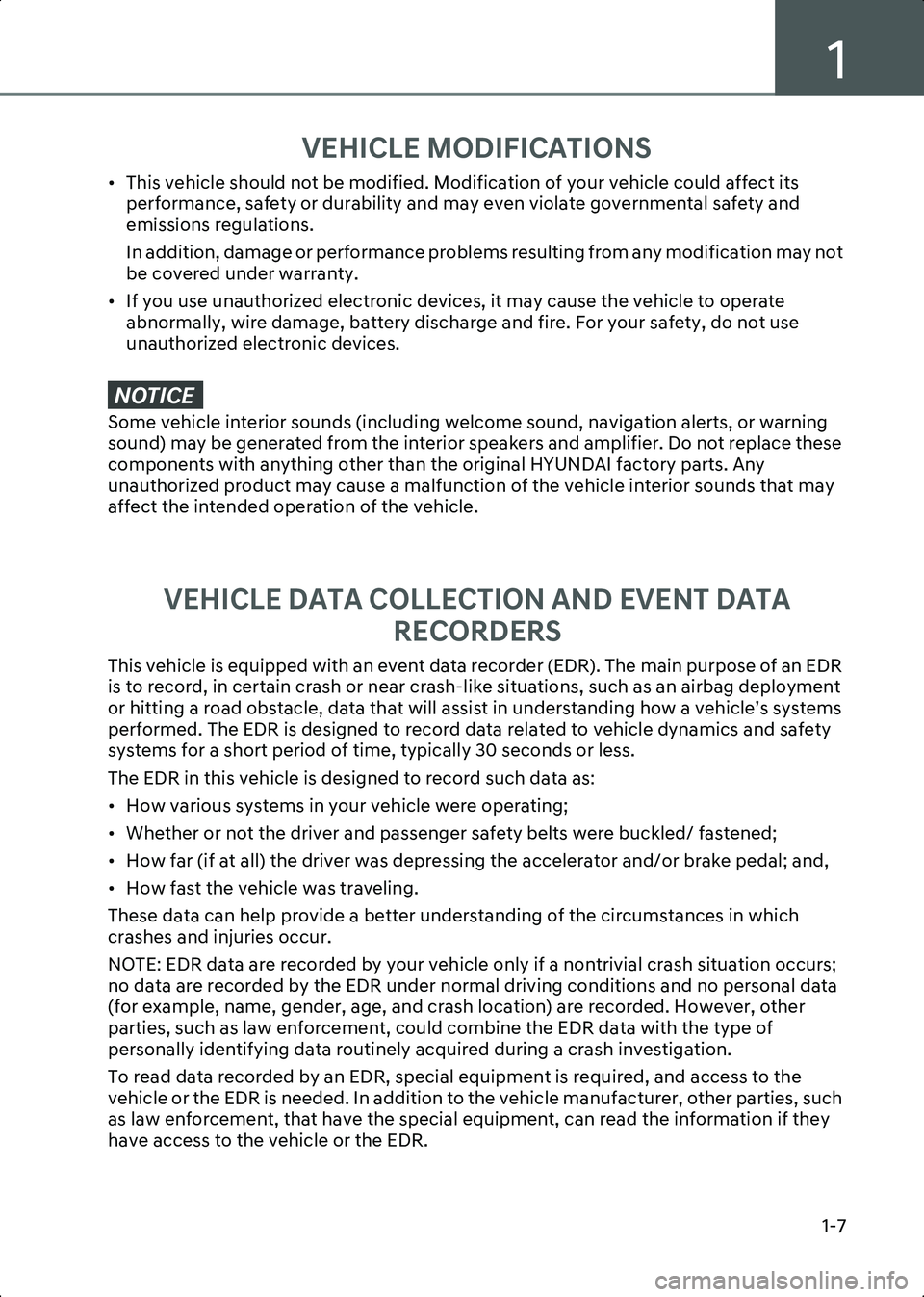

VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may not
be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE6RPHYHKLFOHLQWHULRUVRXQGVLQFOXGLQJZHOFRPHVRXQGQDYLJDWLRQDOHUWVRUZDUQLQJ
VRXQG\fPD\EHJHQHUDWHGIURPWKHLQWHULRUVSHDNHUVDQGDPSOLILHU'RQRWUHSODFHWKHVH
FRPSRQHQWVZLWKDQ\WKLQJRWKHUWKDQWKHRULJLQDO+<81'$,IDFWRU\SDUWV$Q\
XQDXWKRUL]HGSURGXFWPD\FDXVHDPDOIXQFWLRQRIWKHYHKLFOHLQWHULRUVRXQGVWKDWPD\
DIIHFWWKHLQWHQGHGRSHUDWLRQRIWKHYHKLFOH

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an airbag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/ fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situation occurs;
no data are recorded by the EDR under normal driving conditions and no personal data
(for example, name, gender, age, and crash location) are recorded. However, other
parties, such as law enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such
as law enforcement, that have the special equipment, can read the information if they
have access to the vehicle or the EDR.
Hyundai_CE_en_US.book Page 7

1
1-65
Countermeasures for Accidents or Fire
When an accident occurs while driving the electric vehicle, turn on the Hazard warning
light, move the vehicle to a safe place, and take following measures.
WARNING When a vehicle accident occurs and the high voltage battery is damaged, harmful gas
and electrolytes may leak.
• Be careful not to touch the leaked liquid.
• When you suspect leakage of inflammable gas and other harmful gases, open the windows and immediately evacuate to a safe location.
• If any leaked fluid comes in contact with your eyes or skin, immediately clean the affected area thoroughly with tap water or saline solution and have doctors inspect it
as soon as possible.

Turning Off the High Voltage Battery
In case disconnecting the high voltage cut-off switch is required in an emergency, follow
the instructions below.
WARNING • Do not intentionally disconnect the high voltage cut-off switch except in an emergency. The vehicle will not start if the high voltage battery is disconnected. Also,
when the switch is disconnected, dangerous accidents, such as electric shock, may
occur and various electric devices may be damaged.
• Do not touch any components inside the motor compartment with wet hands.
• Do not touch any components except for the components instructed to operate in this manual for a specific task.
• Do not touch wires exposed inside or outside the vehicle.
• Do not touch the high voltage electric wire (orange), connector, and all electric components and devices.

1. Open the hood and open the high voltage cut-off switch box on the right side of the motor compartment.
2. Pull the yellow label in the high voltage cut-off switch to shut down high voltage battery.
CAUTION Do not put excessive force to the switch lever while shutting down the high voltage
battery. Doing so may damage the high voltage cut-off switch.

Hyundai_CE_en_US.book Page 65

5
5-59
B5011702
•Inside the vehicle
Follow the below procedure to open
the power trunk manually when the
battery is discharged or when there is a
problem with the vehicle:
1. Remove the cable cover (1) under the
rear seat using a mechanical key.
2. Pull the cable loop (2) all the way out. The power trunk unlocks.
3. Push the trunk lid to open.
WARNING • You and your passengers must be aware of the location of the Emergency
Trunk Safety Release lever in this
vehicle and how to open the trunk in
case you are accidentally locked in the
trunk.
• NEVER allow anyone to occupy the trunk of the vehicle at any time.
• Use the release lever for emergencies only.

NOTICE%HFDUHIXOQRWWRVFUDWFKRUORVHWKHFRYHU
ZKHQUHPRYLQJLW

Information The cable is firmly fixed so it may hard to pull.
Therefore, please use a tool such as a
screwdriver to assist in pulling the loop for the
emergency release.

Hyundai_CE_en_US.book Page 59

Driver Assistance System
7-132
2. Remotely moving forward and
backward
B7008812
1. Press and hold one of the Forward ( ) or Backward ( ) button on the smart
key.
• Remote Smart Parking Assist will automatically control the steering
wheel, vehicle speed and gearshift.
The vehicle will move in the direction
of the button pressed.
• While Remote Operation function is operating, if the you let the button,
the vehicle will stop and function
control will pause. The function will
start operating again when the
button is pressed and held again.
2. Hold down the Forward ( ) or Backward ( ) button until the vehicle
reaches the target location.
3. When Remote Operation is done, get in the vehicle with the smart key or press
the Remote Start ( ) button on the
smart key from outside the vehicle.
• The message will appear on the infotainment system. The vehicle will
automatically shift to P (Park) and
engage the parking brake.
• When the Remote Start ( ) button is pressed, the vehicle will turn off. If
the driver is in the vehicle, the vehicle
will retain ON position.
Information • Remote Operation can control the vehicle remotely using the smart key outside the
vehicle.
• Check that all smart keys are outside the vehicle when using Remote Operation
function.
• Remote Operation function will operate only when the smart key is within 13 ft. (4
m) from the vehicle. If there is no vehicle
movement even when the Forward or
Backward button is pressed on the smart
key, check the distance to the vehicle and
press the button again.
• The detecting range of the smart key may vary depending on the surroundings that are
affected by radio waves such as
transmission tower, broadcast station, etc.
• When remotely moving forward using Method 1, it is recognized as an exit
situation, and the vehicle moves 13 ft. (4 m)
to check for parking lines, pedestrians,
animals or objects around the vehicle. After
confirmation, the steering wheel is
controlled according to the condition ahead.
• When remotely moving forward using Method 2, it is recognized as a parking
situation, and will immediately control the
steering wheel according to the condition
ahead to assist with entering the parking
space and aligning the vehicle. However,
performance may reduce depending on the
parking lines, pedestrians, animals, shape
of objects, location, etc., around the vehicle.
• For moving remotely backward, both Method 1 and 2 aligns the steering wheel
first, and then will only move the vehicle
straight.

WARNING • When using Remote Operation function, make sure that all passengers
have gotten out of the vehicle.
• If the vehicle’s battery is discharged or Remote Smart Parking Assist
Hyundai_CE_en_US.book Page 132
