2023 HYUNDAI IONIQ 6 jump cable

Driving Your Vehicle
6-48
Winter Driving
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially very
hazardous practices. Sudden brake
applications on snowy or icy roads may
cause the vehicle to skid.
To drive your vehicle in deep snow, it may
be necessary to install tire chains on your
tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains, a
flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.

If you mount snow tires on your vehicle,
make sure to use radial tires of the same
size and load range as the original tires.
Mount snow tires on all four wheels to
balance your vehicle’s handling in all
weather conditions. The traction
provided by snow tires on dry roads may
not be as high as your vehicle’s original
equipment tires. Check with the tire dealer for maximum speed
recommendations.
Information Do not install studded tires without first
checking local and municipal regulations for
possible restrictions against their use.

Summer tires
• Summer tires are used to maximize the
driving performance on dry roads.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, the summer tires lose their brake
performance and traction as the tire
grip weakens significantly.
• If the temperature is below 45 °F (7 °C) or you are driving on snowy or icy
roads, mount snow tires or all-season
tires of the same size with your
vehicle’s standard tire for safe driving.
Both snow and all-season tires have
M+S markings.
• When using the M+S tires, use tires with the same tread produced by the same
manufacturer for safe driving.
• When driving with the M+S tires with the lower maximum allowable speed
than that of the vehicle’s standard
summer tire, be careful not to exceed
the speed allowed for the M+S tires.
Hyundai_CE_en_US.book Page 48

6
6-51
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be inspected
by an authorized HYUNDAI dealer or in a
service station.
To prevent locks from freezing
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes, try
to thaw it with a heated key. Carefully use
the heated key to avoid an injury.
Use approved window washer anti-freeze
solution
Add authorized window washer
anti-freeze solution, as specified on the
window washer container. Window
washer anti-freeze solution is available
from an authorized HYUNDAI dealer, and
most vehicle accessory outlets. Do not
use coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Do not let your parking brake freeze
Under some conditions, your parking
brake may freeze in the engaged position.
This is most likely to happen when there is
an accumulation of snow or ice around or
near the rear brakes or the brakes are wet.
When there is the risk that your parking
brake may freeze: temporarily apply the
parking brake with the gear in P (Park),
then block the rear wheels, and then
release the parking brake.Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
may build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, check underneath the vehicle on a
regular basis, to make sure that the front
wheels and the steering components are
not blocked.
Carry emergency equipment
In accordance with weather conditions,
carry appropriate emergency equipment,
while driving. Some of the items you may
want to carry include tire chains, tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables,
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials in the
motor compartment
Putting objects or materials in the motor
compartment may cause a motor failure.
Such damage is not be covered by the
manufacturer’s warranty.
Hyundai_CE_en_US.book Page 51

Emergency Situations
8-4

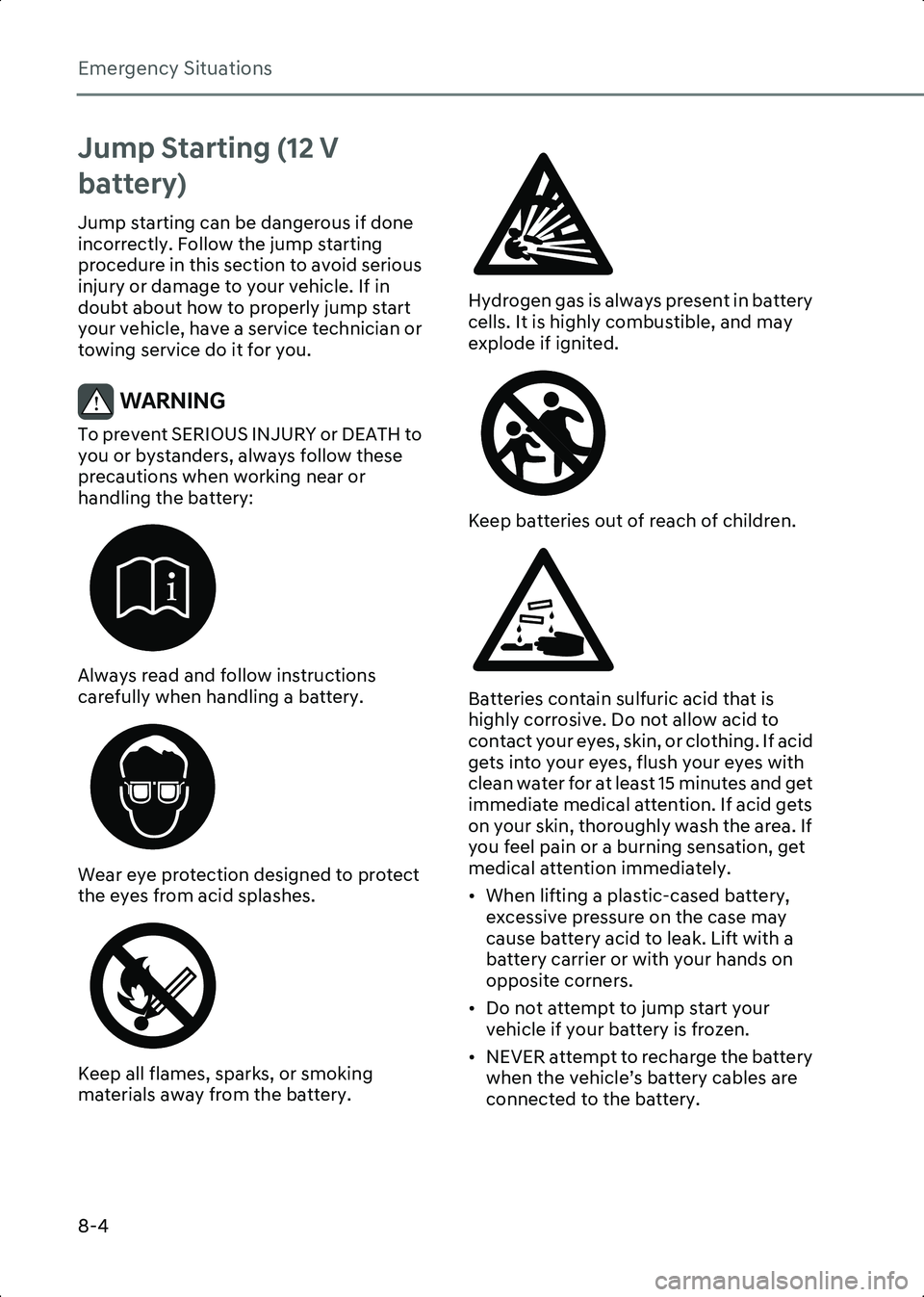

Jump Starting (12 V
battery)
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, have a service technician or
towing service do it for you.
WARNING To prevent SERIOUS INJURY or DEATH to
you or bystanders, always follow these
precautions when working near or
handling the battery:
Always read and follow instructions
carefully when handling a battery.
Wear eye protection designed to protect
the eyes from acid splashes.
Keep all flames, sparks, or smoking
materials away from the battery.Hydrogen gas is always present in battery
cells. It is highly combustible, and may
explode if ignited.
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing. If acid
gets into your eyes, flush your eyes with
clean water for at least 15 minutes and get
immediate medical attention. If acid gets
on your skin, thoroughly wash the area. If
you feel pain or a burning sensation, get
medical attention immediately.
• When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
Hyundai_CE_en_US.book Page 4

8
8-5
• The electrical ignition system works with high voltage.
NEVER touch these components with
the vehicle running or when the
Start/Stop button is in the ON position.
• The electrical ignition system works with high voltage. NEVER touch these
components Start/Stop button in the
ON or START position.
• Do not allow the (+) and (-) jumper cables to touch. It may cause sparks.
• The battery may rupture or explode when you jump start with a low or
frozen battery.
• Do not directly connect the (-) to the jump cable. Connect the (-) to the one
of the metallic parts located far from
the jump cable in the vehicle. The direct
(-) connection to the jump cable may
cause an explosion.

Jump starting procedure
Information When you jump start your vehicle, use the
jumper terminal in the motor compartment.

1. Position the vehicles close enough that the jumper cables will reach. Do not
allow the vehicle body parts to contact.
2. Avoid fans or any moving parts in the motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning, etc. Put
the vehicles in P (Park) and apply the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located inside of the front trunk.
6. Remove the motor compartment fuse box cover.
CAUTION Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.

B8001501
7. Connect the jumper cables in the exact sequence shown in the illustration. First
connect one jumper cable to the red,
positive (+) jumper terminal of your
vehicle (1).
8. Connect the other end of the jumper cable to the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
9. Connect the second jumper cable to the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10.Connect the other end of the second jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING Do not connect the jumper cable to the
negative (-) jumper terminal of the
discharged battery. A spark could
cause the battery to explode and lead
to a personal injury or vehicle damage.

1
4
2
3














Hyundai_CE_en_US.book Page 5

Emergency Situations
8-6

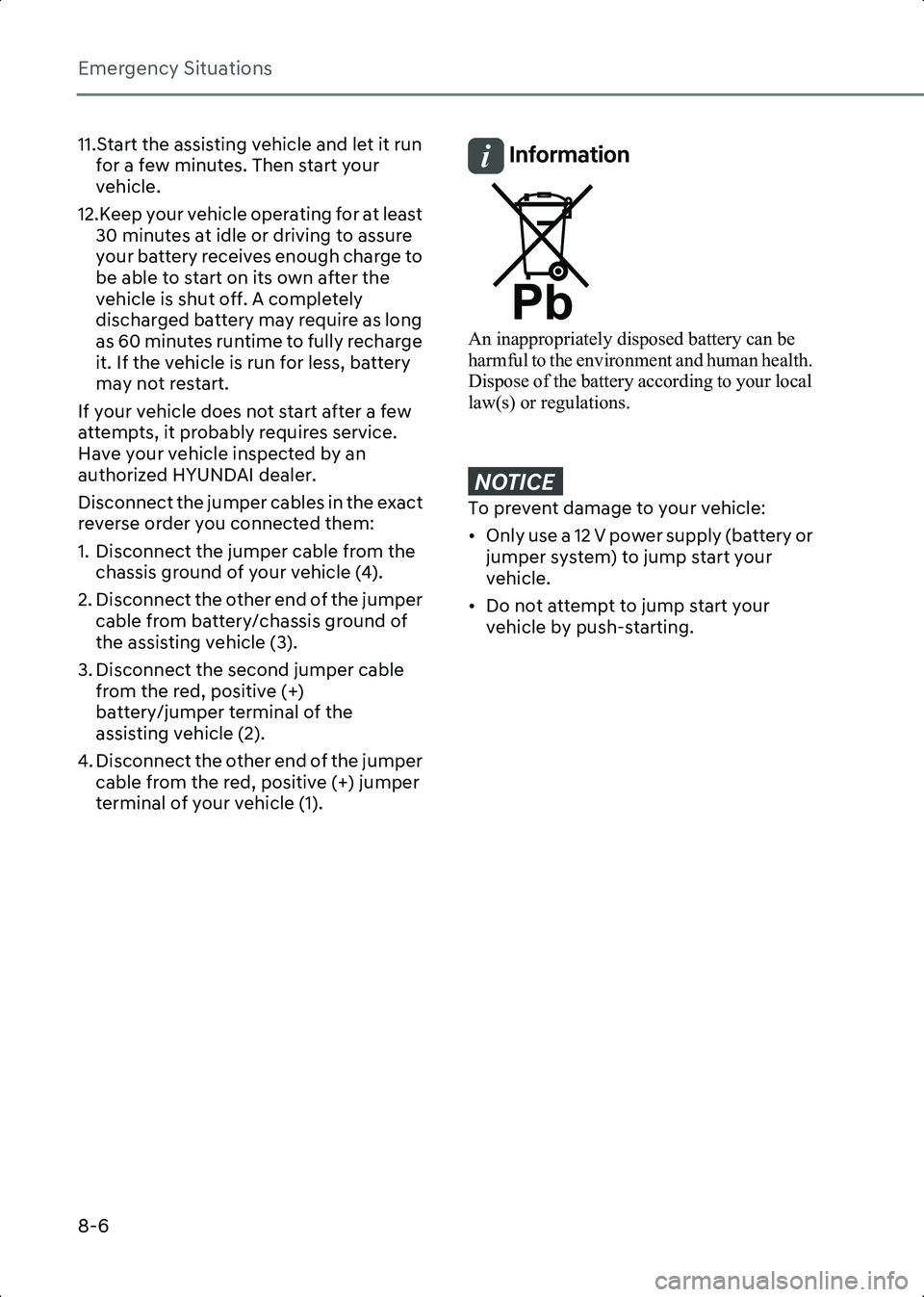

11.Start the assisting vehicle and let it run for a few minutes. Then start your
vehicle.
12.Keep your vehicle operating for at least 30 minutes at idle or driving to assure
your battery receives enough charge to
be able to start on its own after the
vehicle is shut off. A completely
discharged battery may require as long
as 60 minutes runtime to fully recharge
it. If the vehicle is run for less, battery
may not restart.
If your vehicle does not start after a few
attempts, it probably requires service.
Have your vehicle inspected by an
authorized HYUNDAI dealer.
Disconnect the jumper cables in the exact
reverse order you connected them:
1. Disconnect the jumper cable from the chassis ground of your vehicle (4).
2. Disconnect the other end of the jumper cable from battery/chassis ground of
the assisting vehicle (3).
3. Disconnect the second jumper cable from the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).
4. Disconnect the other end of the jumper cable from the red, positive (+) jumper
terminal of your vehicle (1).Information
An inappropriately disposed battery can be
harmful to the environment and human health.
Dispose of the battery according to your local
law(s) or regulations.

NOTICE7RSUHYHQWGDPDJHWR\RXUYHKLFOH

[ 2QO\XVHD9SRZHUVXSSO\EDWWHU\RUMXPSHUV\VWHP\fWRMXPSVWDUW\RXU
YHKLFOH

[ 'RQRWDWWHPSWWRMXPSVWDUW\RXU YHKLFOHE\SXVKVWDUWLQJ

Hyundai_CE_en_US.book Page 6

Maintenance
9-18
Keep batteries out of reach of children.
Batteries contain sulfuric acid that is
highly corrosive. Do not allow acid to
contact your eyes, skin, or clothing.
If acid gets into your eyes, flush your eyes
with clean water for at least 15 minutes
and get immediate medical attention. If
acid gets on your skin, thoroughly wash
the area. If you feel pain or a burning
sensation, get medical attention
immediately.
• Lift a battery with a battery carrier or with your hands on opposite corners.
When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak.
• Do not attempt to jump start your vehicle if your battery is frozen.
• NEVER attempt to recharge the battery when the vehicle’s battery cables are
connected to the battery.
• The electrical ignition switch works with high voltage. NEVER touch these
components with the Start/Stop button
in the ON or START position.

WARNING CALIFORNIA PROPOSITION 65 WARNING
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer, birth
defects and reproductive harm. Batteries
also contain other chemicals known to
the State of California to cause cancer.
Wash hands after handling.

NOTICE7RSUHYHQWEDWWHU\GDPDJH

[ :KHQ\RXGRQRWXVHWKHYHKLFOHIRUD
ORQJWLPHLQDORZWHPSHUDWXUHDUHD
GLVFRQQHFWWKHEDWWHU\DQGNHHSLW
LQGRRUV

[ $OZD\VIXOO\FKDUJHWKHEDWWHU\WR SUHYHQWEDWWHU\FDVHGDPDJHLQORZ
WHPSHUDWXUHDUHDV

[ 3UHYHQWOLTXLGIURPZHWWLQJWKHEDWWHU\ WHUPLQDOV

[ 'RQRWWLOWWKHEDWWHU\

[ 1HYHUFRQQHFWXQDXWKRUL]HGGHYLFHVWR WKHEDWWHU\

For Best Battery Service
B9004101
• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections clean, tight, and coated with petroleum
jelly or terminal grease.
• Rinse any spilled electrolyte from the battery immediately with a solution of
water and baking soda.
Hyundai_CE_en_US.book Page 18

9
9-19
• If the vehicle is not going to be used for an extended time, disconnect the
battery cables.
Battery Capacity Label
OLMB073072
Information The actual battery label in the vehicle may
differ from the illustration.

1. CMF60L-DIN(12 v): The HYUNDAI model name of battery
2. 60Ah (20 HR): The nominal capacity (in Ampere hours)
3. 550 A: The cold-test current in amperes by SAE / EN
4. RC 92 min: The nominal reserve capacity (in minutes)
Battery Recharging
By battery charger
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged over a short time (because, for example, the
headlights or interior lights were left on
while the vehicle was not in use),
recharge it by slow charging (trickle) for
10 hours.
• If the battery gradually discharges because of high electrical load while the vehicle is being used, recharge it at
20-30 A for two hours.
WARNING Always follow these instructions when
recharging your vehicle’s battery to avoid
the risk of SERIOUS INJURY or DEATH
from explosions or acid burns:
• Before performing maintenance or
recharging the battery, turn off all
accessories and stop the vehicle.
• Keep all flames, sparks, or smoking materials away from the battery.
• Always work outdoors or in an area with plenty of ventilation.
• Wear eye protection when checking the battery during charging.
• The battery must be removed from the vehicle and placed in a well ventilated
area.
• Watch the battery during charging, and stop or reduce the charging rate if the
battery cells begin boiling violently.
• Remove the negative battery cable first and install it last when the battery is
disconnected. Disconnect the battery
charger in the following order:
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal.

By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may not
restart if you shut it off before the battery
had a chance to adequately recharge. For
more information, refer to the
“JumpStarting” section in chapter 8 for
more information on jump starting
procedures.
Hyundai_CE_en_US.book Page 19
