2023 HYUNDAI IONIQ 6 washer fluid
[x] Cancel search: washer fluidPage 82 of 582
Vehicle Information, Consumer Information, and Reporting Safety Defects
2-8
Motor Compartment Overview
A1000901The actual motor compartment in the vehicle may differ from the illustration.
(1) Coolant reservoir .......................................................................................................9-12
(2) Windshield washer fluid reservoir........................................................................... 9-14
(3) Brake fluid reservoir ................................................................................................. 9-13
(4) Fuse box.................................................................................................................... 9-33
(5) Battery (12 V)............................................................................................................. 9-18
(6) Front trunk ................................................................................................................ 5-54
(7) Cabin air filter ........................................................................................................... 9-14
Hyundai_CE_en_US.book Page 8

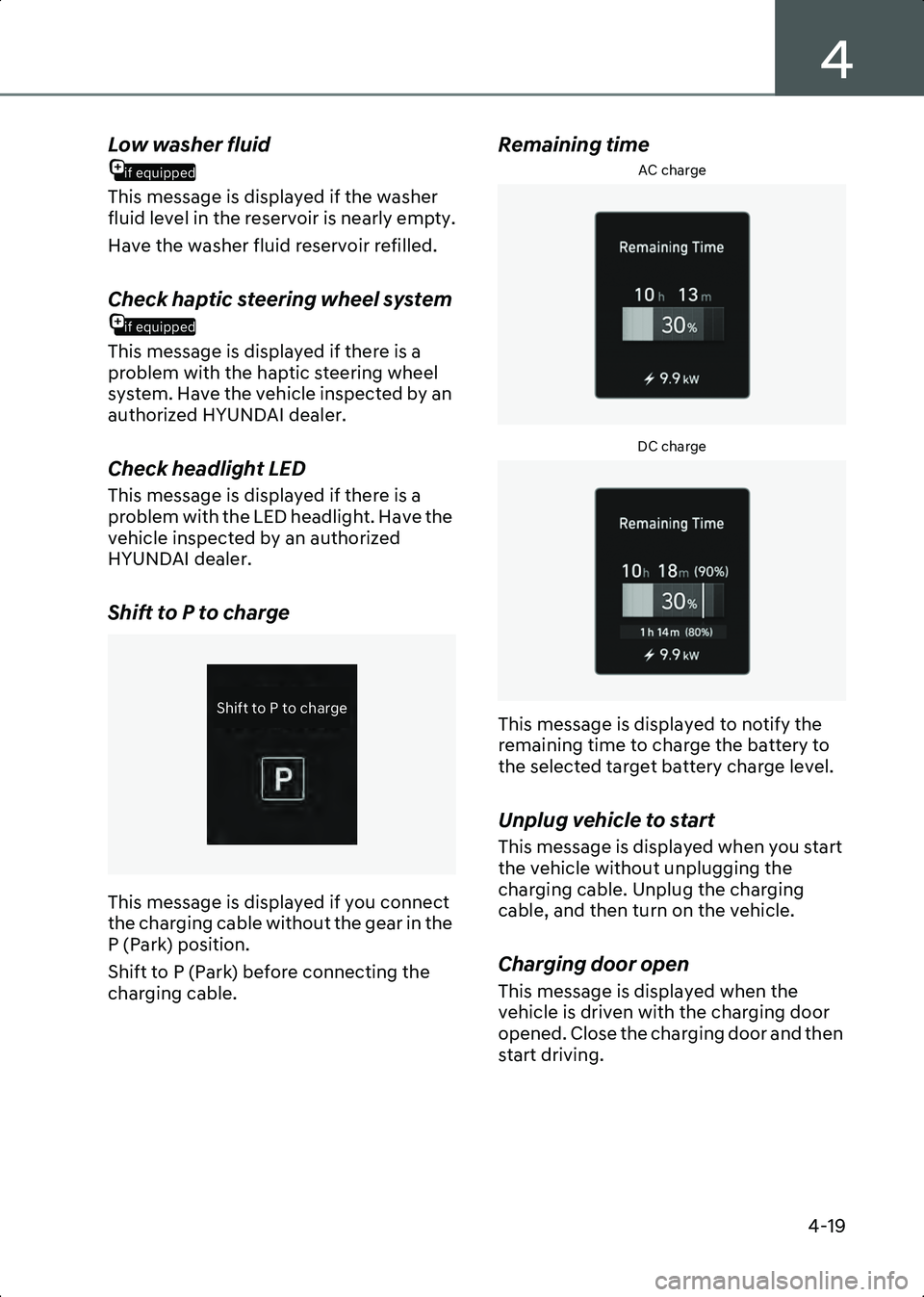

Page 169 of 582
4
4-19
if equipped
Low washer fluid
This message is displayed if the washer
fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.
if equipped
Check haptic steering wheel system
This message is displayed if there is a
problem with the haptic steering wheel
system. Have the vehicle inspected by an
authorized HYUNDAI dealer.
Check headlight LED
This message is displayed if there is a
problem with the LED headlight. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
Shift to P to charge
OOSEV040497L
This message is displayed if you connect
the charging cable without the gear in the
P (Park) position.
Shift to P (Park) before connecting the
charging cable.
Remaining time
AC charge
ONE1Q011058EDC charge
ONE1Q011059E
This message is displayed to notify the
remaining time to charge the battery to
the selected target battery charge level.
Unplug vehicle to start
This message is displayed when you start
the vehicle without unplugging the
charging cable. Unplug the charging
cable, and then turn on the vehicle.
Charging door open
This message is displayed when the
vehicle is driven with the charging door
opened. Close the charging door and then
start driving.
4 I J G U U P 1 U P D I B S H F
Hyundai_CE_en_US.book Page 19
Page 181 of 582
5
5. Convenience Features
Front lamps.................................................................................................................. 5-71
Rear lamps ................................................................................................................... 5-71
Vanity Mirror Lamp .................................................................................................... 5-72
Glove Box Lamp ......................................................................................................... 5-72
Mood Lamp ................................................................................................................ 5-72
Front Trunk Lamp....................................................................................................... 5-73
High Beam Assist (HBA) ................................................................................................ 5-74 High Beam Assist Settings ........................................................................................ 5-74
High Beam Assist Operation ..................................................................................... 5-74
High Beam Assist Malfunction and Limitations ....................................................... 5-75
Wipers and Washers ...................................................................................................... 5-77 Front Windshield Wipers ........................................................................................... 5-77
Front Windshield Washers ........................................................................................ 5-78
Automatic Climate Control System..............................................................................5-80 Climate........................................................................................................................ 5-82
Automatic Temperature Control Mode .................................................................... 5-82
Manual Temperature Control Mode ......................................................................... 5-83
System Operation ...................................................................................................... 5-91
System Maintenance ................................................................................................. 5-92
Windshield Defrosting and Defogging.........................................................................5-94 To Defog Inside Windshield ......................................................................................5-94To Defrost Outside Windshield .................................................................................5-94
Defogging Logic......................................................................................................... 5-95
Rear Window Defroster ............................................................................................. 5-95
Climate Control Additional Features ............................................................................5-96 A/C Automatic Drying................................................................................................5-96
Auto Defogging System ............................................................................................5-96
Auto Dehumidify ........................................................................................................ 5-97
Sunroof Inside Air recirculation ................................................................................5-98
Recirculating Air When Washer Fluid Is Used..........................................................5-98
Recirculation Mode Plus............................................................................................5-98
Automatic Controls Linked to Climate Control Settings (for driver’s seat) ...........5-99
Smart Ventilation .......................................................................................................5-99
Storage Compartment ................................................................................................ 5-100 Center Console Storage .......................................................................................... 5-100
Glove Box.................................................................................................................. 5-100
Hyundai_CE_en_US.book Page 3
Page 256 of 582
Convenience Features
5-78
If the wiper switch is set in AUTO mode
when the Start/Stop button is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WARNING To avoid personal injury from the
windshield wipers, when the vehicle is
running and the windshield wiper switch
is placed in the AUTO mode:
• Do not touch the upper end of the windshield glass facing the rain sensor.
• Do not wipe the upper end of the windshield glass with a damp or wet
cloth.
• Do not put pressure on the windshield glass.
NOTICE [ : K H Q Z D V K L Q J W K H Y H K L F O H V H W W K H Z L S H U V Z L W F K L Q W K H 2 ) ) S R V L W L R Q W R V W R S
W K H D X W R Z L S H U R S H U D W L R Q 7 K H Z L S H U
P D \ R S H U D W H D Q G E H G D P D J H G L I W K H
V Z L W F K L V V H W L Q W K H $ 8 7 2 P R G H Z K L O H
Z D V K L Q J W K H Y H K L F O H
[ ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G R Q W K H X S S H U H Q G R I W K H
S D V V H Q J H U V L G H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P F R P S R Q H Q W V F R X O G
R F F X U D Q G P D \ Q R W E H F R Y H U H G E \ \ R X U
Y H K L F O H Z D U U D Q W \
[ % H F D X V H R I X V L Q J D S K R W R V H Q V R U W H P S R U D U \ P D O I X Q F W L R Q F R X O G R F F X U
D F F R U G L Q J W R V X G G H Q D P E L H Q W O L J K W
F K D Q J H P D G H E \ V W R Q H D Q G G X V W Z K L O H
G U L Y L Q J
Front Windshield Washers
B5019701
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation will
continue until you release the lever. If the
washer does not work, you may need to
add washer fluid to the washer fluid
reservoir.
Recirculating air when washer fluid
is used
When washer fluid is used, in order to
reduce any objectionable scent of the
washer fluid from entering the cabin,
recirculation mode and air conditioning
are automatically activated depending on
the outside temperature. If you select
fresh mode while the function is
operating, the function will resume after a
certain amount of time. It may not work in
some conditions such as cold weather or
vehicle off.
For more information, refer to the
“Climate Control Additional Features”
section in this chapter.
WARNING When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent the
washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
Hyundai_CE_en_US.book Page 78
Page 276 of 582
Convenience Features
5-98
Turning Auto Dehumidify ON or OFF
Climate control system
To turn the Auto Dehumidify feature on or
off, select Face level ( ) mode and touch
the air intake control icon at least five
times within three seconds. When Auto
Dehumidify is turned on, the air intake
control button indicator will blink 6 times.
When turned off, the indicator will blink 3
times.
Infotainment system
Auto Dehumidify can be turned on and off
by selecting Setup > Vehicle > Climate >
Automatic Ventilation > Auto
Dehumidify from the infotainment
system.
Information If the battery (12 V) is discharged or
disconnected, Auto dehumidify settings will
be reset. Readjust the settings to turning Auto
dehumidify option ON or OFF.
NOTICE 7 K H L Q I R W D L Q P H Q W V \ V W H P P D \ F K D Q J H
D I W H U V R I W Z D U H X S G D W H V ) R U P R U H
L Q I R U P D W L R Q U H I H U W R W K H X V H U
V P D Q X D O
S U R Y L G H G L Q W K H L Q I R W D L Q P H Q W V \ V W H P D Q G
W K H T X L F N U H I H U H Q F H J X L G H
Sunroof Inside Air
if equipped
recirculation
When the is sunroof opened, fresh mode
will be automatically selected. At this
time, if you press the air intake control
button, recirculation mode will be
selected but will change back to fresh
mode after 3 minutes. When the sunroof
is closed, the air intake position will return
to the original position that was selected.
Recirculating Air When
Washer Fluid Is Used
Recirculation mode automatically
activates to reduce any objectionable
scent of the washer fluid from entering
the cabin when the windshield washer is
used.
Turning Activate upon Washer Fluid
Use ON or OFF
Activate upon Washer Fluid Use can be
turned on and off by selecting Setup >
Vehicle > Climate > Internal air
circulation > Activation on washer fluid
use from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
if equipped
Recirculation Mode Plus
• To prevent the inflow of polluted air
into the vehicle when passing through a
tunnel, this function automatically
closes the windows and switches the
climate control system to Recirculation
mode for about 7 seconds before
entering a tunnel based on the map
information of the navigation and the
speed of the vehicle.
• The windows automatically closes before entering a tunnel and area
requiring air recirculation. The windows
open to the previous position after
passing the area. If the power window
switch is operated before the window
opens, the window does not open to
the previous position.
• Tunnel linkage automatic control is available only for models with
Hyundai_CE_en_US.book Page 98
Page 339 of 582
6
6-51
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be inspected
by an authorized HYUNDAI dealer or in a
service station.
To prevent locks from freezing
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes, try
to thaw it with a heated key. Carefully use
the heated key to avoid an injury.
Use approved window washer anti-freeze
solution
Add authorized window washer
anti-freeze solution, as specified on the
window washer container. Window
washer anti-freeze solution is available
from an authorized HYUNDAI dealer, and
most vehicle accessory outlets. Do not
use coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Do not let your parking brake freeze
Under some conditions, your parking
brake may freeze in the engaged position.
This is most likely to happen when there is
an accumulation of snow or ice around or
near the rear brakes or the brakes are wet.
When there is the risk that your parking
brake may freeze: temporarily apply the
parking brake with the gear in P (Park),
then block the rear wheels, and then
release the parking brake.Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
may build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, check underneath the vehicle on a
regular basis, to make sure that the front
wheels and the steering components are
not blocked.
Carry emergency equipment
In accordance with weather conditions,
carry appropriate emergency equipment,
while driving. Some of the items you may
want to carry include tire chains, tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables,
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials in the
motor compartment
Putting objects or materials in the motor
compartment may cause a motor failure.
Such damage is not be covered by the
manufacturer’s warranty.
Hyundai_CE_en_US.book Page 51
Page 365 of 582
7
7-21
WARNING • Even though the warning message or warning light does not appear on the
instrument cluster, Forward
Collision-Avoidance Assist may not
properly operate.
• Forward Collision-Avoidance Assist may not properly operate in an area (for
example, open terrain), where any
objects are not detected after turning
ON the vehicle.
• If the vehicle is turned off and restarted while the camera is blocked or
malfunctioned, the condition is
maintained. Therefore, Forward
Collision-Avoidance Assist may not
operate properly.
Limitations of Forward
Collision-Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the surroundings are contaminated or
damaged
• The temperature around the front view camera is high or low due to
surrounding environment
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the glass
• Moisture is not removed or frozen on the windshield
• Washer fluid is continuously sprayed, or the wiper is on
• Driving in heavy rain or snow, or thick fog
• The field of view of the front view camera is obstructed by sun glare • Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard
• Your vehicle is being towed
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlights are not on or are not bright
• Driving through steam, smoke or shadow
• Only part of the vehicle, powered two-wheeler, pedestrian or cyclist is
detected
• The vehicle or powered two-wheeler in front is a bus, heavy truck, truck with an
unusually shaped cargo, trailer, etc.
• The vehicle or powered two-wheeler in front has no tail lights, tail lights are
located unusually, etc.
• The brightness outside is low, and the tail lights are not on or are not bright
• The rear of the front vehicle is small or the vehicle does not look normal, such
as when the vehicle is tilted,
overturned, or the side of the vehicle is
visible, etc.
• The front vehicle’s ground clearance is low or high
• A vehicle, powered two-wheeler, pedestrian or cyclist suddenly cuts in
front
• The bumper around the front radar is impacted, damaged or the front radar is
out of position
• The temperature around the front radar is high or low
• Driving through a tunnel or iron bridge
• Driving in vast areas where there are few vehicles or structures (for example,
desert, meadow, suburb, etc.)
Hyundai_CE_en_US.book Page 21
Page 416 of 582
Driver Assistance System
7-72
the vehicle inspected by an authorized
HYUNDAI dealer.
Smart Cruise Control disabled
B0349EE02
When the front radar cover or sensor is
covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the 'Smart Cruise Control
disabled. Radar blocked' warning
message will appear for a certain period
of time on the instrument cluster.
Smart Cruise Control will operate
properly when snow, rain or foreign
material is removed.
WARNING Even though the warning message does
not appear on the instrument cluster,
Smart Cruise Control may not properly
operate.
CAUTION Smart Cruise Control may not properly
operate in an area (for example, open
terrain), where there is nothing to detect
after turning ON the vehicle.
Limitations of Smart Cruise Control
Smart Cruise Control may not operate
properly, or it may operate unexpectedly
under the following circumstances:
• The detecting sensor or the surroundings are contaminated or
damaged
• Washer fluid is continuously sprayed, or the wiper is on
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the glass
• Moisture is not removed or frozen on the windshield
• The field of view of the front view camera is obstructed by sun glare
• Street light or light from an oncoming vehicle is reflected on the wet road
surface, such as a puddle on the road
• The temperature around the front view camera is high or low
• An object is placed on the dashboard
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlights are not on or are not bright
• Driving in heavy rain or snow, or thick fog
• Driving through steam, smoke or shadow
• Only part of the vehicle is detected
• The vehicle in front has no tail lights, tail lights are located unusually, etc.
• The brightness outside is low, and the tail lights are not on or are not bright
• The rear of the front vehicle is small or does not look normal (for example,
tilted, overturned, etc.)
Hyundai_CE_en_US.book Page 72
