2023 HYUNDAI IONIQ 6 Owners Manual

5
5-47
Power Windows
The Start/Stop button must be in the ON
position to be able to raise or lower the
windows. The front door window power
window switch is located on the center
console along with the power window
lock button which can block the
operation of rear passenger windows. The
power window switch for the rear door
windows are on the rear doors. The power
windows will operate for about 3 minutes
after the Start/Stop button is in the ACC
or OFF position. However, if the front
doors are opened, the power windows
will not operate even within the 3 minute
period.
Window opening and closing
B5008201
To open:
Press the window switch down to the first
detent position (5). Release the switch
when you want the window to stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is released.
To stop the window at the desired
position while the window is in operation, pull up or press down and release the
switch.
WARNING • Do not leave the vehicle turned on (
indicator on) and the key in your vehicle
with unsupervised children.
Unattended children could operate the
window, which could result in serious
injury.
• Do not extend your head, arms, body parts or objects outside the window
while driving.

Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window switch for at
least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized HYUNDAI
dealer.
WARNING The automatic reverse feature doesn’t
activate while resetting the power
window system.

6
5
5
6
Hyundai_CE_en_US.book Page 47

Convenience Features
5-48
Automatic reverse
B5008202
If a window senses any obstacle while it is
closing automatically, it will stop and
lower about 12 in. (30 cm) to allow the
object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower about 1 in.
(2.5 cm).
If the power window switch is pulled up
continuously again within 5 seconds after
the window is lowered by the automatic
window reverse feature, the automatic
window reverse will not operate.
Information The automatic reverse feature is only active
when the “Auto Up” feature is used by fully
pulling up the switch to the second detent.

WARNING Make sure body parts or other objects are
safely out of the way before closing the
windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel may
not be detected by the automatic reverse
window and the window will not stop and
reverse direction.

Power window lock button
B5008203
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
• The driver’s master control can operate all the power windows.
• The front passenger’s control can operate the front passenger’s power
window.
• The rear passenger’s control cannot operate the rear passengers’ power
window.
WARNING Do not allow children to play with the
power windows. Keep the driver’s door
power window lock button in the LOCK
position. Serious injury or death can result
from unintentional window operation by
a child.

NOTICE
[ 7RSUHYHQWSRVVLEOHGDPDJHWRWKHSRZHUZLQGRZV\VWHPGRQRWRSHQRU
FORVHWZRZLQGRZVRUPRUHDWWKHVDPH
WLPH7KLVZLOODOVRHQVXUHWKHORQJHYLW\
RIWKHIXVH

[ 1HYHUWU\WRRSHUDWHWKHPDLQVZLWFKRQ WKHGULYHU
TVGRRUDQGWKHLQGLYLGXDO
GRRUZLQGRZVZLWFKLQRSSRVLWH
GLUHFWLRQVDWWKHVDPHWLPH,IWKLVLV
Hyundai_CE_en_US.book Page 48

5
5-49

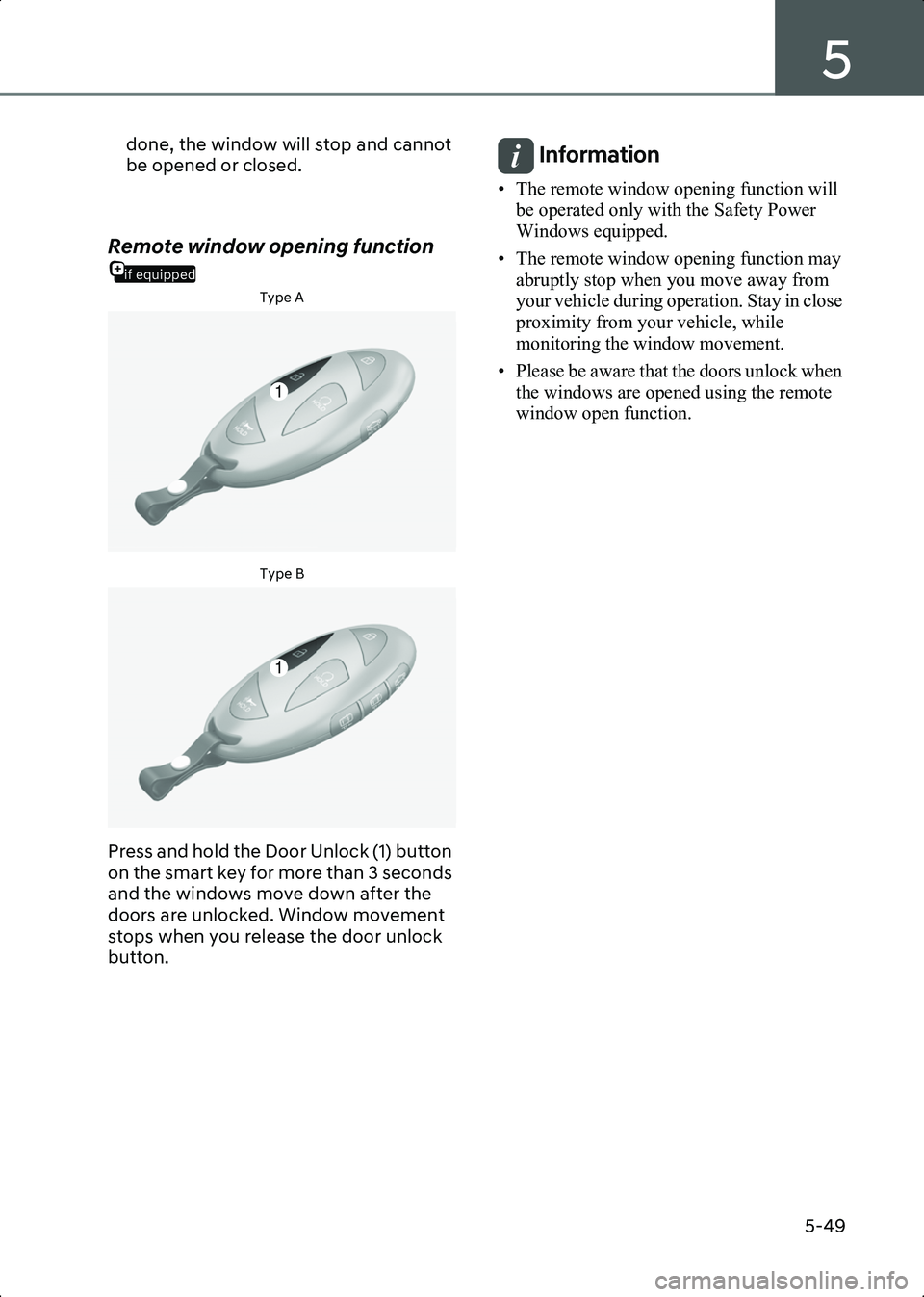

done, the window will stop and cannot
be opened or closed.

if equipped
Remote window opening function
Type A
B5008301Type B
B5008302
Press and hold the Door Unlock (1) button
on the smart key for more than 3 seconds
and the windows move down after the
doors are unlocked. Window movement
stops when you release the door unlock
button.
Information • The remote window opening function will be operated only with the Safety Power
Windows equipped.
• The remote window opening function may abruptly stop when you move away from
your vehicle during operation. Stay in close
proximity from your vehicle, while
monitoring the window movement.
• Please be aware that the doors unlock when the windows are opened using the remote
window open function.

1
1
Hyundai_CE_en_US.book Page 49

Convenience Features
5-50
if equipped
Wide Sunroof
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof switch located on the overhead
console.
B5027301
The sunroof can only be operated when
the Start/Stop button is in the ON or
START position.
The sunroof can be operated for about 3
minutes after the Start/Stop button is in
the ACC or OFF position. However, if the
front door is open, the sunroof cannot be
operated even within the 3 minute period.
WARNING • Adjust the sunroof or sunshade when your vehicle stops. This could result in
loss of control and an accident that may
cause injury, or property damage.
• Do not leave the vehicle running and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It may cause injury or vehicle damage.

NOTICE'RQRWRSHUDWHWKHVXQURRIZKHQURRI
EDUVDUHLQVWDOOHGRQWKHYHKLFOHRUZKHQ
WKHUHLVOXJJDJHRQWKHURRI

Power sunshade
B5027401
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
• Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
• Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE'RQRWSXOORUSXVKWKHSRZHUVXQVKDGH
E\KDQGDVVXFKDFWLRQPD\GDPDJHWKH
SRZHUVXQVKDGHRUFDXVHLWWR
PDOIXQFWLRQ

Information Wrinkles formed on the power sunshade are
normal due to material characteristic.

Hyundai_CE_en_US.book Page 50

5
5-51
Tilt open/close
B5027501
• Push the sunroof switch upward, the sunroof glass tilts open. However, if the
power sunshade is closed, the
sunshade will open first.
• Push the sunroof switch upward or forward when the sunroof glass is tilt
opened, the sunroof glass
automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide open/close
B5027601
• Push the sunroof switch rearward to the first detent position, the sunroof glass
opens. However, if the power sunshade
is closed, the power sunshade will open
first.
Push the sunroof switch forward to the
first detent position, the sunroof glass
closes. However, if the sunroof glass is
closed, the power sunshade will close. • Push the sunroof switch forward or
rearward to the second detent position,
the power sunshade and sunroof glass
operate automatically (auto slide
feature). To stop the sunroof
movement at any point, push the
sunroof switch in any direction.
Automatic reversal
B5027701
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not work if
an object thin or soft is caught between
the sliding power sunshade or sunroof
glass and sunroof sash.
WARNING • Make sure heads, hands, arms or any other body parts or objects are out of
the way before operating the sunroof.
Body parts or objects may get caught
causing injuries or vehicle damage.
• Never deliberately use your body parts to test the automatic reversal function.
The power sunshade or sunroof glass
may reverse direction, but there is a risk
of injury.

Hyundai_CE_en_US.book Page 51

Convenience Features
5-52
NOTICE
[ 'RQRWFRQWLQXHWRSXVKWKHVXQURRIVZLWFKDIWHUWKHVXQURRILVIXOO\RSHQHG
FORVHGRUWLOWHG'DPDJHWRWKHVXQURRI
PRWRUFRXOGRFFXU

[ &RQWLQXRXVRSHUDWLRQVVXFKDVVOLGH RSHQFORVHWLOWRSHQFORVHHWFPD\
FDXVHWKHPRWRURUVXQURRIV\VWHPWR
PDOIXQFWLRQ

[ 5HJXODUO\UHPRYHDQ\DFFXPXODWHG GXVWRQWKHVXQURRIUDLO

[ 'XVWDFFXPXODWHGEHWZHHQWKHVXQURRI DQGURRISDQHOFDQPDNHQRLVH2SHQ
WKHVXQURRIDQGUHPRYHGXVWUHJXODUO\
XVLQJDFOHDQFORWK

[ 'RQRWWU\WRRSHQWKHVXQURRIZKHQWKH WHPSHUDWXUHLVEHORZIUHH]LQJRUZKHQ
WKHVXQURRILVFRYHUHGZLWKVQRZRULFH
7KHVXQURRIPD\QRWZRUNSURSHUO\DQG
PD\EUHDNLIRSHQHGE\IRUFH

[ 'RQRWRSHQRUGULYHZLWKWKHVXQURRI JODVVRSHQLPPHGLDWHO\DIWHUUDLQRU
ZDVKLQJWKHYHKLFOH:DWHUPD\ZHWWKH
LQWHULRURIWKHYHKLFOH

[ 'RQRWH[WHQGDQ\OXJJDJHRXWVLGHWKH VXQURRIZKLOHGULYLQJ9HKLFOHGDPDJH
PD\RFFXULIWKHYHKLFOHVXGGHQO\
VWRSV

WARNING Do not extend your head, arms, body
parts or objects outside the sunroof while
driving. Injuries may occur if the vehicle
suddenly stops.

Resetting the sunroof
B5027801

In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When the 12 V battery is either disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/CLOSE operation is not
functioning properly
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle running.
Start the vehicle in P (Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass are open, push the switch
forward until the power sunshade and
sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass move
slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
Hyundai_CE_en_US.book Page 52

5
5-53
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information If the sunroof is not reset after the vehicle
battery is disconnected or discharged, or the
sunroof fuse is blown, the sunroof may not
operate normally.

Sunroof open warning
B5027901
If the driver turns off the vehicle when the
sunroof is not fully closed, the warning
chime will sound for several seconds and
the sunroof open warning will appear on
the cluster display. Close the sunroof
securely when leaving your vehicle.
CAUTION Make sure the sunroof is closed fully
when leaving your vehicle. If the sunroof
is left open, rain or snow may wet the
interior of the vehicle. Also, leaving the
sunroof open when the vehicle is
unattended may invite theft.

Hood
Opening the Hood
B5010001
1. Park the vehicle and apply the parking brake.
2. Pull the release lever to unlatch the hood. The hood pops open slightly.
B5010002
3. Go to the front of the vehicle, raise the hood slightly, push to the left the
secondary hood release lever (1) inside
of the hood center and lift the hood (2).
Closing the Hood
1. Before closing the hood, check in and around the motor compartment to
ensure the following:
• Any tools or other loose objects have been removed.
• All glove, rags, or other combustible material have been removed.
Hyundai_CE_en_US.book Page 53

Convenience Features
5-54
• All filler caps are tightly and correctly installed
2. Lower the hood until it is about 12 in. (30 cm) above the closed position and then
let it drop.
3. Check the hood has locked properly. If the hood is raised slightly, open it again
and drop it from a little higher. Check
again.
WARNING • Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Always double check to make sure that the hood is firmly latched before driving
away. Check there is no hood open
warning light or message displayed on
the instrument cluster. Driving with the
hood open may cause a total loss of
visibility, resulting in a collision.
• Do not move the vehicle with the hood raised. It may block your vision and may
result in a collision.

Front Trunk
Opening the Front Trunk
B5010702
Opening the hood reveals the front trunk
and you can store your belongings.
Information Front trunk weight limit: 25 lbs. (10 kg)
The front trunk’s weight limit depends on the
specifications.

WARNING • NEVER make an attempt to get inside the front trunk. It will cause a fatal
injury.
• Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Never store cigarette lighters, propane cylinders, or other
flammable/explosive materials in the
vehicle. These items may catch fire
and/or explode if the vehicle is exposed
to hot temperatures for extended
periods.

Hyundai_CE_en_US.book Page 54
