2023 HYUNDAI IONIQ 6 Owners Manual

5
5-79

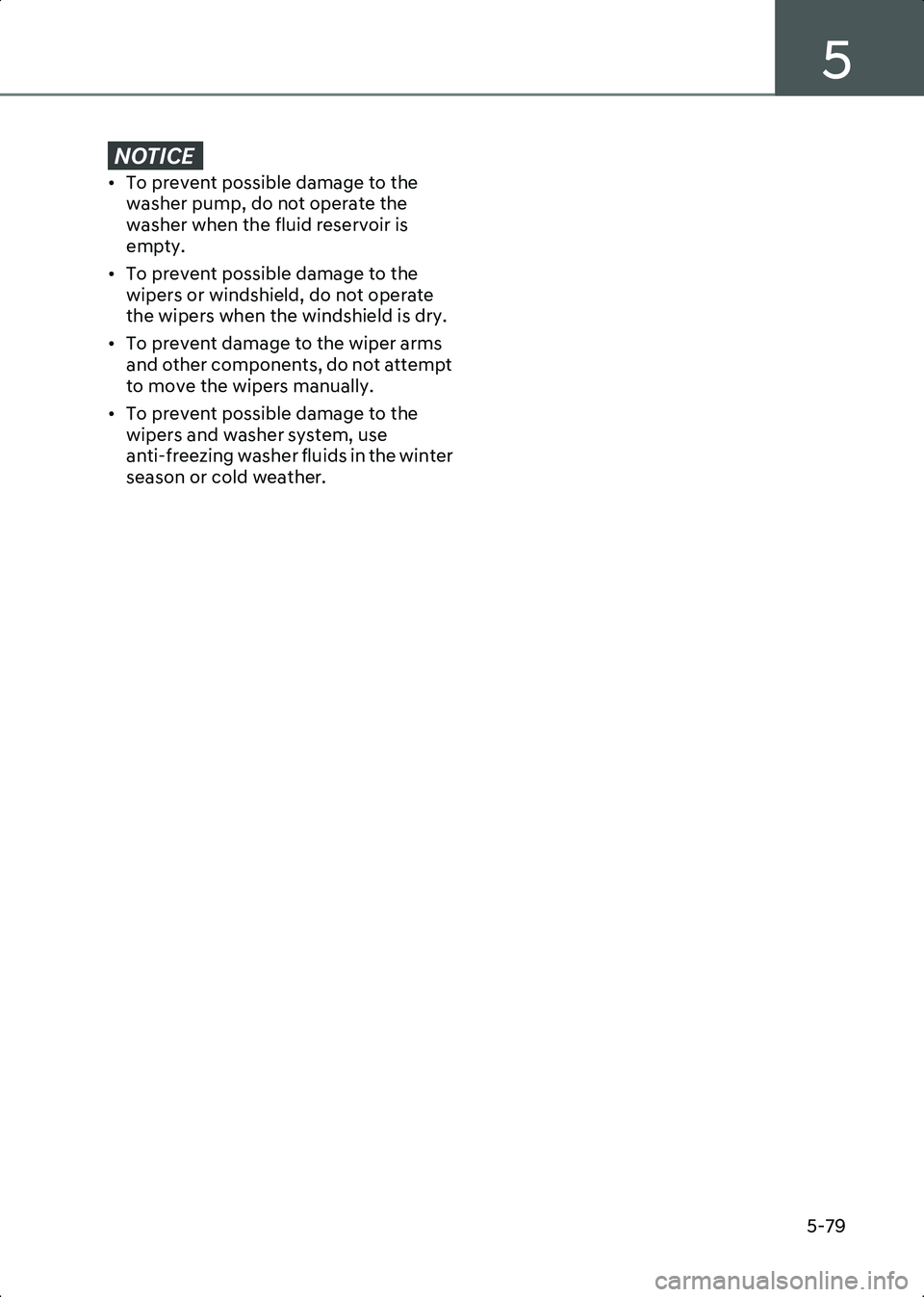

NOTICE
[ 7RSUHYHQWSRVVLEOHGDPDJHWRWKHZDVKHUSXPSGRQRWRSHUDWHWKH
ZDVKHUZKHQWKHIOXLGUHVHUYRLULV
HPSW\

[ 7RSUHYHQWSRVVLEOHGDPDJHWRWKH ZLSHUVRUZLQGVKLHOGGRQRWRSHUDWH
WKHZLSHUVZKHQWKHZLQGVKLHOGLVGU\

[ 7RSUHYHQWGDPDJHWRWKHZLSHUDUPV DQGRWKHUFRPSRQHQWVGRQRWDWWHPSW
WRPRYHWKHZLSHUVPDQXDOO\

[ 7RSUHYHQWSRVVLEOHGDPDJHWRWKH ZLSHUVDQGZDVKHUV\VWHPXVH
DQWLIUHH]LQJZDVKHUIOXLGVLQWKHZLQWHU
VHDVRQRUFROGZHDWKHU

Hyundai_CE_en_US.book Page 79

Convenience Features
5-80
Automatic Climate Control System
Climate control panel
A5019801Infotainment System (Climate)
A5019802The actual shape for the climate control panel and infotainment system may differ from the illustration.
(1) Driver’s temperature control
(2) Passenger’s temperature control
(3) Display the air flow direction
(4) View climate infotainment system
(5) AUTO (automatic control)
(6) Mode selection button
(7) Fan speed up
(8) Fan speed down/OFF
(9) Front windshield defroster
(10) Rear windshield defroster
(11) Air intake control
(12) Driver only mode
(13) A/C (air conditioning) ON/OFF
(14) Heating ON/OFF
1
56
8
2
16
171213
1415
Hyundai_CE_en_US.book Page 80

5
5-81
(15) SYNC
(16) Ambient temperature display
(17) System OFF
(18) Seat warmer/air ventilation infotainment system
Information Use a clean soft microfiber cloth to gently wipe any finger prints off the touch screen.

Hyundai_CE_en_US.book Page 81

Convenience Features
5-82
Climate
Climate control panel
B5019802
Touch 'CLIMATE' icon to view the climate
information in the infotainment system.
Infotainment System
ONE1051249L
To view the climate information screen,
select 'Climate' in the main infotainment
system when the vehicle is ON.
Automatic Temperature
Control Mode
1. Press 'AUTO' icon or touch the 'AUTO'
icon in the infotainment system to
select the fan speed (level 1-3).
Climate control panel
B5019901Infotainment system
B5019902
Hyundai_CE_en_US.book Page 82

5
5-83
2. Adjust the temperature with the temperature control icon.
The fan speed level only can be changed
manually.
The following systems can be
respectively adjusted while the AUTO
climate control is on. When those systems
are adjusted, AUTO indicator lights will
turn off.
• Fan speed level
• A/C (Air condition)
• Mode selection
• Front windshield defroster (When defroster is turned off, AUTO indicator
light will illuminate)
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72 °F (22 °C).
To change the temperature unit from °C
to °F or °F to °C:
Select Setup > General > Unit >
Temperature Unit > °C/°F from the Settings menu in the infotainment
system.
B5019903
Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by selecting
functions other than
'AUTO'. In this case,
the system works sequentially according
to the order of the functions selected.
When selecting any other functions
except 'AUTO' while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the vehicle.
2. Set the mode to the desired position.
To improve the effectiveness of heating
and cooling, select the mode according
to the following:
• Heating:
• Cooling:
3. Set the temperature control to the desired value.
4. Set the air intake control to Fresh or Recirculation mode.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
7. Select 'AUTO' to revert back to full
automatic control of the system.
LevelAUTO
IndicatorClimate
InformationFan
Speed Level
3 HIGH 1-8
2 MEDIUM 1-6
1 LOW 1-4
Hyundai_CE_en_US.book Page 83

Convenience Features
5-84
Mode selection
Climate control panel
B5020001Infotainment system
B5020002
Air flow direction
Touch the air flow direction icon in the
infotainment system to select the desired
air flow direction. The selected air flow
direction will be displayed on the
infotainment system.
Hyundai_CE_en_US.book Page 84

5
5-85

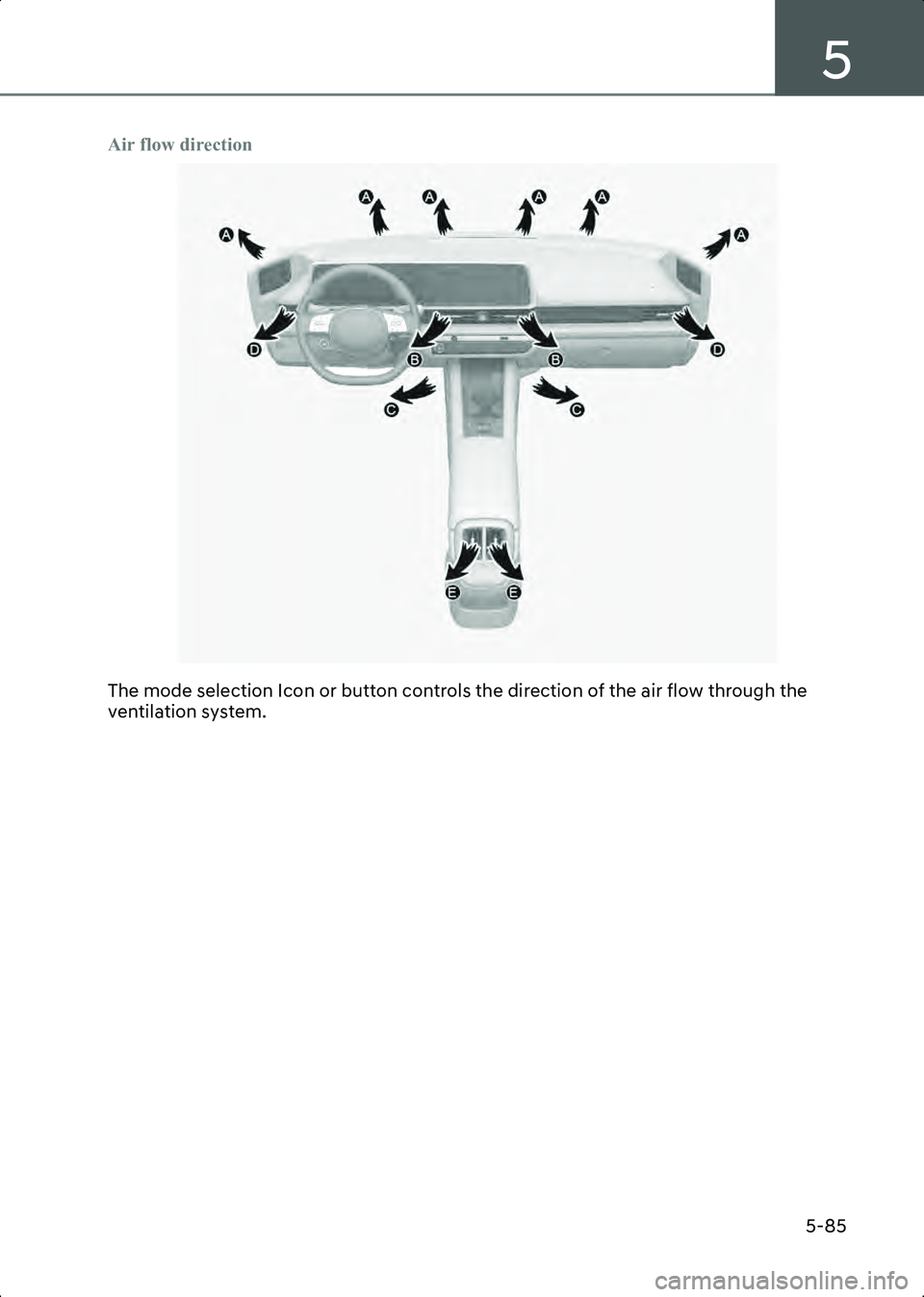

Air flow direction
A5020001
The mode selection Icon or button controls the direction of the air flow through the
ventilation system.
Hyundai_CE_en_US.book Page 85

Convenience Features
5-86
Face-Level (B, D)
Air flow is directed toward the upper body
and face. Additionally, each outlet can be
controlled to direct the air discharged
from the outlet.
Bi-Level (B, C, D, E)
Air flow is directed towards the face and
the floor.
All Level (A, B, C, D, E, F)
Air flow is directed toward the face, the
floor and the windshield.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the
floor, with a small amount of the air being
directed to the windshield and side
window defrosters.
Floor/Defrost-Level (A, C, D, E)
Most of the air flow is directed to the floor
and the windshield with a small amount
directed to the side window defrosters.
Defroster-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.Front windshield defroster
B5020003
Defrost-level (A, D)
Press the icon, and the indicator light will
illuminate and the windshield defroster
indicator will appear on the climate
control panel.
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
When Defogging logic is enabled, Fresh
mode is selected and air conditioning is
selected according to outside
temperature.
If the icon is pressed again, the indicator
light will turn off and the previous settings
will be selected.
